CRL C0EW2436A Satin Anodized 28"x38" Bullet Resistant Clamp-On Window with Speak-Thru ShelfC.R. Laurence C0EW2436A Satin Anodized 28" Wide x 38" High Bullet Resistant Clamp-On Exterior Window offers superior protection while maintaining functionality and style. Specifically designed for wall openings ranging from 5" to 8-1/2" thick, this window features a clamp-on frame that ensures a secure installation. Crafted from .125" thick extruded 6063-T5 aluminum alloy, the frame is available in a sleek satin anodized or bronze anodized finish, complemented by a brushed stainless steel shelf. With a 12" deep shelf and a non-ricochet bullet-resistant deal tray, this unit provides Level 1 protection, while the 1-1/4" thick acrylic glazing also meets Level 1 standards. It includes a built-in N666 Speak-Thru, offering Level 3 protection without compromising voice transmission, ensuring efficient communication in various environments. Ideal for both interior and exterior applications, the window is assembled and ready to install, with detailed specifications available online. Custom units can be requested for higher protection levels. This window is perfect for areas requiring security and accessibility, making it an excellent choice for hospitality, service, and security systems. Enjoy the peace of mind that comes with C.R. Laurence's commitment to quality and safety.
Satin Anodized 28" Wide x 38" High Bullet Resistant Clamp-On Exterior Window With Speak-Thru and Shelf With Deal Tray Protection Level 1
- Fits Walls from 5" to 8-1/2" (127 to 216 mm) Thick
- Assembled and Ready-to-Install
- Drawings and Specifications are Available Online
This

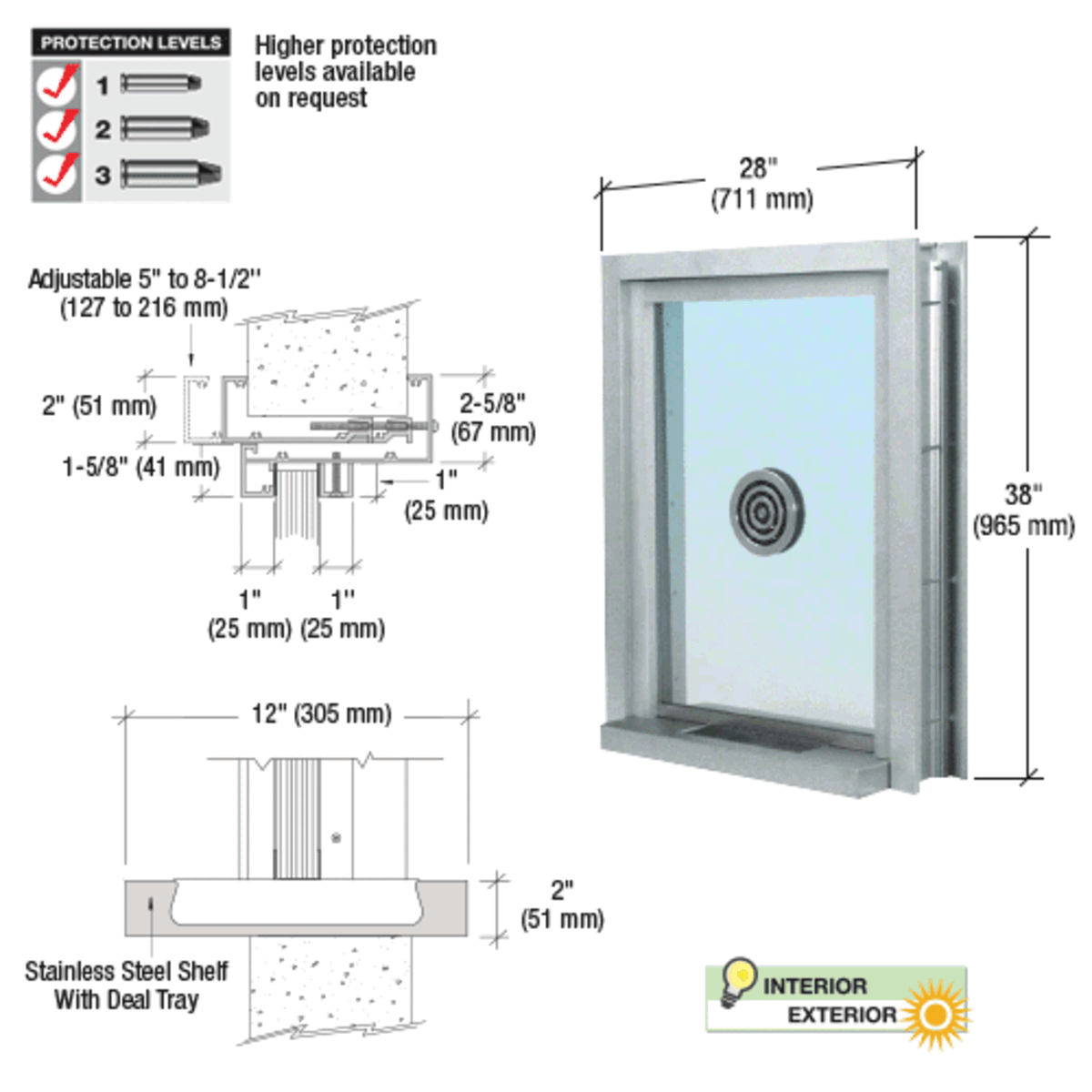

CRL Bullet Resistant Exchange Window uses a Clamp-On Frame designed for installation into wall openings that are 5" to 8-1/2" (127 to 216 mm) thick. The window is secured in the opening by tightening the interior side of the frame to the unit. Each window comes complete with a 12" (305 mm) deep Stainless Steel Shelf with a Non-Ricochet Bullet Resistant Deal Tray. The 1-1/4" (32 mm) thick bullet resistant acrylic is rated for Level 1 protection. A Cat. No. N666 Speak-Thru is built into the acrylic, and offers Level 3 protection while allowing natural voice transmission. An overhang is recommended if used in an exterior application. Two finishes and two sizes are available in stock. Custom units are available.
SPECIFICATIONS:
Materials: Frame - .125" (3 mm) Thick Extruded 6063-T5 Aluminum Alloy; Glazing - 1-1/4" (32 mm) Level 1 Acrylic; Shelf - Stainless Steel
Finishes: Frame - Satin Anodized or Bronze Anodized; Shelf - Brushed Stainless Steel #4 Finish
Speak-Thru: N666 Level 3 Stainless Steel
Deal Tray: Level 1 Protection
Instructions Included
Standard Models are Protection level 1, Higher levels on custom orders only.
Most shipping weights are approximate and have not been verified. If the exact weight is needed in order to determine shipping costs, and shipping costs are required in order for you to complete your order, please request this prior to submitting your order by contacting CRL Customer Service. Product images shown are of the actual product or a close representation. Colors can vary depending on your computer's video card and on how your monitor's color is adjusted.
Attributes
Ship via: No UPS - Common Carrier Only
Code Compliances: UL 752
Compliance and Restrictions: Warning Reproductive Harm - www.p65warnings.ca.gov
Deal Tray Depth: 8-1/4 in. (209.6 mm)
Deal Tray Height: 1-9/16 in. (39.7 mm)
Deal Tray Width: 11 in. (279.4 mm)
Finish - Shelf & Deal Tray: Brushed Stainless Steel
Finish/ Color:: Satin Anodized
Frame Depth: 5 in. To 8-1/2 in. (127 mm To 216 mm)
Frame Width: 2-5/8 in. (66.7 mm)
Glazed: Yes
Glazing Thickness: 1-1/4 in. (32 mm)
Glazing Type: Acrylic
Height: 38 in. (965.2 mm)
Includes: N666 Speak-Thru
Material: Aluminum
Protection Level: 1
Shelf Depth: 12 in. (304.8 mm)
Shelf Thickness: 2 in. (50.8 mm)
Shelf Width: 22-3/4 in. (577.9 mm)
Shipping Limitations: No UPS - Common Carrier Only
Surround Sound Feature: No
Usage: Interior,Exterior
Width: 28 in. (711.2 mm)
Window Style: Fixed Single Lite
