CRL C0EW3636DU Duranodic Bronze 40" Bullet Resistant Window with Speak-Thru ShelfC.R. Laurence C0EW3636DU Duranodic Bronze Anodized 40" Wide Bullet Resistant Exterior Window with Surround Sound, Speak-Thru and Shelf with Deal Tray offers a robust solution for secure communication in various environments. Designed to fit wall thicknesses from 5" to 8-1/2" (127 to 216 mm), this window features a Clamp-On Frame that simplifies installation by tightening the interior side of the frame to the unit. Constructed from .125" (3 mm) thick extruded 6063-T5 aluminum alloy, the window boasts a 1-1/4" (32 mm) thick bullet-resistant acrylic rated for Level 1 protection. The included Stainless Steel Shelf measures 12" (305 mm) deep, equipped with a Non-Ricochet Bullet Resistant Deal Tray, ensuring safe transactions. For enhanced communication, the integrated N666 Speak-Thru provides Level 3 protection while allowing clear voice transmission. Available in Duranodic Bronze Anodized or Satin Anodized finishes, this product meets stringent UL 752 code compliance, making it ideal for both interior and exterior applications. With specifications including a frame width of 2-5/8" (66.7 mm) and a height of 38" (965.2 mm), the C0EW3636DU is assembled and ready to install, complete with detailed drawings and instructions available online for easy reference.
Duranodic Bronze Anodized 40" Wide Bullet Resistant Exterior Window with Surround Sound, Speak-Thru and Shelf with Deal Tray
- Fits Walls From 5" to 8-1/2" (127 to 216 mm) Thick
- Assembled and Ready-to-Install
- Drawings and Specifications are Available Online
This

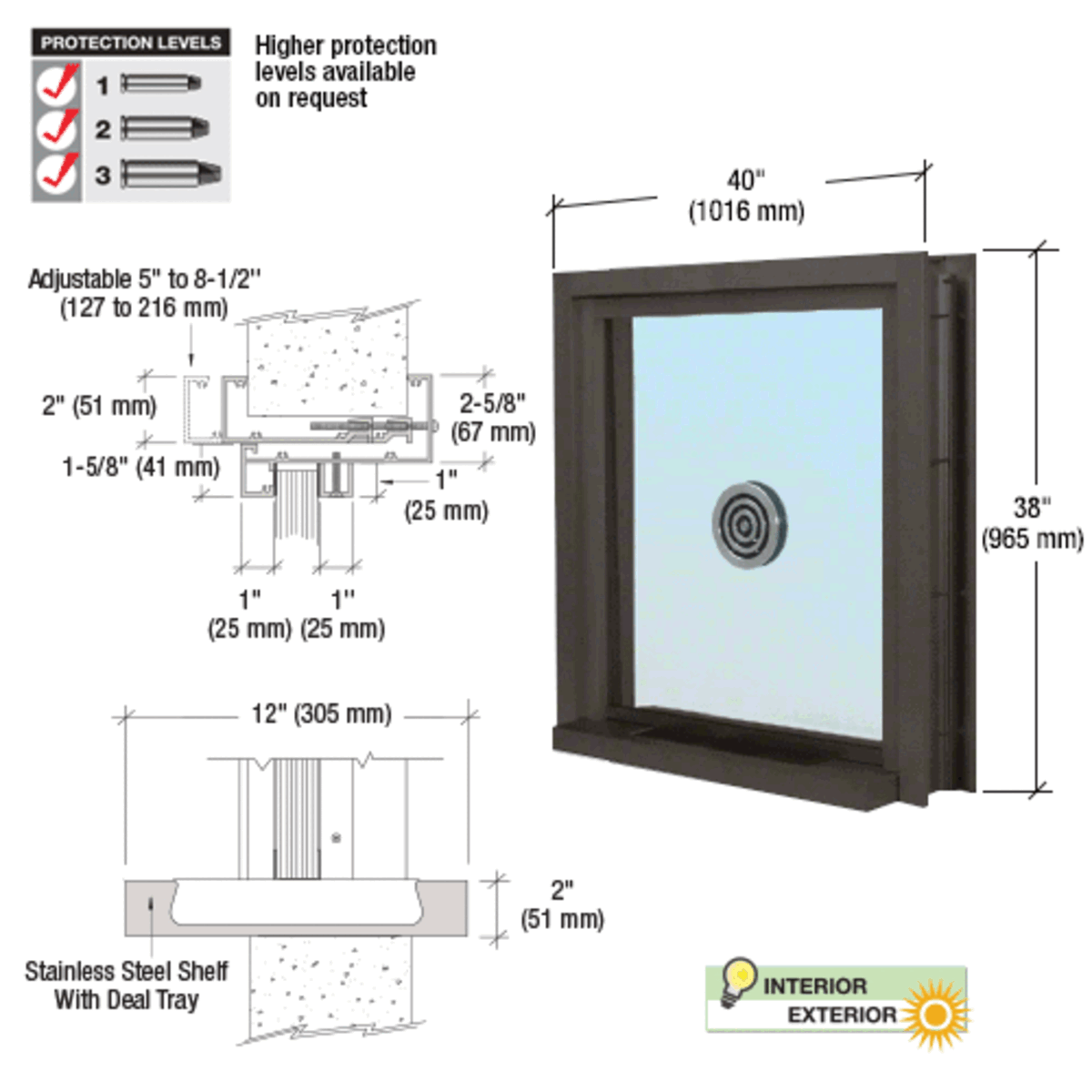

CRL Bullet Resistant Exchange Window uses a Clamp-On Frame designed for installation into wall openings that are 5" to 8-1/2" (127 to 216 mm) thick. The window is secured in the opening by tightening the interior side of the frame to the unit. Each window comes complete with a 12" (305 mm) deep Stainless Steel Shelf with a Non-Ricochet Bullet Resistant Deal Tray. The 1-1/4" (32 mm) thick bullet resistant acrylic is rated for Level 1 protection. A Cat. No. N666 Speak-Thru is built into the acrylic, and offers Level 3 protection while allowing natural voice transmission. An overhang is recommended if used in an exterior application. Two finishes and two sizes are available in stock. Custom units are available.
SPECIFICATIONS:
Materials: Frame - .125" (3 mm) Thick Extruded 6063-T5 Aluminum Alloy; Glazing - 1-1/4" (32 mm) Level 1 Acrylic; Shelf - Stainless Steel
Finishes: Frame - Satin Anodized or Bronze Anodized; Shelf - Brushed Stainless Steel #4 Finish
Speak-Thru: N666 Level 3 Stainless Steel
Deal Tray: Level 1 Protection
Instructions Included
Most shipping weights are approximate and have not been verified. If the exact weight is needed in order to determine shipping costs, and shipping costs are required in order for you to complete your order, please request this prior to submitting your order by contacting CRL Customer Service. Product images shown are of the actual product or a close representation. Colors can vary depending on your computer's video card and on how your monitor's color is adjusted.
Attributes
Ship via: No UPS - Common Carrier Only
Code Compliances: UL 752
Compliance and Restrictions: Warning Reproductive Harm - www.p65warnings.ca.gov
Deal Tray Depth: 8-1/4 in. (209.6 mm)
Deal Tray Height: 1-9/16 in. (39.7 mm)
Deal Tray Width: 11 in. (279.4 mm)
Finish - Shelf & Deal Tray: Brushed Stainless Steel
Finish/ Color:: Duranodic Bronze Anodized
Frame Depth: 5 in. To 8-1/2 in. (127 mm To 216 mm)
Frame Width: 2-5/8 in. (66.7 mm)
Glazed: Yes
Glazing Thickness: 1-1/4 in. (32 mm)
Glazing Type: Acrylic
Height: 38 in. (965.2 mm)
Includes: N666 Speak-Thru
Material: Aluminum
Protection Level: 1
Shelf Depth: 12 in. (304.8 mm)
Shelf Thickness: 2 in. (50.8 mm)
Shelf Width: 34-3/4 in. (882.7 mm)
Shipping Limitations: No UPS - Common Carrier Only
Surround Sound Feature: No
Usage: Interior,Exterior
Width: 40 in. (1016 mm)
Window Style: Fixed Single Lite
