CRL C0L037ABR Antique Brass Cologne 037 Wall Mount 'H' Back Plate HingeC.R. Laurence Antique Brass Cologne 037 Series Wall Mount 'H' Back Plate Hinge offers a sophisticated solution for supporting heavier shower doors with its robust design and elegant finishes. Accommodating glass thicknesses of 3/8" to 1/2" (10 to 12 mm), this hinge can securely hold doors weighing up to 110 lbs. (49.9 kg) with two hinges or 140 lbs. (63.5 kg) with three, ensuring versatility for various installations. Engineered with a self-centering mechanism and a reversible 5-degree pivot pin, the Cologne hinge provides enhanced adjustability. It features radius corners and beveled edges, adding a sleek aesthetic to any bathroom. The hinge is compatible with monolithic tempered glass, making it an ideal choice for corner, niche, or bathtub enclosures. Included with the hinge are gaskets, screws, and glass fabrication dimensions, simplifying the installation process. Custom pivot pins are also available for off-angle installations, catering to unique architectural needs. With a three-year warranty and multiple finishes, including the timeless antique brass, the Cologne hinge combines durability with style. Whether for residential or hotel use, this hinge is designed to meet the demands of modern design while ensuring functionality and safety.

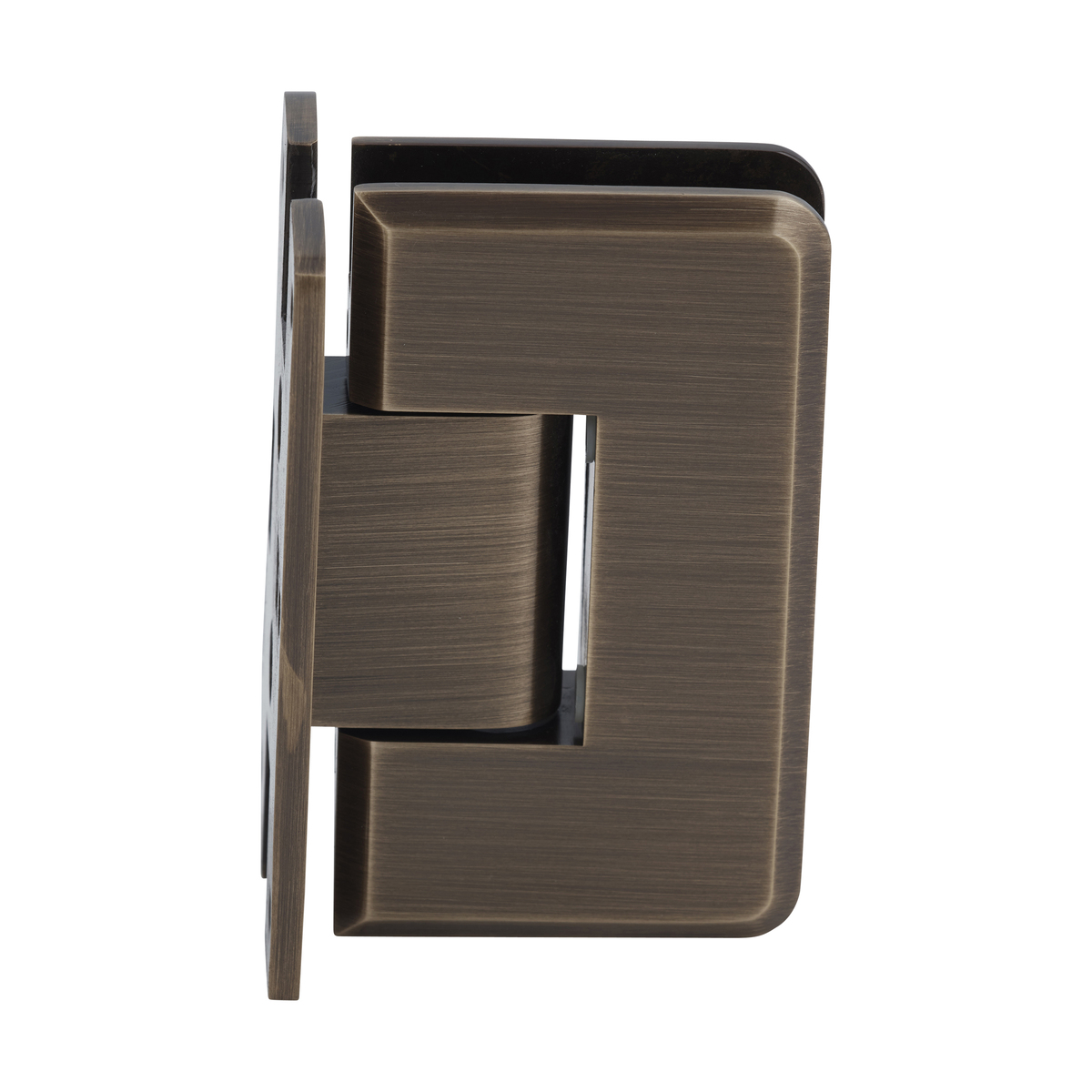

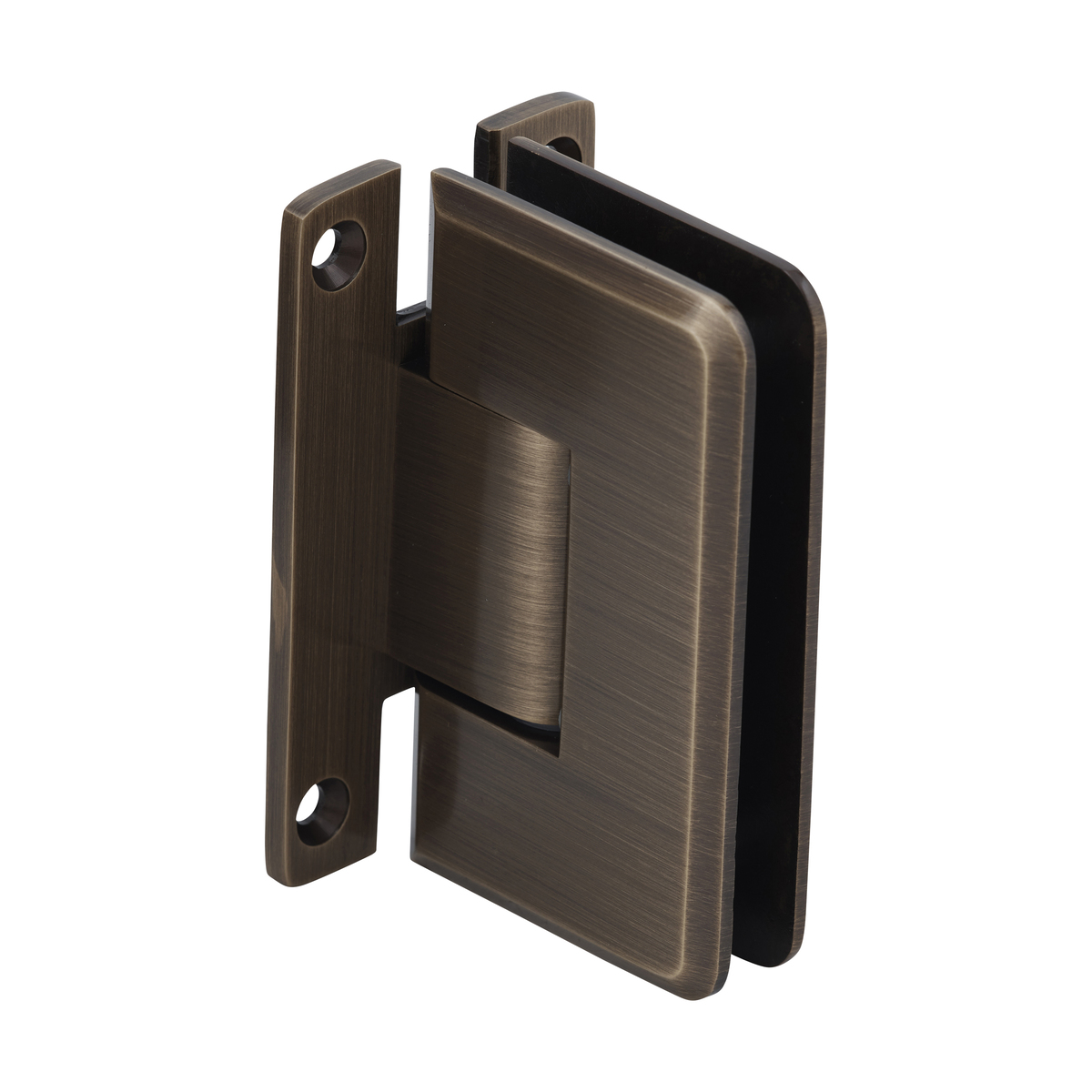

Antique Brass Cologne 037 Series Wall Mount 'H' Back Plate Hinge
- Accommodates 3/8" to 1/2" (10 to 12 mm) Glass
- Self-Centering with Reversible 5 Degree Pivot Pin
- Available in Several Beautiful Finishes

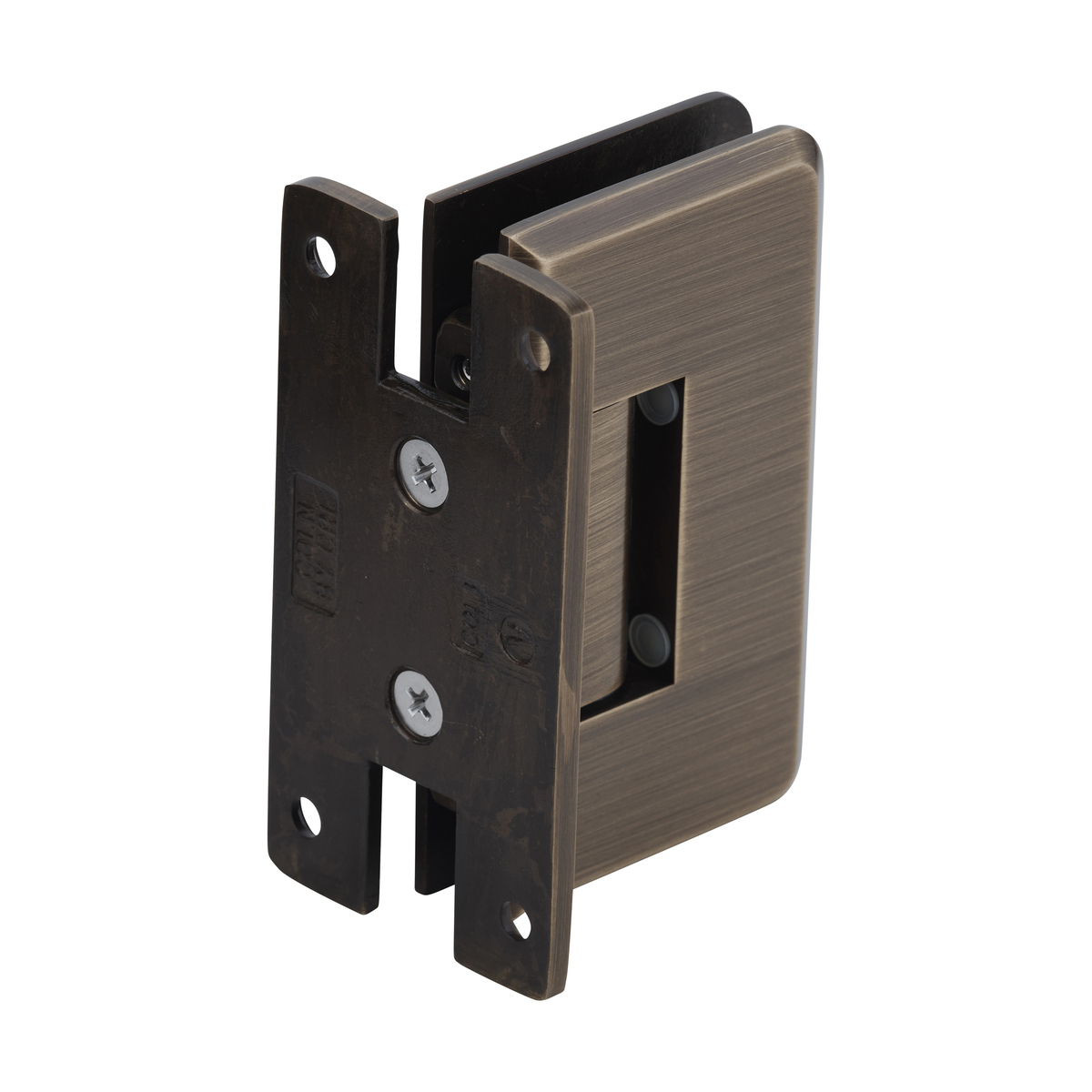

- Wall Mount 'H' Back Plate Standard Model
- Use Monolithic Tempered Glass
CRL Cologne Hinges are similar to the popular Vienna Hinges, but with one change: They have radius corners and beveled edges to provide a sleek appearance. Cologne Hinges are the solution for wider, heavier doors that traditional hinges are not strong enough to support. Two strategically placed steel pins inside the hinge provide template options, and satisfy two schools of thought for mounting shower door hinges. For the safety of "mouse-ears" type cut-outs, the two steel pins should be left in place. This allows the Cologne Hinge to be used with its own CRL "mouse-ears" cut-out. On the other hand, to enable increased adjustability, the two pins can be removed. This allows the Cologne Hinge to fit its own CRL rectangular shaped, square cornered cut-out. In some cases, it will also fit competitive rectangular, square cornered cut-outs.
STANDARD REVERSIBLE PIVOT PIN: Each Cologne Hinge contains a Reversible Pivot Pin. One side of the Pin is marked at 90º. The opposite side of the Pin is marked 85º. Standard Cologne Hinges come with the 90º side activated. Pre-Set Models come with the Pin pre-set for 85º (5º tighter closure into shower interior). The Pin can be rotated (not flipped upside down) to activate the other side.
CUSTOM PIVOT PIN: Custom Pivot Pins are available to accommodate "off-angle" installations. As an example, you may encounter a wall that will not meet your door at 90º. If the standard 5º Pivot Pin contained in the hinge does not assist in closing the door to the position desired, you may specify the angle needed for a Custom Pivot Pin (up to 45º).
Using two hinges with 3/8" to 1/2" glass (10 to 12 mm) the hinge will hold up to 110 lbs. (50 kg) with a maximum door width of 36" (914 mm).
Using three hinges with 3/8" and 1/2" glass (10 and 12 mm) the hinge will hold up to 140 lbs. (63 kg) with a maximum width of 36" (914 mm).
SPECIFICATIONS:
Glass Thickness: 3/8" (10 mm) to 1/2" (12 mm) Tempered Safety Glass
Construction: Solid Brass
Hinge Swings: 90º In and 90º Out
Closing Type: Self-Centering when within 15º of closed position.
Cut-Out Required - Except C0L092 Which Requires Cut-Out for Door and Two Holes for Fixed Panel
Includes: Gaskets, Screws, and Glass Fabrication Dimensions
Custom finishes are available on request by contacting CRL Technical Sales Department.
Product Warning:
CRL Shower Door Hinges are designed for residential or hotel shower use. If hinges are to be used for other than their intended purpose, approval must be obtained from the CRL Shower Door Technical Sales Department.
Use only the template included with this hinge. Cut-out dimensions for CRL hinges may not match those of other brands.
Most shipping weights are approximate and have not been verified. If the exact weight is needed in order to determine shipping costs, and shipping costs are required in order for you to complete your order, please request this prior to submitting your order by contacting CRL Customer Service. Product images shown are of the actual product or a close representation. Colors can vary depending on your computer's video card and on how your monitor's color is adjusted.
Brass Finish Advisory:
Although durable, brass is prone to oxidation. It can give brass and brass finishes a tarnished look, regardless of how the hardware is initially packaged or stored. For more information, view the Brass Finish Disclaimer found in the Technical References section below.
Attributes
5 Degree Pre- Set: No
Adjustable: No
Back Plate: 'H'
Compliance and Restrictions: Warning Reproductive Harm - www.p65warnings.ca.gov
Design Style: Beveled
Edge Profile: Beveled
Enclosure Type: Corner, Niche, Bathtub, Tailor Made Solutions
Finish/ Color:: Antique Brass
Glazing Thickness: 3/8 in. To 1/2 in. (10 mm To 12 mm)

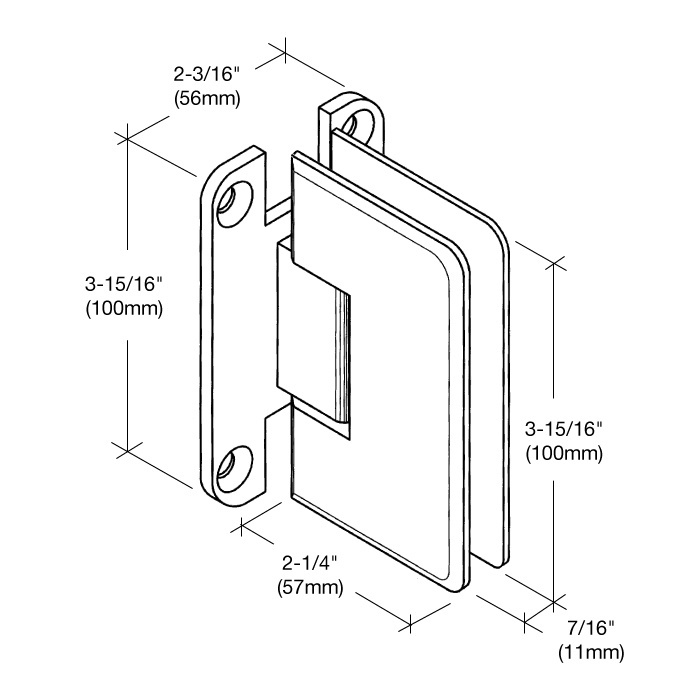

Height: 3-15/16 in. (100 mm)
Material: Brass
Maximum Clamping Screw Torque: 60 lbf.in (677.9 cN.m)
Maximum Door Weight - 2 Hinges: 110 lbs. (49.9 kg)
Maximum Door Weight - 3 Hinges: 140 lbs. (63.5 kg)
Maximum Door Width: 36 in. (914 mm)
Mounting Type: Wall Mount
Opening Style: Swing(side)
Positive Close: No
Self- Centering: Yes
Series: Cologne
Shipping Limitations: None
Width: 2-1/4 in. (57 mm)
