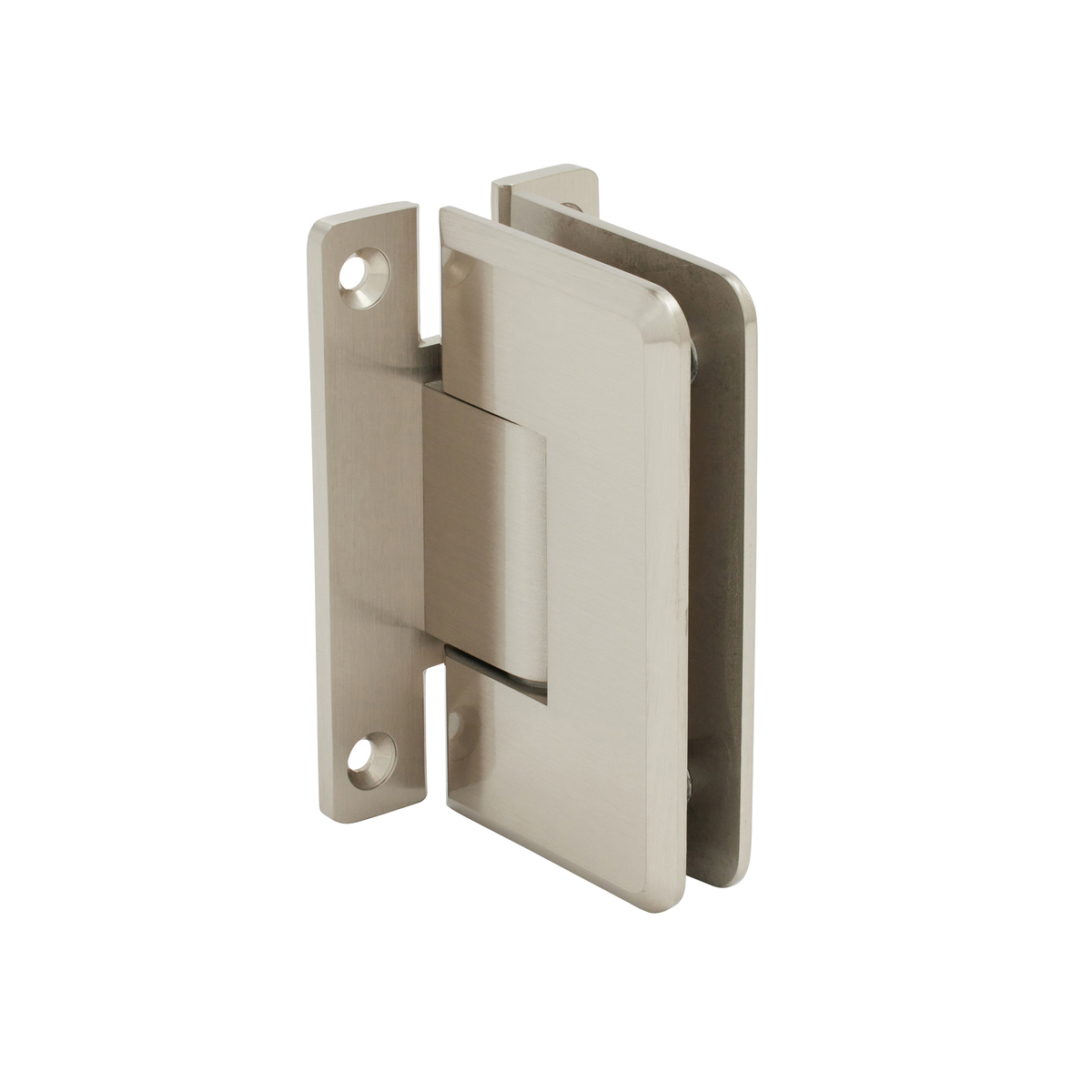

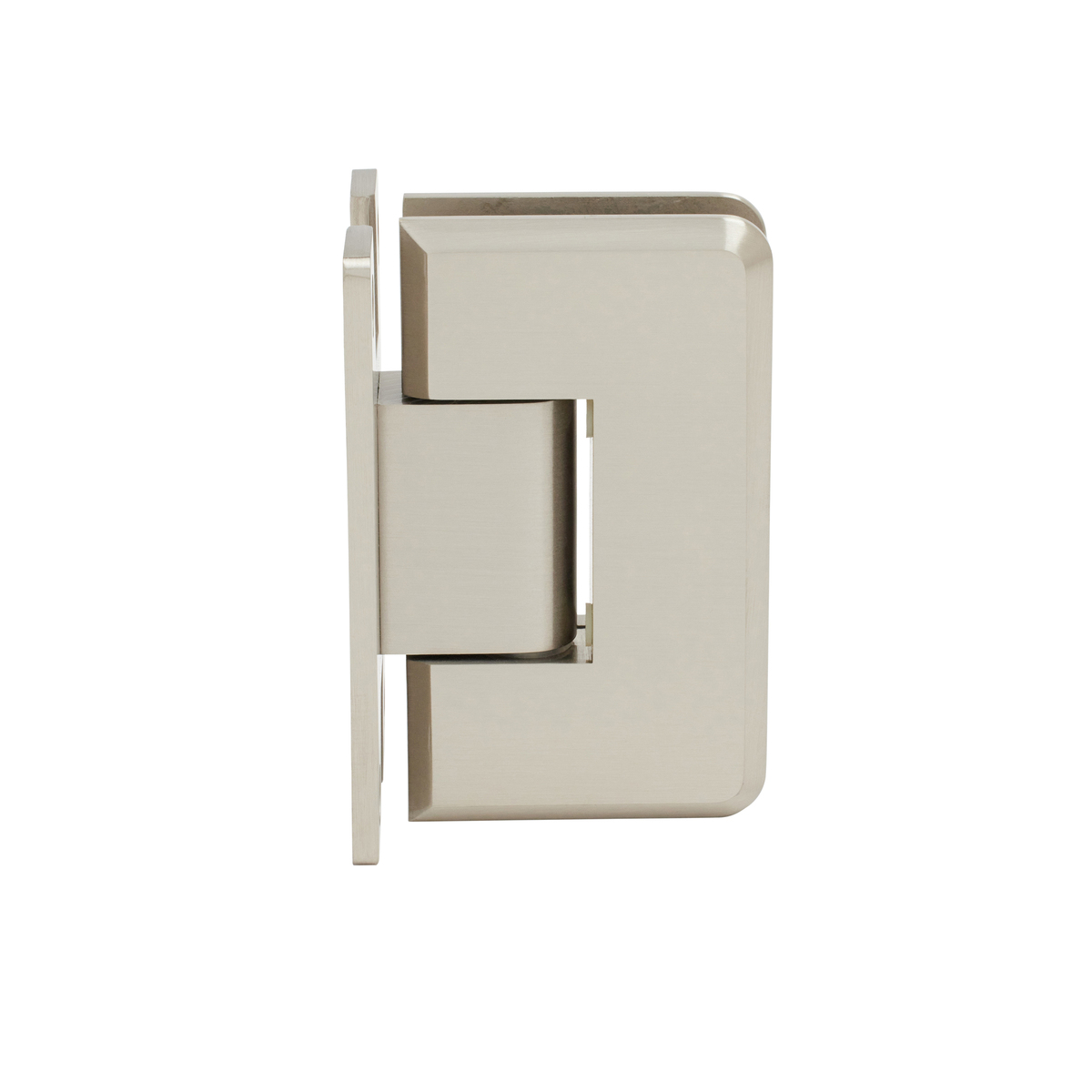

CRL C0L067BN Brushed Nickel Cologne Series Wall Mount 'H' Back Plate HingeC.R. Laurence C0L067BN Brushed Nickel Cologne Series Wall Mount 'H' Back Plate Positive Close Hinge offers unmatched precision in glass door applications. Designed with a special grooved internal pivot pin, this hinge provides a positive closing action, ensuring your door closes securely every time. Ideal for 3/8" to 1/2" (10 to 12 mm) tempered safety glass, it supports a maximum door weight of 110 lbs. (50 kg) when using two hinges, and up to 140 lbs. (63 kg) with three hinges, accommodating doors up to 36" (914 mm) wide. This hinge features a stylish brushed nickel finish, making it a perfect fit for modern bathrooms and shower enclosures. Stocked in the four most popular finishes, additional custom finishes are available upon request, allowing for tailored design solutions. The C0L067BN swings 90 degrees inwards and outwards, with a positive close to zero degrees, ensuring functionality and ease of use. Included with the hinge are gaskets, Phillips screws, and Allen screws, along with glass fabrication dimensions, simplifying installation. Note that this product is designed for residential or hotel shower use; other applications may require prior approval from C.R. Laurence. Elevate your project with the reliability and elegance of the C.R. Laurence Cologne Series hinge.
Brushed Nickel Cologne Series Wall Mount 'H' Back Plate Positive Close Hinge
- Special Grooved Internal Pivot Pin Allows Positive and Precise Closing Action
- Stocked in Wall Mount and 180 Degree Glass-to-Glass Hinges
- Stocked in Four Most Popular Finishes
- Other Finished Available Upon Special Order
The Positive Close Cologne Hinge contains an internal grooved pivot pin that allow the door a precise and positive closing action. This is a different closing action than the typical self-centering Cologne Hinges. Stocked in our four most popular finishes, and available in other finishes upon special order.
Using two hinges with 3/8" to 1/2" glass (10 to 12 mm) the hinge will hold up to 110 lbs. (50 kg) with a maximum door width of 36" (914 mm).
Using three hinges with 3/8" to 1/2" glass (10 to 12 mm) the hinge will hold up to 140 lbs. (63 kg) with a maximum door width of 36" (914 mm).
SPECIFICATIONS:
Glass Thickness: 3/8" to 1/2" (10 to 12 mm) Tempered Safety Glass
Construction: Solid Brass
Hinge Swings: 90 Degrees Inwards and Outwards
Closing Type: Positive Closing to Zero Degrees
Cut-Out Required
Includes: Gaskets, Phillips Screws, Allen Screws, and Glass Fabrication Dimensions
Maximum Clamping Screw Torque: 60 lbf.in (677.9 cN.m)
Custom finishes are available on request. Contact CRL Technical Sales Shower Door Department.
Product Warning:
CRL Shower Door Hinges are designed for residential or hotel shower use. If hinges are to be used for other than their intended purpose, approval must be obtained from the CRL Shower Door Technical Sales Department.
Use only the template included with this hinge. Cut-out dimensions for CRL hinges may not match those of other brands.
Most shipping weights are approximate and have not been verified. If the exact weight is needed in order to determine shipping costs, and shipping costs are required in order for you to complete your order, please request this prior to submitting your order by contacting CRL Customer Service. Product images shown are of the actual product or a close representation. Colors can vary depending on your computer's video card and on how your monitor's color is adjusted.
Attributes
5 Degree Pre- Set: No
Adjustable: No

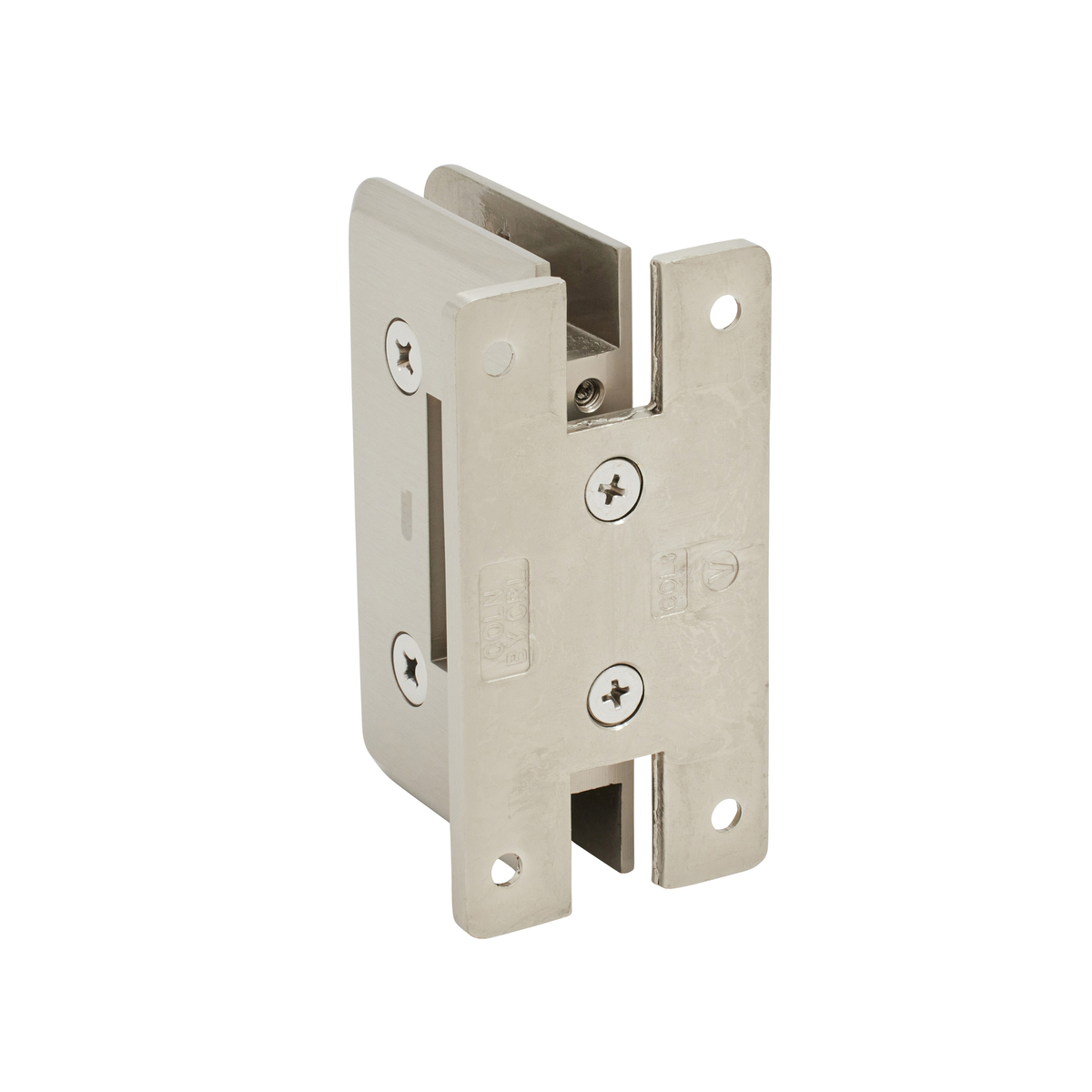

Back Plate: 'H'
Compliance and Restrictions: Warning Reproductive Harm - www.p65warnings.ca.gov
Design Style: Beveled
Edge Profile: Beveled
Enclosure Type: Corner, Niche, Bathtub, Tailor Made Solutions
Finish/ Color:: Brushed Nickel
Glazing Thickness: 3/8 in. To 1/2 in. (10 mm To 12 mm)

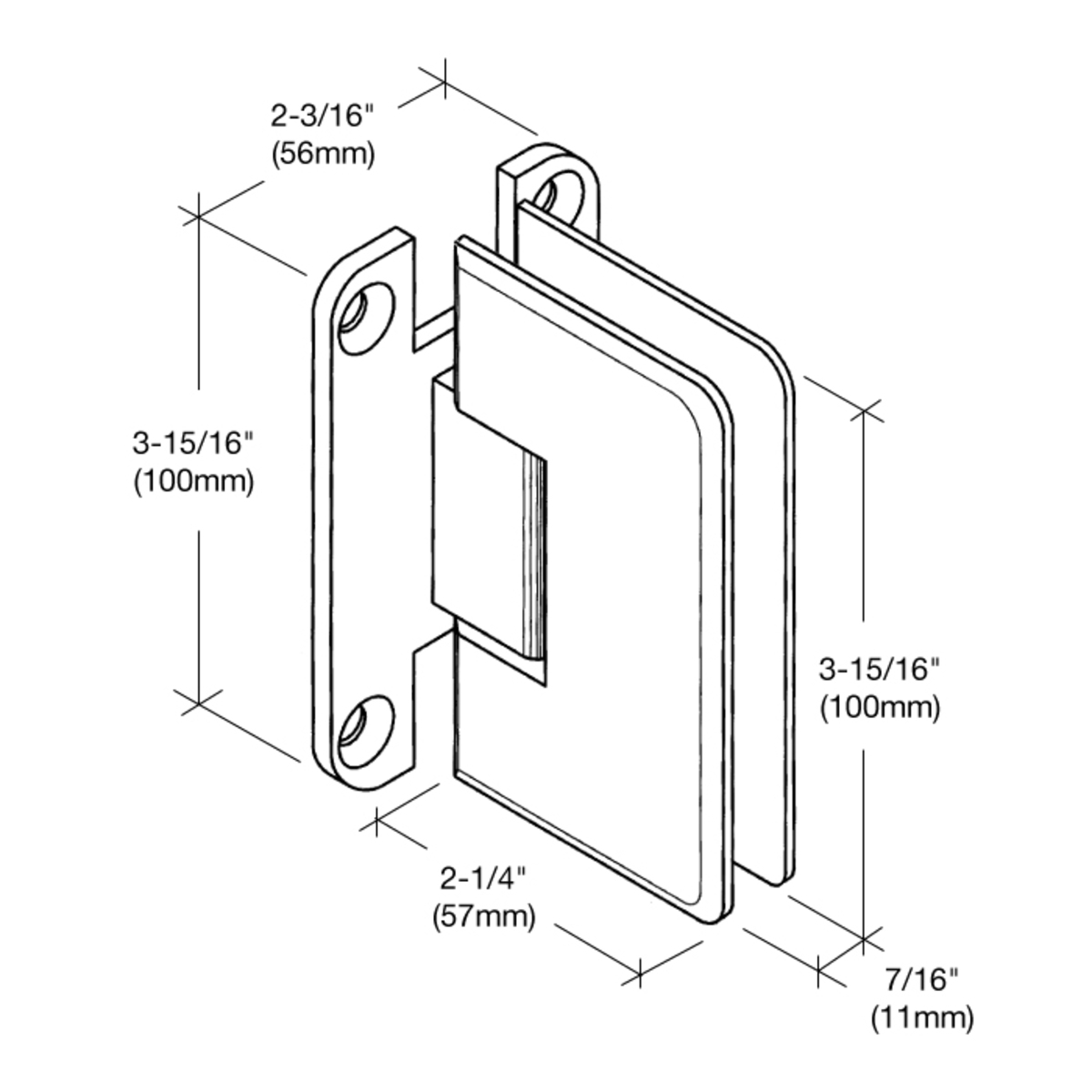

Height: 3-15/16 in. (100 mm)
Material: Brass
Maximum Clamping Screw Torque: 60 lbf.in (677.9 cN.m)
Maximum Door Weight - 2 Hinges: 110 lbs. (49.9 kg)
Maximum Door Weight - 3 Hinges: 140 lbs. (63.5 kg)
Maximum Door Width: 36 in. (914 mm)
Mounting Type: Wall Mount
Opening Style: Swing(side)
Positive Close: Yes
Self- Centering: Yes
Series: Cologne
Shipping Limitations: None
Width: 2-1/4 in. (57 mm)
