CRL C0L092MGM Matte Gun Metal 092 Series Glass-to-Glass Hinge

CRL C0L092MGM Matte Gun Metal 092 Series Glass-to-Glass Hinge

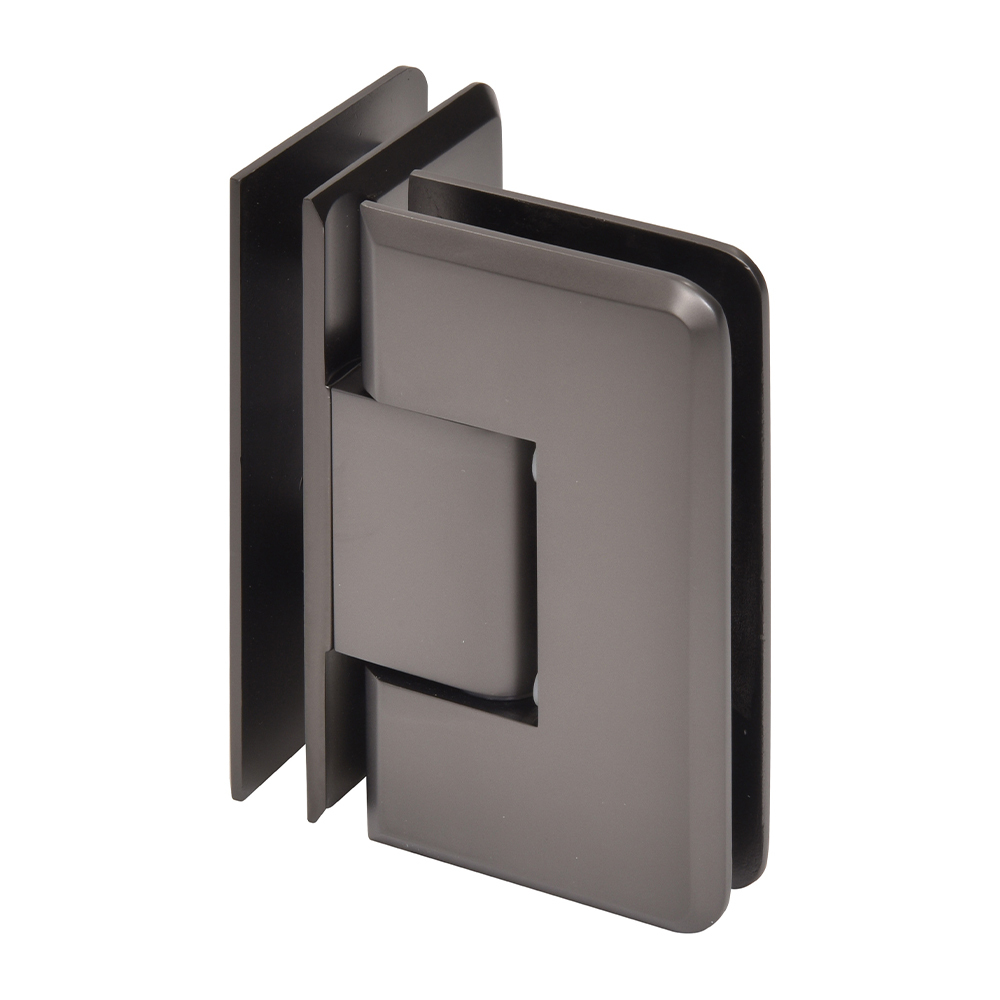

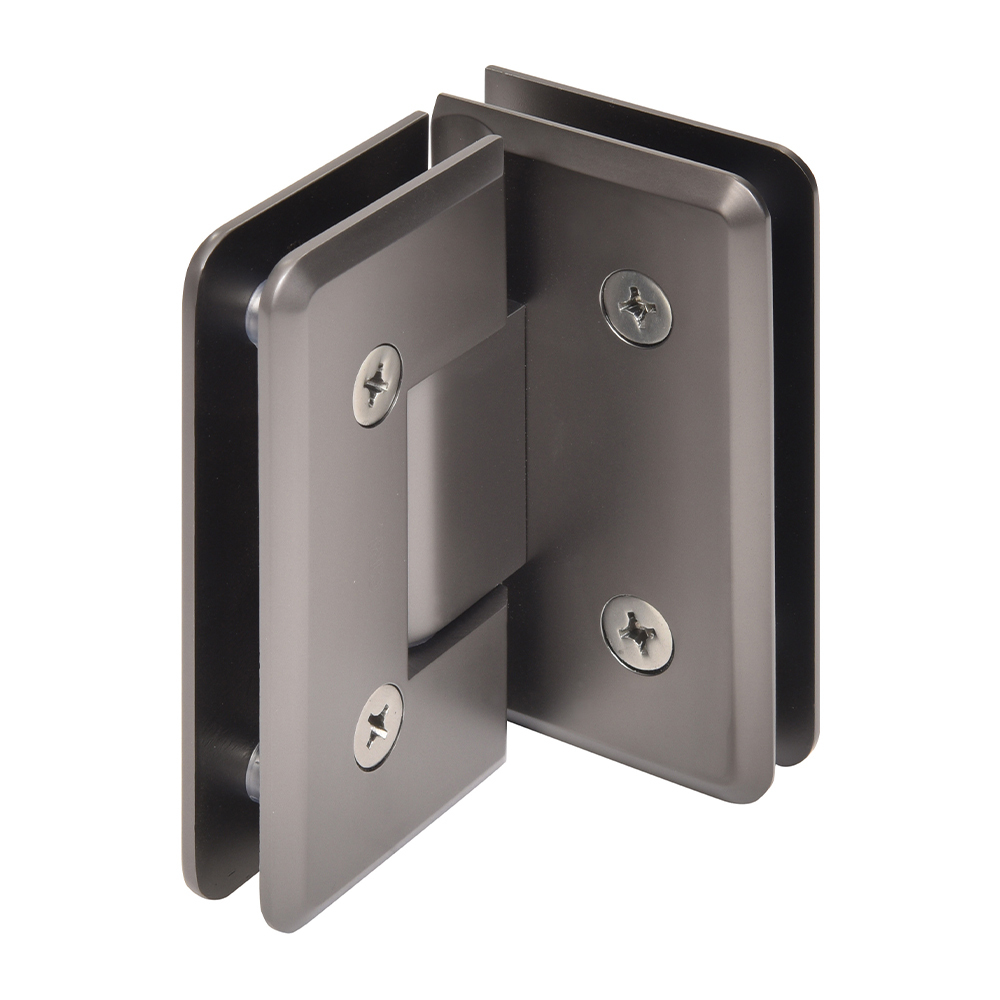

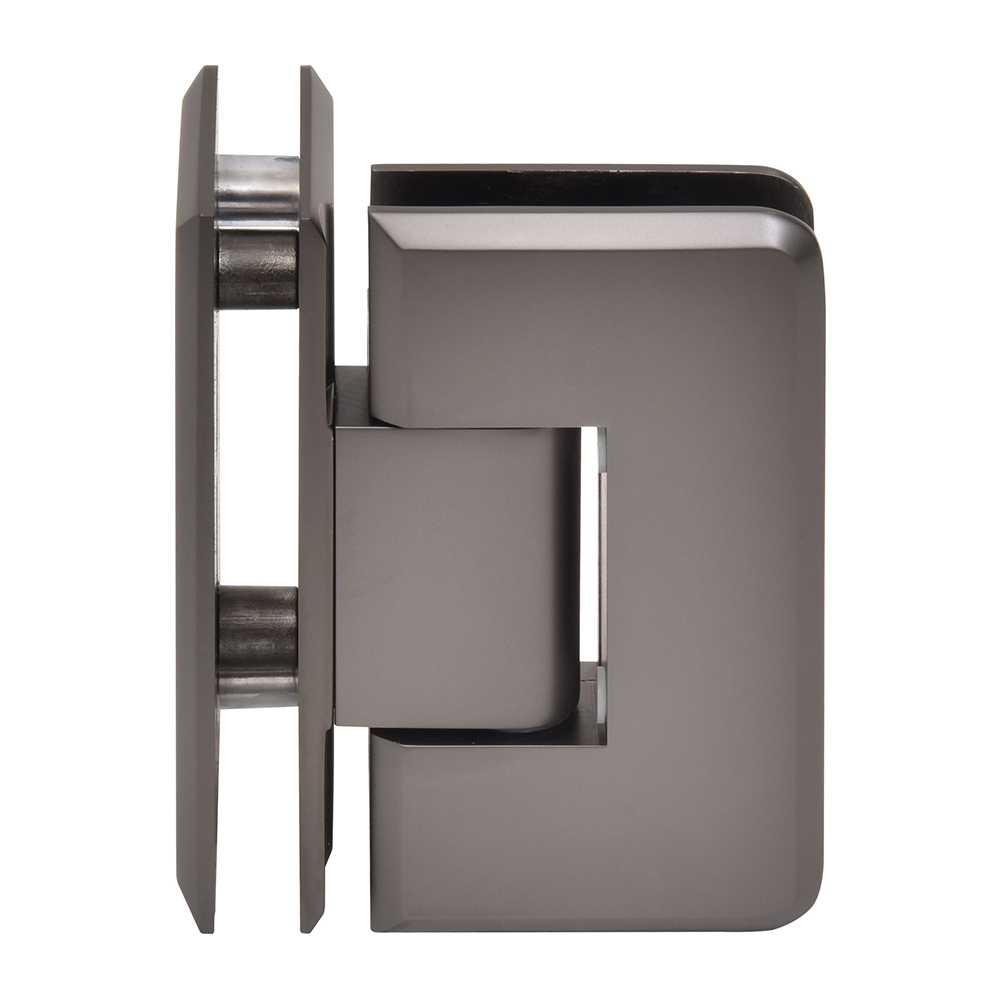

C.R. Laurence C0L092MGM Matte Gun Metal Cologne 092 Series 90 Glass-to-Glass Hinge offers an elegant solution for shower doors requiring robust support and stylish design. Designed to accommodate 3/8" to 1/2" (10 to 12 mm) tempered safety glass, this hinge ensures a secure and stable installation, capable of supporting up to 110 lbs. (50 kg) with two hinges or 140 lbs. (63 kg) with three hinges, all while maintaining a maximum door width of 36" (914 mm). The Cologne hinge features a unique beveled edge and radius corners for a modern aesthetic, making it an ideal choice for both residential and hospitality applications. Each hinge includes a reversible pivot pin, allowing you to easily switch between 90º and 85º angles for optimal door closure. Custom pivot pins can be specified for off-angle installations, ensuring versatility in various settings. Constructed from solid brass, this durable hinge not only meets aesthetic demands but also comes with a 3-year warranty, providing peace of mind. Included with the hinge are gaskets, screws, and precise glass fabrication dimensions, streamlining your installation process. Available in several stunning finishes, including the sophisticated matte gun metal, the C.R. Laurence Cologne hinge seamlessly combines functionality with style.

Matte Gun Metal Cologne 092 Series 90 Glass-to-Glass Hinge

• Accommodates 3/8" to 1/2" (10 to 12 mm) Glass
• Available in Several Beautiful Finishes
• 90º Glass-to-Glass
• Use Monolithic Tempered Glass

CRL Cologne Hinges are similar to the popular Vienna Hinges, but with one change: They have radius corners and beveled edges to provide a sleek appearance. Cologne Hinges are the solution for wider, heavier doors that traditional hinges are not strong enough to support. Two strategically placed steel pins inside the hinge provide template options, and satisfy two schools of thought for mounting shower door hinges. For the safety of "mouse-ears" type cut-outs, the two steel pins should be left in place. This allows the Cologne Hinge to be used with its own CRL "mouse-ears" cut-out. On the other hand, to enable increased adjustability, the two pins can be removed. This allows the Cologne Hinge to fit its own CRL rectangular shaped, square cornered cut-out. In some cases, it will also fit competitive rectangular, square cornered cut-outs.

STANDARD REVERSIBLE PIVOT PIN: Each Cologne Hinge contains a Reversible Pivot Pin. One side of the Pin is marked at 90º. The opposite side of the Pin is marked 85º. Standard Cologne Hinges come with the 90º side activated. Pre-Set Models come with the Pin pre-set for 85º (5º tighter closure into shower interior). The Pin can be rotated (not flipped upside down) to activate the other side.

CUSTOM PIVOT PIN: Custom Pivot Pins are available to accommodate "off-angle" installations. As an example, you may encounter a wall that will not meet your door at 90º. If the standard 5º Pivot Pin contained in the hinge does not assist in closing the door to the position desired, you may specify the angle needed for a Custom Pivot Pin (up to 45º).

Using two hinges with 3/8" to 1/2" glass (10 and 12 mm) the hinge will hold up to 110 lbs. (50 kg) with a maximum door width of 36" (914 mm).

Using three hinges with 3/8" and 1/2" glass (10 and 12 mm) the hinge will hold up to 140 lbs. (63 kg) with a maximum width of 36" (914 mm).

SPECIFICATIONS:
Glass Thickness: 3/8" (10 mm) to 1/2" (12 mm) Tempered Safety Glass
Construction: Solid Brass
Hinge Swings: 90º In and 90º Out
Closing Type: Self-Centering when within 15º of closed position.
Cut-Out Required - Except C0L092 Which Requires Cut-Out for Door and Two Holes for Fixed Panel
Includes: Gaskets, Screws, and Glass Fabrication Dimensions
Maximum Clamping Screw Torque: 60 lbf.in (677.9 cN.m)

Custom finishes are available on request by contacting CRL Technical Sales Department.


Product Warning:

CRL Shower Door Hinges are designed for residential or hotel shower use. If hinges are to be used for other than their intended purpose, approval must be obtained from the CRL Shower Door Technical Sales Department.

Use only the template included with this hinge. Cut-out dimensions for CRL hinges may not match those of other brands.
