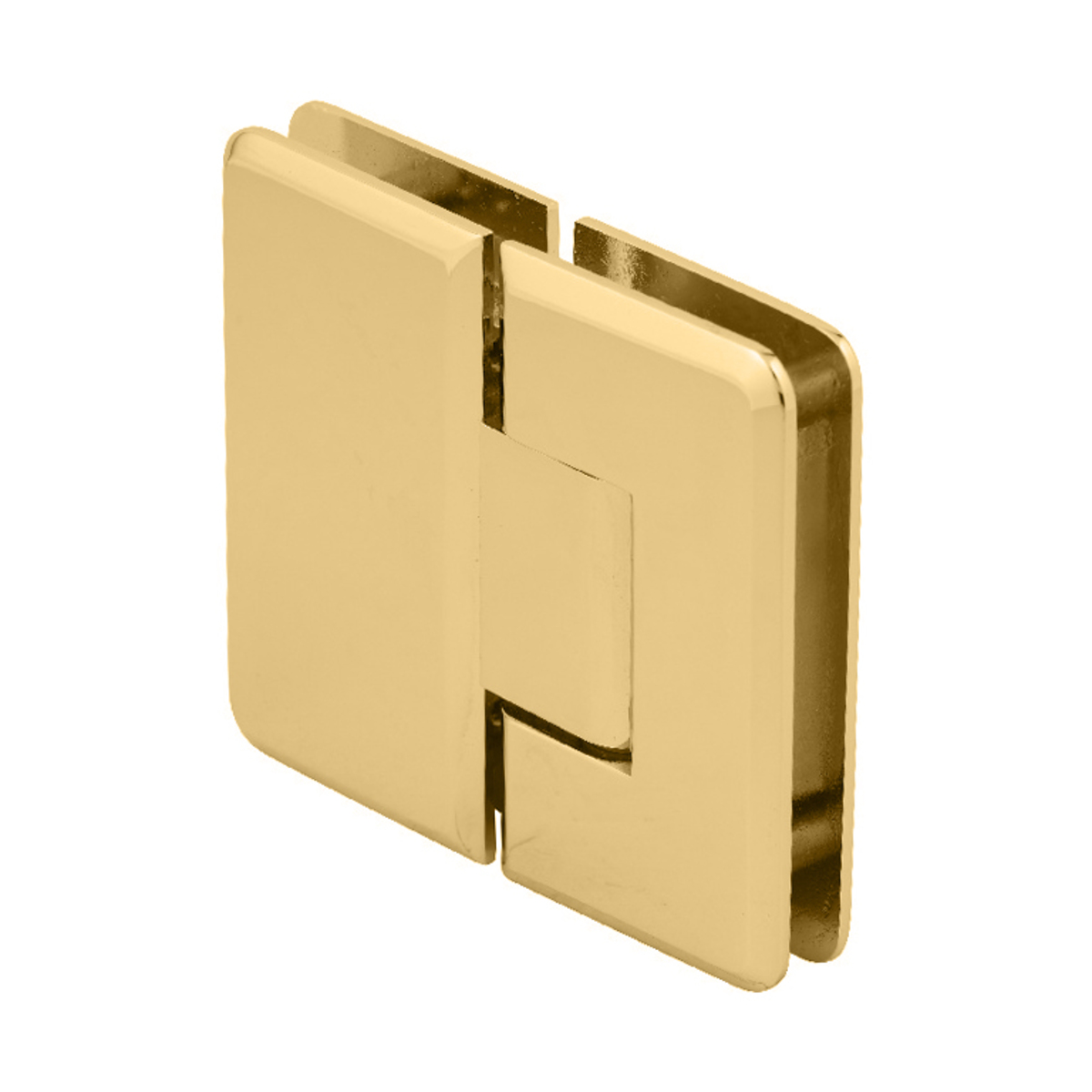

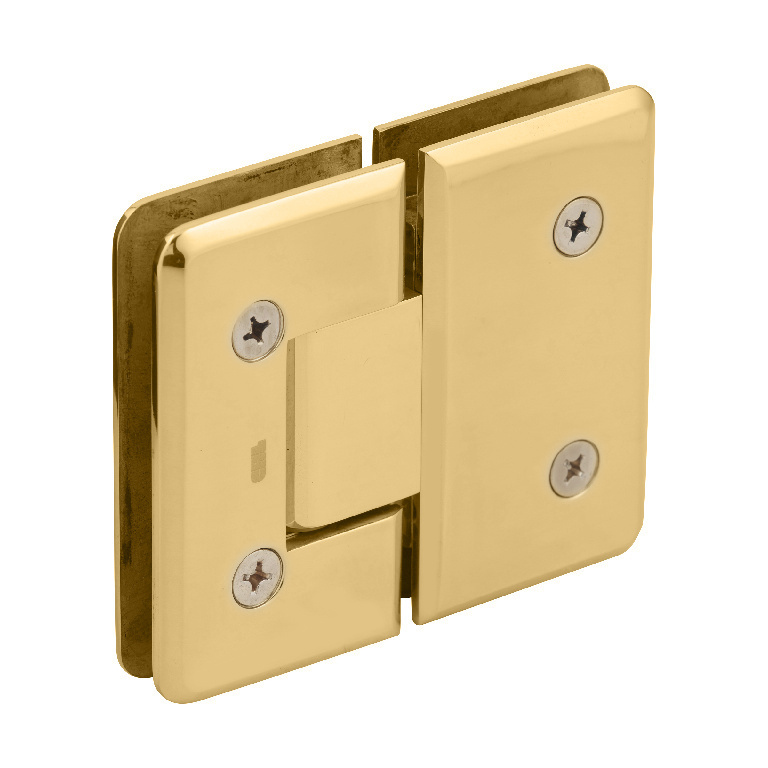

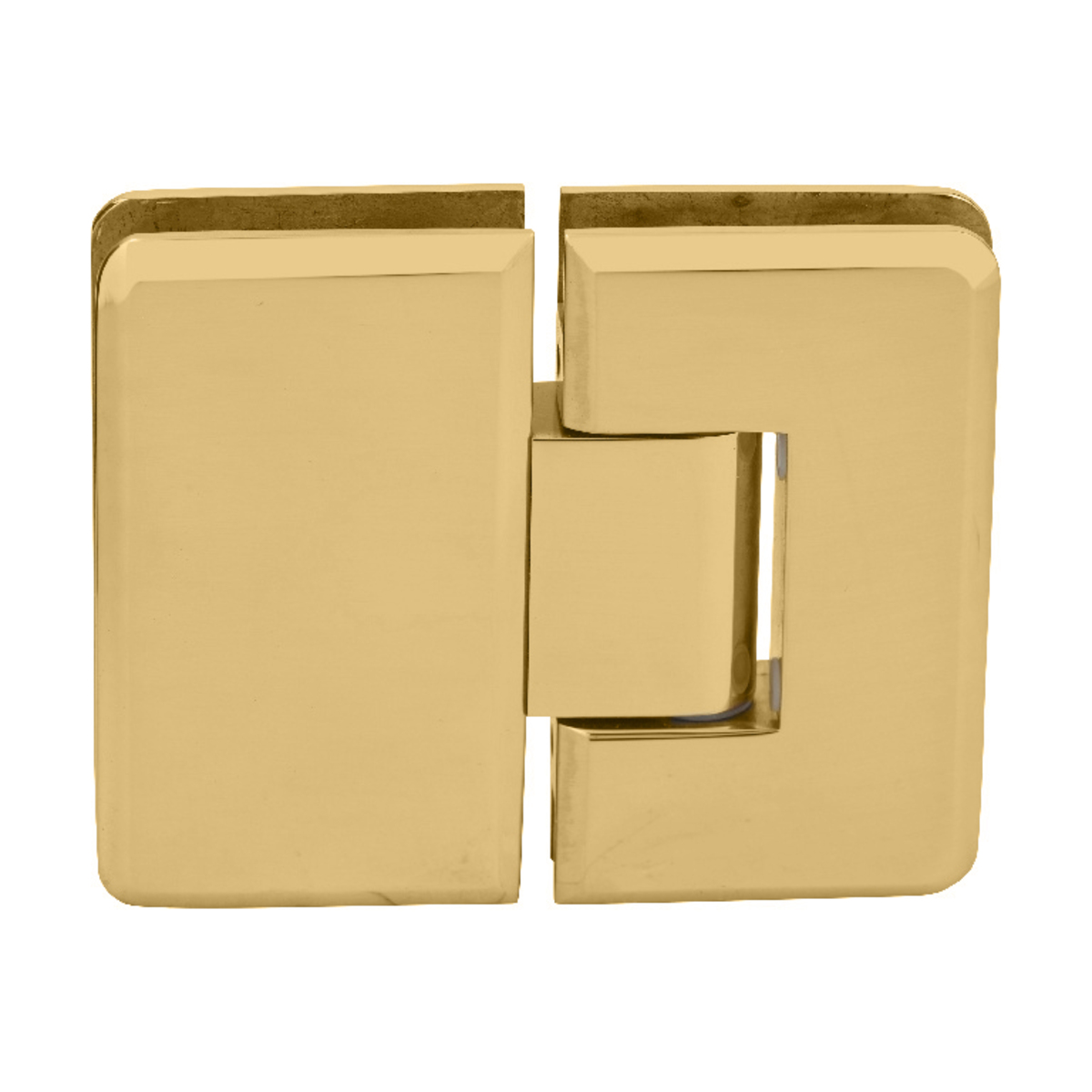

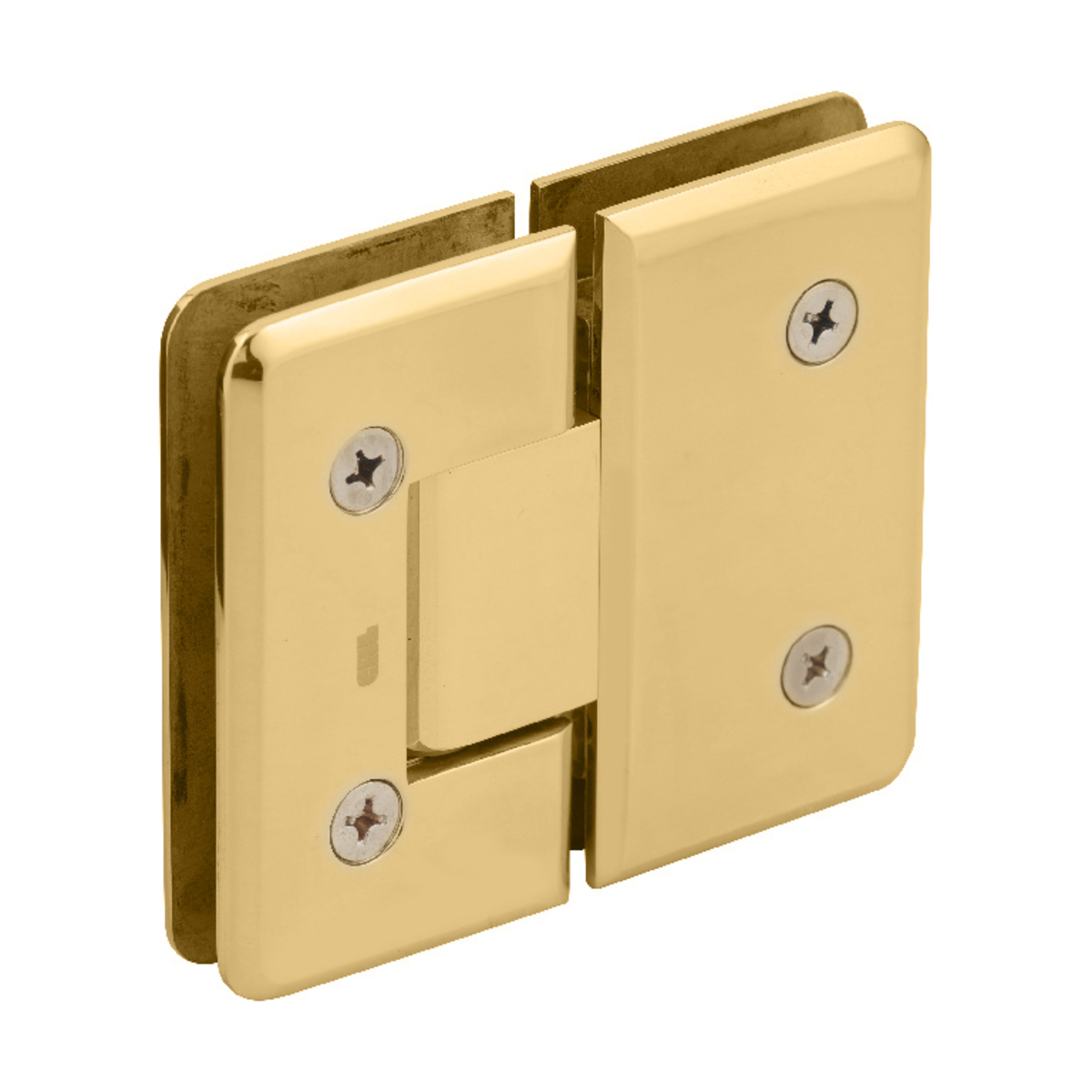

CRL C0L180BR Polished Brass Cologne 180 Series Glass-to-Glass Hinge

CRL C0L180BR Polished Brass Cologne 180 Series Glass-to-Glass Hinge

C.R. Laurence C0L180BR Polished Brass Cologne 180 Series Glass-to-Glass Hinge offers a sophisticated solution for your shower door needs. Designed to accommodate 3/8" to 1/2" (10 to 12 mm) tempered glass, this hinge supports doors weighing up to 110 lbs. (50 kg) with two hinges or up to 140 lbs. (63 kg) with three hinges, all while maintaining a maximum door width of 36" (914 mm). The Cologne hinge features a sleek design with radius corners and beveled edges, setting it apart from traditional hinges. It includes a reversible pivot pin, allowing for easy adjustment between 90º and 85º closures, making it versatile for various installations. For unique angles, custom pivot pins can be specified, accommodating angles up to 45º. This solid brass hinge is self-centering when within 15º of the closed position, providing reliable functionality. It comes complete with necessary gaskets and screws, ensuring a seamless installation process. With a three-year warranty and availability in multiple finishes, the C0L180BR is perfect for both residential and hotel applications. Enhance your space with this durable and stylish hinge, designed to meet the demands of heavier doors while maintaining a refined aesthetic.

Polished Brass Cologne 180 Series 180 Glass-to-Glass Hinge

• Accommodates 3/8" to 1/2" (10 to 12 mm) Glass
• Available in Several Beautiful Finishes
• 180º Glass-to-Glass
• Use Monolithic Tempered Glass

CRL Cologne Hinges are similar to the popular Vienna Hinges, but with one change: They have radius corners and beveled edges to provide a sleek appearance. Cologne Hinges are the solution for wider, heavier doors that traditional hinges are not strong enough to support. Two strategically placed steel pins inside the hinge provide template options, and satisfy two schools of thought for mounting shower door hinges. For the safety of "mouse-ears" type cut-outs, the two steel pins should be left in place. This allows the Cologne Hinge to be used with its own CRL "mouse-ears" cut-out. On the other hand, to enable increased adjustability, the two pins can be removed. This allows the Cologne Hinge to fit its own CRL rectangular shaped, square cornered cut-out. In some cases, it will also fit competitive rectangular, square cornered cut-outs.


STANDARD REVERSIBLE PIVOT PIN: Each Cologne Hinge contains a Reversible Pivot Pin. One side of the Pin is marked at 90º. The opposite side of the Pin is marked 85º. Standard Cologne Hinges come with the 90º side activated. Pre-Set Models come with the Pin pre-set for 85º (5º tighter closure into shower interior). The Pin can be rotated (not flipped upside down) to activate the other side.

CUSTOM PIVOT PIN: Custom Pivot Pins are available to accommodate "off-angle" installations. As an example, you may encounter a wall that will not meet your door at 90º. If the standard 5º Pivot Pin contained in the hinge does not assist in closing the door to the position desired, you may specify the angle needed for a Custom Pivot Pin (up to 45º).

Using two hinges with 3/8" to 1/2" glass (10 and 12 mm) the hinge will hold up to 110 lbs. (50 kg) with a maximum door width of 36" (914 mm).

Using three hinges with 3/8" and 1/2" glass (10 and 12 mm) the hinge will hold up to 140 lbs. (63 kg) with a maximum width of 36" (914 mm).

SPECIFICATIONS:
Glass Thickness: 3/8" (10 mm) to 1/2" (12 mm) Tempered Safety Glass
Construction: Solid Brass
Hinge Swings: 90º In and 90º Out
Closing Type: Self-Centering when within 15º of closed position.
Cut-Out Required - Except C0L092 Which Requires Cut-Out for Door and Two Holes for Fixed Panel
Includes: Gaskets, Screws, and Glass Fabrication Dimensions
Maximum Clamping Screw Torque: 60 lbf.in (677.9 cN.m)

Custom finishes are available on request by contacting CRL Technical Sales Department.


Product Warning:

CRL Shower Door Hinges are designed for residential or hotel shower use. If hinges are to be used for other than their intended purpose, approval must be obtained from the CRL Shower Door Technical Sales Department.

Use only the template included with this hinge. Cut-out dimensions for CRL hinges may not match those of other brands.

Brass Finish Advisory:
