CRL C0L180CH Polished Chrome 180 Series Glass-to-Glass Hinge

CRL C0L180CH Polished Chrome 180 Series Glass-to-Glass Hinge

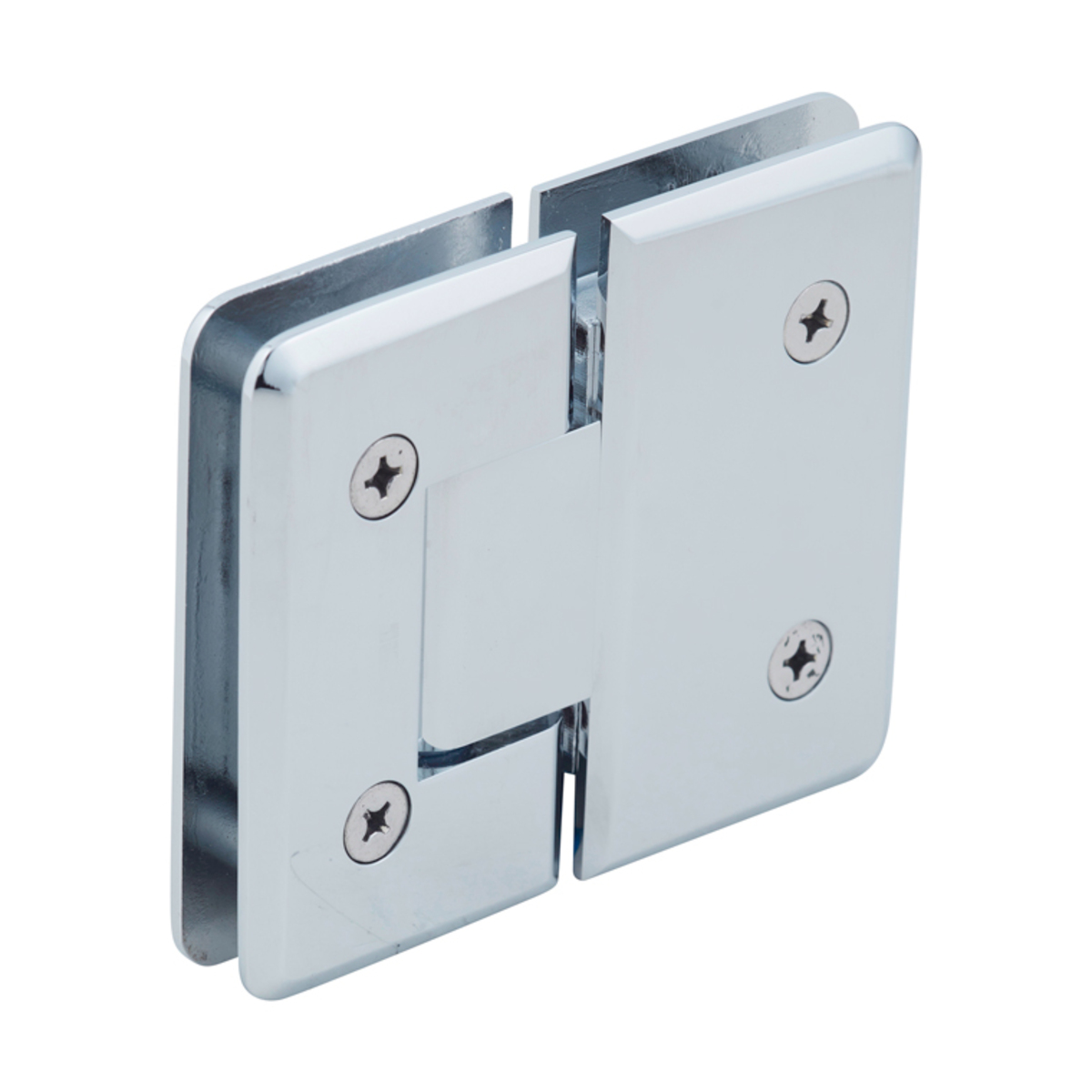

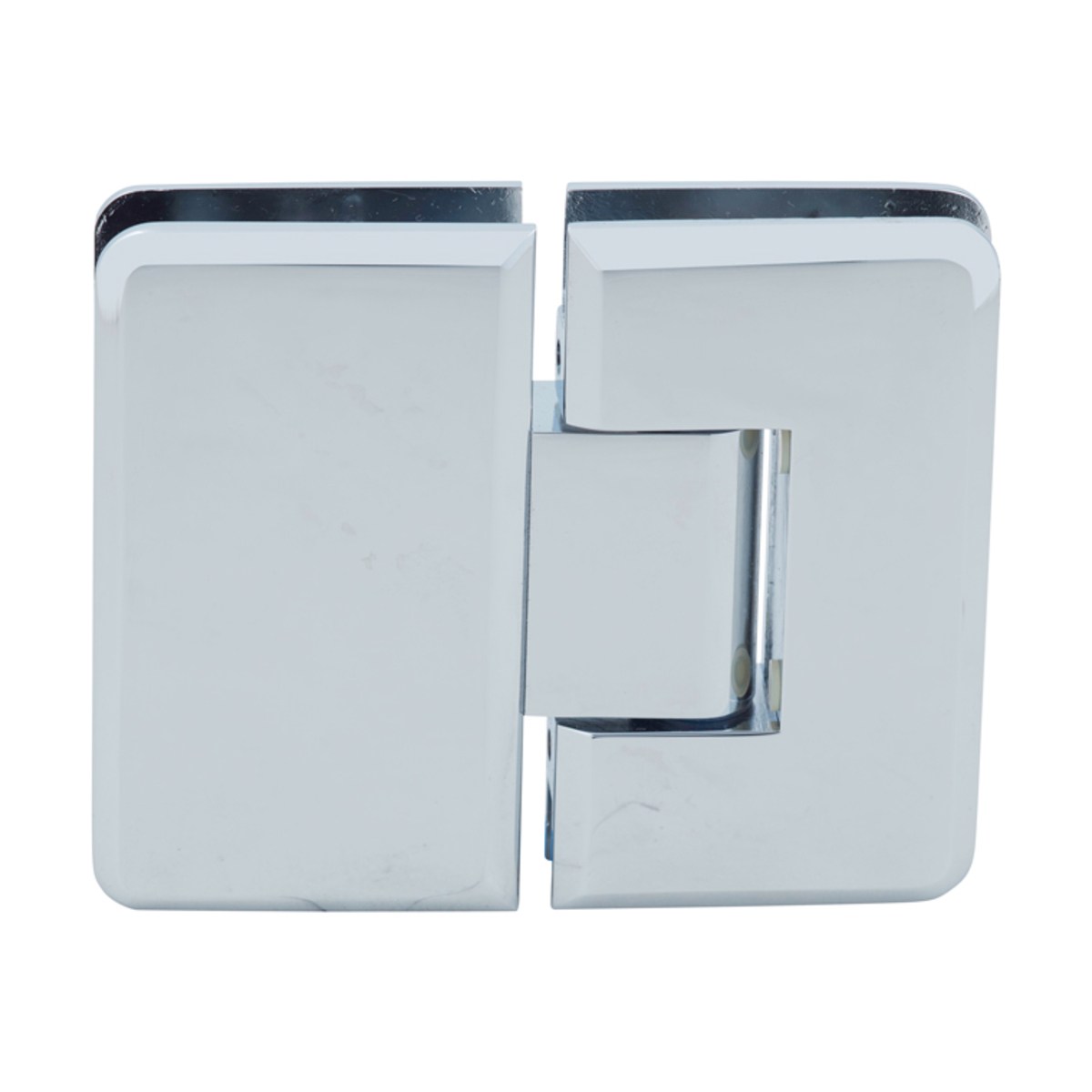

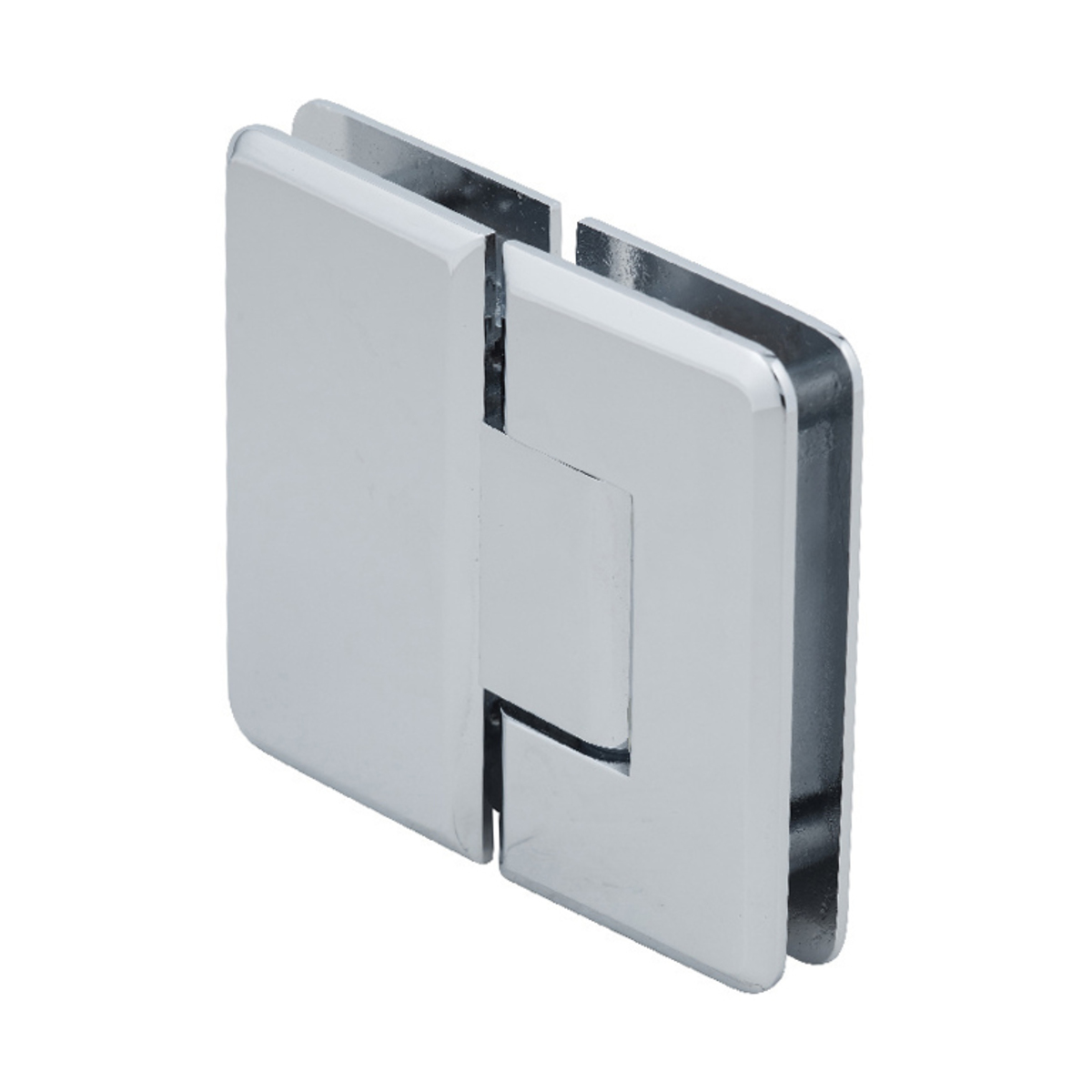

C.R. Laurence C0L180CH Polished Chrome Cologne 180 Series Glass-to-Glass Hinge offers a sophisticated solution for your shower door needs. Designed to accommodate 3/8" to 1/2" (10 mm to 12 mm) thick tempered safety glass, this hinge is perfect for wider and heavier doors, supporting up to 110 lbs. (50 kg) with two hinges and up to 140 lbs. (63 kg) with three hinges, all while maintaining a maximum door width of 36" (914 mm). This hinge stands out with its elegant radius corners and beveled edges, enhancing any bathroom design. The self-centering feature ensures smooth operation when within 15º of the closed position. Equipped with strategically placed steel pins, the Cologne Hinge allows flexibility for installation, accommodating both "mouse-ears" and rectangular cut-outs. Each hinge includes a standard reversible pivot pin that can be adjusted to either 90º or 85º for tighter closures. Custom pivot pins can also be requested for unique wall angles, ensuring a perfect fit. With a beautiful polished chrome finish and a three-year warranty, the C0L180CH hinge combines durability and style, making it an excellent choice for residential and hotel shower applications.

Polished Chrome Cologne 180 Series 180 Glass-to-Glass Hinge

• Accommodates 3/8" to 1/2" (10 to 12 mm) Glass
• Available in Several Beautiful Finishes
• 180º Glass-to-Glass
• Use Monolithic Tempered Glass

CRL Cologne Hinges are similar to the popular Vienna Hinges, but with one change: They have radius corners and beveled edges to provide a sleek appearance. Cologne Hinges are the solution for wider, heavier doors that traditional hinges are not strong enough to support. Two strategically placed steel pins inside the hinge provide template options, and satisfy two schools of thought for mounting shower door hinges. For the safety of "mouse-ears" type cut-outs, the two steel pins should be left in place. This allows the Cologne Hinge to be used with its own CRL "mouse-ears" cut-out. On the other hand, to enable increased adjustability, the two pins can be removed. This allows the Cologne Hinge to fit its own CRL rectangular shaped, square cornered cut-out. In some cases, it will also fit competitive rectangular, square cornered cut-outs.


STANDARD REVERSIBLE PIVOT PIN: Each Cologne Hinge contains a Reversible Pivot Pin. One side of the Pin is marked at 90º. The opposite side of the Pin is marked 85º. Standard Cologne Hinges come with the 90º side activated. Pre-Set Models come with the Pin pre-set for 85º (5º tighter closure into shower interior). The Pin can be rotated (not flipped upside down) to activate the other side.

CUSTOM PIVOT PIN: Custom Pivot Pins are available to accommodate "off-angle" installations. As an example, you may encounter a wall that will not meet your door at 90º. If the standard 5º Pivot Pin contained in the hinge does not assist in closing the door to the position desired, you may specify the angle needed for a Custom Pivot Pin (up to 45º).

Using two hinges with 3/8" to 1/2" glass (10 and 12 mm) the hinge will hold up to 110 lbs. (50 kg) with a maximum door width of 36" (914 mm).

Using three hinges with 3/8" and 1/2" glass (10 and 12 mm) the hinge will hold up to 140 lbs. (63 kg) with a maximum width of 36" (914 mm).

SPECIFICATIONS:
Glass Thickness: 3/8" (10 mm) to 1/2" (12 mm) Tempered Safety Glass
Construction: Solid Brass
Hinge Swings: 90º In and 90º Out
Closing Type: Self-Centering when within 15º of closed position.
Cut-Out Required - Except C0L092 Which Requires Cut-Out for Door and Two Holes for Fixed Panel
Includes: Gaskets, Screws, and Glass Fabrication Dimensions
Maximum Clamping Screw Torque: 60 lbf.in (677.9 cN.m)

Custom finishes are available on request by contacting CRL Technical Sales Department.


Product Warning:

CRL Shower Door Hinges are designed for residential or hotel shower use. If hinges are to be used for other than their intended purpose, approval must be obtained from the CRL Shower Door Technical Sales Department.

Use only the template included with this hinge. Cut-out dimensions for CRL hinges may not match those of other brands.
