CRL C0L337SN Satin Nickel Cologne 337 Series Adjustable 'H' Back Plate Hinge

CRL C0L337SN Satin Nickel Cologne 337 Series Adjustable 'H' Back Plate Hinge

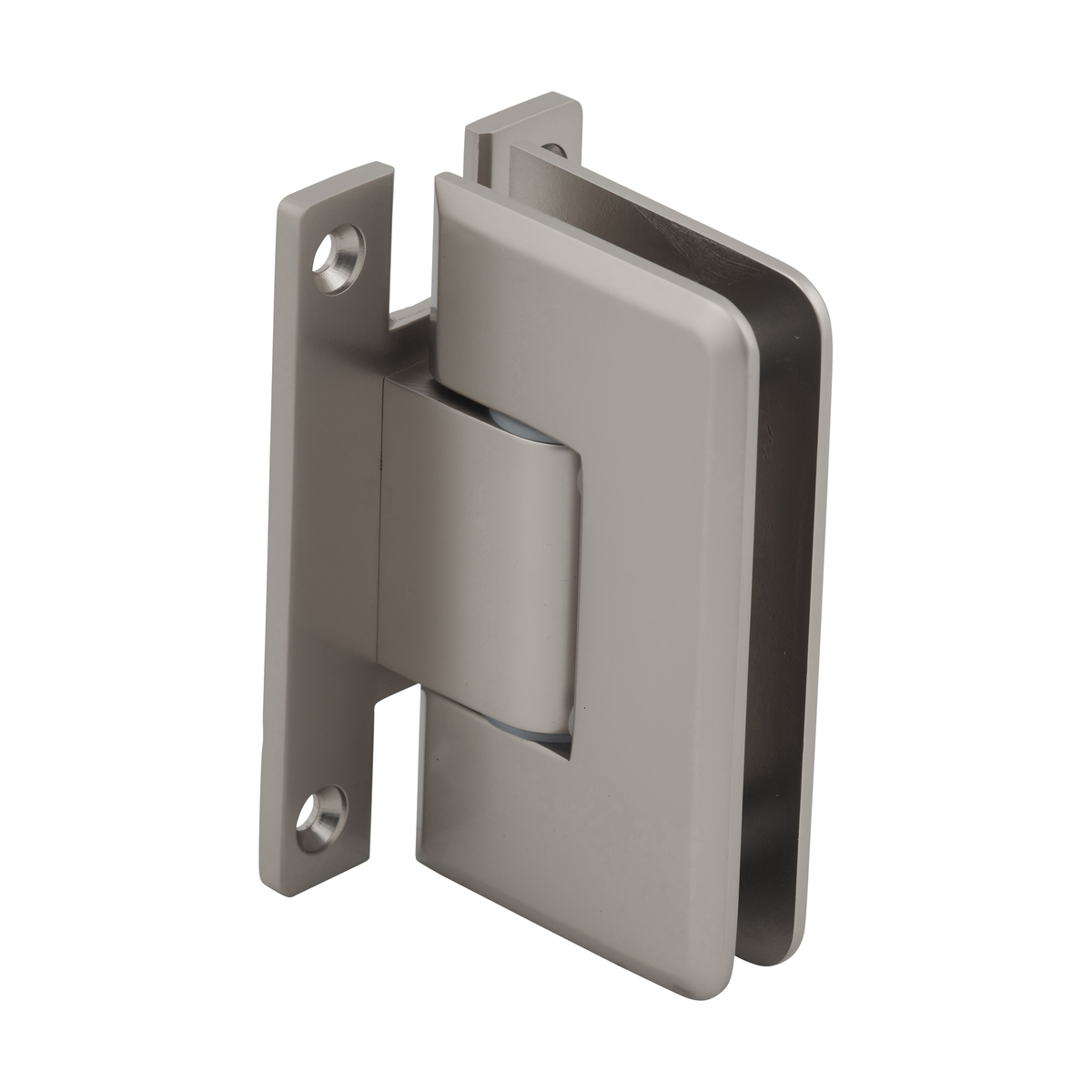

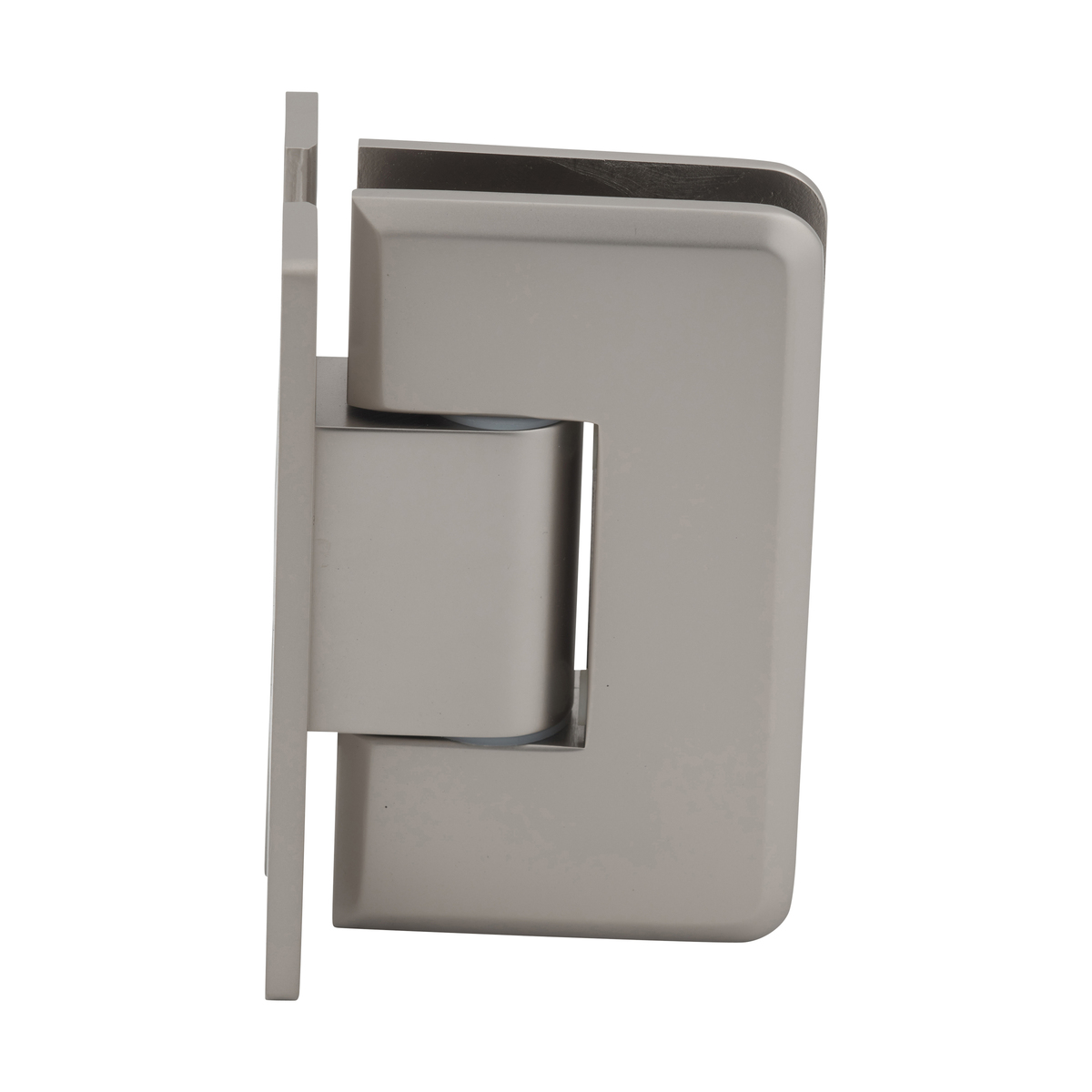

C.R. Laurence C0L337SN Satin Nickel Cologne 337 Series Adjustable Wall Mount 'H' Back Plate Hinge is the perfect solution for modern shower installations. Designed to accommodate 3/8" to 1/2" (10 to 12 mm) tempered glass, this hinge ensures durability and sleek aesthetics, available in a stunning satin nickel finish. What sets the Cologne Series apart is its remarkable adjustability. After installation, the hinge allows for angle adjustments up to 90º, enabling precise positioning without needing to remove the door. Simply loosen the Allen set screws to achieve your desired angle, and once set, the hinge's self-centering feature ensures the door stays aligned when closed. This hinge supports substantial weight, accommodating doors up to 110 lbs. (50 kg) with two hinges or 140 lbs. (63 kg) when using three hinges, with a maximum door width of 36" (914 mm). Constructed from solid brass, the quality is evident in both function and finish, while the included gaskets and screws facilitate easy installation. Ideal for residential or hotel shower applications, the C.R. Laurence Cologne hinge combines elegance with functionality, making it a reliable choice for discerning builders and homeowners alike. Custom finishes are available upon request, allowing for personalized design options.

Satin Nickel Cologne 337 Series Adjustable Wall Mount 'H' Back Plate Hinge

• Accommodates 3/8" to 1/2" (10 to 12 mm) Glass
• Available in Several Beautiful Finishes

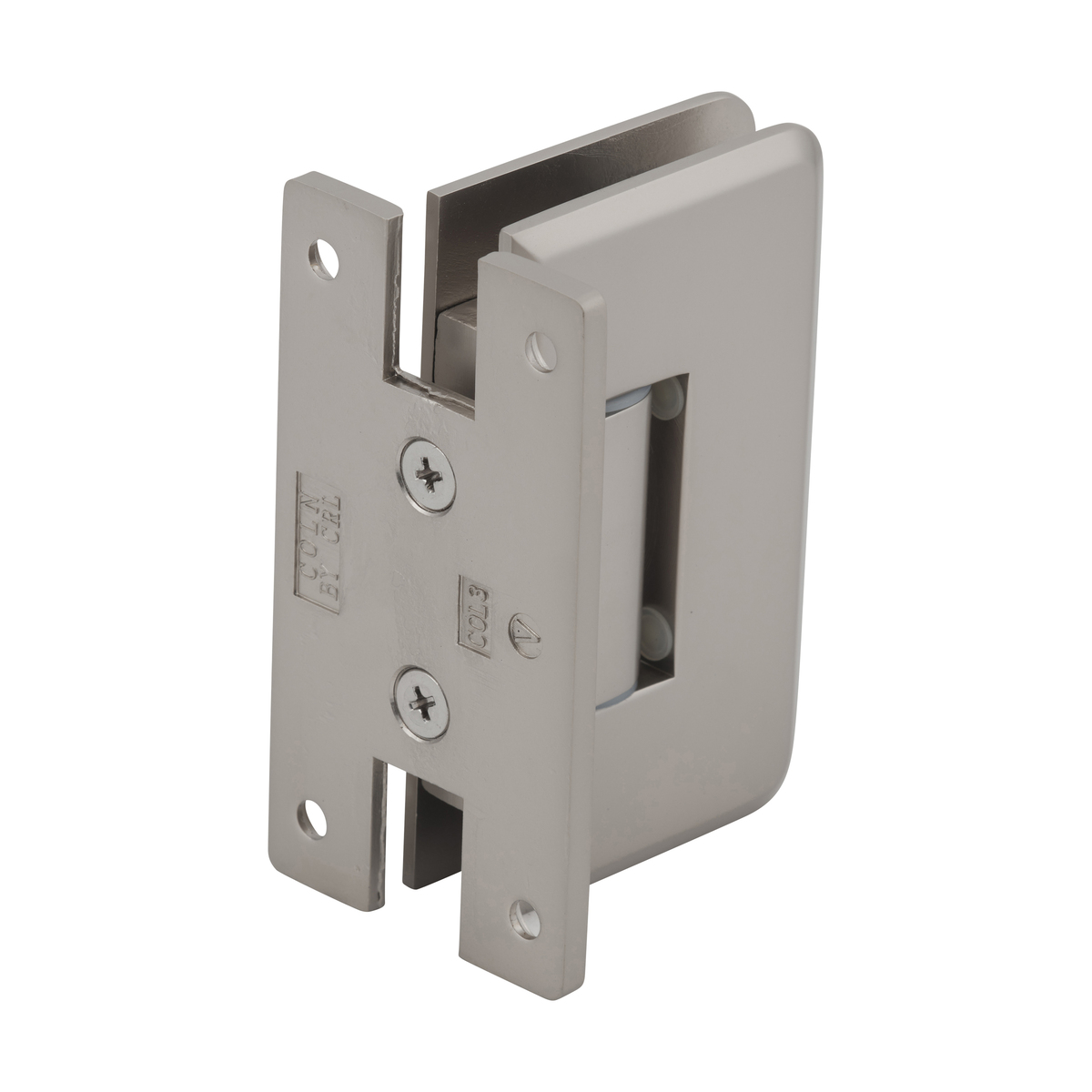

• Adjustable Wall Mount Full Back Plate
• Use Monolithic Tempered Glass

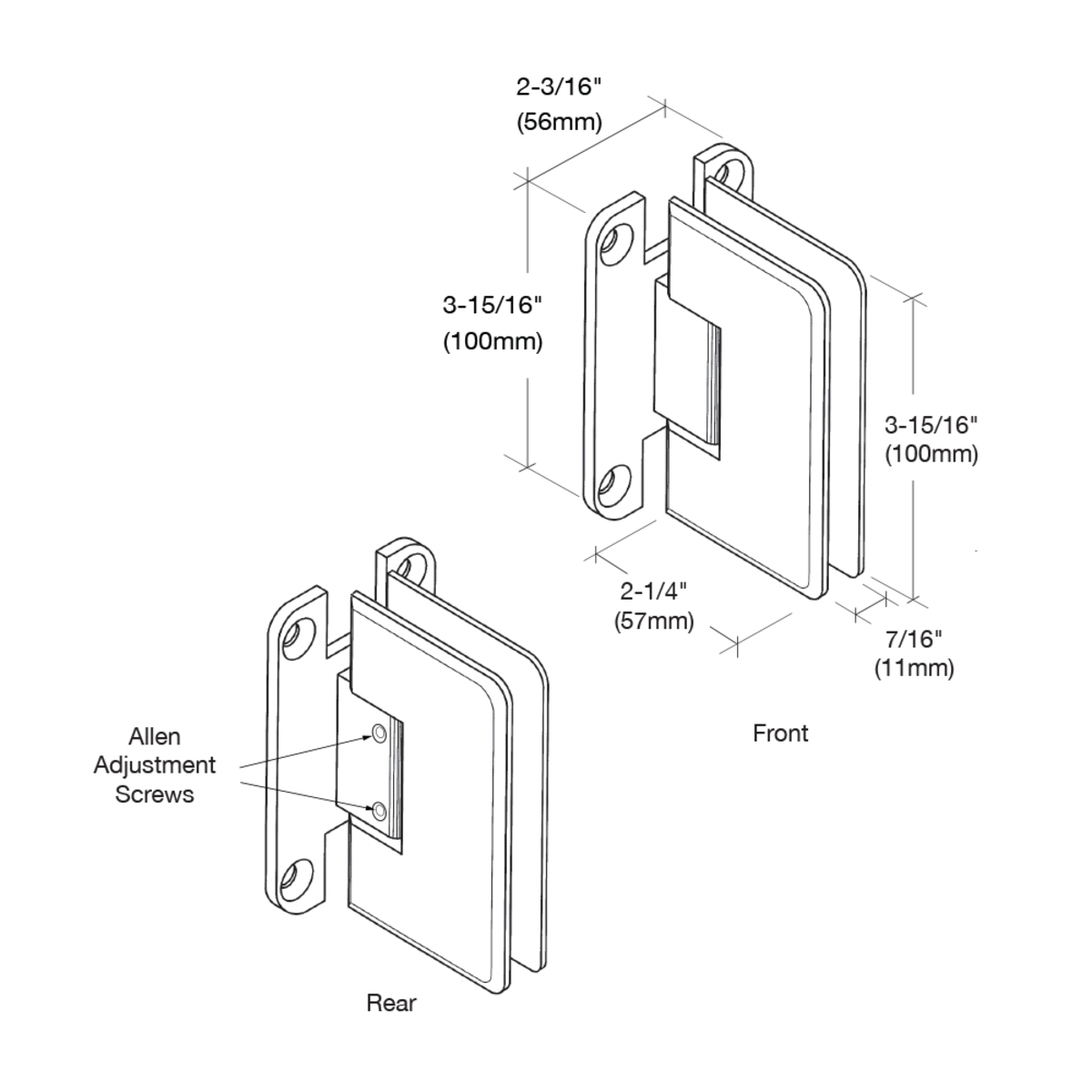

The CRL Adjustable Cologne Series has taken our popular Cologne Hinge to a new level. Adjustment to accommodate the desired angle (up to 90º) is done after the door is installed. Once the door is hung, simply loosen the Allen set screws and turn the door to the desired closed position. By merely tightening the Allen screws your door will self-center to the desired angle. The door can swing 90º inward and also 90º outward (adjusting angle from factory set position will reduce 90º swing in that direction). For doors pulling outwards only (using a clear door jamb), you can adjust the hinge to close 5º inside the shower area, thus having the door close snugly against the jamb.


Using two hinges with 3/8" to 1/2" glass (10 to 12 mm) the hinge will hold up to 110 lbs. (50 kg) with a maximum door width of 36" (914 mm).

Using three hinges with 3/8" and 1/2" glass (10 and 12 mm) the hinge will hold up to 140 lbs. (63 kg) with a maximum width of 36" (914 mm).

SPECIFICATIONS:
Glass Thickness: 3/8" (10 mm) to 1/2" (12 mm) Tempered Safety Glass
Special Feature: Adjustable to Any Angle Up to 90º without Having to Take Door Down
Construction: Solid Brass
Hinge Swings: 90º In and 90º Out (at factory set position).
Closing Type: Self-Centering when within 15º of Closed Position
Cut-Out Required
Includes: Gaskets, Screws, and Glass Fabrication Dimensions

NOTE: Door Glass Width May Require Alteration From Standard Clearance Deductions When Adjusting Angles. Call for Details.

Custom finishes are available on request by contacting CRL Technical Sales.


Product Warning:

CRL Shower Door Hinges are designed for residential or hotel shower use. If hinges are to be used for other than their intended purpose, approval must be obtained from the CRL Shower Door Technical Sales Department.

Use only the template included with this hinge. Cut-out dimensions for CRL hinges may not match those of other brands.
