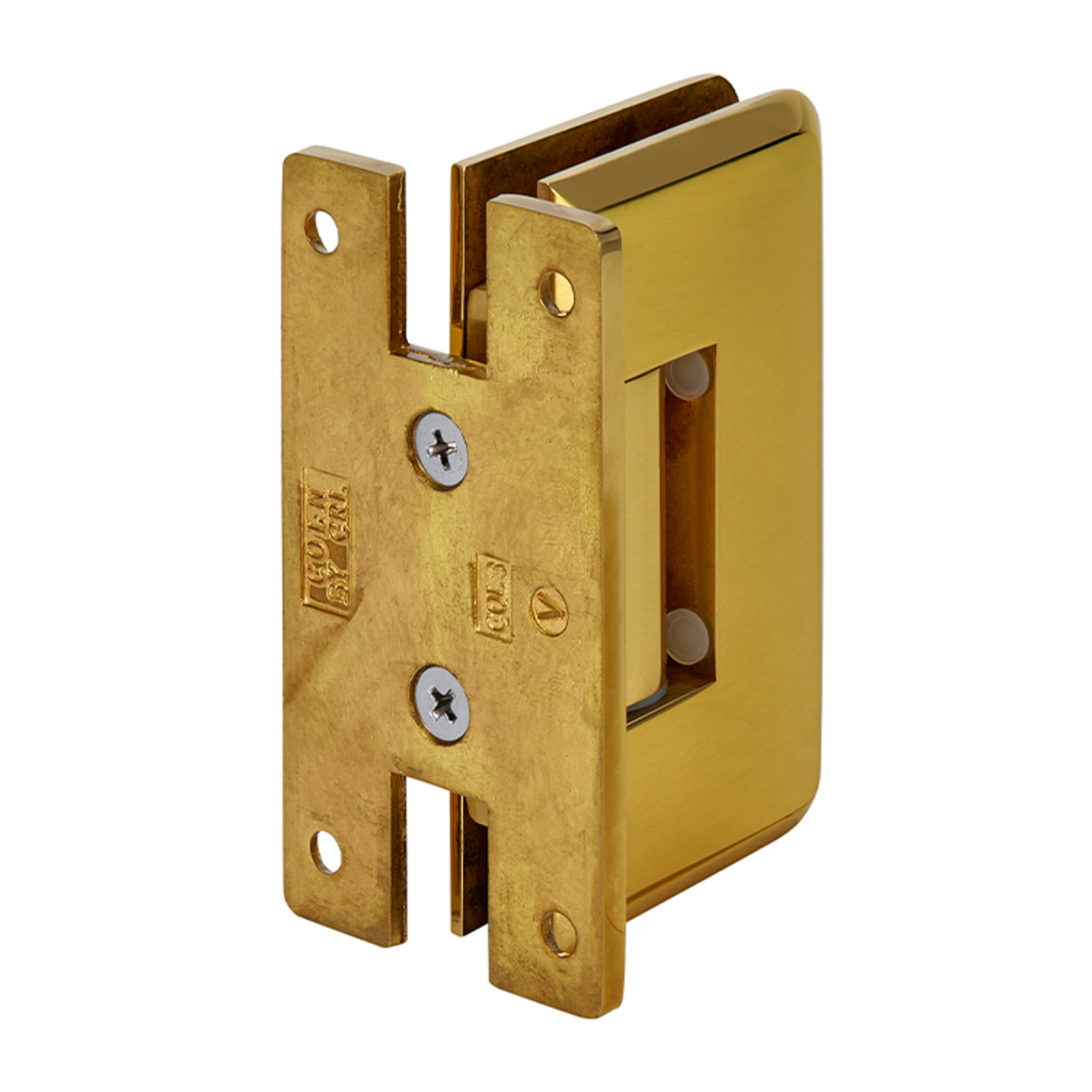

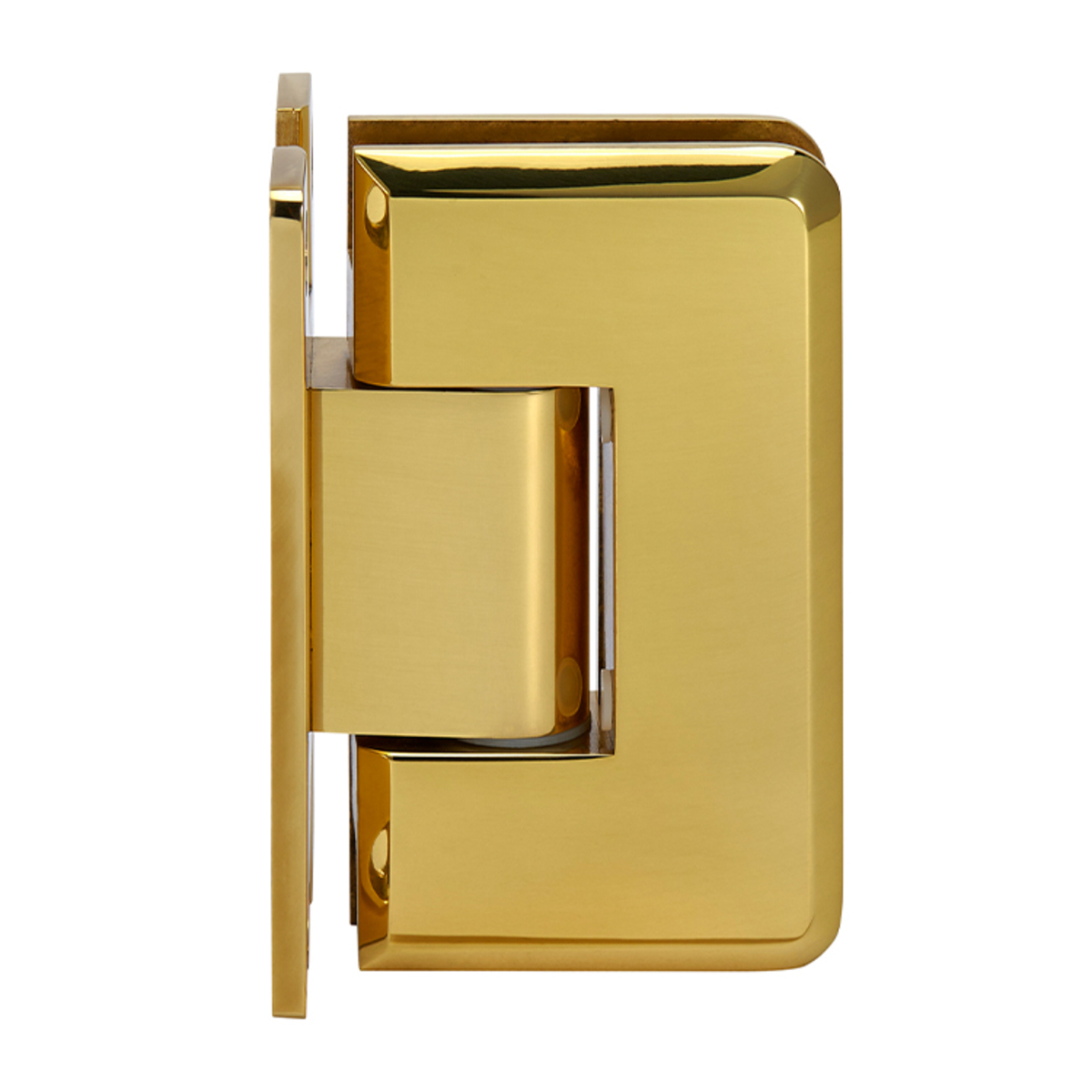

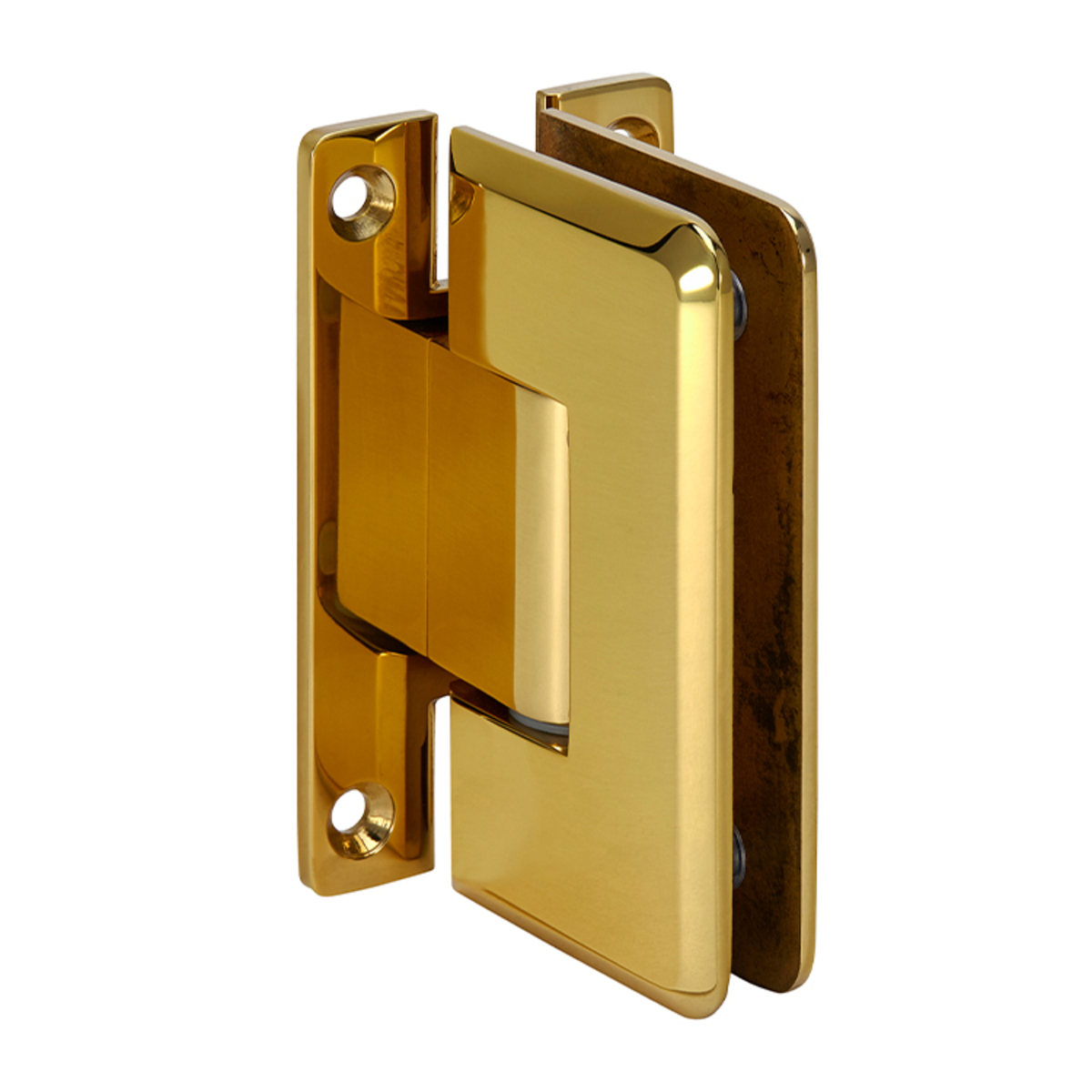

CRL C0L337ULBR Brass Cologne 337 Series Adjustable 'H' Back Plate Hinge, Unlacquered

CRL C0L337ULBR Brass Cologne 337 Series Adjustable 'H' Back Plate Hinge, Unlacquered

C.R. Laurence C0L337ULBR Unlacquered Brass Cologne 337 Series Adjustable Wall Mount 'H' Back Plate Hinge is designed to enhance your shower door experience with its innovative features and robust construction. This hinge accommodates 3/8" to 1/2" (10 to 12 mm) tempered safety glass, making it suitable for a variety of applications while supporting a maximum door weight of up to 140 lbs. (63 kg) with three hinges. One of the standout qualities of the Cologne hinge is its adjustable design, allowing for precise angle adjustments up to 90º without the need to remove the door. Simply loosen the Allen set screws, adjust the door to the desired position, and retighten for a self-centering effect. This functionality is particularly beneficial for achieving a snug closure against the jamb in outward-swinging doors. Constructed from solid brass, the hinge combines durability with aesthetic appeal, available in several beautiful finishes, including an unlacquered brass option that develops a unique patina over time. The package includes gaskets, screws, and glass fabrication dimensions for straightforward installation. A three-year warranty further supports the quality of this professional-grade hinge, making it an ideal choice for residential and hotel shower applications.

Unlacquered Brass Cologne 337 Series Adjustable Wall Mount 'H' Back Plate Hinge

• Accommodates 3/8" to 1/2" (10 to 12 mm) Glass
• Available in Several Beautiful Finishes
• Adjustable Wall Mount Full Back Plate
• Use Monolithic Tempered Glass

The CRL Adjustable Cologne Series has taken our popular Cologne Hinge to a new level. Adjustment to accommodate the desired angle (up to 90º) is done after the door is installed. Once the door is hung, simply loosen the Allen set screws and turn the door to the desired closed position. By merely tightening the Allen screws your door will self-center to the desired angle. The door can swing 90º inward and also 90º outward (adjusting angle from factory set position will reduce 90º swing in that direction). For doors pulling outwards only (using a clear door jamb), you can adjust the hinge to close 5º inside the shower area, thus having the door close snugly against the jamb.


Using two hinges with 3/8" to 1/2" glass (10 to 12 mm) the hinge will hold up to 110 lbs. (50 kg) with a maximum door width of 36" (914 mm).

Using three hinges with 3/8" and 1/2" glass (10 and 12 mm) the hinge will hold up to 140 lbs. (63 kg) with a maximum width of 36" (914 mm).

SPECIFICATIONS:
Glass Thickness: 3/8" (10 mm) to 1/2" (12 mm) Tempered Safety Glass
Special Feature: Adjustable to Any Angle Up to 90º without Having to Take Door Down
Construction: Solid Brass
Hinge Swings: 90º In and 90º Out (at factory set position).
Closing Type: Self-Centering when within 15º of Closed Position
Cut-Out Required
Includes: Gaskets, Screws, and Glass Fabrication Dimensions

NOTE: Door Glass Width May Require Alteration From Standard Clearance Deductions When Adjusting Angles. Call for Details.

Custom finishes are available on request by contacting CRL Technical Sales.


Product Warning:

CRL Shower Door Hinges are designed for residential or hotel shower use. If hinges are to be used for other than their intended purpose, approval must be obtained from the CRL Shower Door Technical Sales Department.

Use only the template included with this hinge. Cut-out dimensions for CRL hinges may not match those of other brands.

Brass Finish Advisory:
