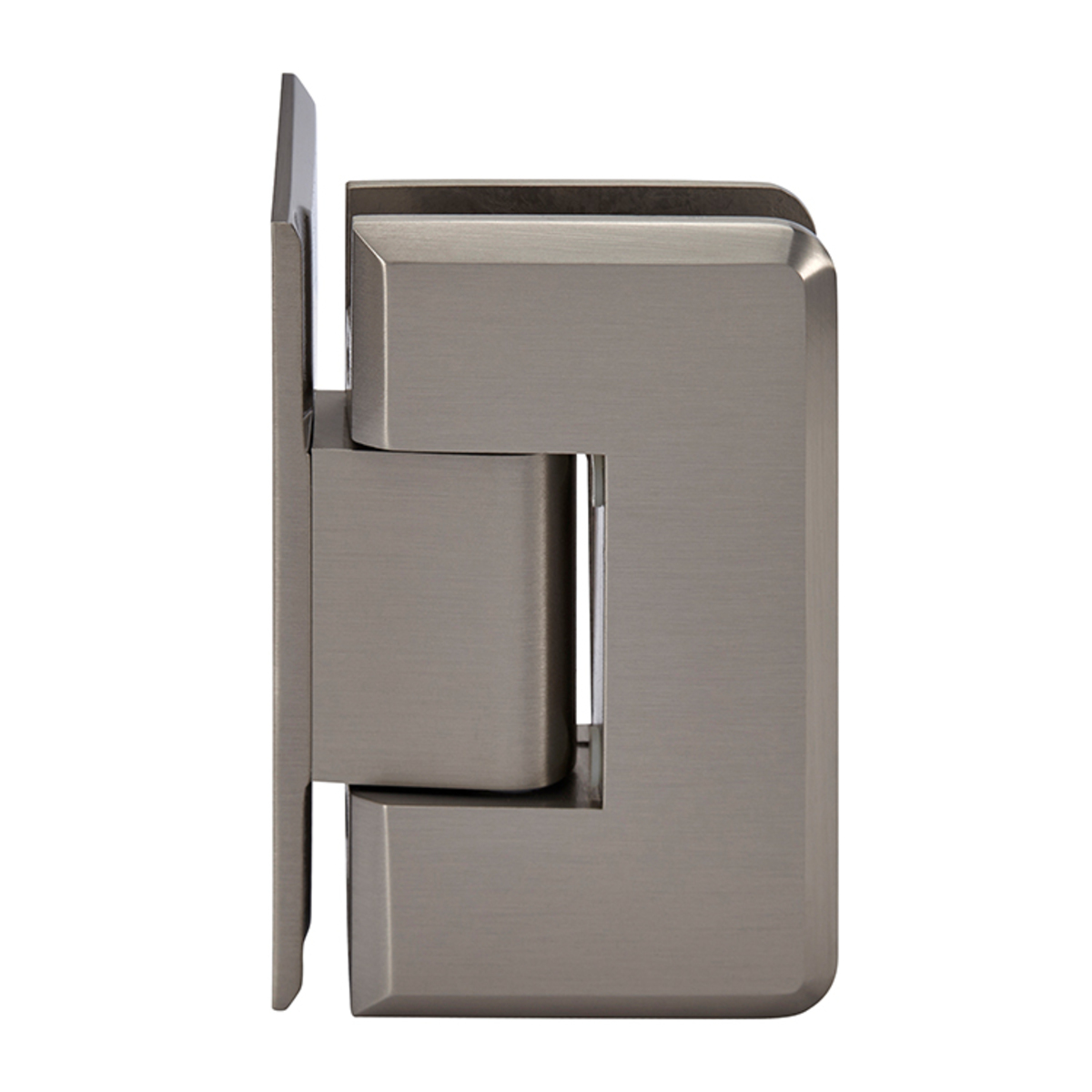

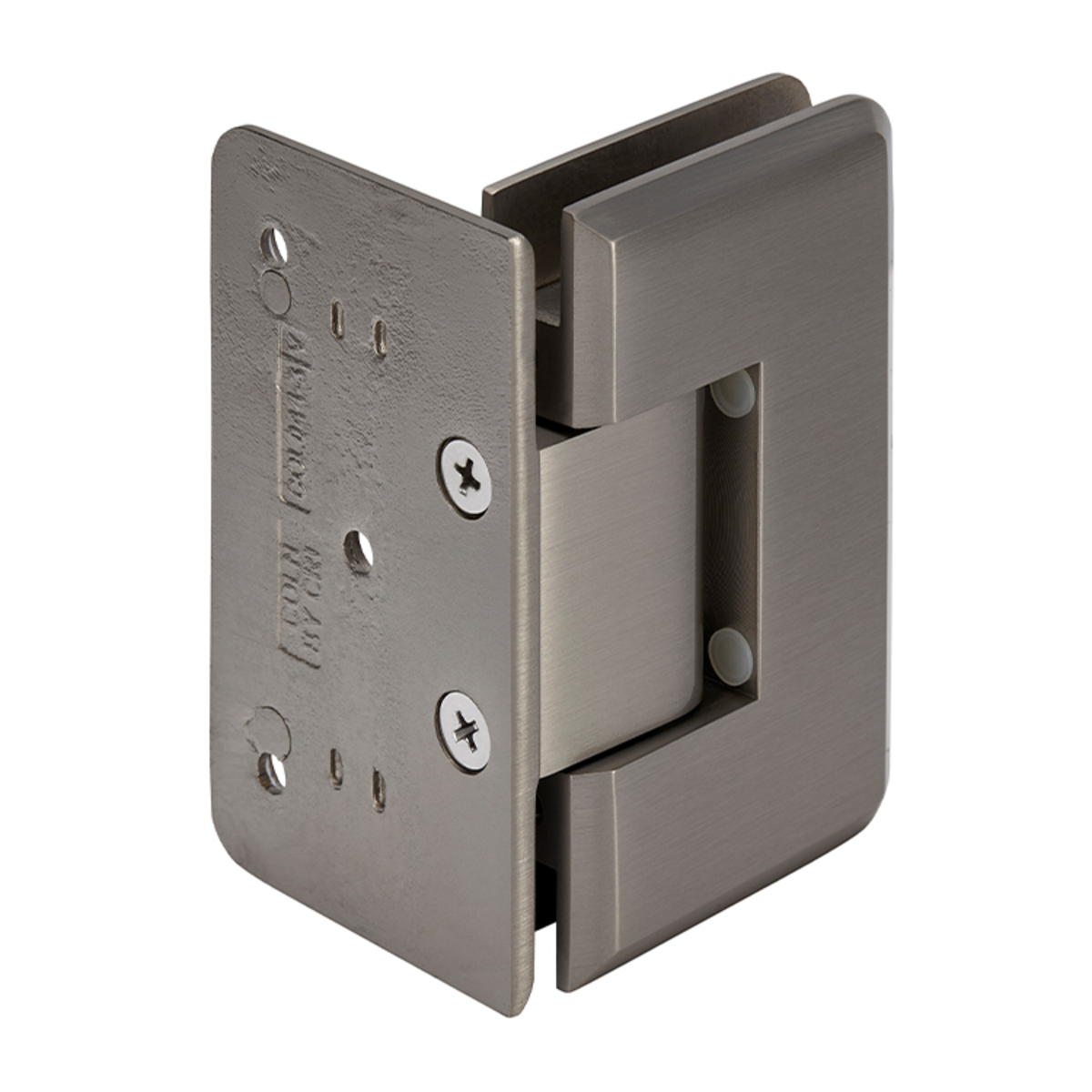

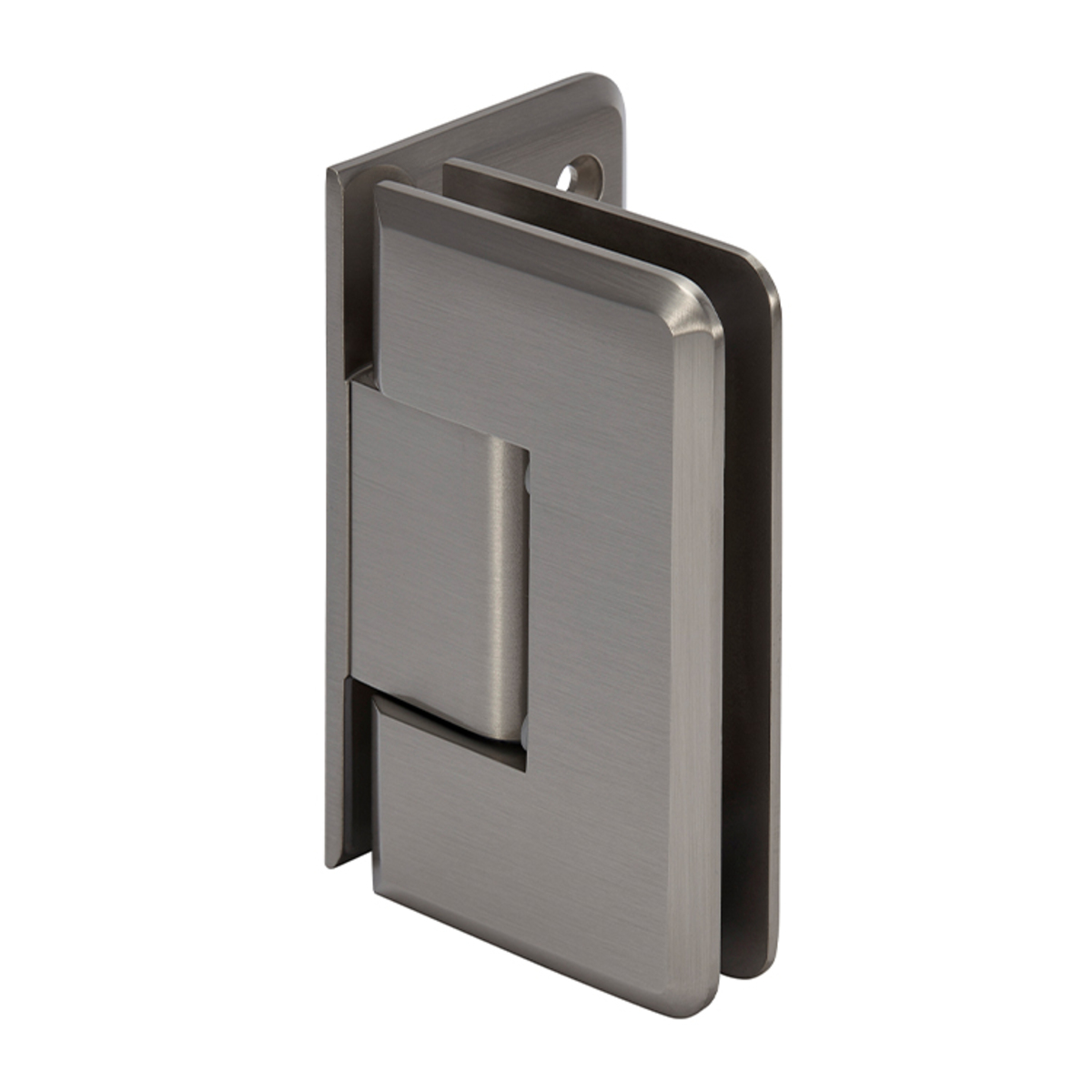

CRL C0L544BN Brushed Nickel Cologne 544 Series 5 Wall Mount Offset Back Plate Hinge

CRL C0L544BN Brushed Nickel Cologne 544 Series 5 Wall Mount Offset Back Plate Hinge

C.R. Laurence C0L544BN Brushed Nickel Cologne 544 Series 5 Degree Pre-Set Wall Mount Offset Back Plate Hinge offers a sophisticated solution for shower door installations. Designed to accommodate 3/8" to 1/2" (10 to 12 mm) tempered glass, this hinge is perfect for wider and heavier doors that require robust support. The Cologne series features elegant radius corners and beveled edges, enhancing the overall aesthetic of your shower space. This pre-set model is factory-set for a 5º tighter closure into the shower interior, ensuring a snug fit that helps maintain water containment. Constructed from solid brass, it promises durability and long-lasting performance. Each hinge supports impressive weight capacities-up to 100 lbs. (45 kg) with two hinges for 3/8" glass, and up to 130 lbs. (59 kg) with three hinges, making it a reliable choice for various door widths. The hinge swings 90º in and out and includes a reversible pivot pin for tailored installations. Additionally, this product comes with a 3-year warranty, providing peace of mind. Custom finishes are available upon request, allowing for personalization to match your project’s design. Elevate your shower enclosure with the C.R. Laurence Cologne hinge, where style meets functionality.

Brushed Nickel Cologne 544 Series 5 Degree Pre-Set Wall Mount Offset Back Plate Hinge

• Accommodates 3/8" to 1/2" (10 to 12 mm) Glass
• Available in Several Beautiful Finishes
• 3 Year Warranty
• 5º Pre-Set Model (Factory set for 5º Tighter Closure Into Shower Interior)
• Use Monolithic Tempered Glass

CRL Cologne Hinges are similar to the popular Vienna Hinges, but with one change: They have radius corners and beveled edges to provide a sleek appearance. Cologne Hinges are the solution for wider, heavier doors that traditional hinges are not strong enough to support. Two strategically placed steel pins inside the hinge provide template options, and satisfy two schools of thought for mounting shower door hinges. For the safety of "mouse-ears" type cut-outs, the two steel pins should be left in place. This allows the Cologne Hinge to be used with its own CRL "mouse-ears" cut-out. On the other hand, to enable increased adjustability, the two pins can be removed. This allows the Cologne Hinge to fit its own CRL rectangular shaped, square cornered cut-out. In some cases, it will also fit competitive rectangular, square cornered cut-outs.


STANDARD REVERSIBLE PIVOT PIN: Each Cologne Hinge contains a Reversible Pivot Pin. One side of the Pin is marked at 90º. The opposite side of the Pin is marked 85º. Standard Cologne Hinges come with the 90º side activated. Pre-Set Models come with the Pin pre-set for 85º (5º tighter closure into shower interior). The Pin can be rotated (not flipped upside down) to activate the other side.

CUSTOM PIVOT PIN: Custom Pivot Pins are available to accommodate "off-angle" installations. As an example, you may encounter a wall that will not meet your door at 90º. If the standard 5º Pivot Pin contained in the hinge does not assist in closing the door to the position desired, you may specify the angle needed for a Custom Pivot Pin (up to 45º).

Using two hinges with 3/8" glass (10 mm) the hinge will hold up to 100 lbs. (45 kg) with a maximum door width of 34" (864 mm).

Using two hinges with 1/2" glass (12 mm) the hinge will hold up to 100 lbs. (45 kg) with a maximum door width of 32" (813 mm).

Using three hinges with 3/8" glass (10 mm) the hinge will hold up to 130 lbs. (59 kg) with a maximum door width of 34" (864 mm).

Using three hinges with 1/2" glass (12 mm) the hinge will hold up to 130 lbs. (59 kg) with a maximum door width of 32" (813 mm).

SPECIFICATIONS:
Glass Thickness: 3/8" (10 mm) to 1/2" (12 mm) Tempered Safety Glass
Construction: Solid Brass
Hinge Swings: 90º In and 90º Out
Closing Type: Self-Centering when within 15º of closed position.
Cut-Out Required - Except C0L092 Which Requires Cut-Out for Door and Two Holes for Fixed Panel
Includes: Gaskets, Screws, and Glass Fabrication Dimensions
Maximum Clamping Screw Torque: 60 lbf.in (677.9 cN.m)

Custom finishes are available on request by contacting CRL Technical Sales Department.


Product Warning:

CRL Shower Door Hinges are designed for residential or hotel shower use. If hinges are to be used for other than their intended purpose, approval must be obtained from the CRL Shower Door Technical Sales Department.

Use only the template included with this hinge. Cut-out dimensions for CRL hinges may not match those of other brands.
