C.R. Laurence C0M044BN Brushed Nickel Como Series Wall Mount Outswing Hinge combines elegance and functionality, making it an ideal choice for both residential and hotel shower applications. Designed for use with 5/16" to 3/8" (8 mm to 10 mm) tempered safety glass, this hinge offers a 180-degree free swing, allowing for versatile door configurations, including saloon style, which enhances accessibility. Each hinge requires only two holes per panel with no cut-outs, simplifying installation while maintaining a clean aesthetic. With a robust construction from stainless steel or solid brass, it supports a maximum door weight of 110 lbs. (50 kg) and accommodates a door width of up to 39" (914 mm). The snap-on covers effectively conceal screws, ensuring a sleek appearance. Rigorously tested to withstand 100,000 cycles-five times the industry standard-this hinge is built for durability and reliability. It also includes gaskets, screws, and glass fabrication dimensions for added convenience. Custom finishes can be requested, allowing for a tailored look to complement any design scheme. For optimal performance, it is crucial to use the included template for installation. Trust C.R. Laurence to deliver quality and style with the Como Series Hinge, enhancing your space with sophistication and ease.

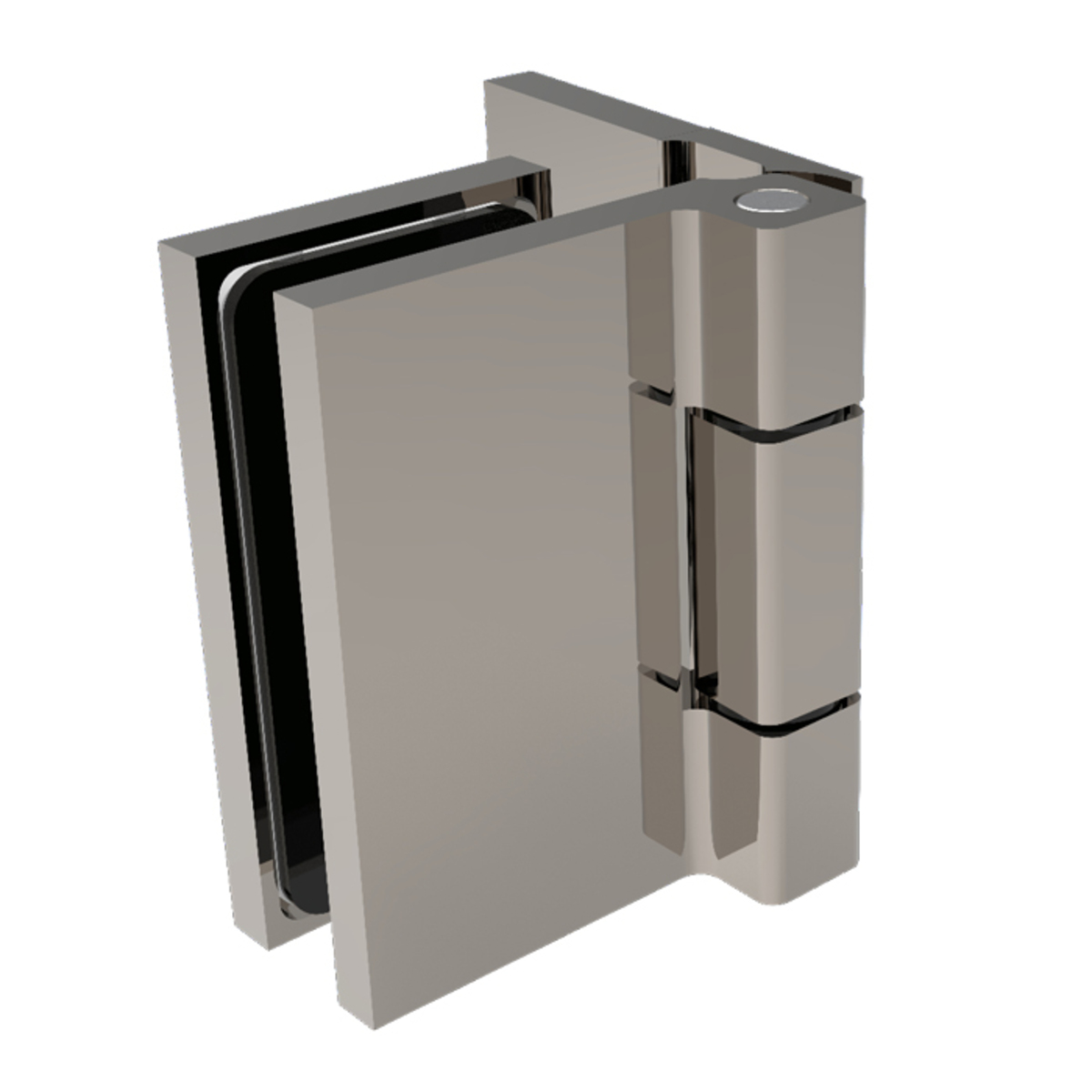

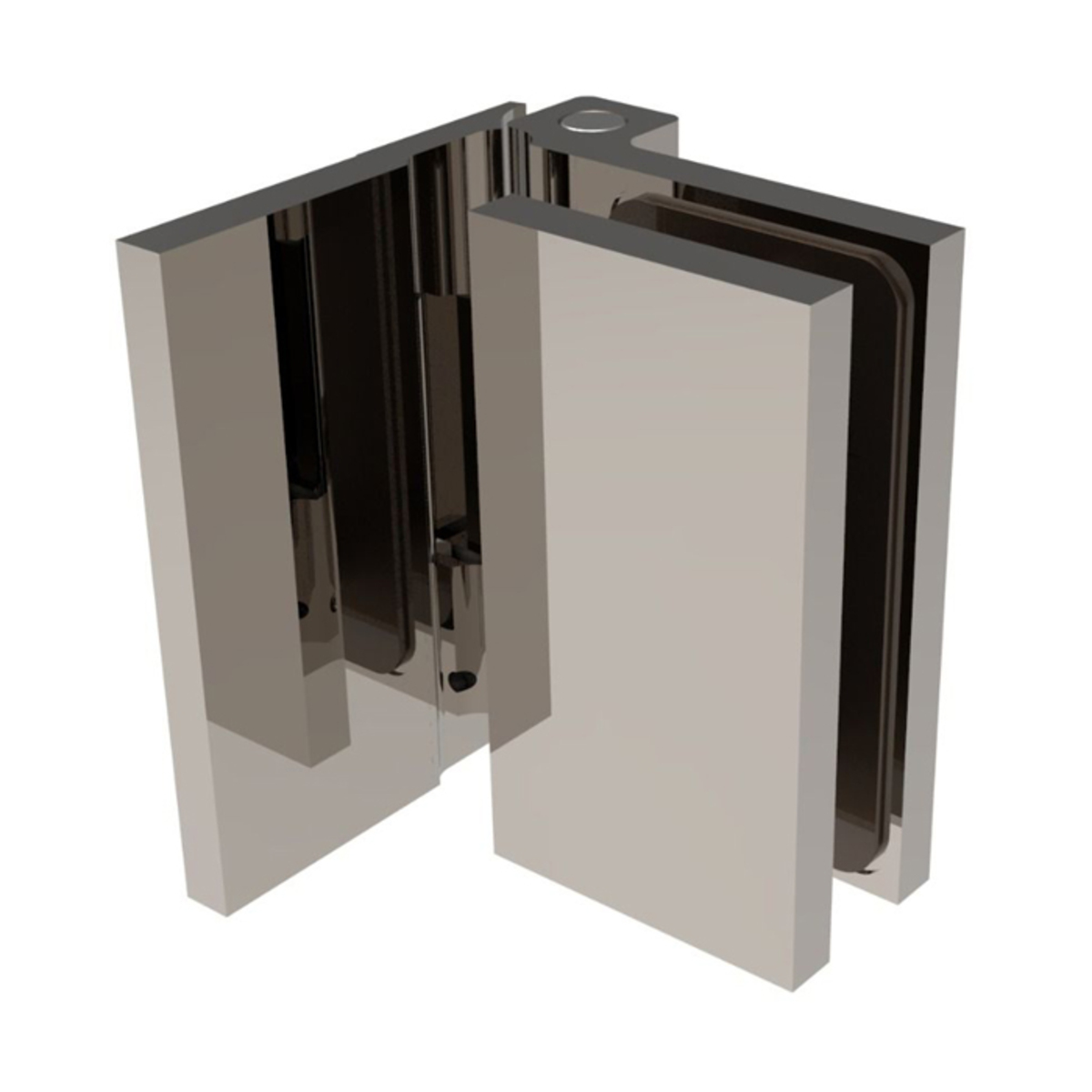

Brushed Nickel Como Series Wall Mount Outswing Hinge
The CRL COMO Series of professional Hinges for 5/16" (8 mm) to 3/8" (10 mm) tempered safety glass. Only two holes per Hinge per panel are required, with no cut-out necessary.
Most shipping weights are approximate and have not been verified. If the exact weight is needed in order to determine shipping costs, and shipping costs are required in order for you to complete your order, please request this prior to submitting your order by contacting CRL Customer Service. Product images shown are of the actual product or a close representation. Colors can vary depending on your computer's video card and on how your monitor's color is adjusted.
5 Degree Pre- Set: No
Adjustable: No
Back Plate: Offset
Compliance and Restrictions: Warning Reproductive Harm - www.p65warnings.ca.gov
Design Style: Concealed/Premium
Edge Profile: Square
Enclosure Type: Corner, Niche, Bathtub, Tailor Made Solutions
Finish/ Color:: Brushed Nickel
Glazing Thickness: 5/16 in. To 3/8 in. (8 mm To 10 mm)
Height: 3-1/8 in. (79 mm)
Material: Brass
Maximum Door Weight: 110 lbs. (49.9 kg)
Maximum Door Width: 39 in. (991 mm)
Mounting Type: Wall Mount
Opening Style: Swing(side)
Self- Centering: No
Series: Como
Shipping Limitations: None
Width: 2-9/16
