C.R. Laurence C0M044CH Polished Chrome Como Series Wall Mount Outswing Hinge is designed to provide a seamless and functional solution for your glass door installations. This hinge accommodates 5/16" to 3/8" (8 to 10 mm) tempered safety glass, ensuring compatibility with a variety of applications. With a 180-degree free swing capability, it allows for versatile door configurations, including saloon doors, making it particularly ideal for wheelchair accessibility. Engineered for durability, this hinge has been rigorously tested to withstand 100,000 cycles-five times more than the industry standard. It can support doors weighing up to 110 lbs. (50 kg) with a maximum width of 39" (914 mm), ensuring reliable performance in high-traffic areas. The hinge features snap-on covers that conceal screws, promoting a sleek and polished appearance. The C0M044CH includes gaskets, screws, and glass fabrication dimensions, simplifying the installation process. With its polished chrome finish and concealed design, this hinge not only meets functional needs but also enhances the aesthetic of any space. For custom finishes, reach out to the CRL Technical Sales Shower Door Department. Please note that these hinges are intended for residential or hotel shower use only.

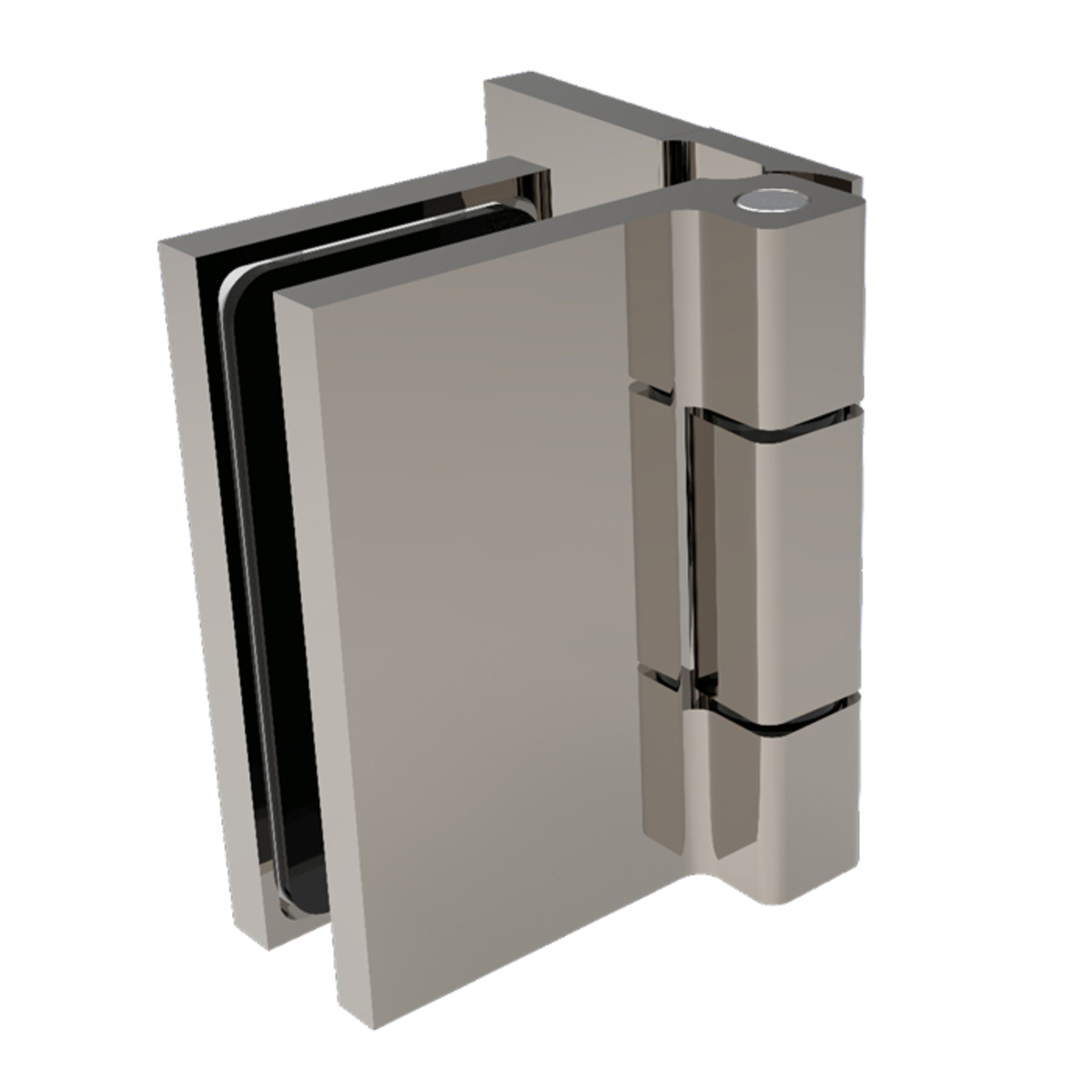

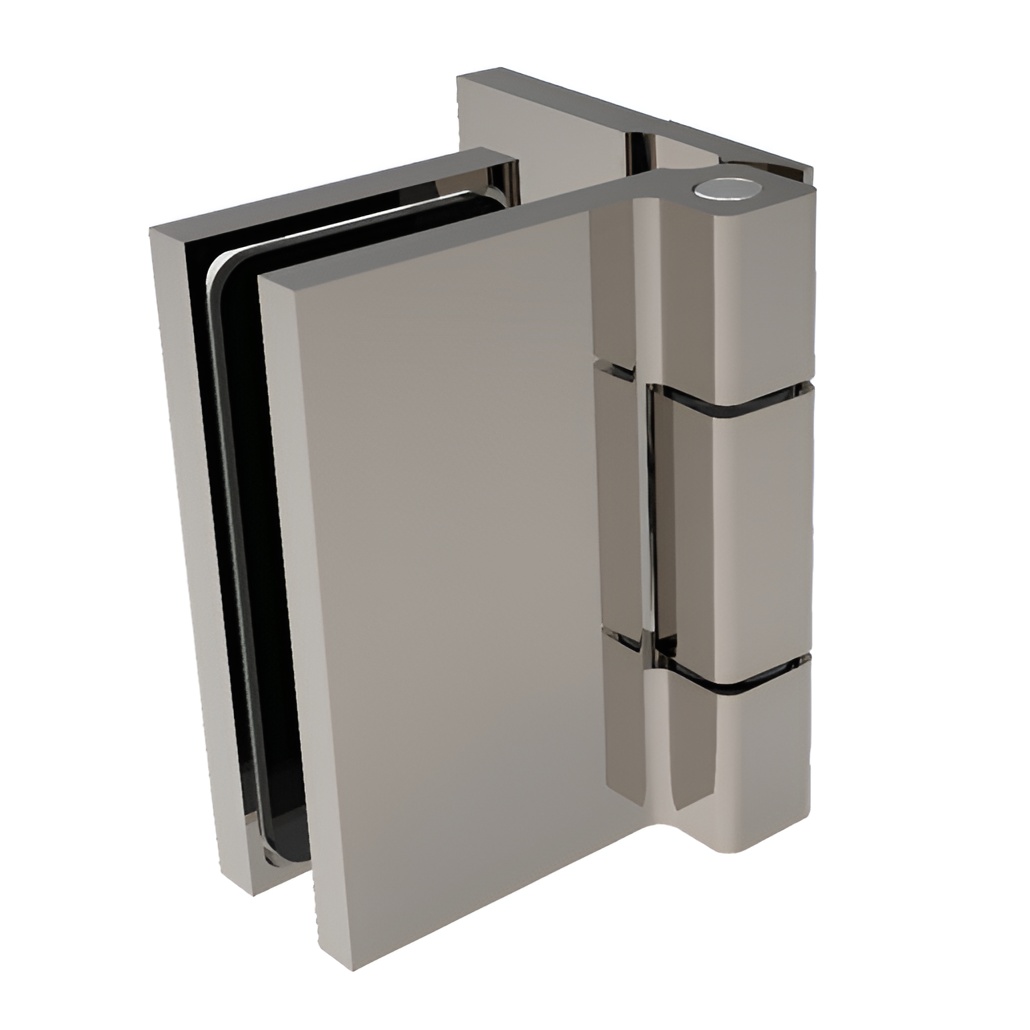

Polished Chrome Como Series Wall Mount Outswing Hinge
The CRL COMO Series of professional Hinges for 5/16" (8 mm) to 3/8" (10 mm) tempered safety glass. Only two holes per Hinge per panel are required, with no cut-out necessary.
Most shipping weights are approximate and have not been verified. If the exact weight is needed in order to determine shipping costs, and shipping costs are required in order for you to complete your order, please request this prior to submitting your order by contacting CRL Customer Service. Product images shown are of the actual product or a close representation. Colors can vary depending on your computer's video card and on how your monitor's color is adjusted.
5 Degree Pre- Set: No
Adjustable: No
Back Plate: Offset
Compliance and Restrictions: Warning Reproductive Harm - www.p65warnings.ca.gov
Design Style: Concealed/Premium
Edge Profile: Square
Enclosure Type: Corner, Niche, Bathtub, Tailor Made Solutions
Finish/ Color:: Polished Chrome
Glazing Thickness: 5/16 in. To 3/8 in. (8 mm To 10 mm)
Height: 3-1/8 in. (79 mm)
Material: Brass
Maximum Door Weight: 110 lbs. (49.9 kg)
Maximum Door Width: 39 in. (991 mm)
Mounting Type: Wall Mount
Opening Style: Swing(side)
Self- Centering: No
Series: Como
Shipping Limitations: None
Width: 2-9/16
