C.R. Laurence C0M044MBL Matte Black Como Series Wall Mount Outswing Hinge is a perfect solution for stylish and functional glass installations. Designed to accommodate 5/16" to 3/8" (8 to 10 mm) tempered safety glass, this hinge supports a door weight of up to 110 lbs. (50 kg) with a maximum width of 39" (914 mm). Its 180-degree free-swing feature allows for versatile configurations, including saloon door setups, making it an excellent option for spaces requiring wheelchair accessibility. Constructed from durable stainless steel or solid brass, this hinge not only boasts a sleek matte black finish but also includes snap-on covers that neatly conceal screws for a clean aesthetic. The Como Series hinges are rigorously tested to 100,000 cycles, significantly exceeding industry standards, ensuring reliability and longevity. Installation is straightforward with only two holes required per hinge panel, eliminating the need for complex cut-outs. Each package includes gaskets, screws, and glass fabrication dimensions, making it easy to integrate into your projects. Custom finishes are available upon request through the C.R. Laurence Technical Sales Shower Door Department. Enhance your architectural designs with the elegance and functionality of the C.R. Laurence Como Series Wall Mount Outswing Hinge.

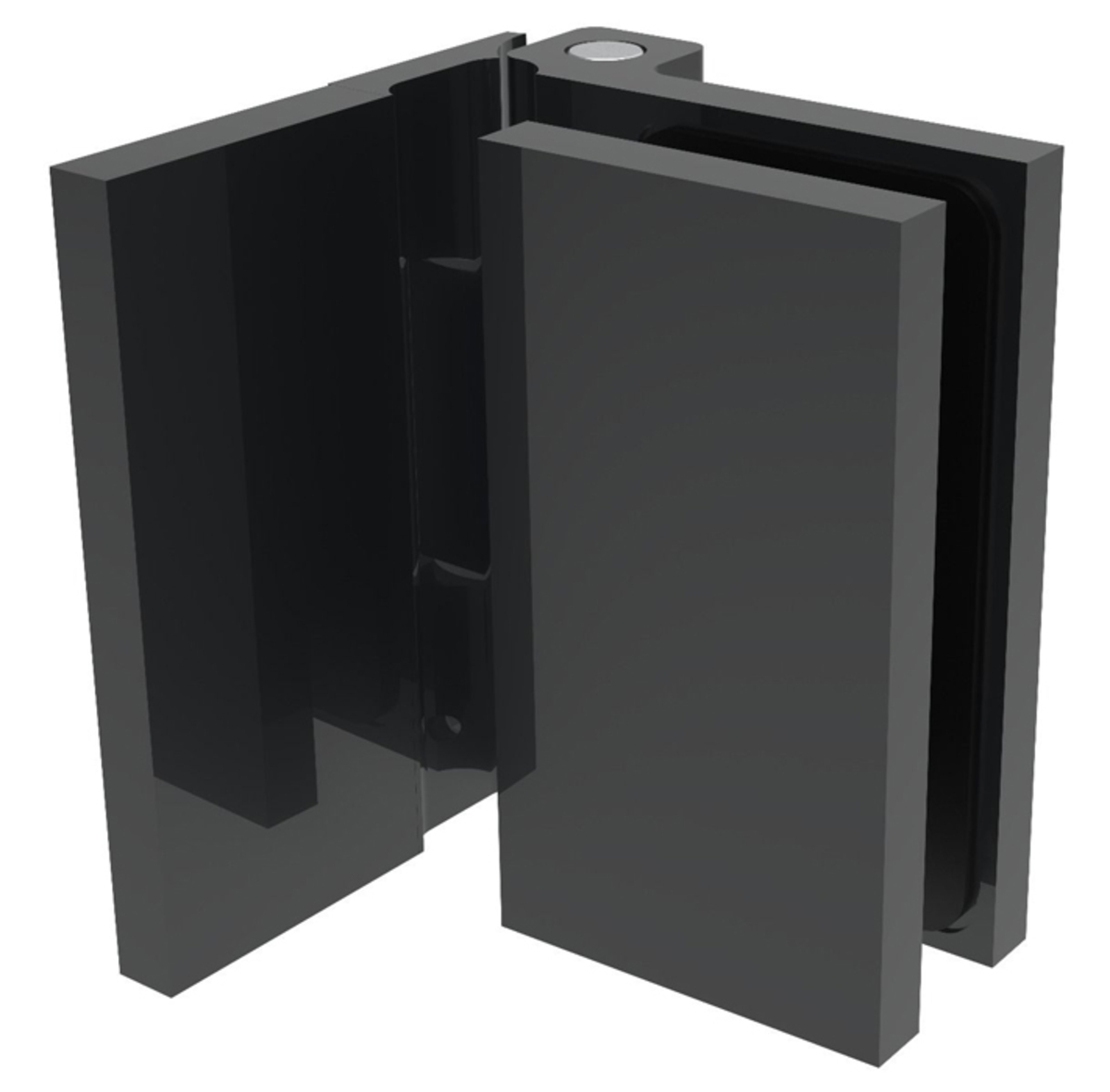

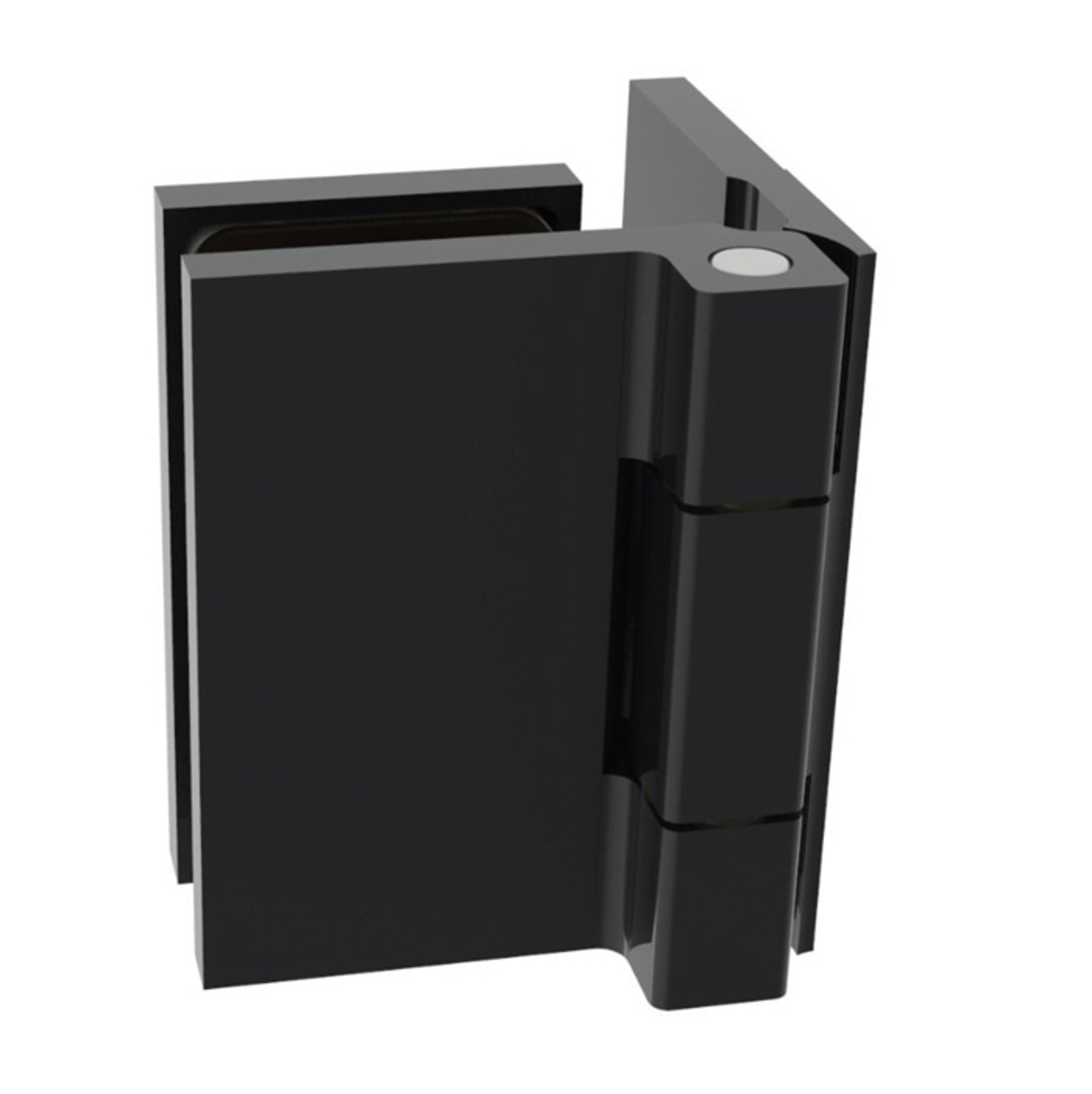

Matte Black Como Series Wall Mount Outswing Hinge
The CRL COMO Series of professional Hinges for 5/16" (8 mm) to 3/8" (10 mm) tempered safety glass. Only two holes per Hinge per panel are required, with no cut-out necessary.
Most shipping weights are approximate and have not been verified. If the exact weight is needed in order to determine shipping costs, and shipping costs are required in order for you to complete your order, please request this prior to submitting your order by contacting CRL Customer Service. Product images shown are of the actual product or a close representation. Colors can vary depending on your computer's video card and on how your monitor's color is adjusted.
5 Degree Pre- Set: No
Adjustable: No
Back Plate: Offset
Compliance and Restrictions: Warning Reproductive Harm - www.p65warnings.ca.gov
Design Style: Concealed/Premium
Edge Profile: Square
Enclosure Type: Corner, Niche, Bathtub, Tailor Made Solutions
Finish/ Color:: Matte Black
Glazing Thickness: 5/16 in. To 3/8 in. (8 mm To 10 mm)
Height: 3-1/8 in. (79 mm)
Material: Brass
Maximum Door Weight: 110 lbs. (49.9 kg)
Maximum Door Width: 39 in. (991 mm)
Mounting Type: Wall Mount
Opening Style: Swing(side)
Self- Centering: No
Series: Como
Shipping Limitations: None
Width: 2-9/16
