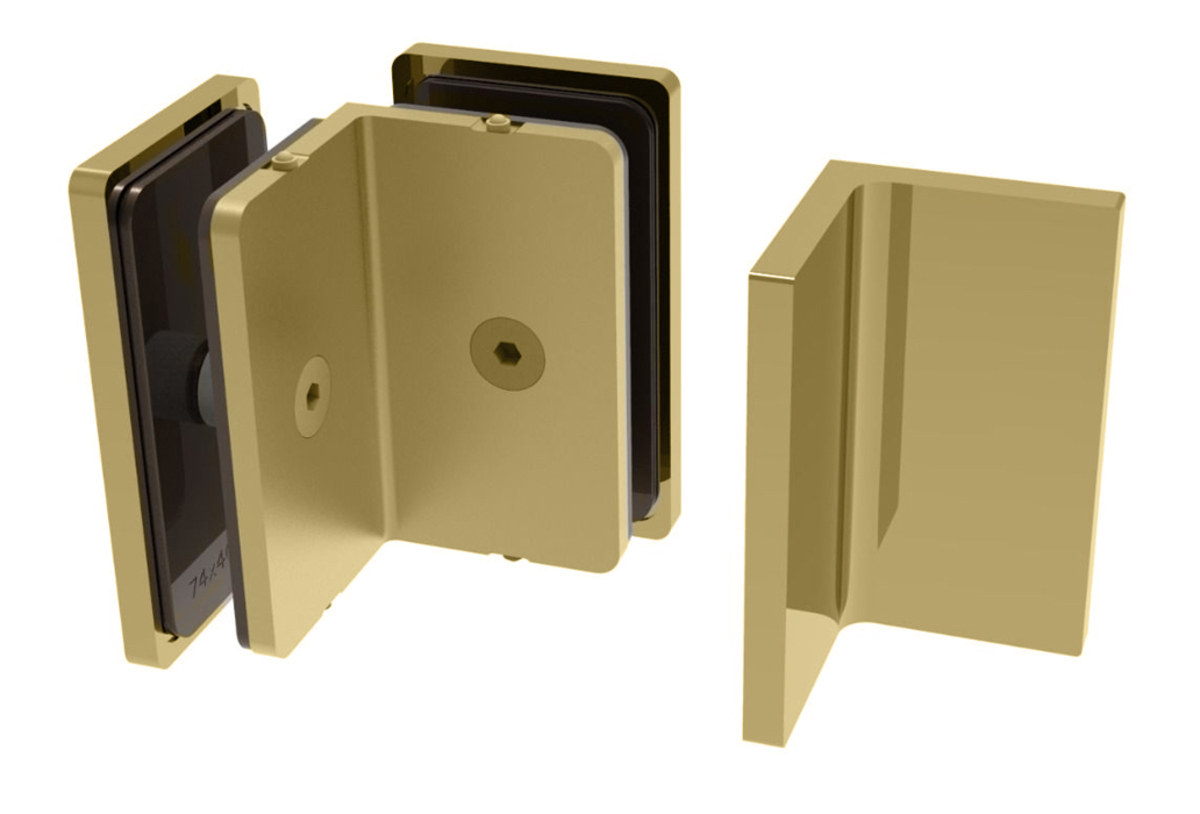

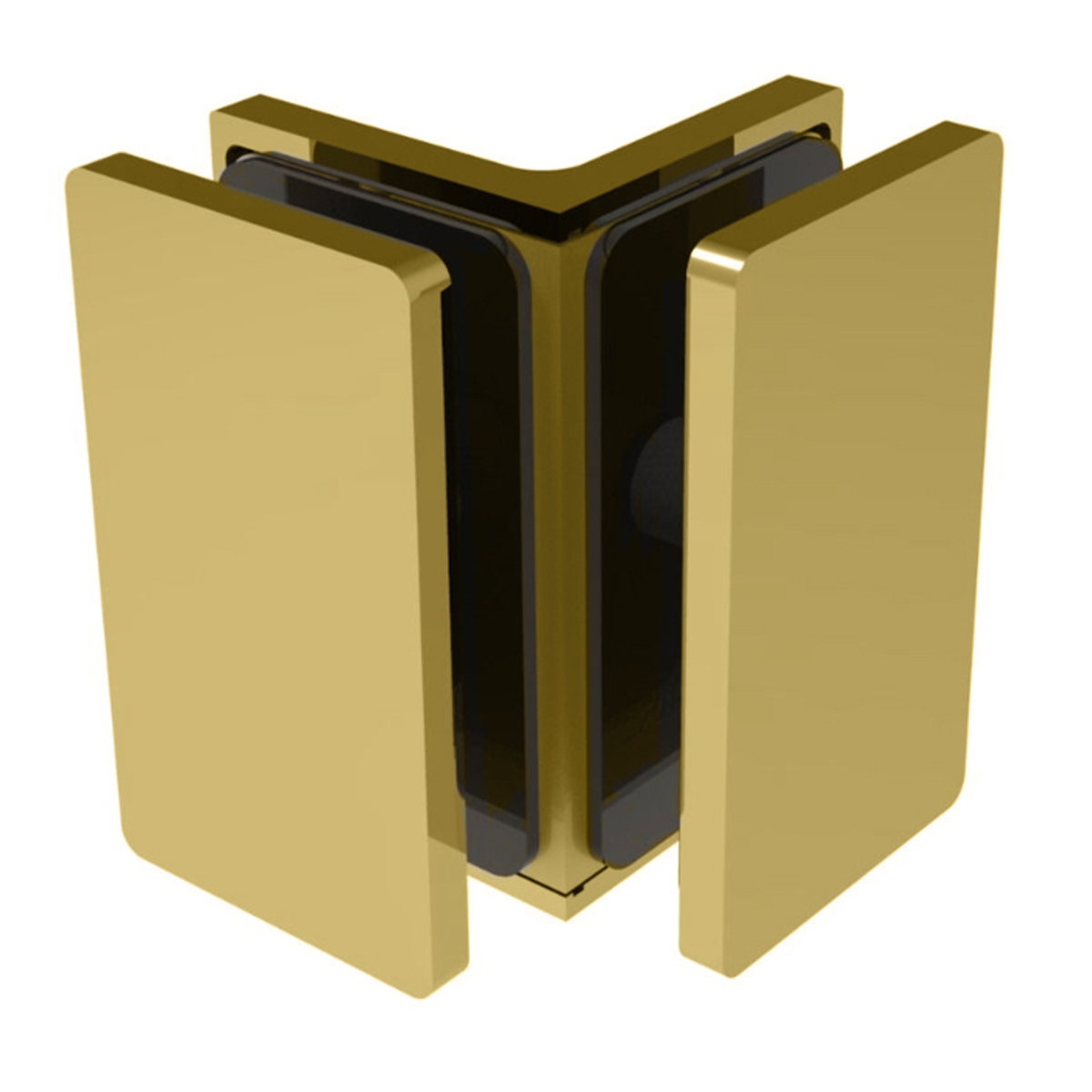

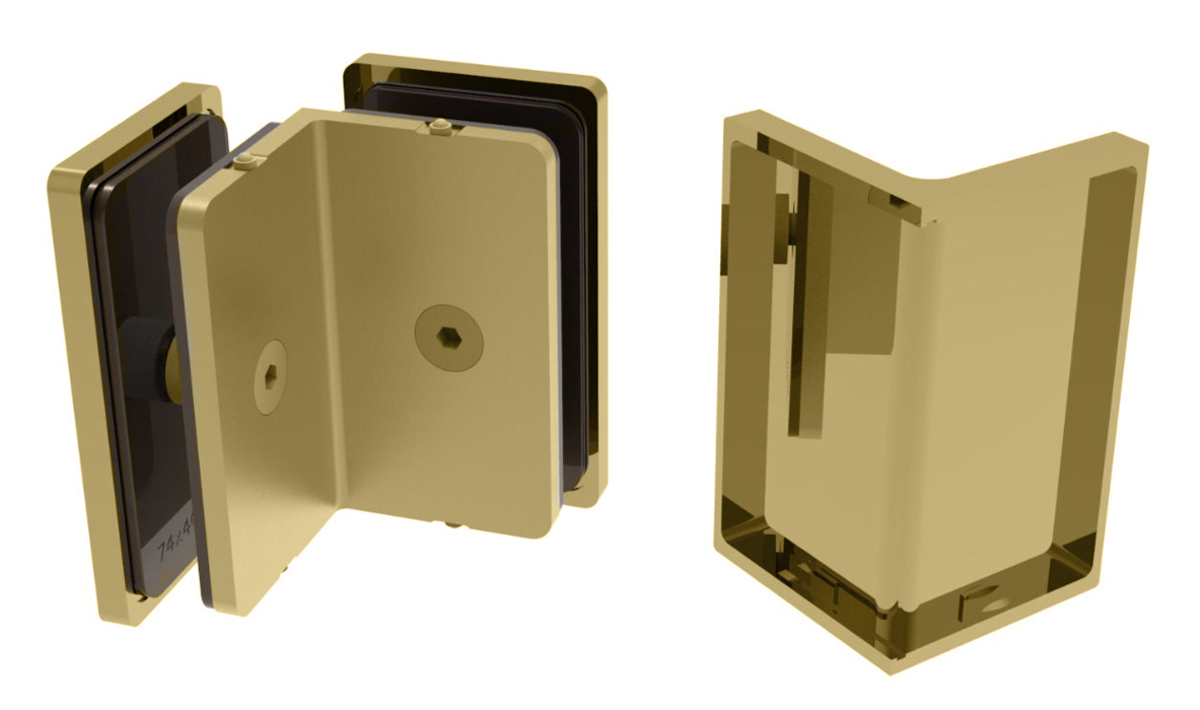

C.R. Laurence C0M090SB Satin Brass Como Series Glass-to-Glass Bracket is an exceptional choice for modern glass installations, expertly designed for use with 5/16" to 3/8" (8 to 10 mm) monolithic tempered glass. This bracket ensures a seamless connection between glass panels at a 90-degree angle, providing both stability and aesthetic appeal in various applications, including corners, niches, and customized solutions. Constructed from solid brass, the bracket not only delivers strength but also enhances the overall elegance of your design. The satin brass finish offers a sophisticated touch, while the snap-on covers effectively conceal screws, contributing to a clean, polished look. Each bracket includes gaskets and mounting screws, facilitating straightforward installation. With a height of 3-1/8 inches and a leg length of 1-7/8 inches, the C0M090SB bracket maintains a minimalist profile that complements a variety of architectural styles. Perfectly matching the configuration of other popular hinge series, this bracket ensures continuity of design throughout your project. While brass is durable, it is susceptible to oxidation, which may tarnish its finish over time. For optimal results, consider maintenance options to preserve its appearance. Enjoy the blend of functionality and style that the Como Series provides for your glass installations.
Satin Brass Como Series Glass-to-Glass Bracket
The COMO Series 90 Degree Glass-to-Glass Brackets are designed for 5/16" to 3/8" (8 to 10 mm) glass projects. The two mounting screws per panel matches the configuration of many of our most popular hinge series. Continuity of design is maintained by matching the look of the hinges used. They feature square corners and edges in several decorator finishes and are constructed of solid brass. Custom finishes are available on request by contacting CRL Technical Sales Shower Door Department.
Most shipping weights are approximate and have not been verified. If the exact weight is needed in order to determine shipping costs, and shipping costs are required in order for you to complete your order, please request this prior to submitting your order by contacting CRL Customer Service. Product images shown are of the actual product or a close representation. Colors can vary depending on your computer's video card and on how your monitor's color is adjusted.
Compliance and Restrictions: Warning Reproductive Harm - www.p65warnings.ca.gov
Design Style: Concealed/Premium
Enclosure Type: Corner, Niche, Bathtub, Tailor Made Solutions
Finish/ Color:: Satin Brass
Glazing Thickness: 5/16 in. To 3/8 in. (8 mm To 10 mm)
Height: 3-1/8 in. (79 mm)
Leg Length: 1-7/8 in. (47.6 mm)
Length: 1-7/8 in. (48 mm)
Material: Brass
Mounting Type: Glass To Glass
Opening Style: Swing(side)
Series: Como
Shipping Limitations: None
Width: 1-7/8 in. (47.6 mm)
Width - Sidelite Portion: 1-7/8
