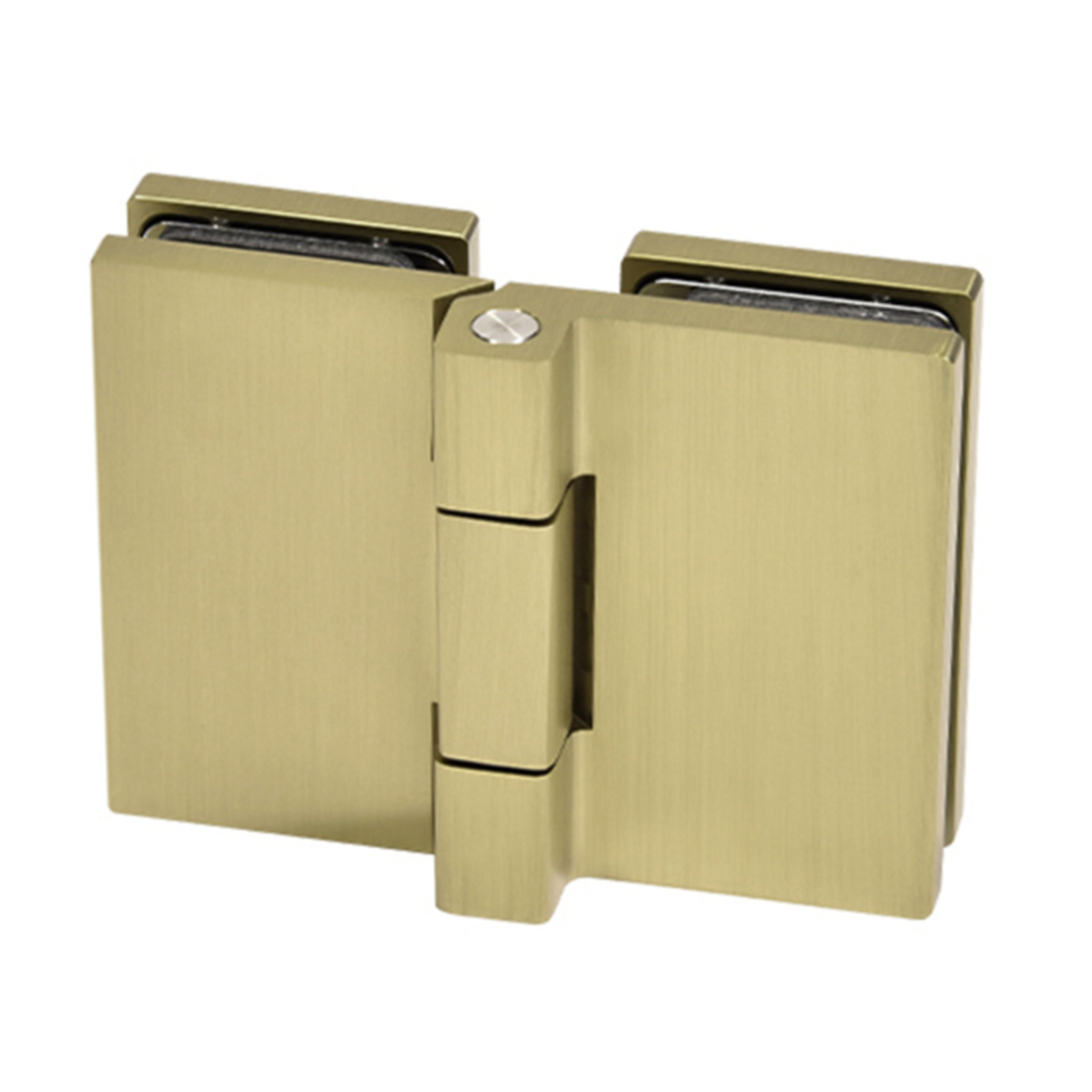

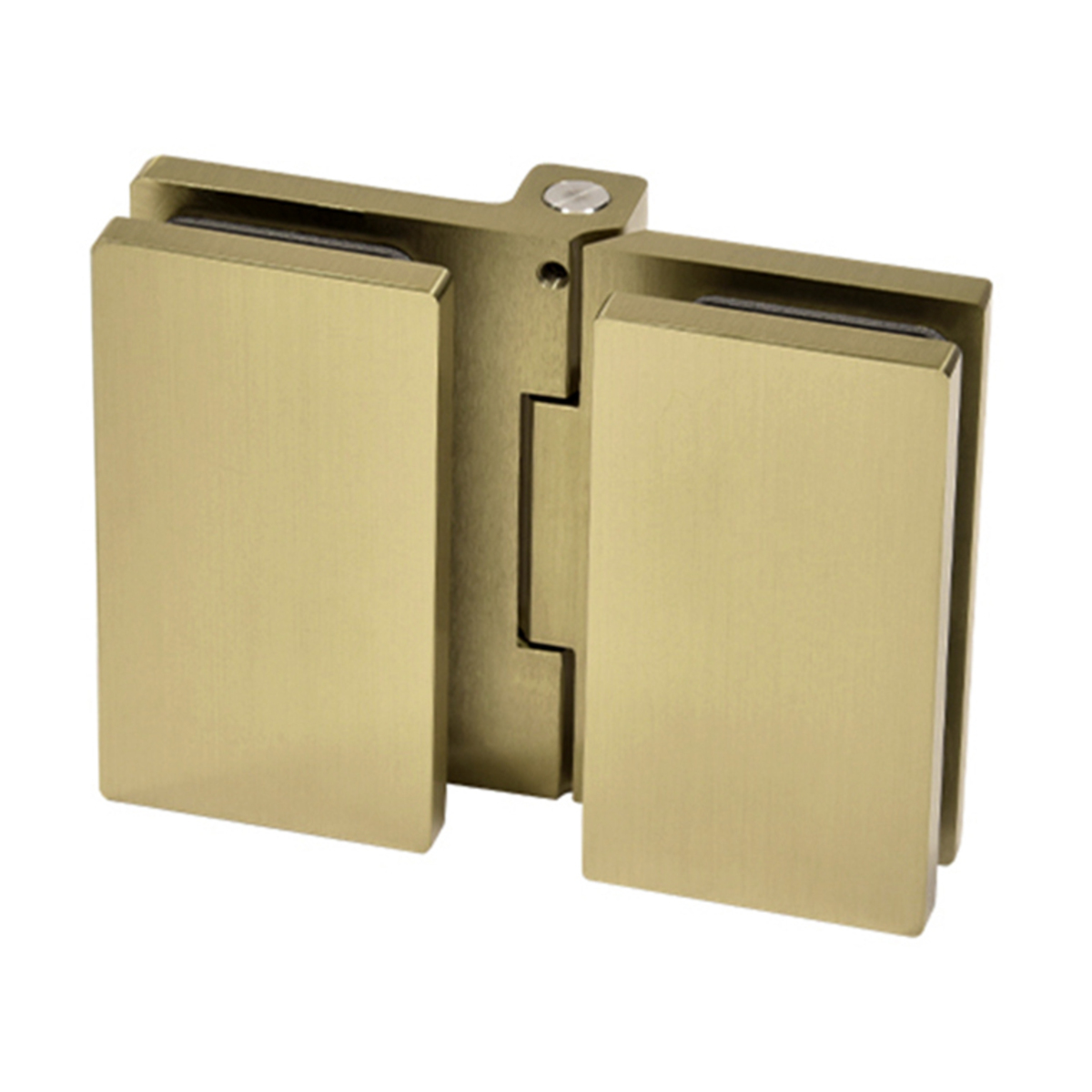

CRL C0M180BBRZ Brushed Bronze Como Series 180 Glass-to-Glass Hinge
Images may not represent actual product and finish

CRL C0M180BBRZ Brushed Bronze Como Series 180 Glass-to-Glass Hinge

Your Price: $205.89
Retail Price:$246.48
Your Savings:$40.59(16%)
The CRL C0M180BBRZ Brushed Bronze Como Series hinge offers durable glass-to-glass functionality, ideal for accessible saloon doors.
Part Number : CRL_C0M180BBRZ
Availability: 48 In Stock
CRL C0M180BBRZ Brushed Bronze Como Series 180 Glass-to-Glass Hinge

C.R. Laurence C0M180BBRZ Brushed Bronze Como Series 180 Glass-to-Glass hinge offers a perfect blend of functionality and style for your architectural needs. Designed for glass panels ranging from 5/16" to 3/8" (8 to 10 mm) in thickness, this hinge is ideal for creating sleek, modern spaces with a glass-to-glass inline outswing configuration. The hinge accommodates up to 110 lbs. (50 kg) with two hinges or up to 150 lbs. (68 kg) when using three, ensuring robust support for doors up to 39" (914 mm) wide. Its unique saloon door configuration enhances accessibility, making it a great choice for wheelchair-friendly environments. Engineered for durability, the C0M180BBRZ has been rigorously tested to withstand 100,000 cycles-five times more than the industry standard-providing peace of mind for long-lasting performance. The snap-on covers seamlessly conceal screws, contributing to a clean aesthetic. Included with the hinge are gaskets, screws, and glass fabrication dimensions, making installation straightforward. Custom finishes are available upon request, allowing for tailored solutions that meet specific design requirements. Note that this product is not available in Germany. Enhance your space with the reliability and elegance of the C.R. Laurence Como Series hinge.

Brushed Bronze Como Series 180Glass-to-Glass hinge

  • Glass-to-Glass Inline Outswing
  • Works with 5/16" to 3/8" (8 to 10 mm) glass
  • Allows Saloon Door Configuration
  • Ideal for Wheelchair Accessibility
  • Snap-on Covers Conceal Screws
  • Rigorously Tested to 100,000 Cycles - 5x More than the Industry Standard

The CRL COMO Series of professional Hinges for 5/16" (8 mm) to 3/8" (10 mm) tempered safety glass. Only two holes per Hinge per panel are required, with no cut-out necessary.



NOTE: Not Available in Germany.

Using two hinges with 5/16" to 3/8" glass (8 to 10 mm) the hinge will hold up to 110 lbs. (50 kg) with a maximum door width of 39" (914 mm).

Using three hinges with 5/16" to 3/8" glass (8 to 10 mm) the hinge will hold up to 150 lbs. (68 kg) with a maximum door width of 39" (914 m).

SPECIFICATIONS:
  • Glass Thickness: 5/16" (8 mm) to 3/8" (10 mm) Tempered Safety Glass

  • Construction: Stainless Steel or Solid Brass
  • Hinge Swings: See descriptions next to photos of hinges.
  • Closing Type: Free-Swinging
  • Two Holes Required Per Hinge Per Panel (No Cut-Out)
  • Includes: Gaskets, Screws, and Glass Fabrication Dimensions

    Custom finishes are available on request. Contact the CRL Technical Sales Shower Door Department.


    Product Warning:

    CRL Shower Door Hinges are designed for residential or hotel shower use. If hinges are to be used for other than their intended purpose, approval must be obtained from the CRL Shower Door Technical Sales Department.

    Use only the template included with this hinge. Cut-out dimensions for CRL hinges may not match those of other brands.

    Most shipping weights are approximate and have not been verified. If the exact weight is needed in order to determine shipping costs, and shipping costs are required in order for you to complete your order, please request this prior to submitting your order by contacting CRL Customer Service. Product images shown are of the actual product or a close representation. Colors can vary depending on your computer's video card and on how your monitor's color is adjusted.


    • Attributes

    Compliance and Restrictions: Warning Reproductive Harm - www.p65warnings.ca.gov

    Design Style: Concealed/Premium

    Edge Profile: Square

    Enclosure Type: Corner, Niche, Bathtub, Tailor Made Solutions

    Finish/ Color:: Brushed Bronze

    Glass To Glass Angle: 180

    Glazing Thickness: 5/16 in. To 3/8 in. (8 mm To 10 mm)

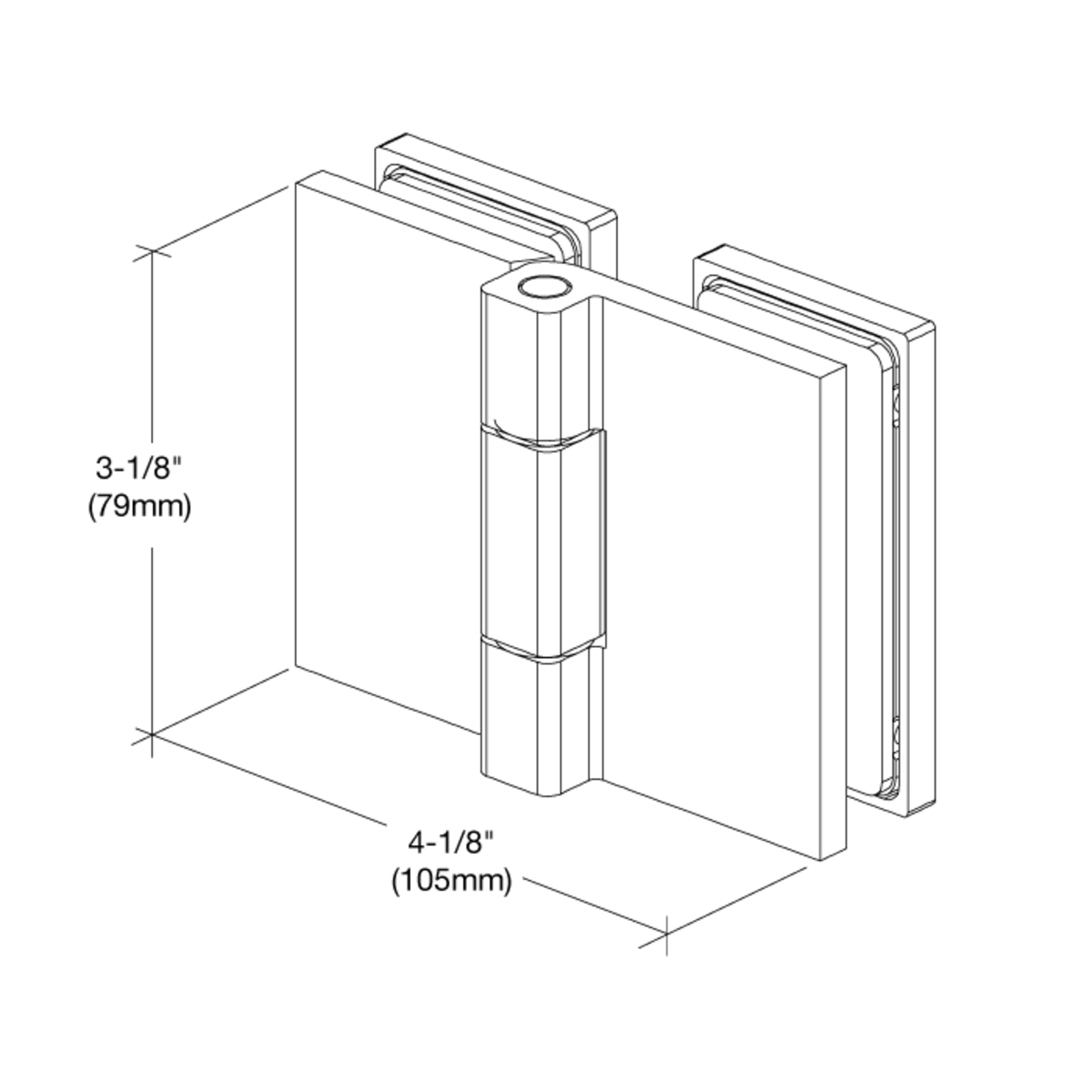

    Height: 3-1/8 in. (79 mm)

    Material: Brass

    Maximum Door Weight: 110 lbs. (49.9 kg)

    Maximum Door Width: 39 in. (991 mm)

    Mounting Type: Glass To Glass

    Opening Style: Swing(side)

    Self- Centering: No

    Series: Como

    Shipping Limitations: None

    Swing: Outswing Only

    Width - Door Portion: 2-1/16 in. (52 mm)

    Width - Sidelite Portion: 2-1/16 in. (52 mm)
