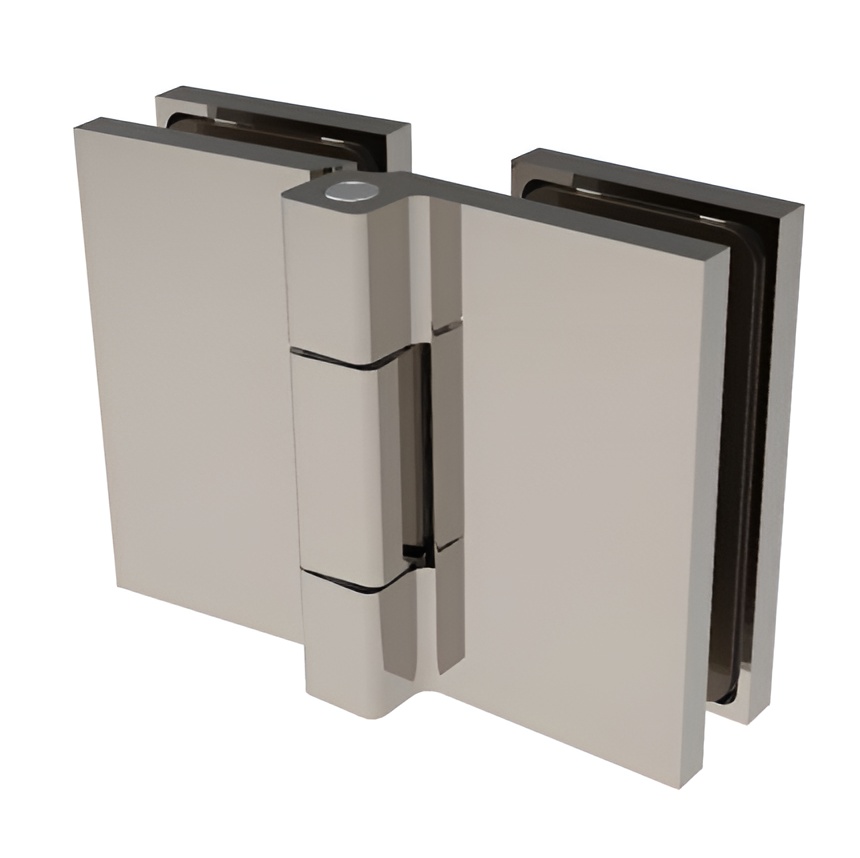

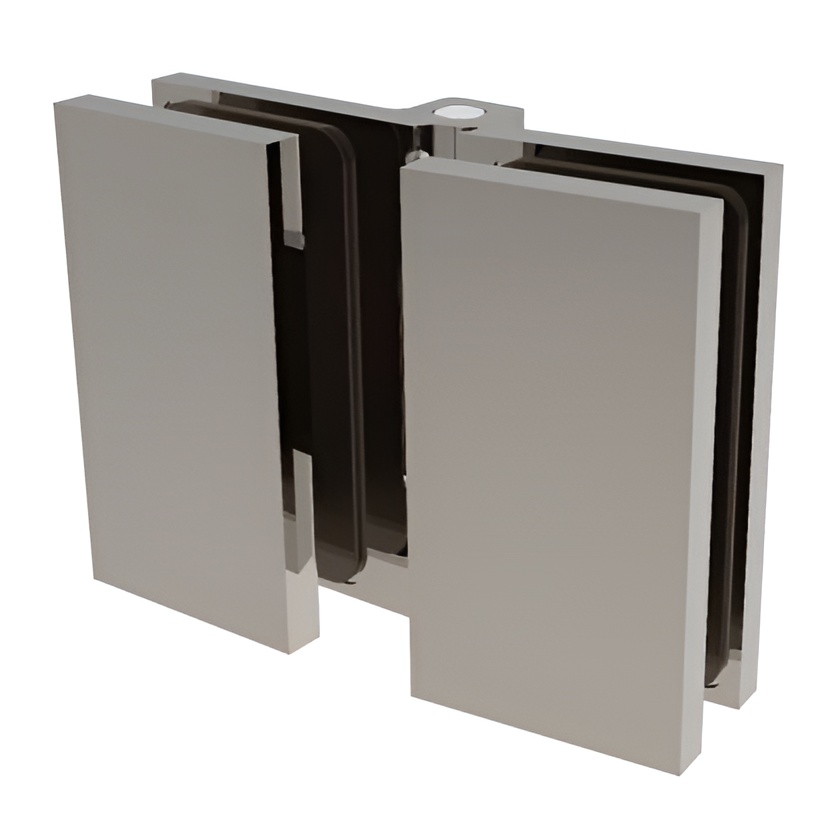

CRL C0M180BN Brushed Nickel Como 180 Glass-to-Glass Hinge

C.R. Laurence C0M180BN Brushed Nickel Como Series 180 Glass-to-Glass hinge delivers exceptional functionality and style for your glass installations. Designed for glass thicknesses of 5/16" to 3/8" (8 mm to 10 mm), this hinge is ideal for creating elegant glass enclosures, including saloon door configurations, while providing ease of wheelchair accessibility. Constructed from durable stainless steel or solid brass, this hinge supports a maximum door weight of up to 110 lbs. (50 kg) with two hinges or 150 lbs. (68 kg) with three hinges, accommodating a maximum door width of 39" (914 mm). The hinge features a sleek brushed nickel finish that complements modern aesthetics, while snap-on covers effortlessly conceal screws for a clean appearance. Rigorously tested to withstand 100,000 cycles-five times more than the industry standard-this hinge ensures reliability and longevity. Each installation requires only two holes per hinge per panel, eliminating the need for cut-outs. Included with the hinge are gaskets, screws, and glass fabrication dimensions, streamlining the installation process. Please note that this product is not available in Germany. For custom finishes or additional inquiries, contact the CRL Technical Sales Shower Door Department.

Brushed Nickel Como Series 180Glass-to-Glass hinge

• Glass-to-Glass Inline Outswing
• Works with 5/16" to 3/8" (8 to 10 mm) glass
• Allows Saloon Door Configuration
• Ideal for Wheelchair Accessibility

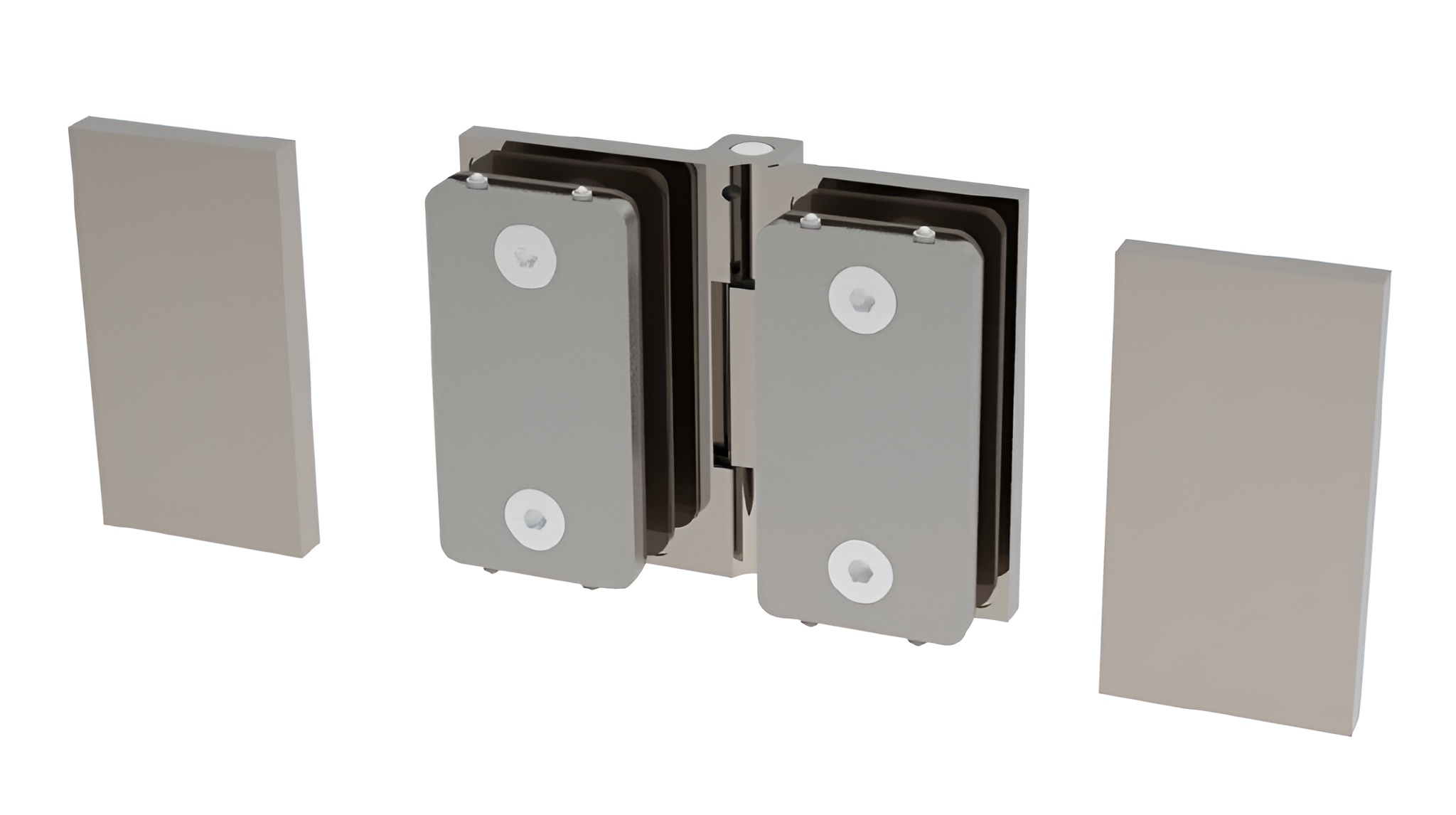

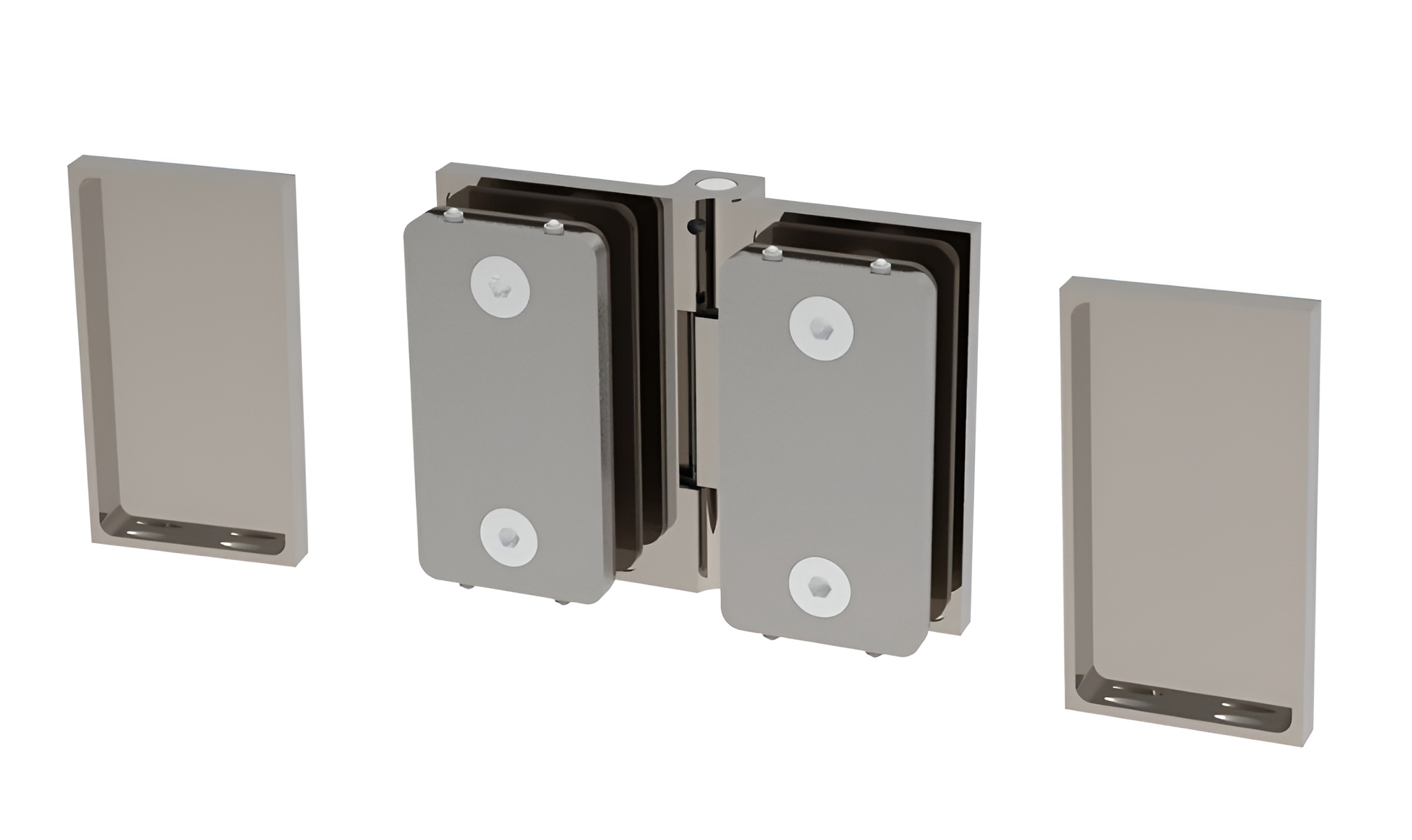

• Snap-on Covers Conceal Screws
• Rigorously Tested to 100,000 Cycles - 5x More than the Industry Standard

The CRL COMO Series of professional Hinges for 5/16" (8 mm) to 3/8" (10 mm) tempered safety glass. Only two holes per Hinge per panel are required, with no cut-out necessary.

Resources

• Bellagio Como Lugano Hinges Product Information
• Bellagio Como Lugano Shower Door Hinges Template Book
• C0M180 Template
• Frameless Shower Door Glass and Hardware Cleaning Instructions
• Frameless Shower Door Glass and Hardware Cleaning Instructions
• Frameless Shower Door Hardware Catalog
• Frameless Shower Door Hardware Catalog
• Frameless Shower Door Quote Request Form
• Frameless Shower Door Quote Request Form
• Hardware Finish Cross-Reference Guide
• Hardware Finish Cross-Reference Guide
• Hardware Finish Cross-Reference Guide
