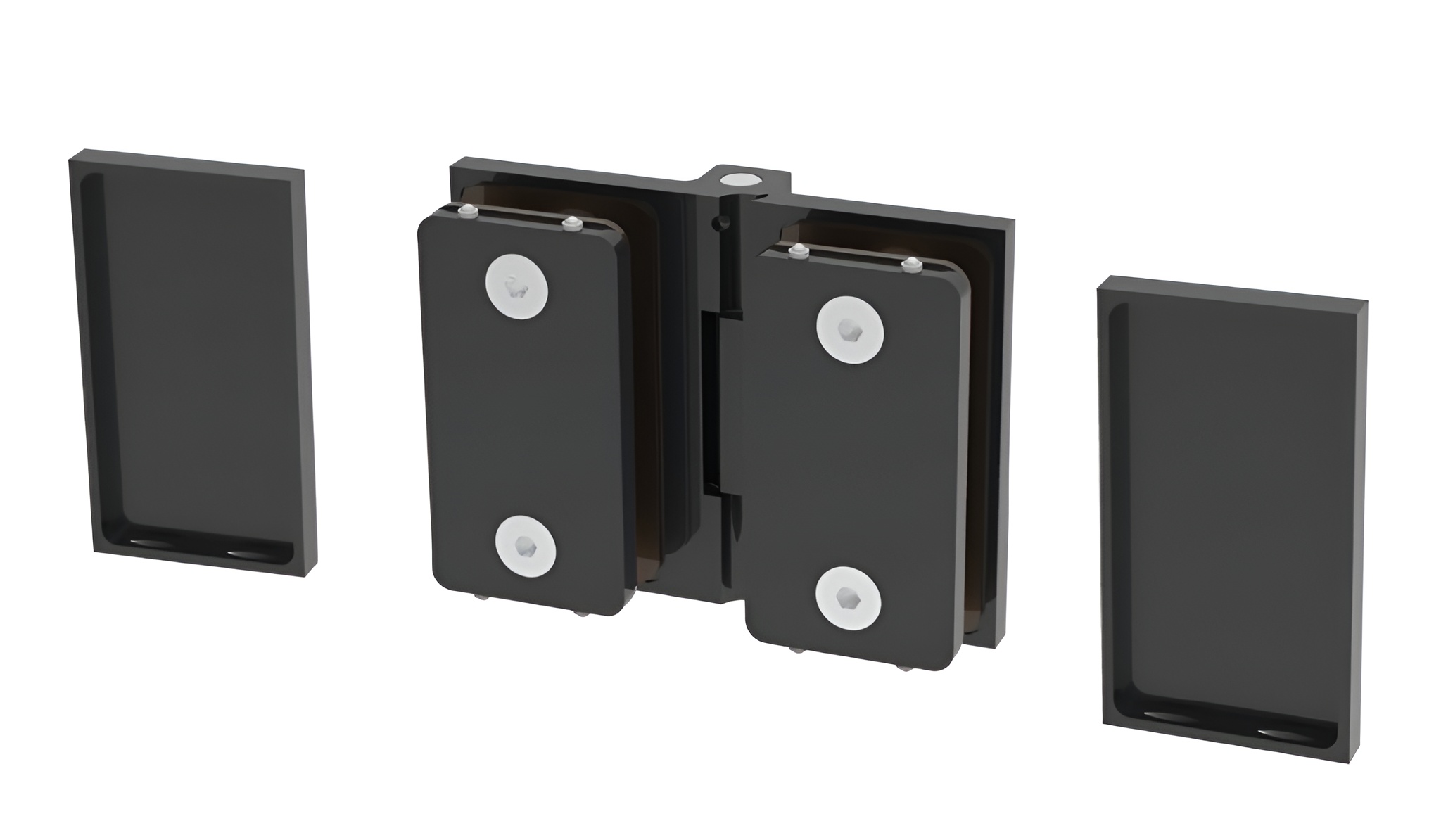

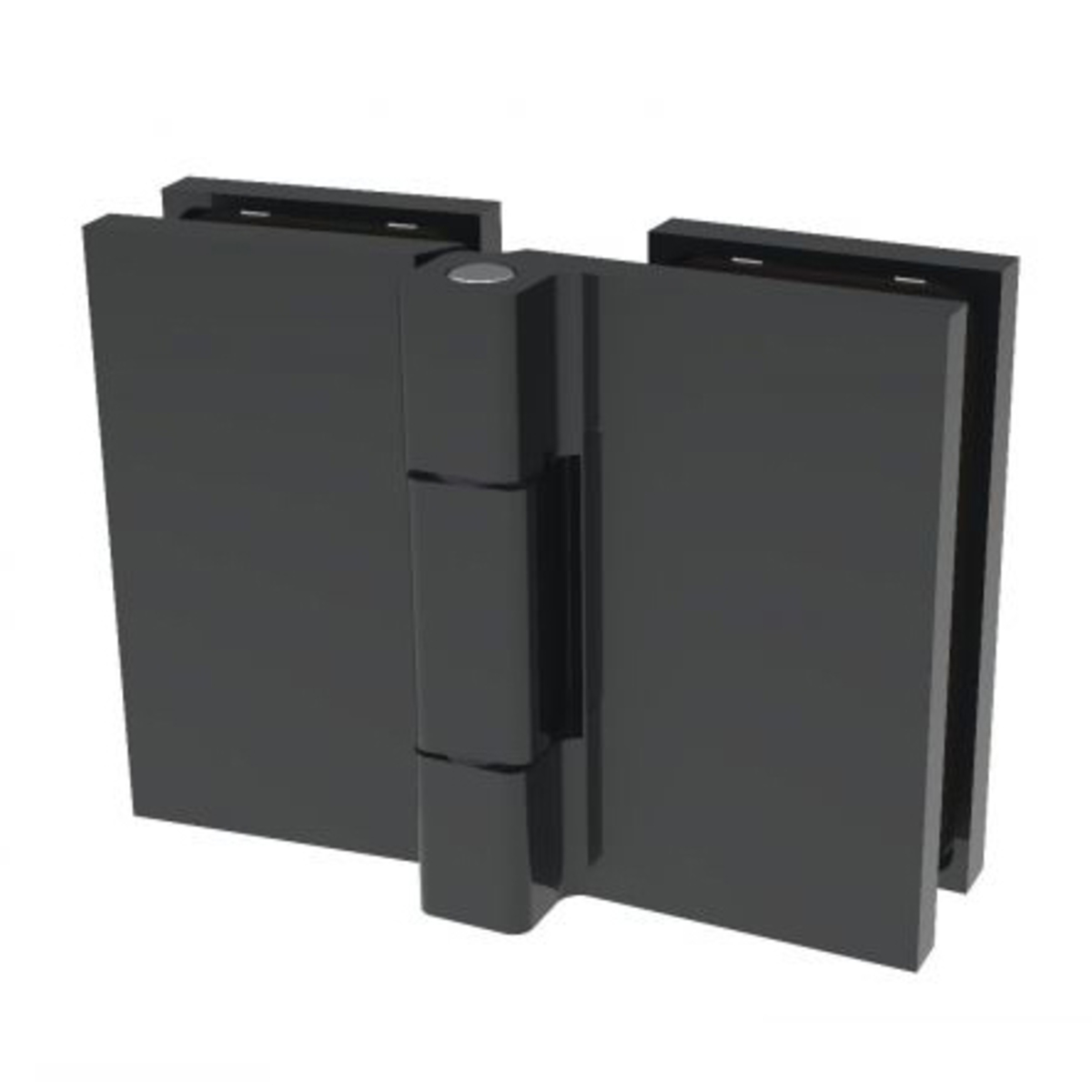

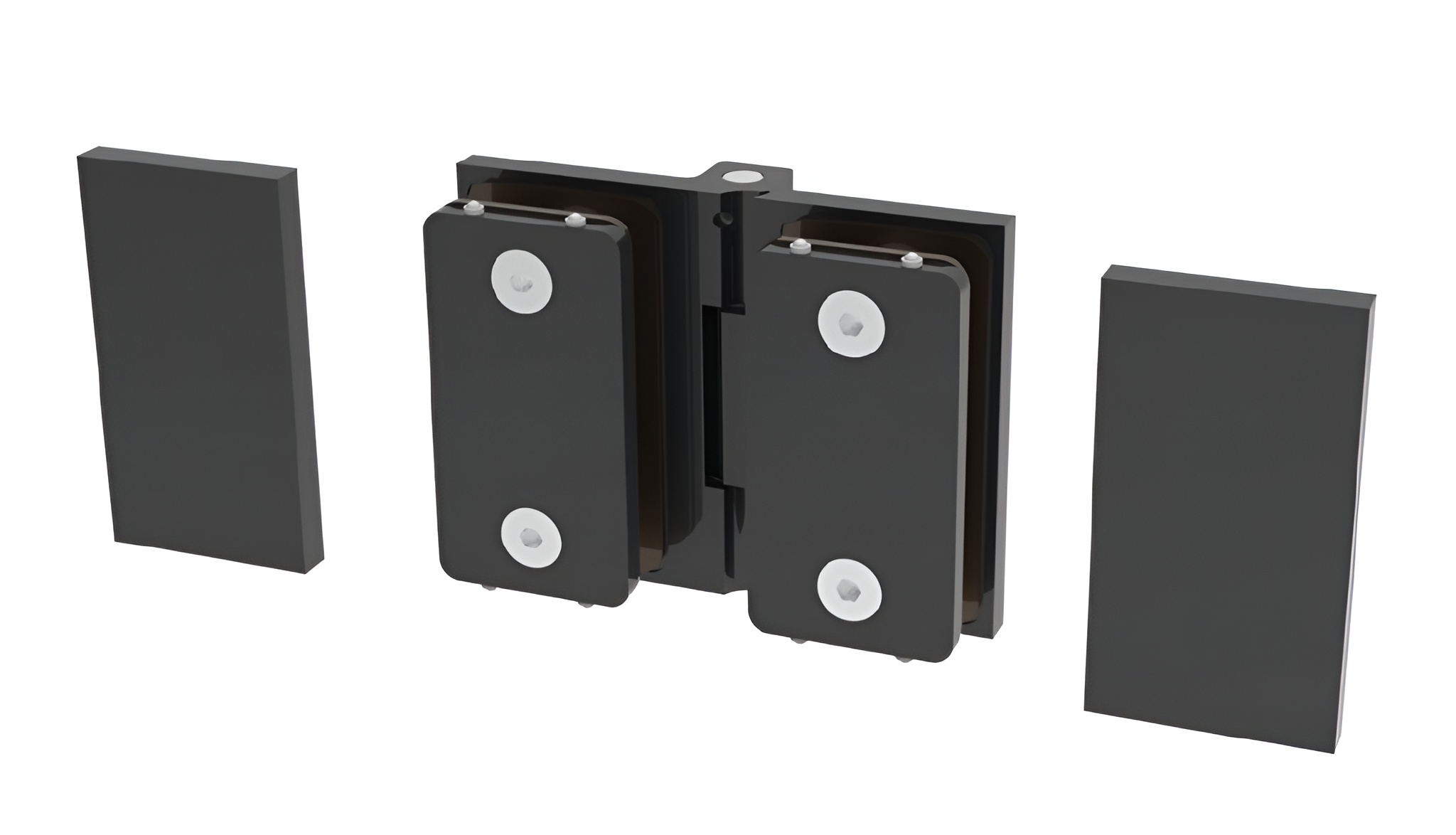

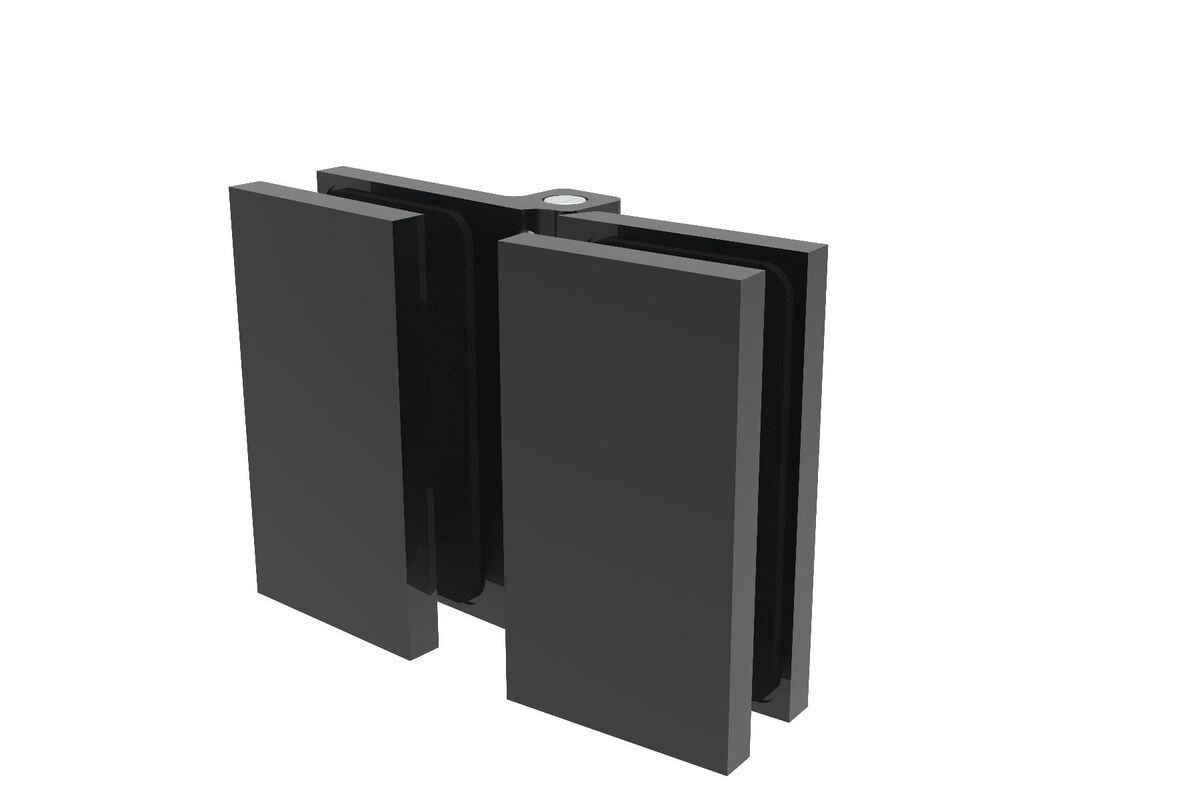

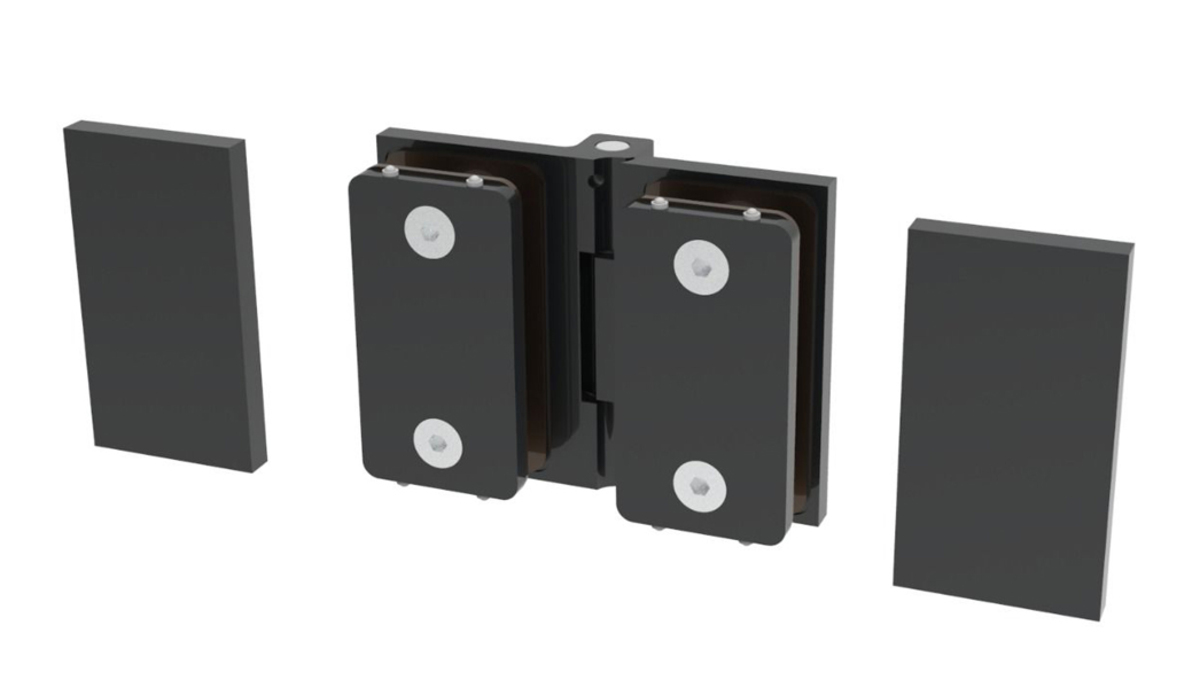

CRL C0M180MBL Matte Black Como Series 180 Glass-to-Glass Hinge

C.R. Laurence C0M180MBL Matte Black Como Series 180 Glass-to-Glass Hinge offers a sleek solution for modern glass installations. Designed for 5/16" (8 mm) to 3/8" (10 mm) tempered safety glass, this hinge supports a maximum door weight of 110 lbs. (49.9 kg) using two hinges or up to 150 lbs. (68 kg) with three hinges, accommodating a door width of up to 39" (991 mm). This hinge features a glass-to-glass inline outswing design, making it ideal for applications requiring wheelchair accessibility. The unique snap-on covers conceal screws, ensuring a clean, polished look. Rigorously tested to endure 100,000 cycles-five times more than the industry standard-this hinge guarantees long-lasting performance. Installation is straightforward, requiring only two holes per hinge with no cut-out necessary, simplifying the glass fabrication process. Included with the hinge are gaskets, screws, and precise glass fabrication dimensions. The Como Series hinge is available in a stylish matte black finish, adding a contemporary touch to any environment. Please note that this product is not available in Germany and is designed specifically for residential or hotel shower use. For custom finishes or any other inquiries, contact the CRL Technical Sales Shower Door Department. Experience the blend of functionality and modern design with the C.R. Laurence Como Series hinge.

Matte Black Como Series 180Glass-to-Glass hinge

• Glass-to-Glass Inline Outswing
• Works with 5/16" to 3/8" (8 to 10 mm) glass
• Allows Saloon Door Configuration
• Ideal for Wheelchair Accessibility
• Snap-on Covers Conceal Screws
• Rigorously Tested to 100,000 Cycles - 5x More than the Industry Standard

The CRL COMO Series of professional Hinges for 5/16" (8 mm) to 3/8" (10 mm) tempered safety glass. Only two holes per Hinge per panel are required, with no cut-out necessary.
