C.R. Laurence C0M90SSB Satin Brass Como Series Wall Mount Bracket offers a sophisticated solution for securely mounting glass panels in a variety of applications. Designed to accommodate 5/16" (8 mm) to 3/8" (10 mm) thick monolithic tempered glass, this bracket is versatile enough to be used with the CRL All Glass Restroom Partition System, as well as serving as a stylish horizontal shelf bracket. Crafted from solid brass, the Como Series Wall Mount Bracket not only ensures durability but also features an elegant satin brass finish that enhances any modern or traditional setting. The snap-on covers effectively conceal screws, providing a clean and polished appearance. With dimensions of 3-1/8" (79 mm) in height and widths of 1-13/16" (46 mm) for the sidelite portion and 1-7/8" (48 mm) for the wall portion, it seamlessly integrates into various design styles, including corner, niche, and tailored solutions. This wall mount bracket requires two 3/4" (19 mm) holes per panel and includes gaskets and mounting screws, simplifying installation. Ideal for building professionals and discerning homeowners alike, the C.R. Laurence C0M90SSB combines functionality with aesthetic appeal, making it an essential component of any architectural project.

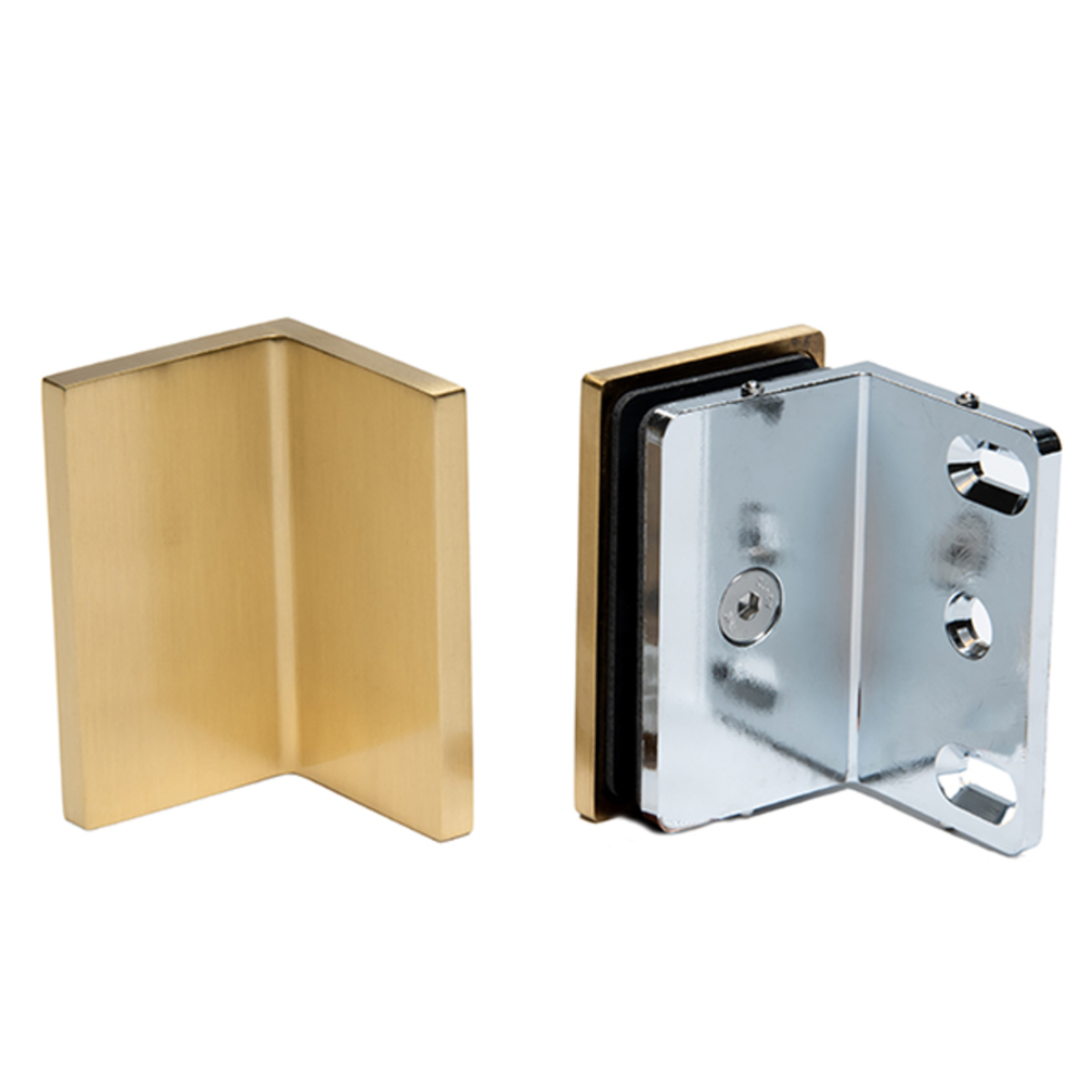

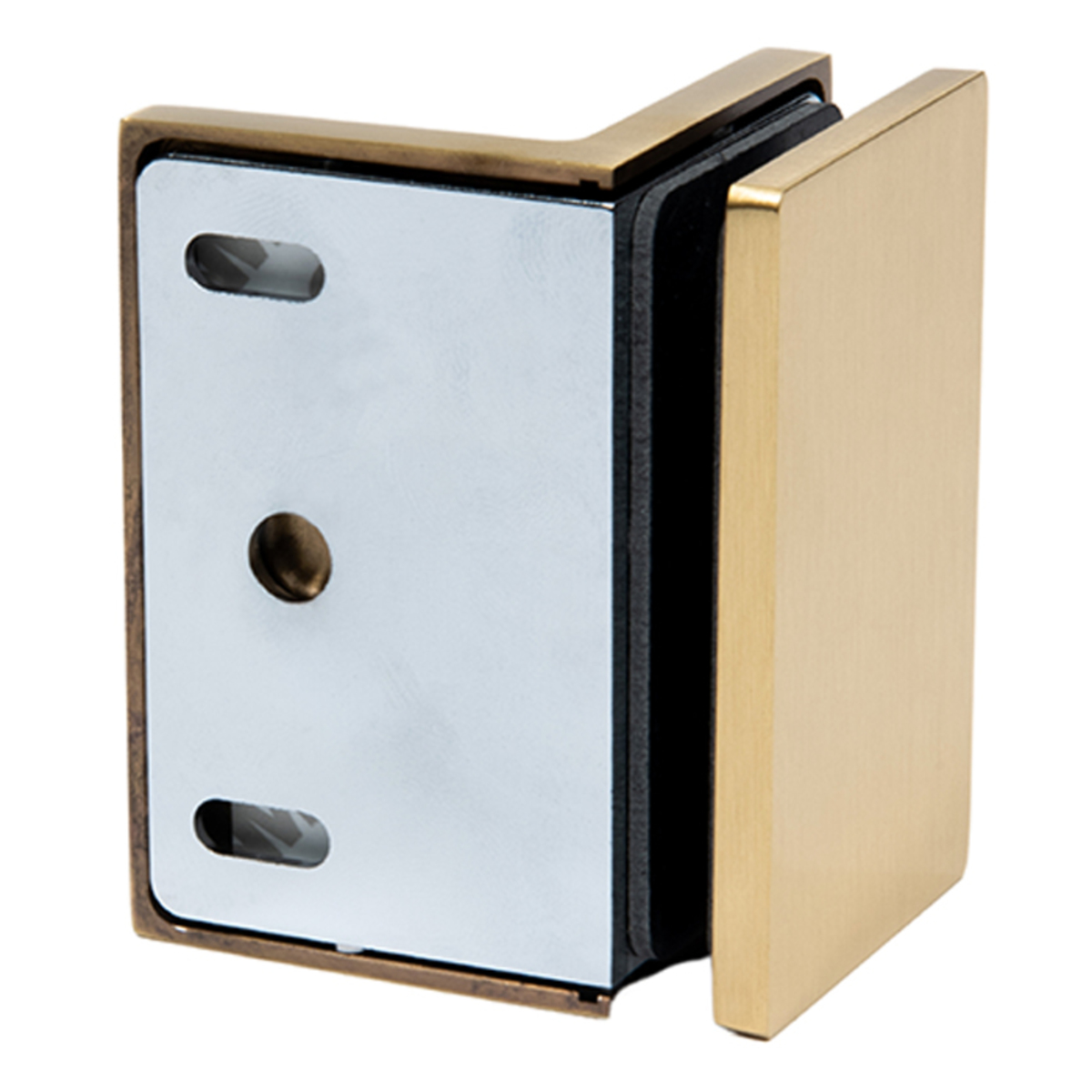

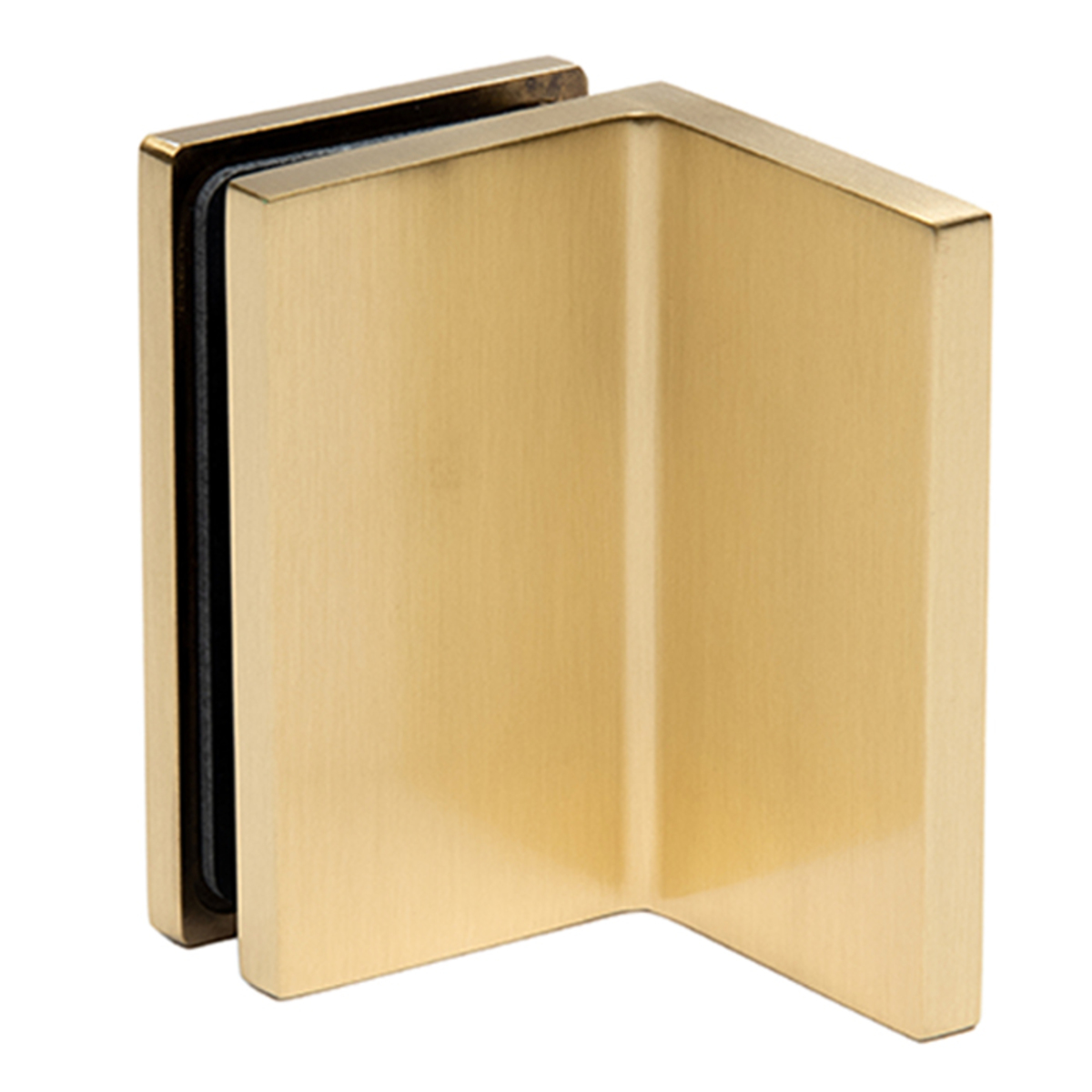

Satin Brass Como Series Wall Mount Bracket
The CRL COMO Series Wall Mount Bracket are designed for 5/16" (8 mm) to 3/8" (10 mm) thick glass. Can also be used as a horizontal shelf bracket. They match the configuration of many of our most popular hinge and clamp series. They feature square corners and edges in several decorator finishes and are constructed of solid brass. A truly stylish way to attach glass to walls. Drawings, templates and custom finishes are available upon request.
Most shipping weights are approximate and have not been verified. If the exact weight is needed in order to determine shipping costs, and shipping costs are required in order for you to complete your order, please request this prior to submitting your order by contacting CRL Customer Service. Product images shown are of the actual product or a close representation. Colors can vary depending on your computer's video card and on how your monitor's color is adjusted.
Compliance and Restrictions: Warning Reproductive Harm - www.p65warnings.ca.gov
Design Style: Concealed/Premium
Enclosure Type: Corner, Niche, Bathtub, Tailor Made Solutions
Finish/ Color:: Satin Brass
Glazing Thickness: 5/16 in. To 3/8 in. (8 mm To 10 mm)
Height: 3-1/8 in. (79 mm)
Material: Brass
Mounting Type: Wall Mount
Opening Style: Swing(side)
Series: Como
Shipping Limitations: None
Width - Sidelite Portion: 1-13/16 in. (46 mm)
Width - Wall Portion: 1-7/8 in. (48 mm)
