CRL C72EKS 72" Silver Metallic Cielo End Post Kit

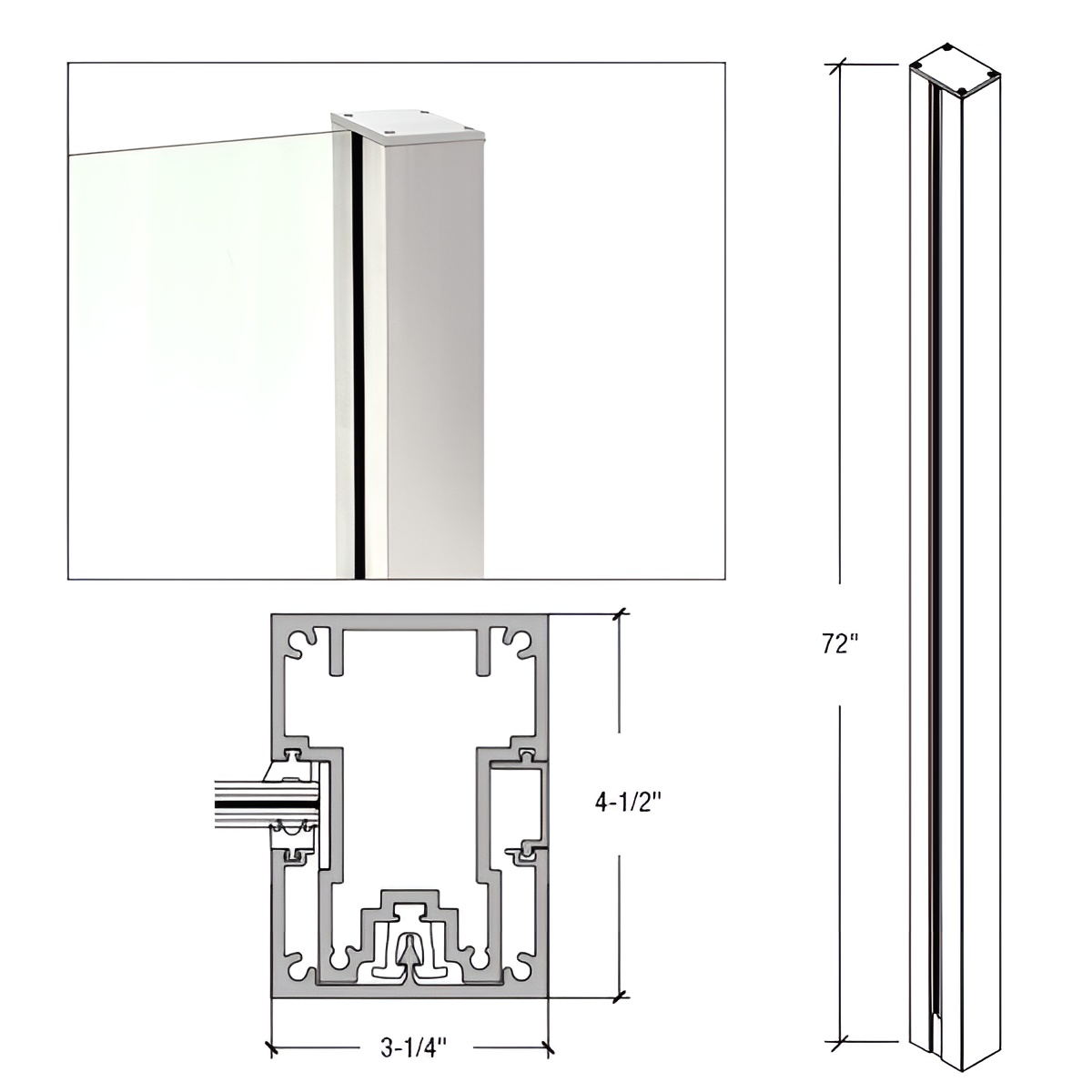

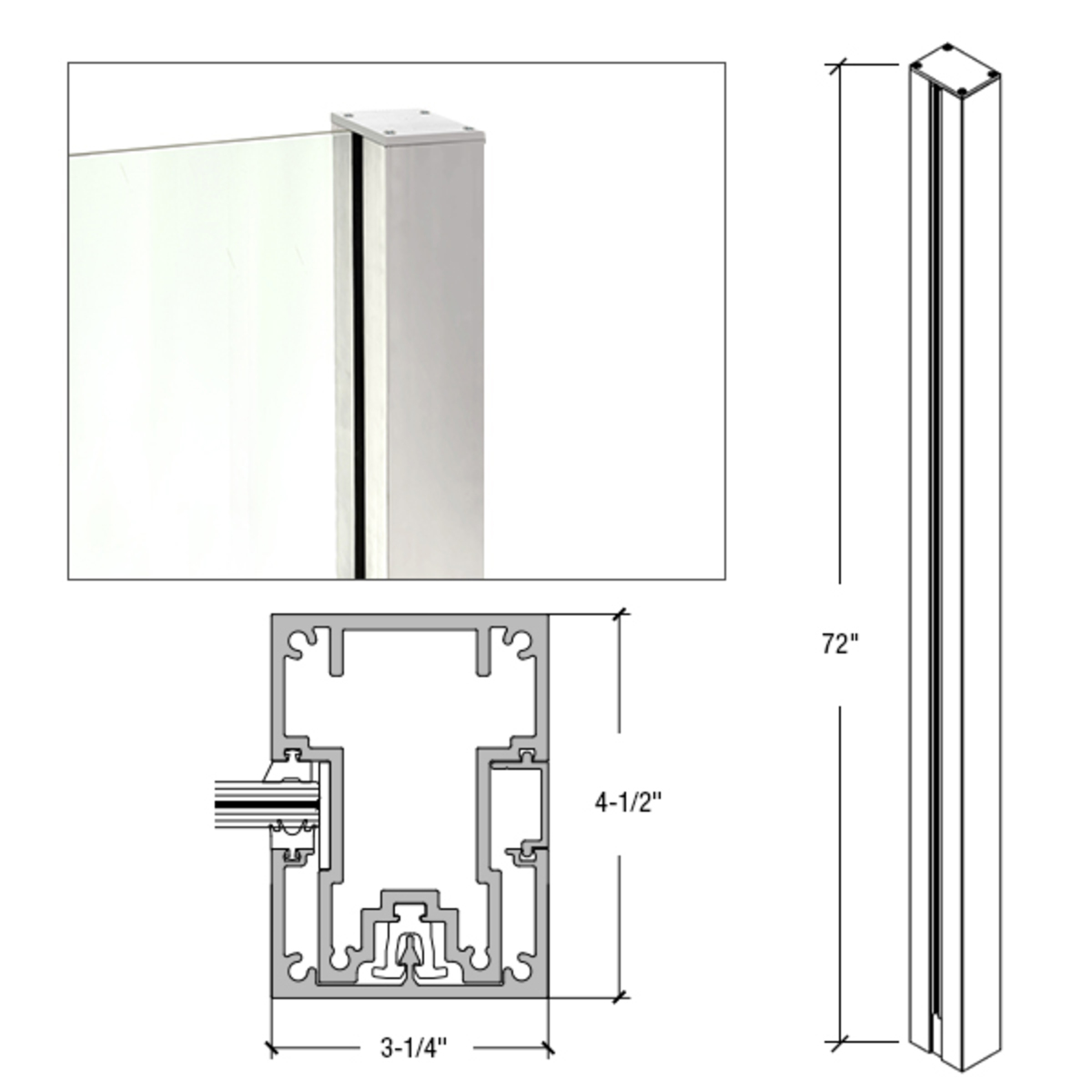

C.R. Laurence C72EKS 72" Silver Metallic Cielo End Post Kit offers a sophisticated solution for both commercial and residential high-altitude applications. Crafted from durable 6005-T6 aluminum, this end post kit is designed to meet the 2018 IBC wind load requirements, ensuring safety and stability in elevated environments. With a slim profile featuring a 3-1/4" front trim and a post depth of 4-1/2", the Cielo system allows for virtually unobstructed views, making it perfect for rooftop swimming pools, dining areas, and lounges. This innovative design means no horizontal extrusions are needed, enabling expansive glass spans between posts, which enhances aesthetic appeal. Available in heights of 6, 7, and 8 feet, the C72EKS kit is compatible with 1/2" monolithic or 9/16" laminated glass, giving you versatility in design. The installation process is streamlined thanks to a unique snap-in system for post covers that conceals fasteners, resulting in a clean and modern look. Surface or core mounting options provide flexibility for installation on steel or concrete surfaces. Standard finishes include Matte Black, Silver Metallic, and Sky White, allowing you to choose the perfect match for your project. Elevate your architectural vision with the Cielo End Post Kit.

72" Silver Metalic Cielo End Post Kit

• 6, 7, and 8-Foot Post Heights
• Meets IBC 2018 Windload Requirements
• Durable 6005-T6 Aluminum Construction
• End Posts and Center Posts Available
• Surface or Core Mounting on Steel or Concrete
• Standard Finishes Include Matte Black, Silver Metallic, and Sky White
• For 1/2" Monolithic or 9/16" Laminated Glass

Resources

• Architectural Glass Railing Systems and Hardware Catalog
• Architectural Glass Railing Systems and Hardware Catalog
• Cielo 3 Part Specification
• Cielo 3 Part Specification
• Cielo BIM.pdf
• Cielo BIM.pdf
• Cielo BIM.rvt
• Cielo BIM.rvt
• Cielo Brochure
• Cielo Installation Instructions
• Cielo Quote Request Form
• Cielo Windscreen Engineering Report
• Cielo Windscreen System CAD Drawings.dwg
• Cielo Windscreen System CAD Drawings.pdf
• Cielo Windscreen System CAD Drawings.pdf
• Windscreen and Pool Fencing Systems Product Information
