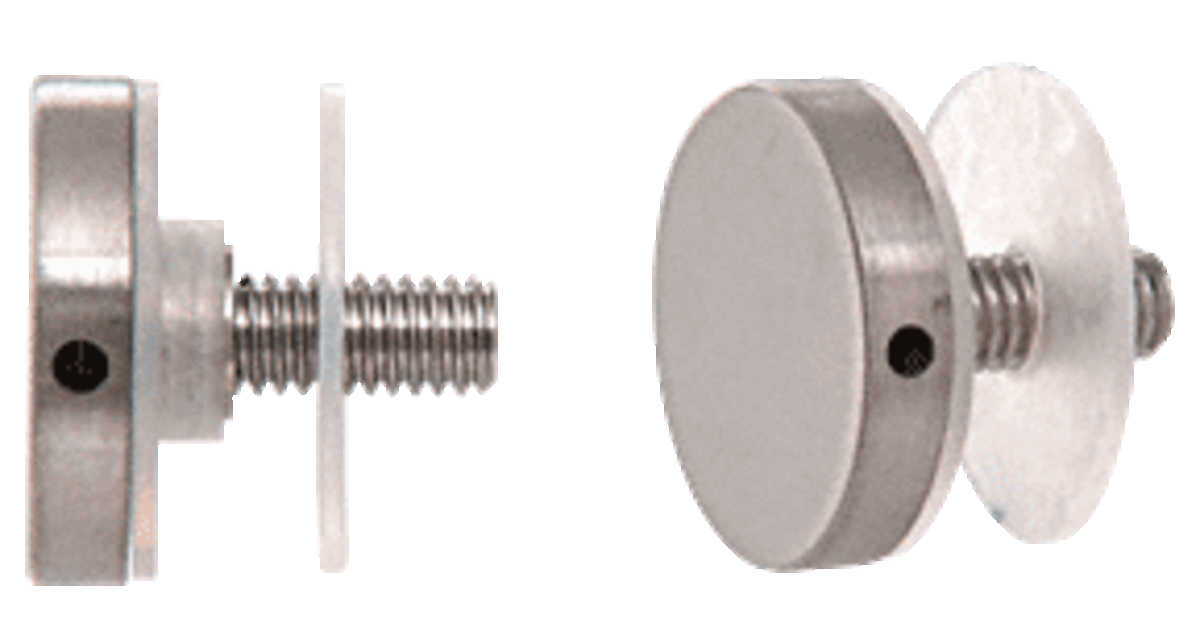

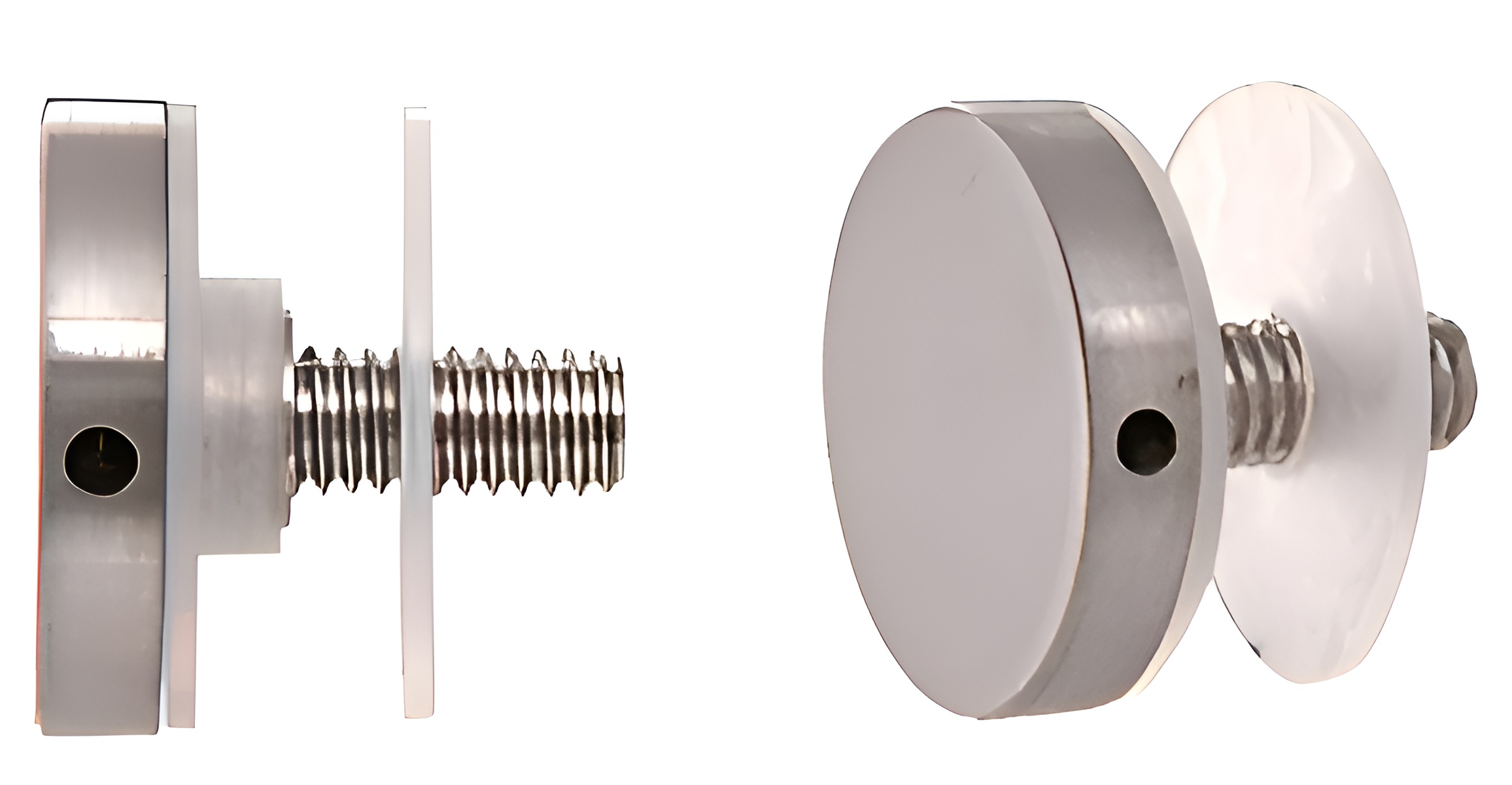

CRL CAP114BS 316 Brushed Stainless 1.25" Standoff Cap AssemblyC.R. Laurence CAP114BS 316 Brushed Stainless 1-1/4" Diameter Standoff Cap Assembly is the ideal solution for creating stunning displays, furniture, or signage with a sleek, modern touch. Crafted from premium 316 stainless steel, this cap assembly combines durability with an elegant brushed finish, making it suitable for both indoor and outdoor applications. Designed to work seamlessly with CRL's 1-1/4" Standoff Bases, this assembly is easy to install and secure using the Cat. No. S0W Standoff Wrench. The assembly consists of a cap, a 1" Allen screw, two washers (Cat. Nos. SW114L and SW114S), and a vinyl sleeve (Cat. No. SM716), ensuring a complete and reliable installation. Available in various matching finishes, including brass, chrome, gun metal, and satin chrome, the CAP114BS allows for customization to complement any design aesthetic. Additionally, a flush cap assembly is offered in the brushed stainless finish for a streamlined look. For optimal performance, ensure that panels have 5/8" holes for assembly. Note that while stainless steel is resistant to corrosion, periodic maintenance is recommended to preserve its factory finish. With the CAP114BS, elevate your architectural projects with both style and functionality.
316 Brushed Stainless 1-1/4" Diameter Standoff Cap Assembly
- Available in Several Matching Finishes
- Flush Cap Available
- Use Monolithic Tempered Glass
CRL 1-1/4" Diameter Standoff Cap Assemblies are designed to be used with our 1-1/4" (32 mm) Standoff Bases, Standard Cap Assemblies are available in matching finishes, and are easily tightened when being installed into Bases by using our Cat. No. S0W Standoff Wrench. They are used to create displays, furniture or signage. Available in brass, chrome, brushed stainless, gun metal and satin chrome finishes, they can be used indoors or outdoors. There is also a
CRL Flush Cap Assembly in the brushed stainless finish. Custom finishes quoted upon request.
NOTE: Panels require 5/8" (16 mm) holes for assembly.
Cap Assemblies Consist of:
1 Each Cap
1 Each 1" (25.4 mm) Allen Screw
2 Each Washers (Cat. Nos. SW114L and SW114S)
1 Each Vinyl Sleeve (Cat. No. SM716)
Product Warning:
Due to the diversity of applications, weight limitations for Standoff Systems are dependent upon wall or substrate anchoring and material strengths.
Most shipping weights are approximate and have not been verified. If the exact weight is needed in order to determine shipping costs, and shipping costs are required in order for you to complete your order, please request this prior to submitting your order by contacting CRL Customer Service. Product images shown are of the actual product or a close representation. Colors can vary depending on your computer's video card and on how your monitor's color is adjusted.
Stainless Steel Advisory:
Although Stainless Steel is resistant to corrosion, it is not rust or stain proof. CRL recommends periodic maintenance to help maintain its factory finish. For more information, view the Stainless Steel Disclaimer found in the Technical References section below.
Attributes
Compliance and Restrictions: Warning Reproductive Harm - www.p65warnings.ca.gov
Diameter: 1-1/4
Finish/ Color:: Brushed Stainless Steel
Material: 316 Stainless Steel
Mounting Hole Diameter: 5/8
Shipping Limitations: None
Stud Length: 1
Thread Size: 5/16 - 18
