CRL CAP114CH Chrome 1.25" Standoff Cap AssemblyC.R. Laurence CAP114CH Chrome 1-1/4" Diameter Standoff Cap Assembly is an essential component for creating stunning displays, furniture, or signage. Crafted from durable brass and finished in polished chrome, this standoff cap assembly pairs seamlessly with CRL's 1-1/4" (32 mm) Standoff Bases. Available in various matching finishes including brushed stainless, brass, gun metal, and satin chrome, it is suitable for both indoor and outdoor applications. Designed for easy installation, the assembly includes a cap, a 1" (25.4 mm) Allen screw, two washers, and a vinyl sleeve, ensuring a secure fit. The mounting hole requires a 5/8" (16 mm) diameter, making it versatile for different panel types, specifically monolithic tempered glass. For added convenience, the cap can be tightened using CRL's Cat. No. S0W Standoff Wrench, which simplifies the installation process. Additionally, a flush cap assembly is available for those seeking a sleek, low-profile option. Remember, weight limitations for standoff systems depend on the anchoring and material strengths of the wall or substrate, so consider this in your planning. With its combination of functionality and aesthetic appeal, the CAP114CH is a reliable choice for any architectural project.

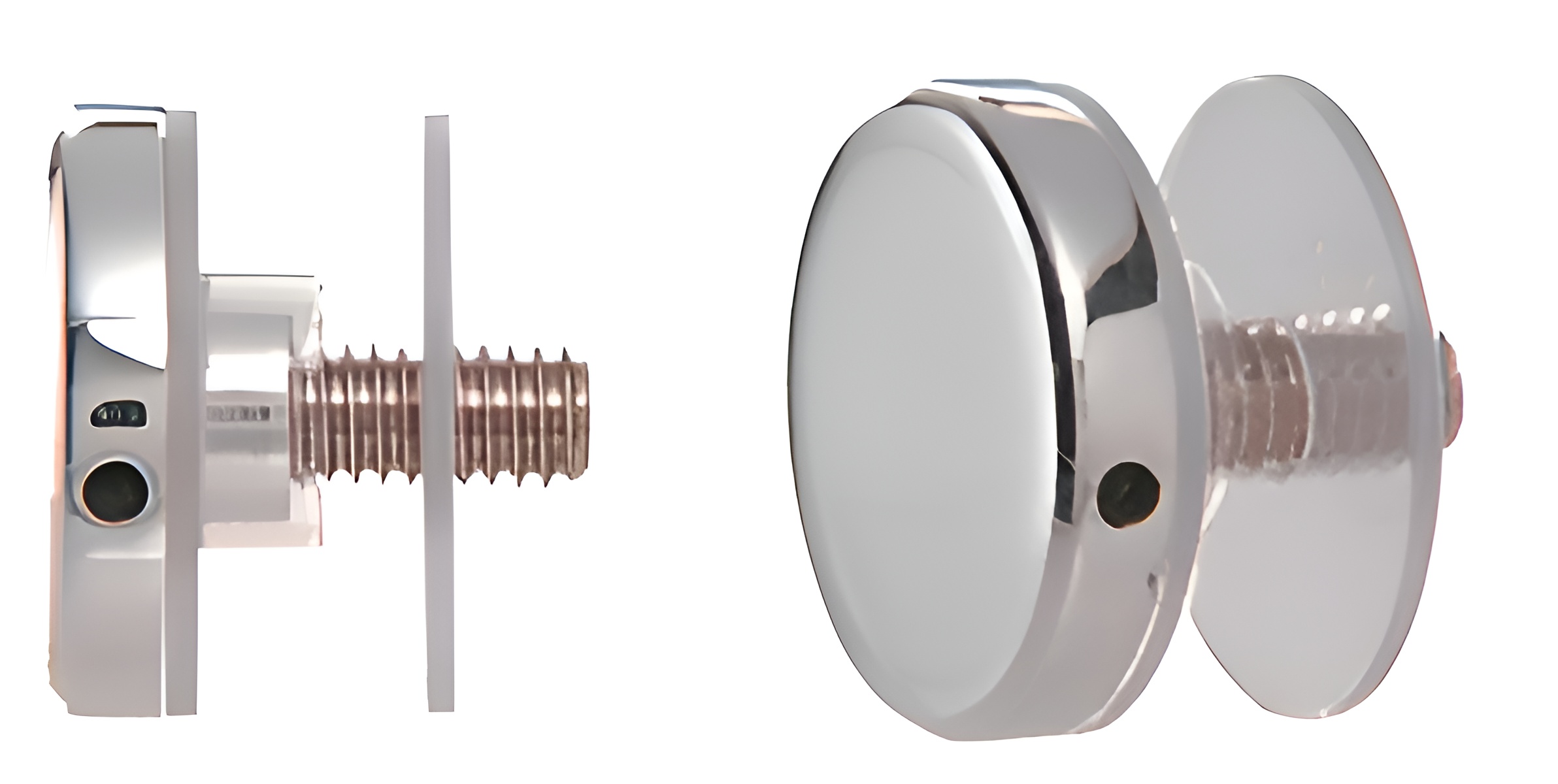

Chrome 1-1/4" Diameter Standoff Cap Assembly
- Available in Several Matching Finishes
- Flush Cap Available
- Use Monolithic Tempered Glass
CRL 1-1/4" Diameter Standoff Cap Assemblies are designed to be used with our 1-1/4" (32 mm) Standoff Bases, Standard Cap Assemblies are available in matching finishes, and are easily tightened when being installed into Bases by using our Cat. No. S0W Standoff Wrench. They are used to create displays, furniture or signage. Available in brass, chrome, brushed stainless, gun metal and satin chrome finishes, they can be used indoors or outdoors. There is also a
CRL Flush Cap Assembly in the brushed stainless finish. Custom finishes quoted upon request.
NOTE: Panels require 5/8" (16 mm) holes for assembly.
Cap Assemblies Consist of:
1 Each Cap
1 Each 1" (25.4 mm) Allen Screw
2 Each Washers (Cat. Nos. SW114L and SW114S)
1 Each Vinyl Sleeve (Cat. No. SM716)
Product Warning:
Due to the diversity of applications, weight limitations for Standoff Systems are dependent upon wall or substrate anchoring and material strengths.
Most shipping weights are approximate and have not been verified. If the exact weight is needed in order to determine shipping costs, and shipping costs are required in order for you to complete your order, please request this prior to submitting your order by contacting CRL Customer Service. Product images shown are of the actual product or a close representation. Colors can vary depending on your computer's video card and on how your monitor's color is adjusted.
Attributes
Compliance and Restrictions: Warning Reproductive Harm - www.p65warnings.ca.gov
Diameter: 1-1/4
Finish/ Color:: Polished Chrome
Material: Brass
Mounting Hole Diameter: 5/8
Shipping Limitations: None
Stud Length: 1
Thread Size: 5/16 - 18
