CRL CAP114PS 316 Polished Stainless 1.25" Standoff Cap AssemblyC.R. Laurence CAP114PS 316 Polished Stainless 1-1/4" Diameter Standoff Cap Assembly is the perfect choice for creating striking displays, furniture, or signage with monolithic tempered glass. Designed for use with 1-1/4" standoff bases, this cap assembly is available in an array of matching finishes, including polished stainless, brass, chrome, brushed stainless, gun metal, and satin chrome. For added versatility, a flush cap assembly in brushed stainless is also offered, and custom finishes can be quoted upon request. Each assembly includes one cap, a 1" Allen screw, two washers, and a vinyl sleeve, which ensures a robust and secure installation. The assembly requires a mounting hole diameter of 5/8" (16 mm) for seamless integration. Easy to tighten using the CRL Standoff Wrench (Cat. No. S0W), this assembly is suitable for both indoor and outdoor applications. Keep in mind that the weight limitations for standoff systems vary based on wall or substrate anchoring and material strengths. Although the polished stainless steel is corrosion-resistant, periodic maintenance is recommended to preserve its factory finish. Elevate your architectural projects with the reliability and aesthetic appeal of C.R. Laurence’s standoff cap assemblies.

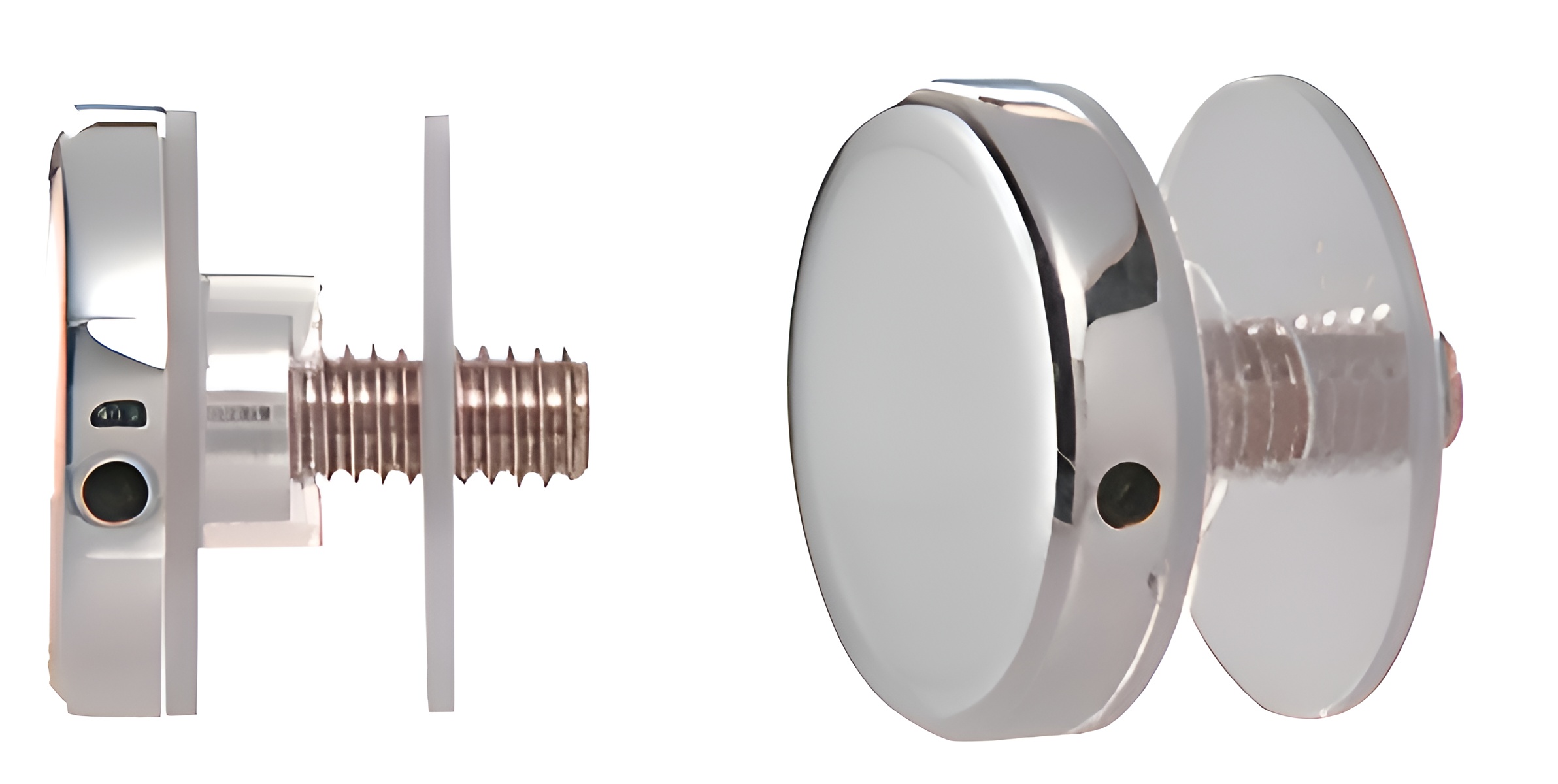

316 Polished Stainless 1-1/4" Diameter Standoff Cap Assembly
- Available in Several Matching Finishes
- Flush Cap Available
- Use Monolithic Tempered Glass
CRL 1-1/4" Diameter Standoff Cap Assemblies are designed to be used with our 1-1/4" (32 mm) Standoff Bases, Standard Cap Assemblies are available in matching finishes, and are easily tightened when being installed into Bases by using our Cat. No. S0W Standoff Wrench. They are used to create displays, furniture or signage. Available in brass, chrome, brushed stainless, gun metal and satin chrome finishes, they can be used indoors or outdoors. There is also a
CRL Flush Cap Assembly in the brushed stainless finish. Custom finishes quoted upon request.
NOTE: Panels require 5/8" (16 mm) holes for assembly.
Cap Assemblies Consist of:
1 Each Cap
1 Each 1" (25.4 mm) Allen Screw
2 Each Washers (Cat. Nos. SW114L and SW114S)
1 Each Vinyl Sleeve (Cat. No. SM716)
Product Warning:
Due to the diversity of applications, weight limitations for Standoff Systems are dependent upon wall or substrate anchoring and material strengths.
Most shipping weights are approximate and have not been verified. If the exact weight is needed in order to determine shipping costs, and shipping costs are required in order for you to complete your order, please request this prior to submitting your order by contacting CRL Customer Service. Product images shown are of the actual product or a close representation. Colors can vary depending on your computer's video card and on how your monitor's color is adjusted.
Stainless Steel Advisory:
Although Stainless Steel is resistant to corrosion, it is not rust or stain proof. CRL recommends periodic maintenance to help maintain its factory finish. For more information, view the Stainless Steel Disclaimer found in the Technical References section below.
Attributes
Compliance and Restrictions: Warning Reproductive Harm - www.p65warnings.ca.gov
Diameter: 1-1/4
Finish/ Color:: Polished Stainless Steel
Material: 316 Stainless Steel
Mounting Hole Diameter: 5/8
Shipping Limitations: None
Stud Length: 1
Thread Size: 5/16 - 18
