CRL CAP18W8 White 1.5" Screen Tight Wide Cap

CRL CAP18W8 White 1.5" Screen Tight Wide Cap

C.R. Laurence CAP18W8 White 1-1/2" Screen Tight Wide Cap offers a practical and efficient solution for screening porches or sunrooms. Designed with the builder in mind, this low-maintenance vinyl screening system is compatible with standard fiberglass and aluminum screen wire, along with a serrated retainer spline. The innovative Screen Tight system eliminates the hassle of rusty nails, staples, or loose screens, ensuring a seamless installation process. The installation begins with the Base, which easily attaches to existing 2" x 4" or 4" x 4" framing using wood screws, roofing tacks, or staples. Once secured, the screen can be rolled into place with a standard screen roller tool, the excess trimmed away, and the Cap snaps into the Base to complete the setup. Pre-punched holes spaced 8" apart facilitate quick and consistent attachment. Crafted from durable, weather-resistant vinyl, the Screen Tight system never rusts, rots, or requires painting, making it an ideal choice for long-lasting use. Re-screening is equally straightforward; simply remove the Cap, roll in new screen wire, and snap the Cap back in place. With a length of 96 inches and a width of 1-1/2 inches, this system is a smart investment for any home improvement project.

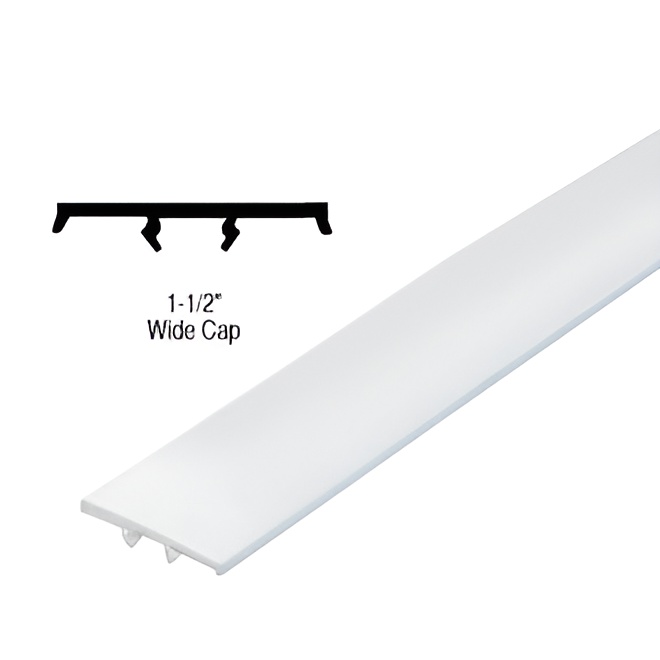

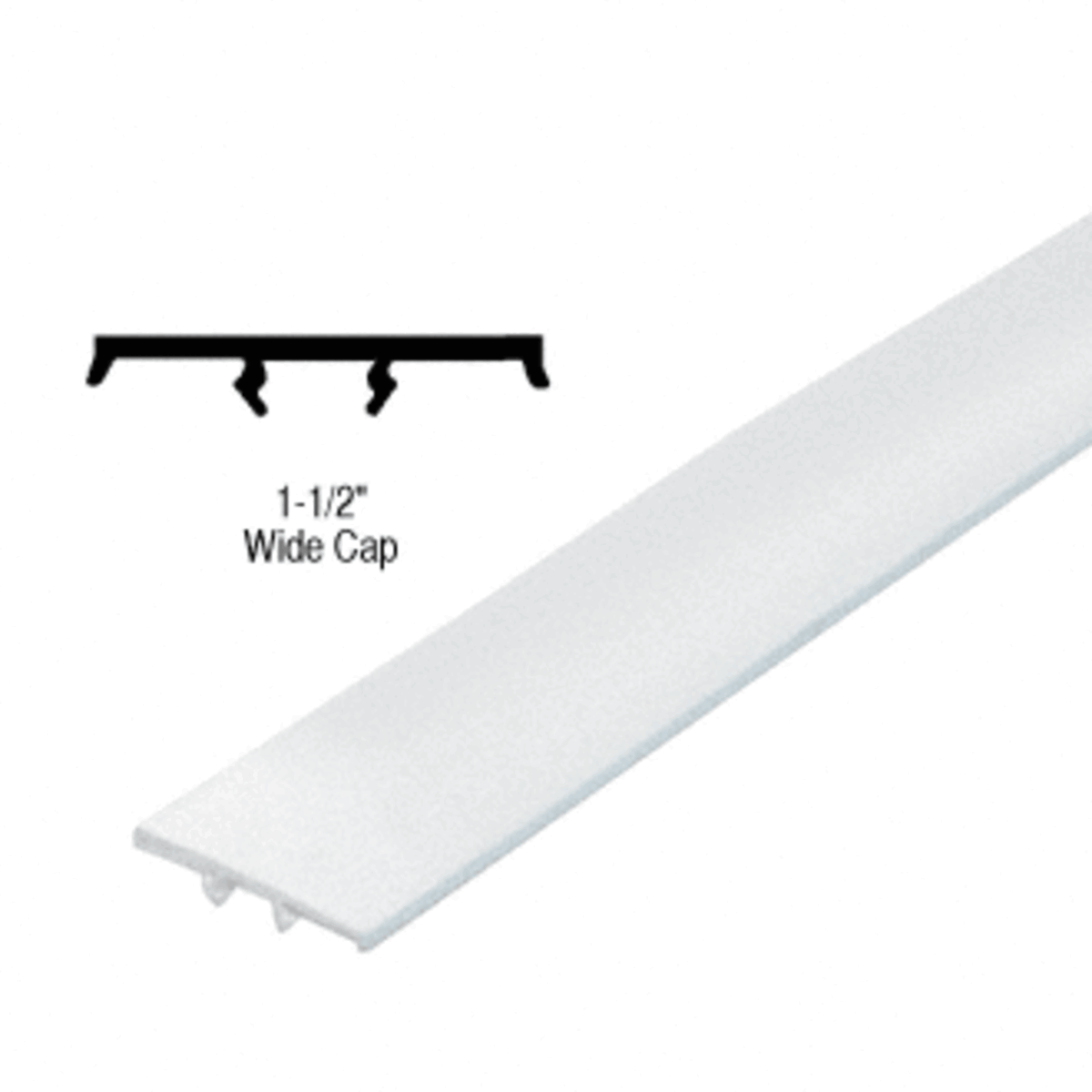

White 1-1/2" Screen Tight Wide Cap

• Low Maintenance Vinyl Screening System
• Accepts Standard Fiberglass and Aluminum Screen Wire and Serrated Retainer Spline
• No Rusty Nails, Staples or Loose Screens

CRL Screen Tight™ Vinyl Screen Frame is a common sense approach to screening a porch or sunroom area. This Vinyl Screen Frame has been designed with the home builder in mind.


Screen Tight's unique system is easily adaptable to most screen porches. The Base attaches to existing 2" x 4" or 4" x 4" framing with wood screws, roof tacks or staples. Once the Base is attached, the screen is rolled into place with a standard screen roller tool. The excess screen is cut and removed. The Cap snaps into the Base, completing the installation.

Screen Tight is durable and weather resistant. It is low maintenance because it won't corrode, rust or rot, and never needs painting. NOTE: Screen wire and spline not included. Recommended spline size is .175" when using fiberglass screen wire; .165" when using aluminum screen wire.

Pre-punched holes on 8" (196 mm) centers result in a quick and consistent attachment. Once the base is attached, the screen and spline are rolled into place with a standard screen spline roller. If aluminum screen wire is being used, the SS165 series spline is recommended; for fiberglass wire use SS175 series spline. The excess screen is cut and removed. The cap snaps into the base, completing the installation.

Screen Tight™ is durable and weather resistant. It never needs painting, and won't corrode, rust or rot. Re-screening is fast and easy. Simply pop off the cap and roll in the new screen wire.

Four Easy Installation Steps Shown in the Photo Above

1. Base component is easily cut to fit with CRL PTS89 Trimming Snips.

2. Attach base to existing wooden frame with screws or roofing tacks.

3. Secure screen to base with screen spline by rolling spline into groove.

4. Trim excess screen and snap cap into base.

Five length minimum order of one size and color.
