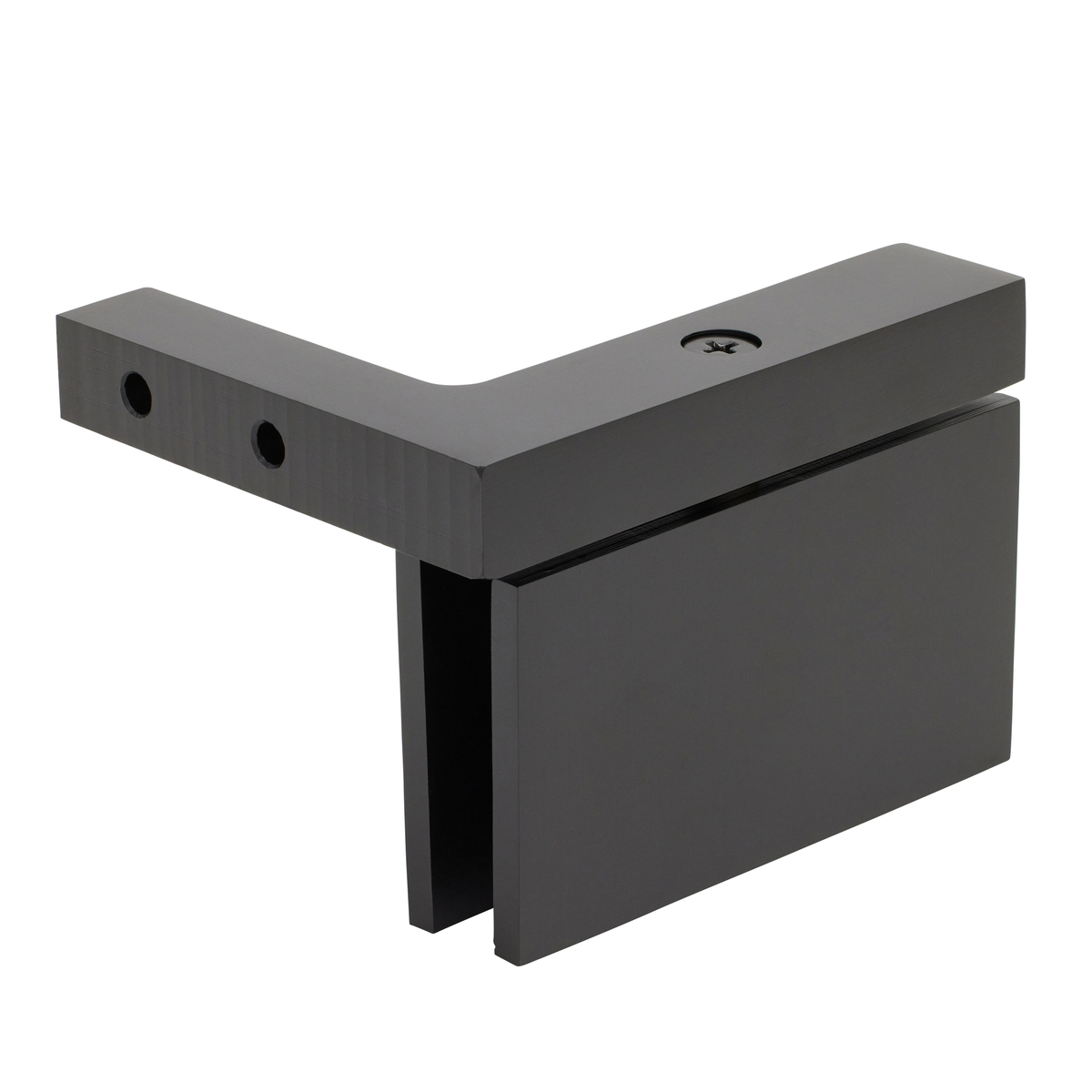

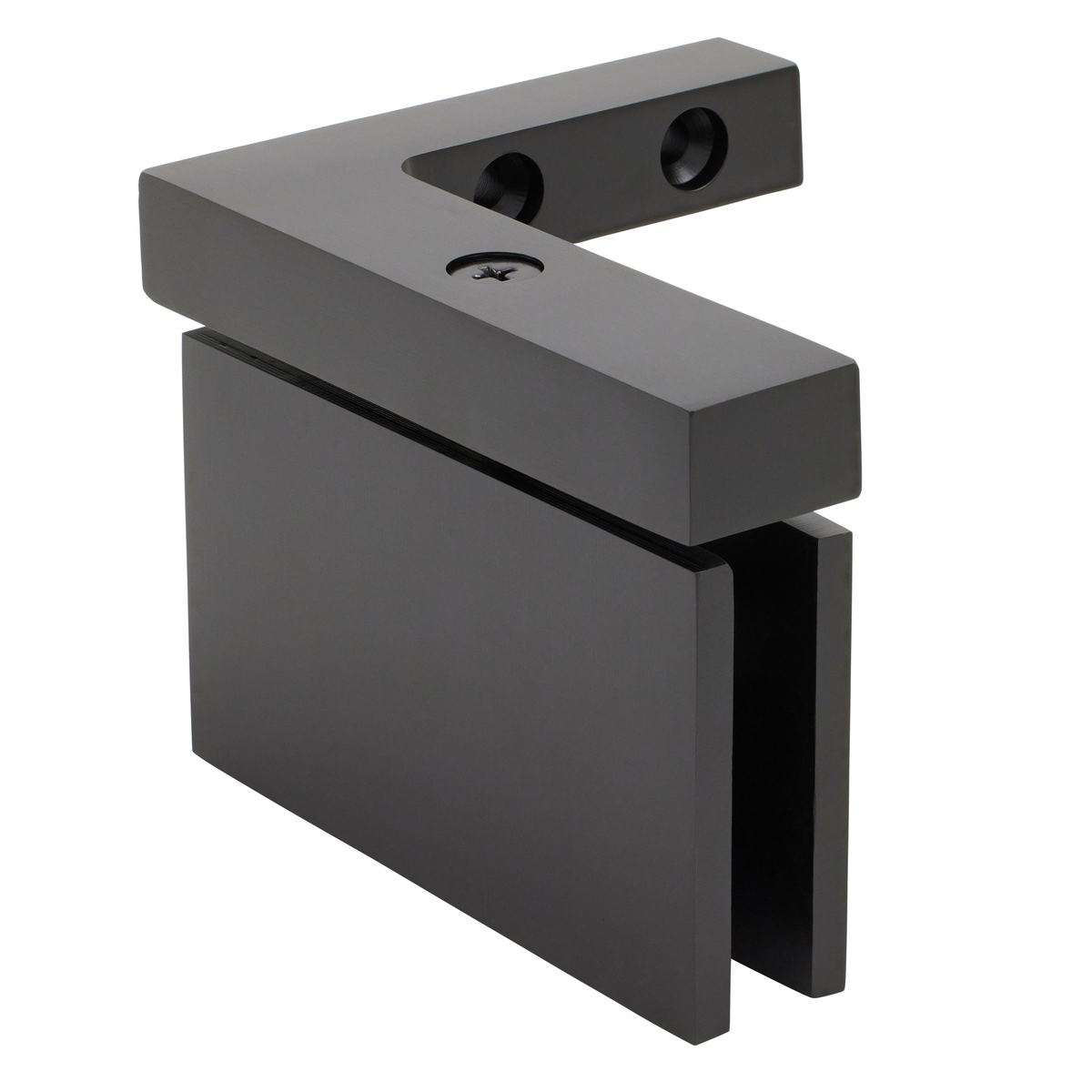

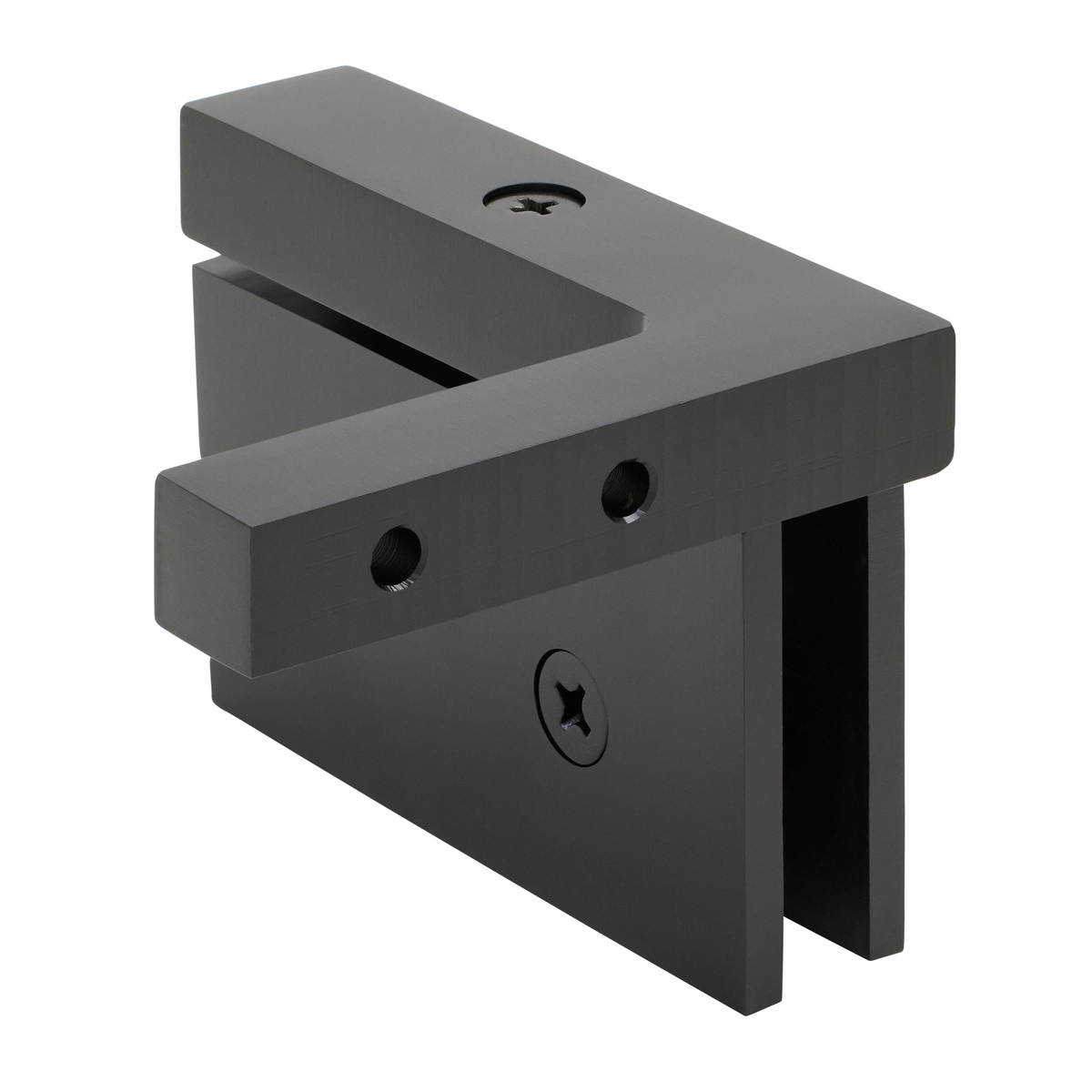

CRL CAR05L0RB Cardiff Series Left Hand Mount Hinge - Oil Rubbed Bronze

CRL CAR05L0RB Cardiff Series Left Hand Mount Hinge - Oil Rubbed Bronze

C.R. Laurence CAR05L0RB Oil Rubbed Bronze Cardiff Series Left Hand Mount Hinge combines elegance with functionality for your shower enclosure. Designed to accommodate 5/16" (8 mm) to 3/8" (10 mm) tempered safety glass, this hinge is ideal for both residential and hotel applications. The offset bracket wall mount allows for a clean aesthetic and provides additional clearance for towel bars and other projections. Constructed from solid brass and finished in an alluring oil-rubbed bronze, this hinge not only enhances the look of your space but is also built to last. It features a self-centering mechanism, ensuring smooth operation within 15º of the closed position. Each hinge is capable of supporting doors weighing up to 100 lbs. (45 kg) and measuring a maximum width of 31" (787 mm). The Cardiff Series Pivot Hinge reduces the number of cut-outs required compared to standard side mount hinges, making installation simpler. It includes gaskets, screws, and precise glass fabrication dimensions. With a 3-year warranty and patented design (U.S. Patent 5,297,313), this hinge is a reliable choice for your next project. Enhance your shower enclosure with the durability and style of the C.R. Laurence Cardiff Series Left Hand Mount Hinge.

Oil Rubbed Bronze Cardiff Series Left Hand Mount Hinge

• Offset Bracket Wall Mount (Left Hand Mount When Viewed From Outside of Shower)
• Available in Several Beautiful Finishes
• 3 Year Warranty
• Use Monolithic Tempered Glass
• U.S. Patent 5,297,313

CRL Cardiff Series Pivot Hinges are designed for use with 5/16" (8 mm) to 3/8" (10 mm) tempered safety glass, and provide an extra number of application possibilities. Some advantages of pivot type hinges include the fact that they carry the majority of the weight on the bottom, and have the ability to be inset from the wall, enabling clearance for towel bars and other projections. Cardiff Series Pivot Hinges are self-centering, with four springs for maximum retention strength. Optional 5º Pre-Set Pivot Pin Sets may be ordered separately. The Cardiff Series is adaptable to our Deluxe Header System for shower enclosures not going all the way up to the ceiling.


NOTE: Optional 5º Pivot Pin Set (for Cardiff, Prima, Rondo, and Shell Series) Optional 5º Pivot Pin sets are available when you want to alter the closing position of the door by 5º. These Pivot Pins may be inserted prior to installation, or retrofitted after the installation is complete. Sold as a set of two, one for the top, and one for the bottom. Not included with hinge purchase.

Using two hinges with 5/16" or 3/8" glass (8 or 10 mm) the hinge will hold up to 100 lbs. (45 kg) with maximum door width of 31" (787 mm).

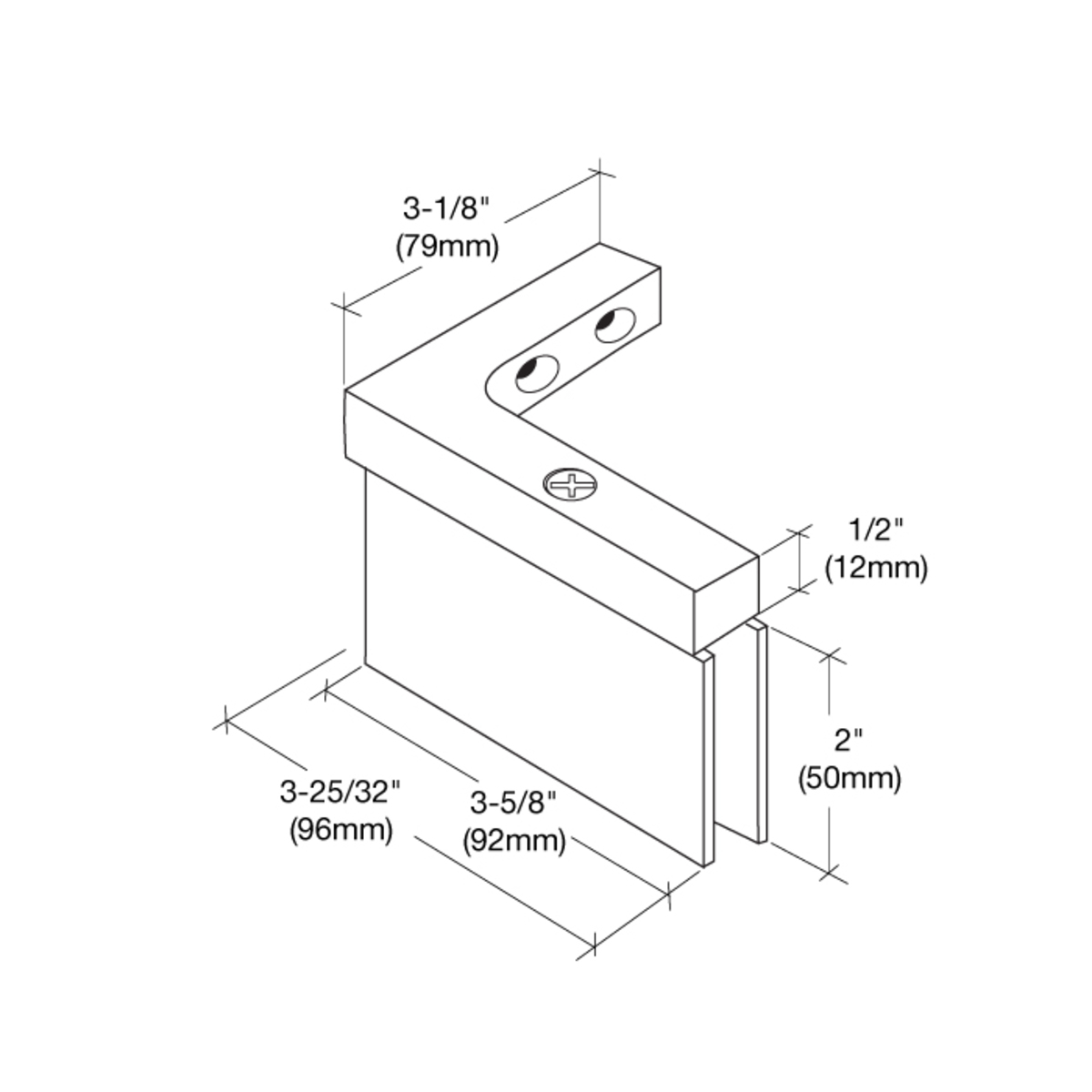

SPECIFICATIONS:
Glass Thickness: 5/16" (8 mm) to 3/8" (10 mm) Tempered Safety Glass
Special Features: Top and Bottom Mount design allows more glass to show. Use of these hinges will reduce quantity of cut-outs required when compared to standard side mount glass-to-glass hinges. Cat. No. CAR01 can be mounted floor and ceiling, or floor and header.
Construction: Solid Brass
Hinge Swings: Full Rotation
Closing Type: Self-Centering when within 15º of closed position.
Cut-Out Required
Includes: Gaskets, Screws, and Glass Fabrication Dimensions
This hinge series is patented (Patent No. 5,297,313).


Product Warning:

CRL Shower Door Hinges are designed for residential or hotel shower use. If hinges are to be used for other than their intended purpose, approval must be obtained from the CRL Shower Door Technical Sales Department.

Use only the template included with this hinge. Cut-out dimensions for CRL hinges may not match those of other brands.
