CRL CAR05LMBL Matte Black Cardiff Series Left-Hand Mount Hinge

CRL CAR05LMBL Matte Black Cardiff Series Left-Hand Mount Hinge

C.R. Laurence CAR05LMBL Matte Black Cardiff Series Left Hand Mount Hinge is expertly crafted to enhance the functionality and aesthetic appeal of your shower enclosure. Designed for use with 5/16" (8 mm) to 3/8" (10 mm) tempered safety glass, this pivot hinge accommodates doors weighing up to 100 lbs. (45 kg) and a maximum width of 31" (787 mm). Its solid brass construction ensures durability while the sleek matte black finish adds a modern touch to any bathroom decor. This left-hand mount hinge features an offset bracket wall mount, allowing for a clean look and the ability to inset from the wall, providing extra clearance for towel bars and other projections. With a self-centering mechanism and four springs, it offers maximum retention strength. The innovative design reduces the need for multiple cut-outs compared to standard side mount hinges, making installation easier. Included with the hinge are gaskets, screws, and glass fabrication dimensions, ensuring a seamless fit. Additionally, optional 5º pre-set pivot pin sets can be ordered separately to adjust the closing position. As a patented product (U.S. Patent 5,297,313), the CAR05LMBL hinge exemplifies quality and innovation, backed by a 3-year warranty for peace of mind.

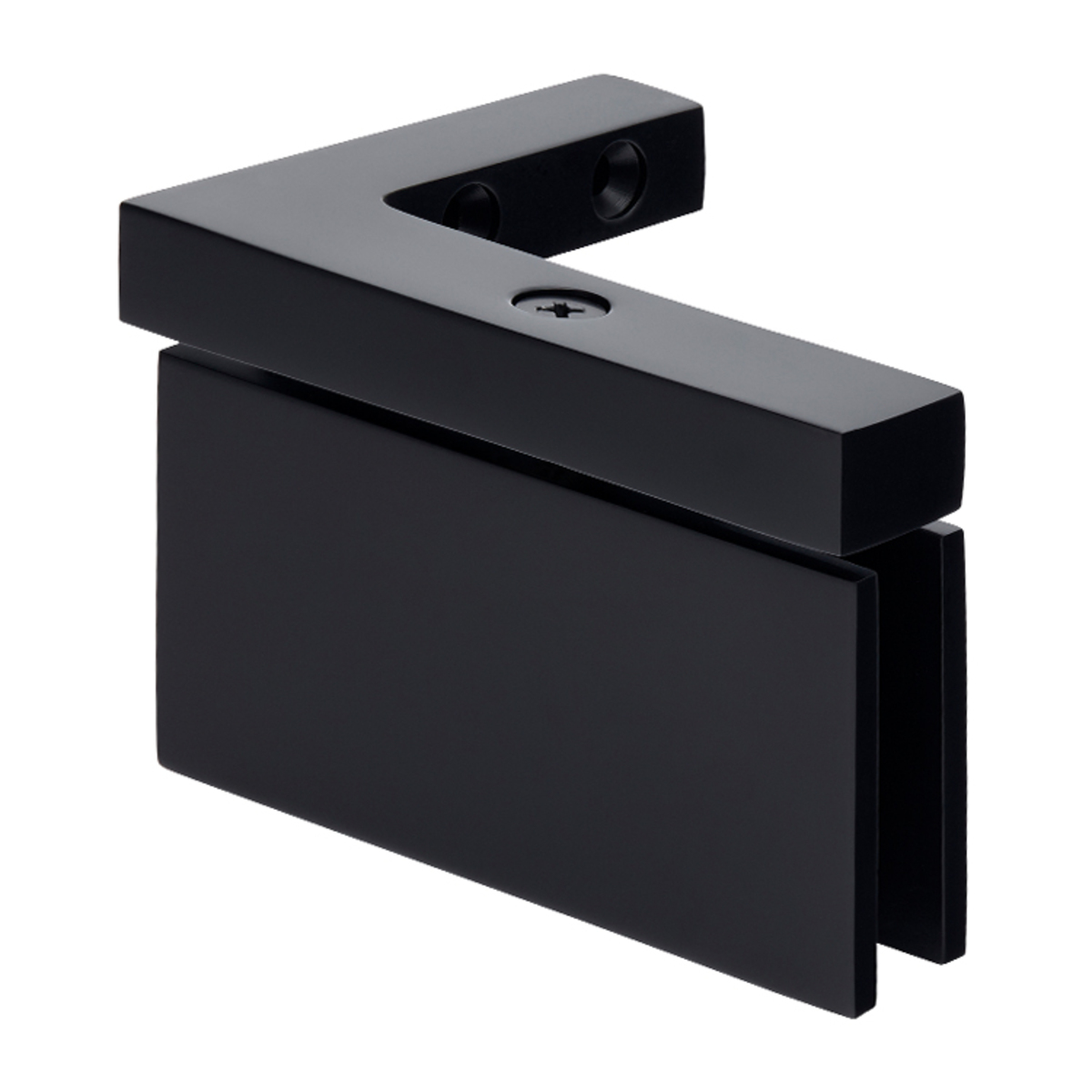

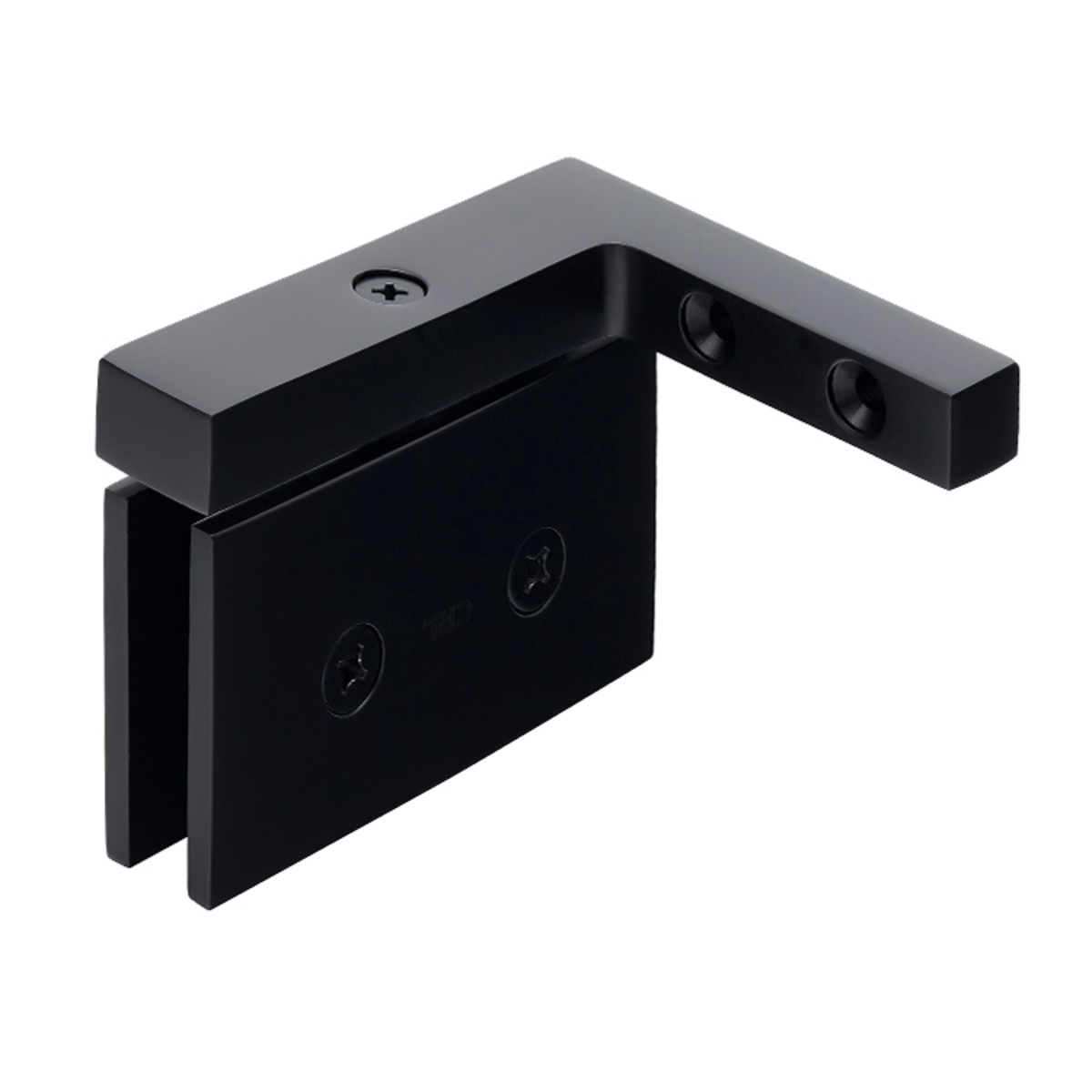

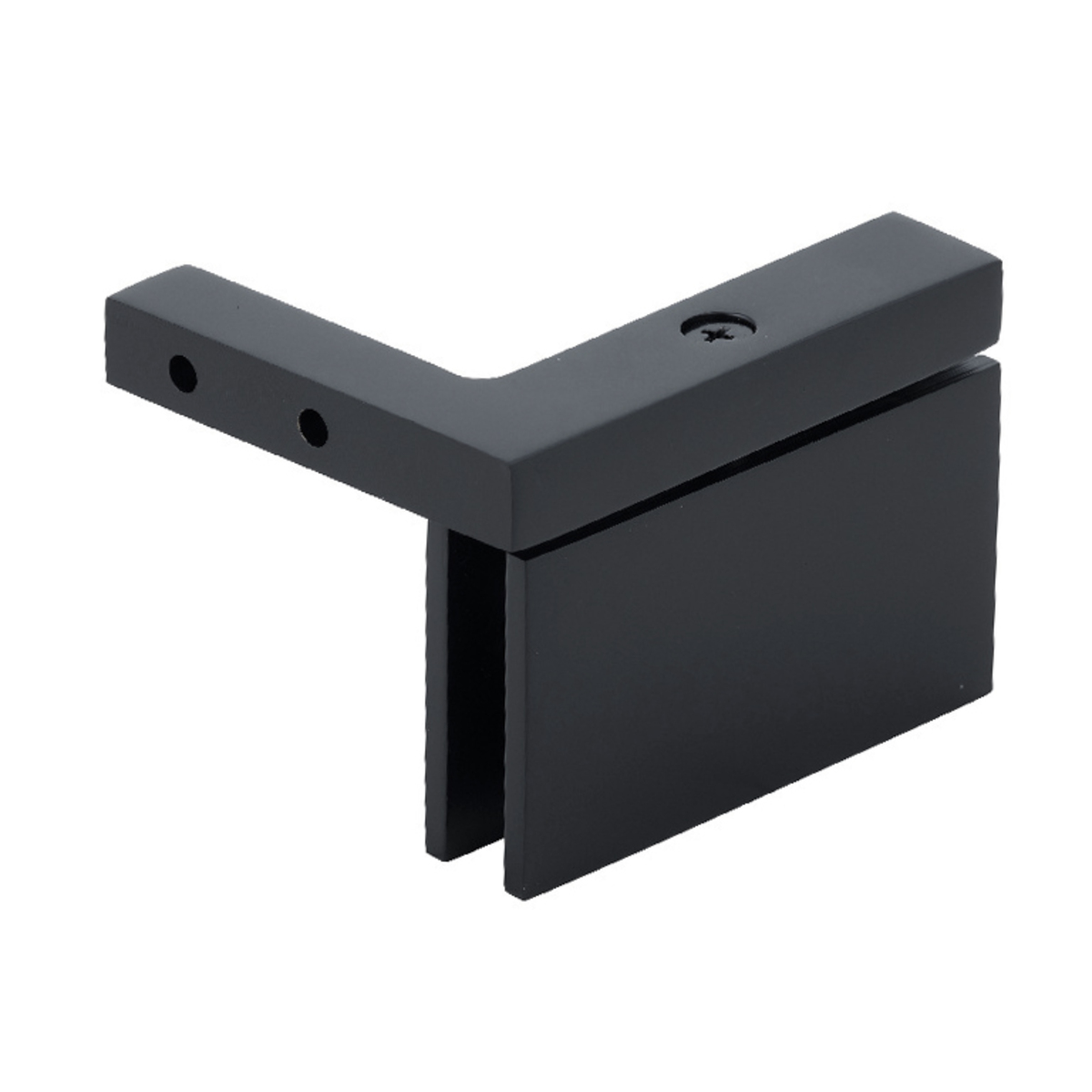

Matte Black Cardiff Series Left Hand Mount Hinge

• Offset Bracket Wall Mount (Left Hand Mount When Viewed From Outside of Shower)
• Available in Several Beautiful Finishes
• 3 Year Warranty
• Use Monolithic Tempered Glass
• U.S. Patent 5,297,313

CRL Cardiff Series Pivot Hinges are designed for use with 5/16" (8 mm) to 3/8" (10 mm) tempered safety glass, and provide an extra number of application possibilities. Some advantages of pivot type hinges include the fact that they carry the majority of the weight on the bottom, and have the ability to be inset from the wall, enabling clearance for towel bars and other projections. Cardiff Series Pivot Hinges are self-centering, with four springs for maximum retention strength. Optional 5º Pre-Set Pivot Pin Sets may be ordered separately. The Cardiff Series is adaptable to our Deluxe Header System for shower enclosures not going all the way up to the ceiling.


NOTE: Optional 5º Pivot Pin Set (for Cardiff, Prima, Rondo, and Shell Series) Optional 5º Pivot Pin sets are available when you want to alter the closing position of the door by 5º. These Pivot Pins may be inserted prior to installation, or retrofitted after the installation is complete. Sold as a set of two, one for the top, and one for the bottom. Not included with hinge purchase.

Using two hinges with 5/16" or 3/8" glass (8 or 10 mm) the hinge will hold up to 100 lbs. (45 kg) with maximum door width of 31" (787 mm).

SPECIFICATIONS:
Glass Thickness: 5/16" (8 mm) to 3/8" (10 mm) Tempered Safety Glass
Special Features: Top and Bottom Mount design allows more glass to show. Use of these hinges will reduce quantity of cut-outs required when compared to standard side mount glass-to-glass hinges. Cat. No. CAR01 can be mounted floor and ceiling, or floor and header.
Construction: Solid Brass
Hinge Swings: Full Rotation
Closing Type: Self-Centering when within 15º of closed position.
Cut-Out Required
Includes: Gaskets, Screws, and Glass Fabrication Dimensions
This hinge series is patented (Patent No. 5,297,313).


Product Warning:

CRL Shower Door Hinges are designed for residential or hotel shower use. If hinges are to be used for other than their intended purpose, approval must be obtained from the CRL Shower Door Technical Sales Department.

Use only the template included with this hinge. Cut-out dimensions for CRL hinges may not match those of other brands.
