CRL CAR05LPN Polished Nickel Cardiff Series Left-Hand Mount Hinge

CRL CAR05LPN Polished Nickel Cardiff Series Left-Hand Mount Hinge

C.R. Laurence CAR05LPN Polished Nickel Cardiff Series Left Hand Mount Hinge is a sophisticated solution for your shower enclosure needs. Specifically designed for 5/16" (8 mm) to 3/8" (10 mm) tempered safety glass, this hinge ensures a secure and stylish pivoting action, carrying most of the weight at the bottom for enhanced stability. Its left-hand mount configuration is ideal for left-side installations when viewed from outside the shower. Crafted from solid brass and available in a stunning polished nickel finish, this hinge not only provides durability but also elevates the aesthetic of any bathroom space. The hinge supports a maximum door weight of 100 lbs. (45 kg) with a width of up to 31" (787 mm), making it suitable for various applications. Its self-centering feature enhances ease of use, as it gently guides the door to a closed position. Designed with versatility in mind, the Cardiff Series Hinge can be adapted to the Deluxe Header System, providing flexibility for enclosures that don’t extend to the ceiling. Each hinge includes gaskets, screws, and glass fabrication dimensions, ensuring a straightforward installation. With a 3-year warranty and U.S. Patent 5,297,313 protection, you can trust C.R. Laurence for quality and reliability in your architectural projects.

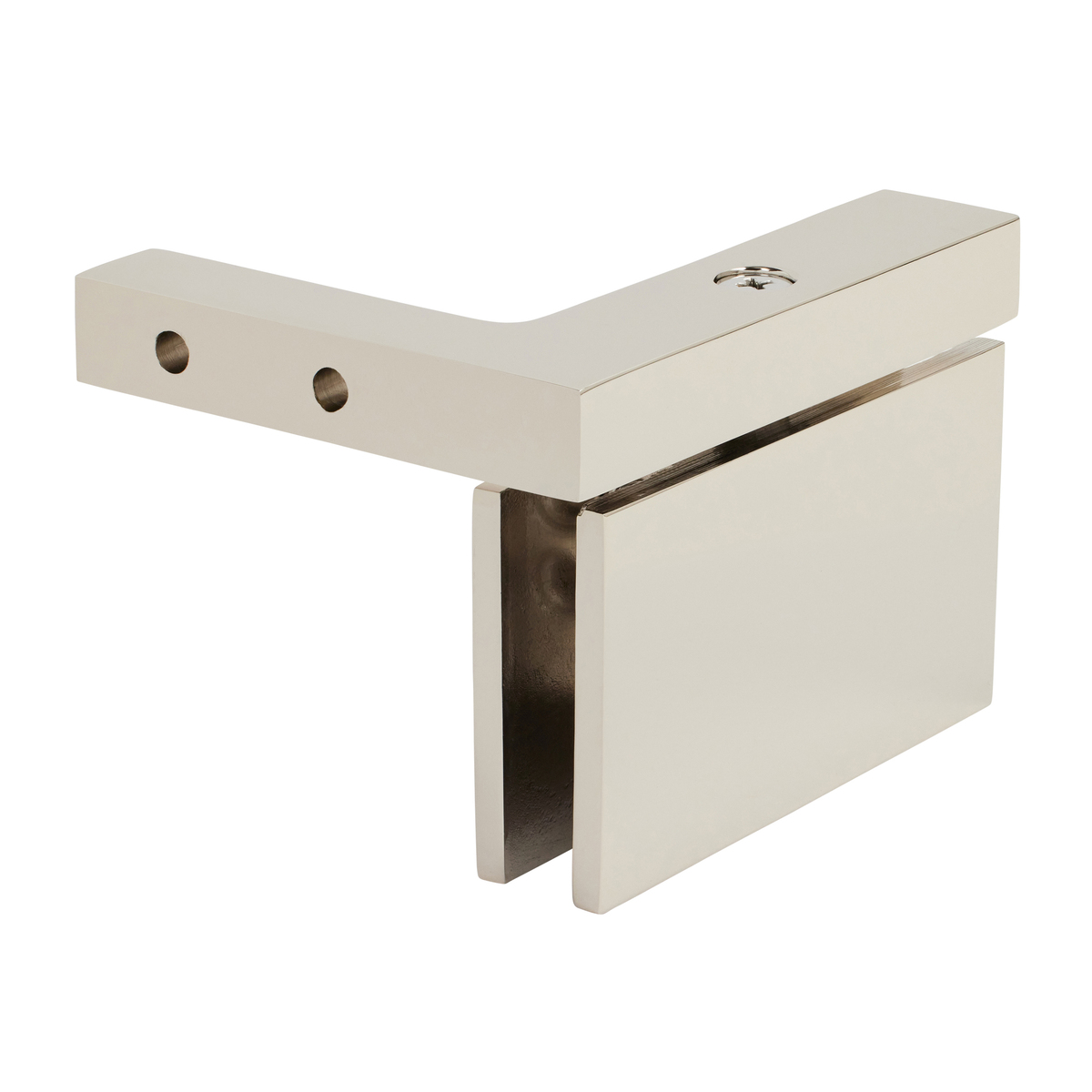

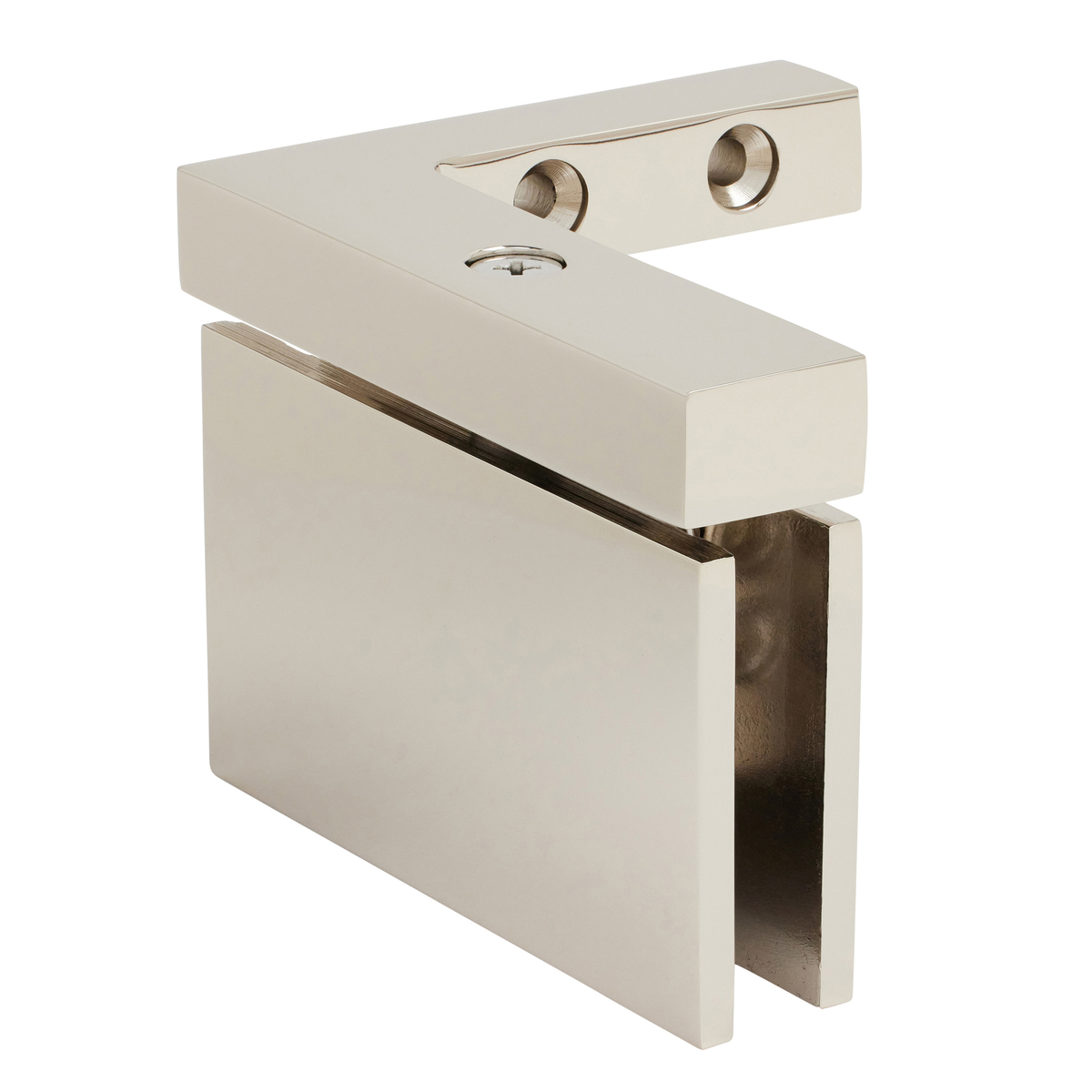

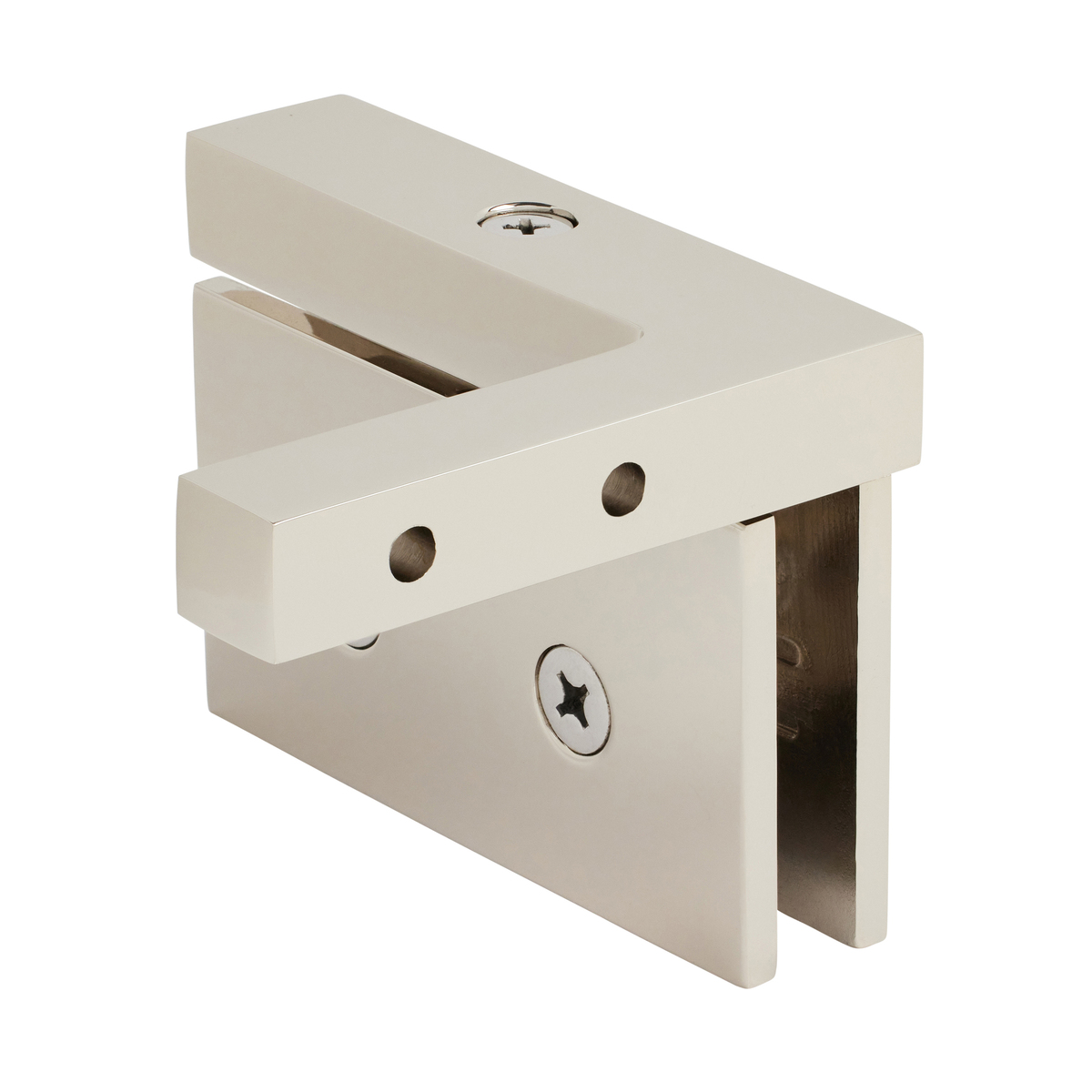

Polished Nickel Cardiff Series Left Hand Mount Hinge

• Offset Bracket Wall Mount (Left Hand Mount When Viewed from Outside of Shower)
• Available in Several Beautiful Finishes
• 3 Year Warranty
• Use Monolithic Tempered Glass
• U.S. Patent 5,297,313

CRL Cardiff Series Pivot Hinges are designed for use with 5/16" (8 mm) to 3/8" (10 mm) tempered safety glass, and provide an extra number of application possibilities. Some advantages of pivot type hinges include the fact that they carry the majority of the weight on the bottom, and have the ability to be inset from the wall, enabling clearance for towel bars and other projections. Cardiff Series Pivot Hinges are self-centering, with four springs for maximum retention strength. Optional 5 degree Pre-Set Pivot Pin Sets may be ordered separately. The Cardiff Series is adaptable to our Deluxe Header System for shower enclosures not going all the way up to the ceiling.


NOTE: Optional 5 degree Pivot Pin Set (for Cardiff, Prima, Rondo, and Shell Series) Optional 5 degree Pivot Pin sets are available when you want to alter the closing position of the door by 5 degree. These Pivot Pins may be inserted prior to installation, or retrofitted after the installation is complete. Sold as a set of two, one for the top, and one for the bottom. Not included with hinge purchase.

Using two hinges with 5/16" or 3/8" glass (8 or 10 mm) the hinge will hold up to 100 lbs. (45 kg) with maximum door width of 31" (787 mm).

SPECIFICATIONS:
Glass Thickness: 5/16" (8 mm) to 3/8" (10 mm) Tempered Safety Glass
Special Features: Top and Bottom Mount design allows more glass to show. Use of these hinges will reduce quantity of cut-outs required when compared to standard side mount glass-to-glass hinges. Cat. No. CAR01 can be mounted floor and ceiling, or floor and header.
Construction: Solid Brass
Hinge Swings: Full Rotation
Closing Type: Self-Centering when within 15 degree of closed position.
Cut-Out Required
Includes: Gaskets, Screws, and Glass Fabrication Dimensions
This hinge series is patented (Patent No. 5,297,313).


Product Warning:

CRL Shower Door Hinges are designed for residential or hotel shower use. If hinges are to be used for other than their intended purpose, approval must be obtained from the CRL Shower Door Technical Sales Department.

Use only the template included with this hinge. Cut-out dimensions for CRL hinges may not match those of other brands.

Resources

• CAR05L CAR05R Template
• CAR05L Detailed CAD Drawings.dwg
• CAR05L Detailed CAD Drawings.pdf
• Frameless Shower Door Glass and Hardware Cleaning Instructions
• Frameless Shower Door Glass and Hardware Cleaning Instructions
• Frameless Shower Door Hardware Catalog
• Frameless Shower Door Hardware Catalog
• Frameless Shower Door Quote Request Form
• Hardware Finish Cross-Reference Guide
• Hardware Finish Cross-Reference Guide
• Hardware Finish Cross-Reference Guide
• Selecting The Proper Hinges Product Information
