CRL CB100 Chrome Adjustable Shelf Brackets for Cable Display System
Images may not represent actual product and finish

CRL CB100 Chrome Adjustable Shelf Brackets for Cable Display System

Your Price: $28.39
Retail Price:$33.98
Your Savings:$5.59(16%)
CRL Chrome Plated Adjustable Shelf Brackets securely hold panels with angle adjustments, accommodating 1/4" to 5/16" thick glass.
Part Number : CRL_CB100
Availability: 53 In Stock
CRL CB100 Chrome Adjustable Shelf Brackets for Cable Display System

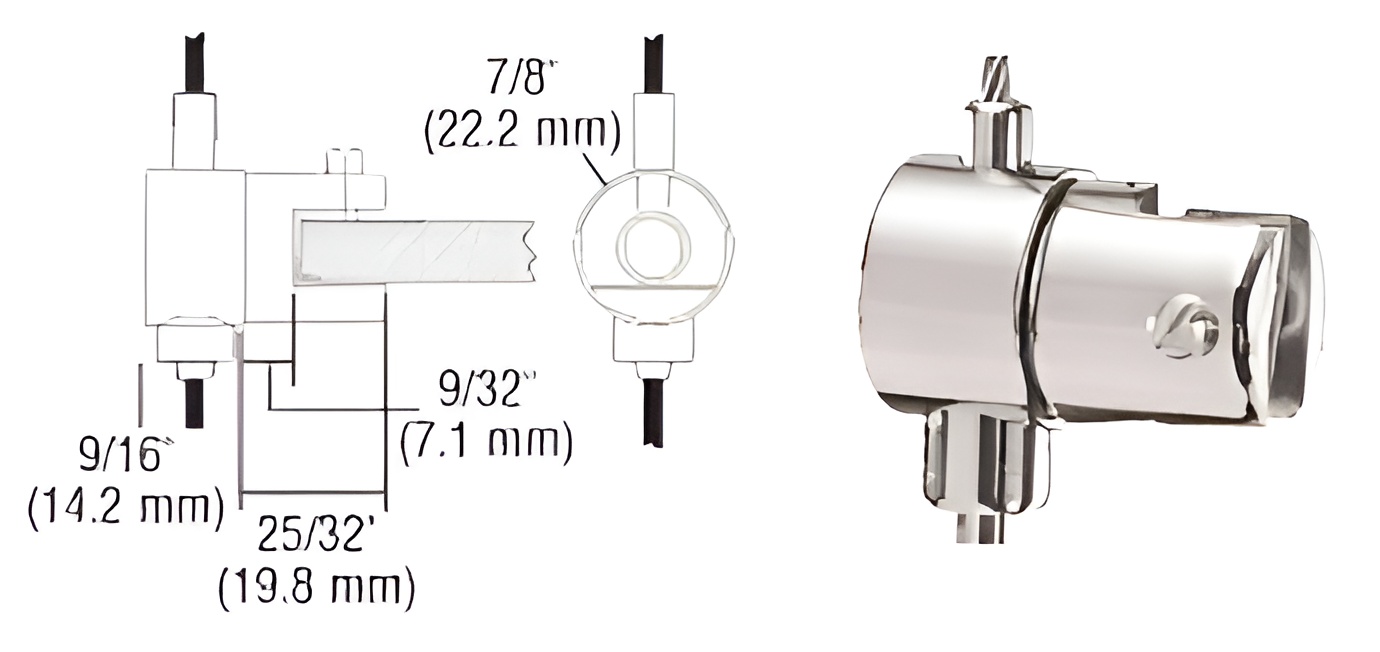

C.R. Laurence CB100 Chrome Plated Adjustable Single Shelf Brackets for the Cable Display System provide a versatile solution for showcasing shelves or panels with ease. Designed to support both 1/4" and 5/16" (6 to 8 mm) panels, these brackets feature a highly efficient set screw clamping system, allowing for angle adjustments that enhance your display or signage options. The innovative design includes "push tubes" that enable quick repositioning along the cable, ensuring your panels can be angled precisely to achieve the desired visual impact. With a weight capacity of up to 80 lbs. (36 kg) per column when properly installed, these brackets can effortlessly support your shelving needs. Each individual shelf can hold up to 20 lbs. (9 kg) when paired with compatible ceiling mount fittings, making them ideal for various applications. Available in polished chrome and crafted from durable brass, the CB100 brackets not only provide strength and stability but also add a sleek aesthetic to your displays. Installation is straightforward, with the stainless steel cable easily inserted through the bracket's lower push tube. Elevate your interior spaces with the reliable and stylish C.R. Laurence Adjustable Single Shelf Brackets, combining functionality and modern design seamlessly.

Chrome Plated Adjustable Single Shelf Brackets for the Cable Display System

  • Securely Holds Shelves or Panels with Angle Adjustment Options
  • For 1/4" and 5/16" (6 to 8 mm) Panels
  • Available in Several Finishes

The CRL Adjustable Single Shelf Bracket for the Cable Display System has a highly efficient and secure set screw clamping system that permits the installed panel to be angled or tilted to enhance your display or for signage purposes. To adjust the brackets to the desired angle, the "push tubes" are depressed and the brackets are moved down the cable to achieve the necessary angle. For signage only two cables need to be installed at the proper distance apart to accommodate the width of your sign or decorative panel.


The Fixed Brackets are very easily installed by inserting the stainless steel cable end thru the Bracket lower push tube. When the "push tube" is depressed, the Bracket can be adjusted to the desired position on the cable. The Brackets will stay firmly and securely in place on the 2mm cable. To re-position the Brackets, simply depress the "push tube" and slide the Bracket up or down on the cable. The Brackets are designed to accommodate 1/4" to 5/16" (6 to 8 mm) panels. One each minimum order.


Product Warning:

WEIGHT LIMITATIONS: When properly installed, each column (4 cables) can bear a total weight of up to 80 lbs. (36kg.). Each shelf can bear a total weight of 20 lbs. (9kg.), when used with CB74, CB76 and CB78 Ceiling Mount Fittings.

If CB112 and CB114 Hanger Pipe Base Fittings are properly anchored and used as ceiling attachments, each column (4 cables) can bear a total weight of 40 lbs. (18 kg).

Most shipping weights are approximate and have not been verified. If the exact weight is needed in order to determine shipping costs, and shipping costs are required in order for you to complete your order, please request this prior to submitting your order by contacting CRL Customer Service. Product images shown are of the actual product or a close representation. Colors can vary depending on your computer's video card and on how your monitor's color is adjusted.


Attributes

Compliance and Restrictions: Warning Reproductive Harm - www.p65warnings.ca.gov

Diameter: 7/8 in. (22.2 mm)

Finish/ Color:: Polished Chrome

Glazing Thickness: 5/16 in. (8 mm)

Material: Brass

Shipping Limitations: None

Weight Capacity: Each Column (4 cables) Can Bear A Total Weight Of Up To 80 lbs. Each Shelf Can Bear A Total Weight Of 20 lbs.
