CRL CB101 Brushed Nickel Adjustable Shelf Brackets for Cable Display System

Your Price: $51.11

Retail Price:$61.18

Your Savings:$10.07(16%)

CRL Brushed Nickel Adjustable Shelf Brackets securely hold 1/4" to 5/16" panels with customizable angle adjustments for optimal display.

Part Number : CRL_CB101

Availability: 38 In Stock

Quantity

Description

CRL CB101 Brushed Nickel Adjustable Shelf Brackets for Cable Display System

C.R. Laurence CB101 Brushed Nickel Plated Adjustable Single Shelf Brackets for the Cable Display System offer a versatile solution for showcasing shelves or panels with ease. Designed to securely hold 1/4" to 5/16" (6 to 8 mm) panels, these brackets feature an innovative set screw clamping system that allows for angle adjustments, enabling you to tilt your displays for maximum visibility or signage effectiveness. Installation is a breeze; simply insert the stainless steel cable end through the lower push tube of the bracket. Depressing the push tube lets you slide the bracket to your desired position on the 2mm cable, ensuring it remains firmly in place. The CB101 brackets can bear a total weight of up to 80 lbs. (36 kg) when properly installed in a column of four cables, while each individual shelf can support up to 20 lbs. (9 kg) when paired with compatible ceiling mount fittings. Available in a sleek brushed nickel finish, these brackets are as stylish as they are functional, making them an ideal choice for both commercial and residential environments. Transform your display systems with the reliability and aesthetic appeal of C.R. Laurence CB101 Adjustable Single Shelf Brackets.

Brushed Nickel Plated Adjustable Single Shelf Brackets for the Cable Display System

Securely Holds Shelves or Panels with Angle Adjustment Options
For 1/4" and 5/16" Panels
Available in Several Finishes

The CRL Adjustable Single Shelf Bracket for the Cable Display System has a highly efficient and secure set screw clamping system that permits the installed panel to be angled or tilted to enhance your display or for signage purposes. To adjust the brackets to the desired angle, the "push tubes" are depressed and the brackets are moved down the cable to achieve the necessary angle. For signage only two cables need to be installed at the proper distance apart to accommodate the width of your sign or decorative panel.

The Fixed Brackets are very easily installed by inserting the stainless steel cable end thru the Bracket lower push tube. When the "push tube" is depressed, the Bracket can be adjusted to the desired position on the cable. The Brackets will stay firmly and securely in place on the 2mm cable. To re-position the Brackets, simply depress the "push tube" and slide the Bracket up or down on the cable. The Brackets are designed to accommodate 1/4" to 5/16" (6 to 8 mm) panels. One each minimum order.

Product Warning:

WEIGHT LIMITATIONS: When properly installed, each column (4 cables) can bear a total weight of up to 80 lbs. (36kg.). Each shelf can bear a total weight of 20 lbs. (9 kg), when used with CB74, CB76 and CB78 Ceiling Mount Fittings.

If CB112 and CB114 Hanger Pipe Base Fittings are properly anchored and used as ceiling attachments, each column (4 cables) can bear a total weight of 40 lbs. (18 kg).

Most shipping weights are approximate and have not been verified. If the exact weight is needed in order to determine shipping costs, and shipping costs are required in order for you to complete your order, please request this prior to submitting your order by contacting CRL Customer Service. Product images shown are of the actual product or a close representation. Colors can vary depending on your computer's video card and on how your monitor's color is adjusted.

Attributes

Compliance and Restrictions: Warning Reproductive Harm - www.p65warnings.ca.gov

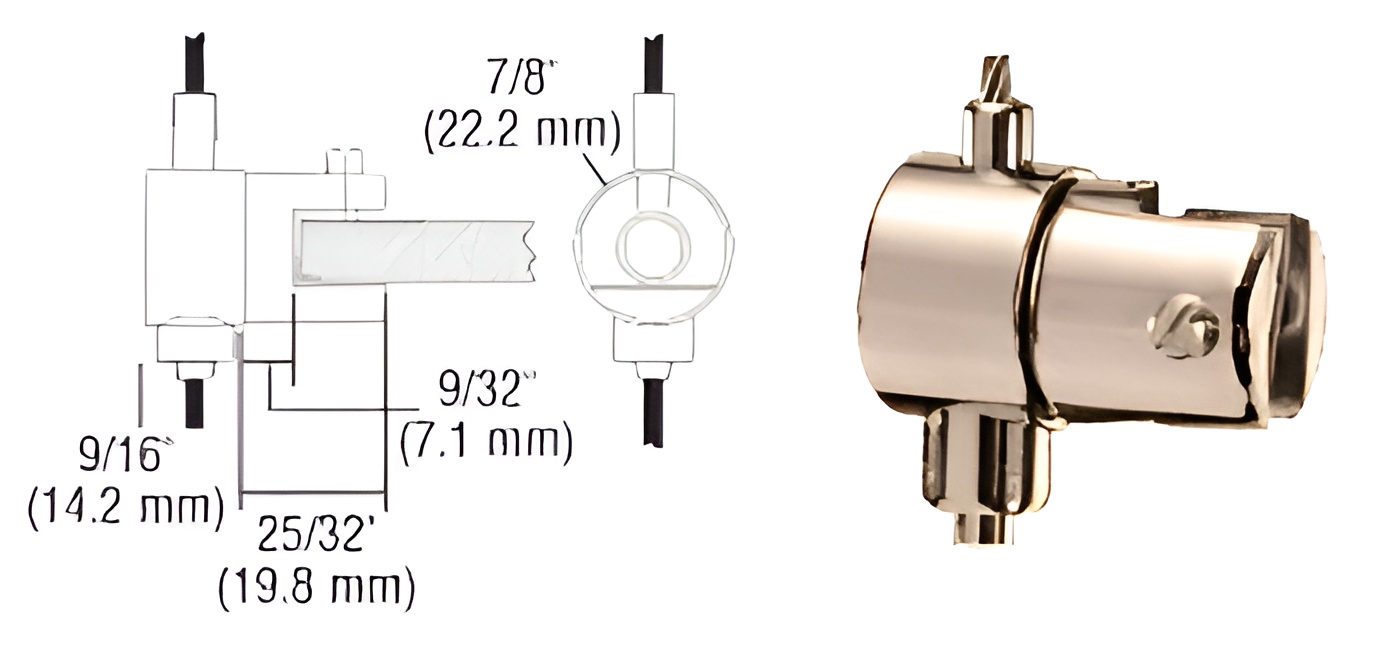

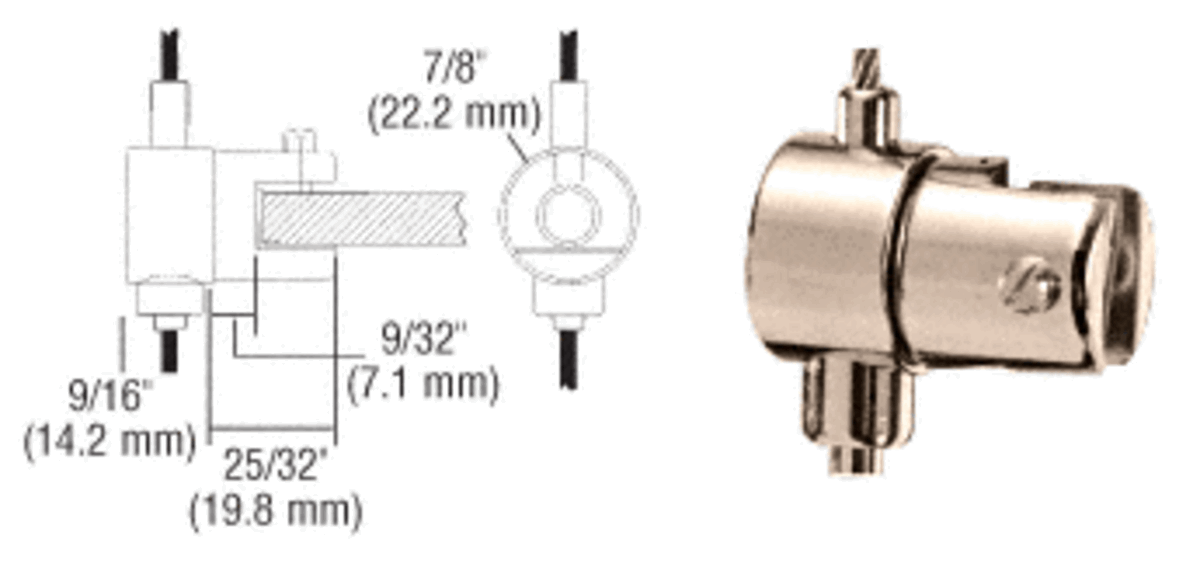

Diameter: 7/8 in. (22.2 mm)

Finish/ Color:: Brushed Nickel

Glazing Thickness: 5/16 in. (8 mm)

Material: Brass

Shipping Limitations: None

Weight Capacity: Each Column (4 cables) Can Bear A Total Weight Of Up To 80 lbs. Each Shelf Can Bear A Total Weight Of 20 lbs.
