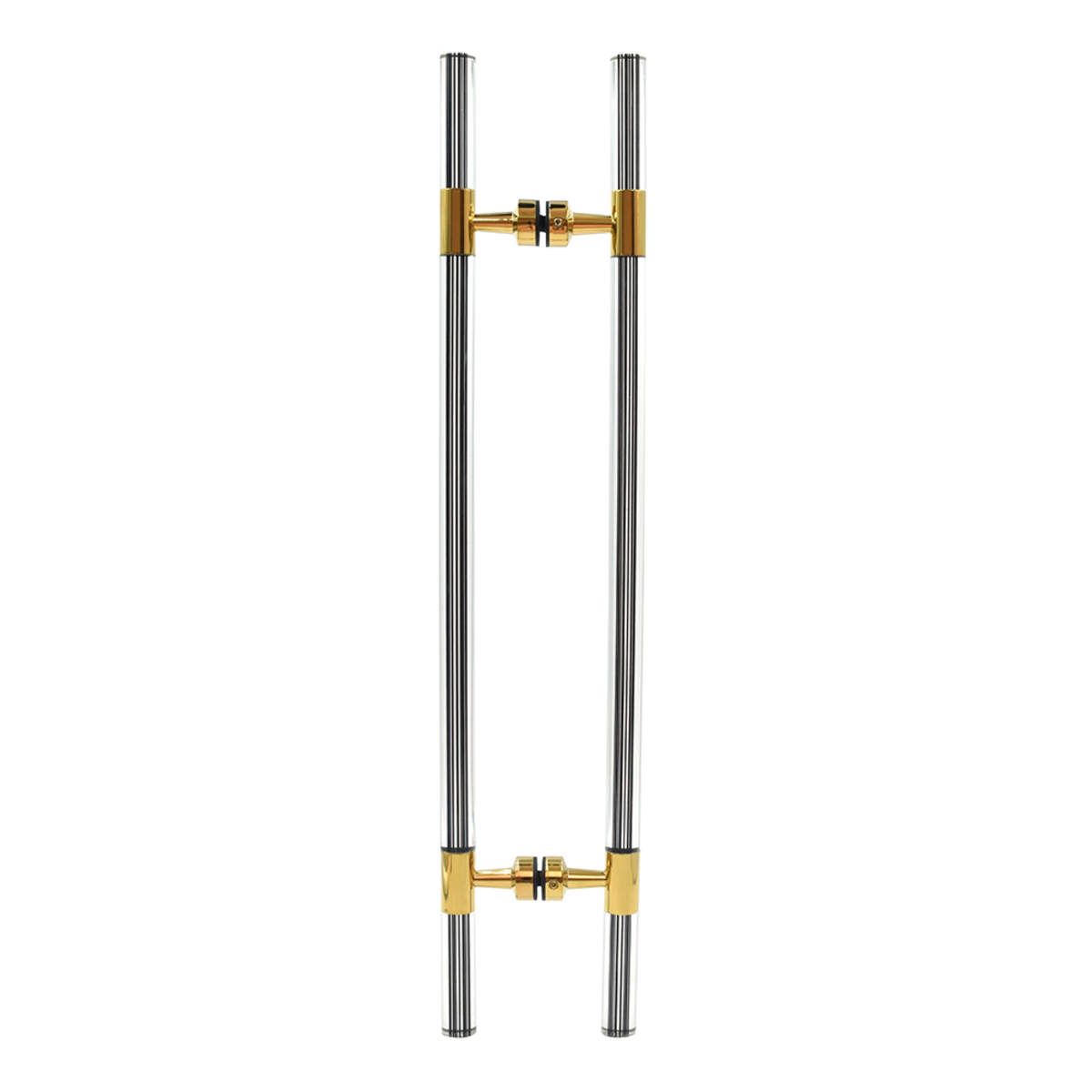

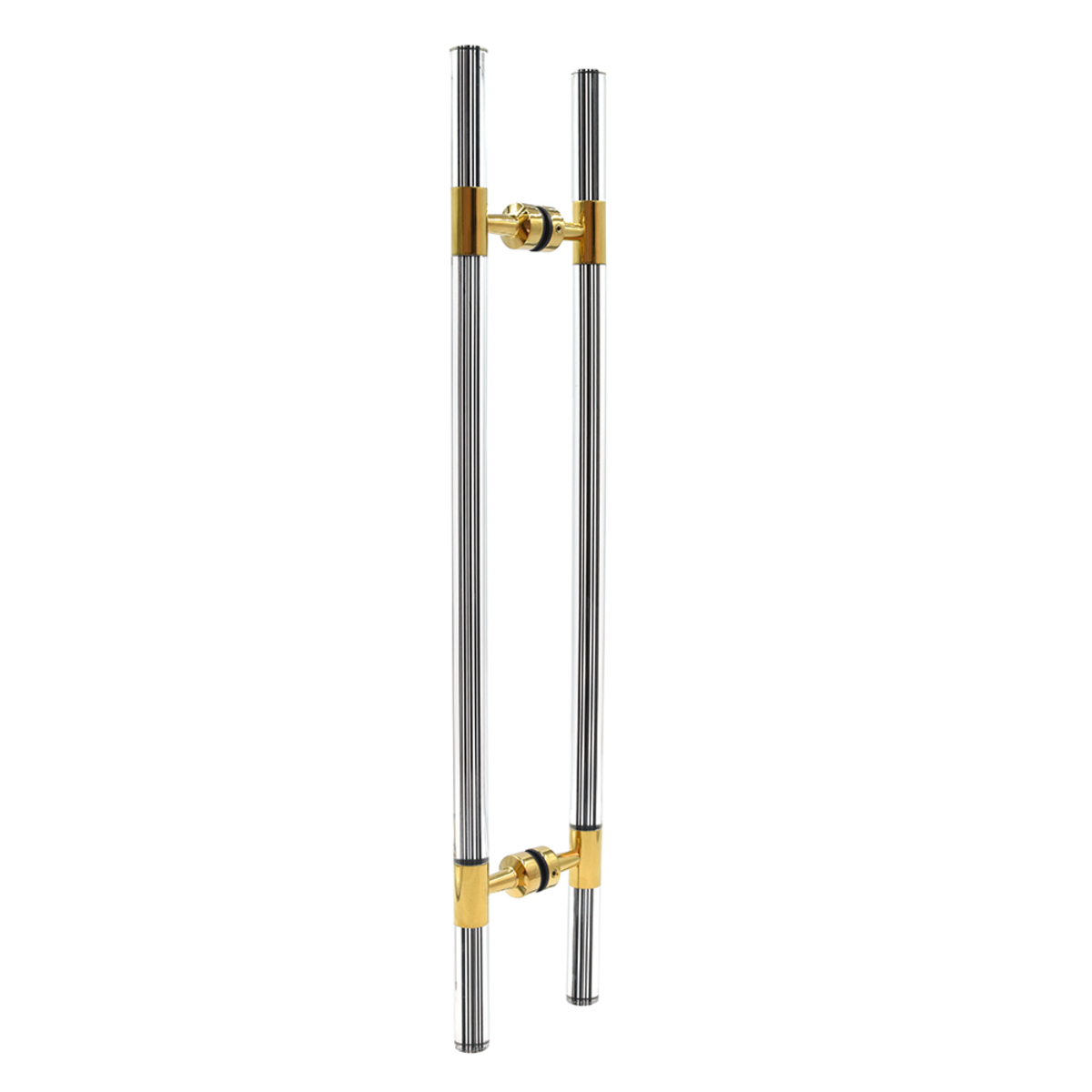

CRL CB18X18BR Polished Brass 27" Glass-Mounted Ladder Pull Handle with Acrylic InsertsC.R. Laurence CB18X18BR Polished Brass 27" Overall Length Glass Mounted Ladder Style Pull Handle with Acrylic Full Inserts is a sophisticated addition to any glass entryway. Designed for seamless integration with 3/8" and 1/2" (10 and 12 mm) tempered glass doors, this pull handle provides both functionality and elegance. The robust 1" (25 mm) diameter stainless steel tubing is coated with a polished brass finish, ensuring durability while enhancing aesthetic appeal. The acrylic full inserts feature stylish black accent lines, offering a contemporary touch that complements any décor. With a total length of 27" and an 18" center-to-center mounting hole configuration, this handle is ideal for back-to-back installations. Included with each handle are through-bolts specifically designed for glass mounting, along with matching metal finish washers and rubber gaskets for a secure fit. This pull handle requires two 5/8" (16 mm) diameter holes in the glass for installation. While the brass finish is striking, it is important to note that brass is prone to oxidation over time. Overall, the C.R. Laurence CB18X18BR is perfect for professionals seeking both style and reliability in architectural hardware.
Polished Brass 27" Overall Length Glass Mounted Ladder Style Pull Handle with Acrylic Full Inserts
- For Use with 3/8" and 1/2" (10 and 12 mm) Glass

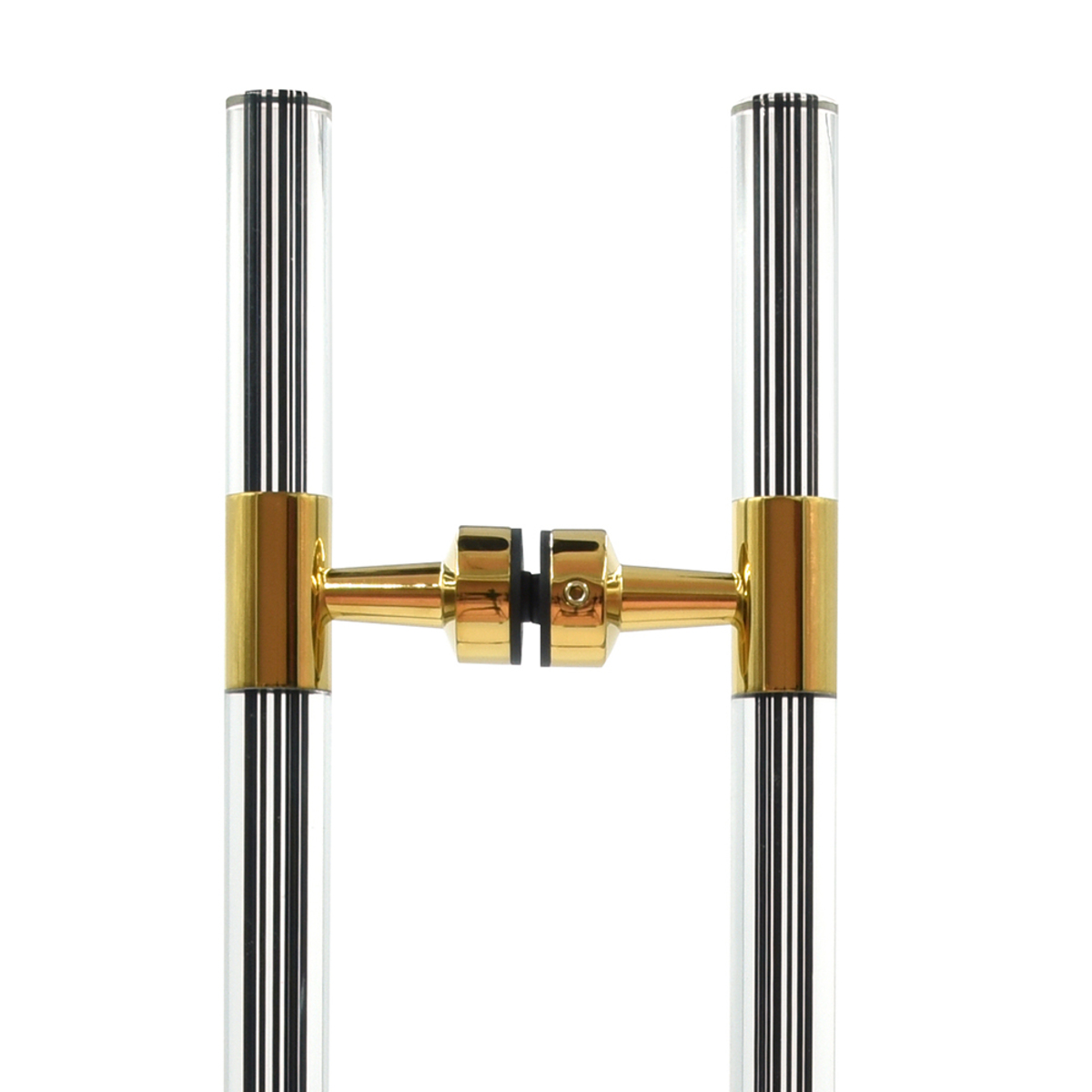

- 1" (25 mm) Diameter Stainless Steel with Polished Brass PVD Coating with Acrylic Full Insert (Black Accent Lines in Acrylic)
This CRL Glass Mounted Ladder Style Pull with Acrylic Full Inserts are for back-to-back mounting with supplied through-bolts. They are intended for use on doors made from 3/8" to 1/2" tempered glass. Stock size of 27" total length with 18" mounting hole center-to-center length. Standard finishes are polished stainless and brushed stainless. The pulls are constructed of 1" diameter stainless-steel tubing with PVD coating.
SPECIFICATIONS:
For Use With:
3/8" to 1/2" (10 to 19 mm) Glass
Construction:
1" (25 mm) Diameter Stainless Steel or Brass Tubing with Acrylic Full Insert (Accent Lines in Acrylic)
Glass Fabrication Required:
Two 5/8" (16 mm) Diameter Holes
INCLUDES:
2 Each: Through-Bolts for Glass Mounting
4 Each: 1-1/4" (32 mm) Diameter
Matching Metal Finish Washers and Rubber Gaskets
Most shipping weights are approximate and have not been verified. If the exact weight is needed in order to determine shipping costs, and shipping costs are required in order for you to complete your order, please request this prior to submitting your order by contacting CRL Customer Service. Product images shown are of the actual product or a close representation. Colors can vary depending on your computer's video card and on how your monitor's color is adjusted.
Brass Finish Advisory:
Although durable, brass is prone to oxidation. It can give brass and brass finishes a tarnished look, regardless of how the hardware is initially packaged or stored. For more information, view the Brass Finish Disclaimer found in the Technical References section below.
Attributes
Compliance and Restrictions: Warning Reproductive Harm - www.p65warnings.ca.gov
Diameter: 1 in. (25 mm)
Finish/ Color:: Polished Brass
Glazing Thickness: 3/8 in., 1/2 in. (10 mm, 12 mm)
Material: Stainless Steel

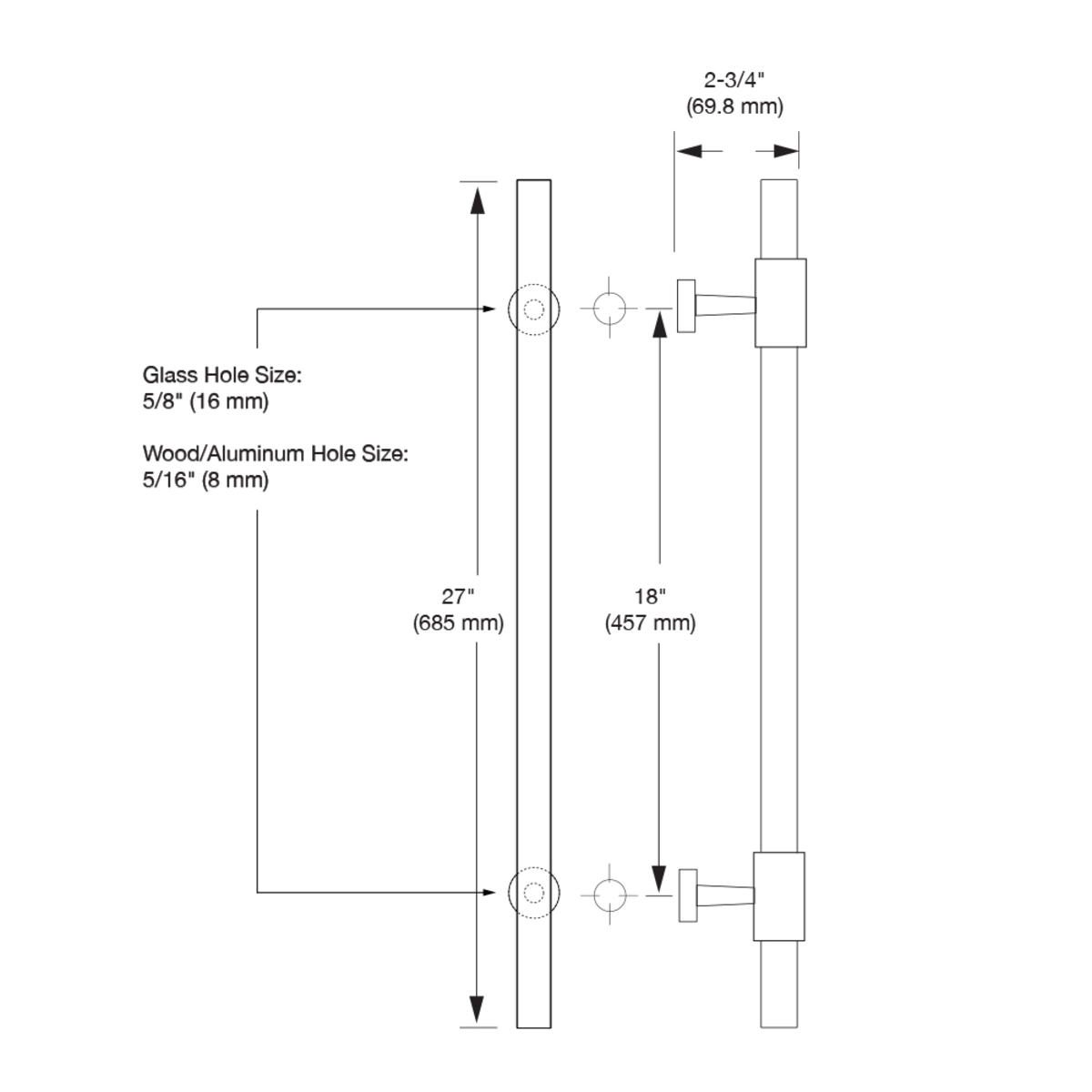

Mounting Center To Center: 18 in. (457 mm)
Mounting Hole Diameter: 5/8 in. (16 mm)
Mounting Type: Back-To-Back
Overall Length: 27 in. (686 mm)
Shipping Limitations: None
Style Washer Diameter: 1-1/4 in. (32 mm)
Style Washers: Yes
