CRL CBR7PS 316 Polished Stainless Right End Standoff Connector, Flat Back

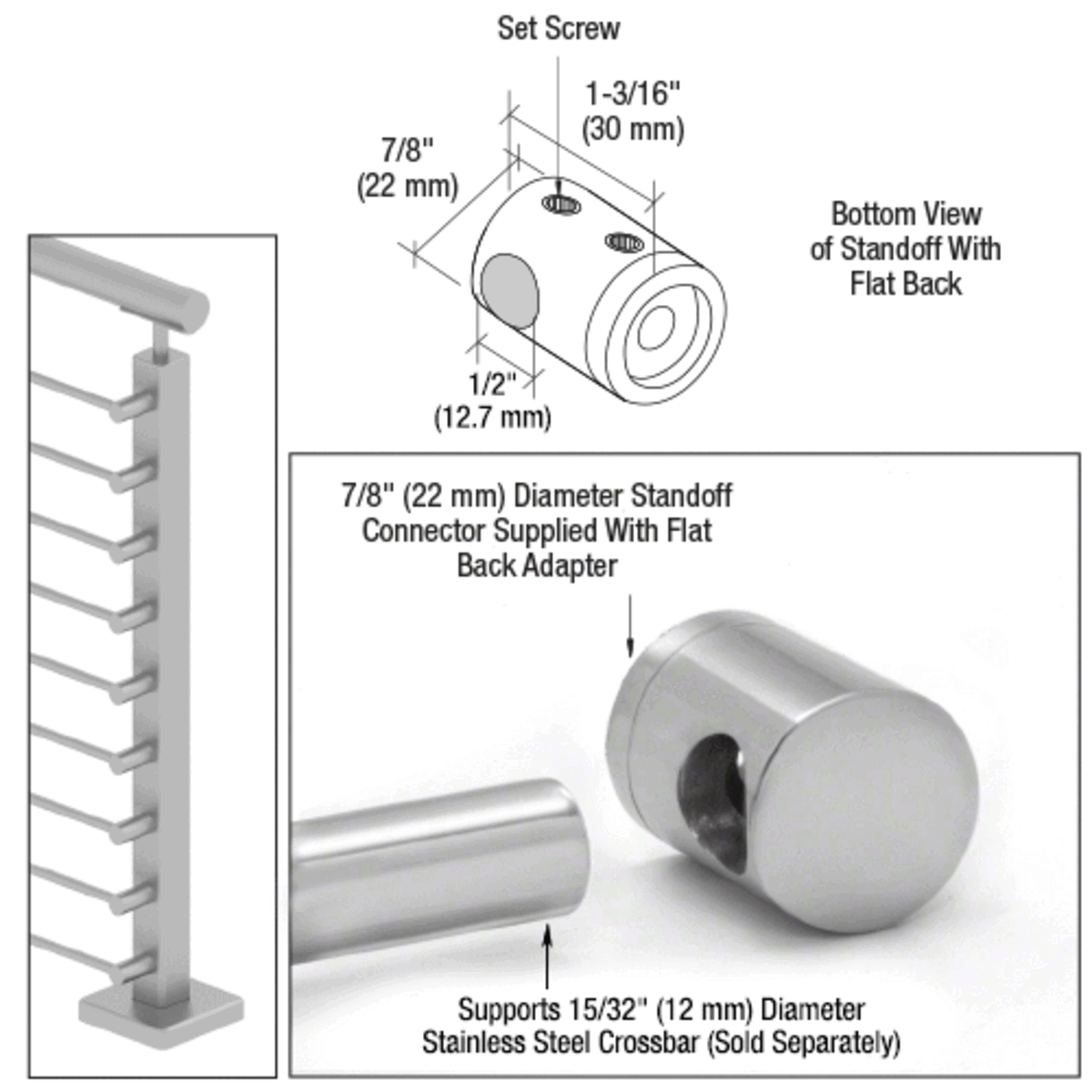

C.R. Laurence CBR7PS 316 Polished Stainless Right End Standoff Connector (Flat Back) is expertly engineered for square post applications, making it a reliable choice for modern architectural projects. This surface mount design eliminates exposed fasteners, ensuring a sleek and clean installation. The connector supports the 15/32" (12 mm) diameter CRL "CBR12" stainless steel crossbar exclusively, providing a seamless integration that enhances the visual appeal of your structure. Constructed from 316 alloy stainless steel, the CBR7PS offers exceptional durability and resistance to corrosion, although routine maintenance is recommended to maintain its polished finish. The easy slip fit mounting system allows for straightforward assembly without the need for special welding or fabrication techniques. For secure attachment to the post, it is compatible with the Cat. No. SRB0LT 1/4"-20 x 1" (25 mm) bolt. With a flat base type and a diameter of 7/8 in. (22 mm), this standoff connector combines functionality and elegance, making it a perfect addition to any glazing or railing project. As a reminder, this connector is designed specifically for use with the CBR12BS and CBR12PS stainless steel bars. Elevate your architectural designs with the reliability and style of C.R. Laurence products.

316 Polished Stainless Right End Standoff Connector (Flat Back)

• For Square Post Applications
• Surface Mount Design with No Exposed Fasteners
• Supports 15/32" (12 mm) CRL "CBR12" Diameter Crossbar Only
• Easy Slip Fit Mounting
• 316 Alloy Stainless Steel

Stainless Steel Advisory:

Resources

• CRL Stainless Steel Disclaimer
• Modular Crossbar Railing Infill System CAD Drawings.dwg
• Modular Crossbar Railing Infill System CAD Drawings.pdf
