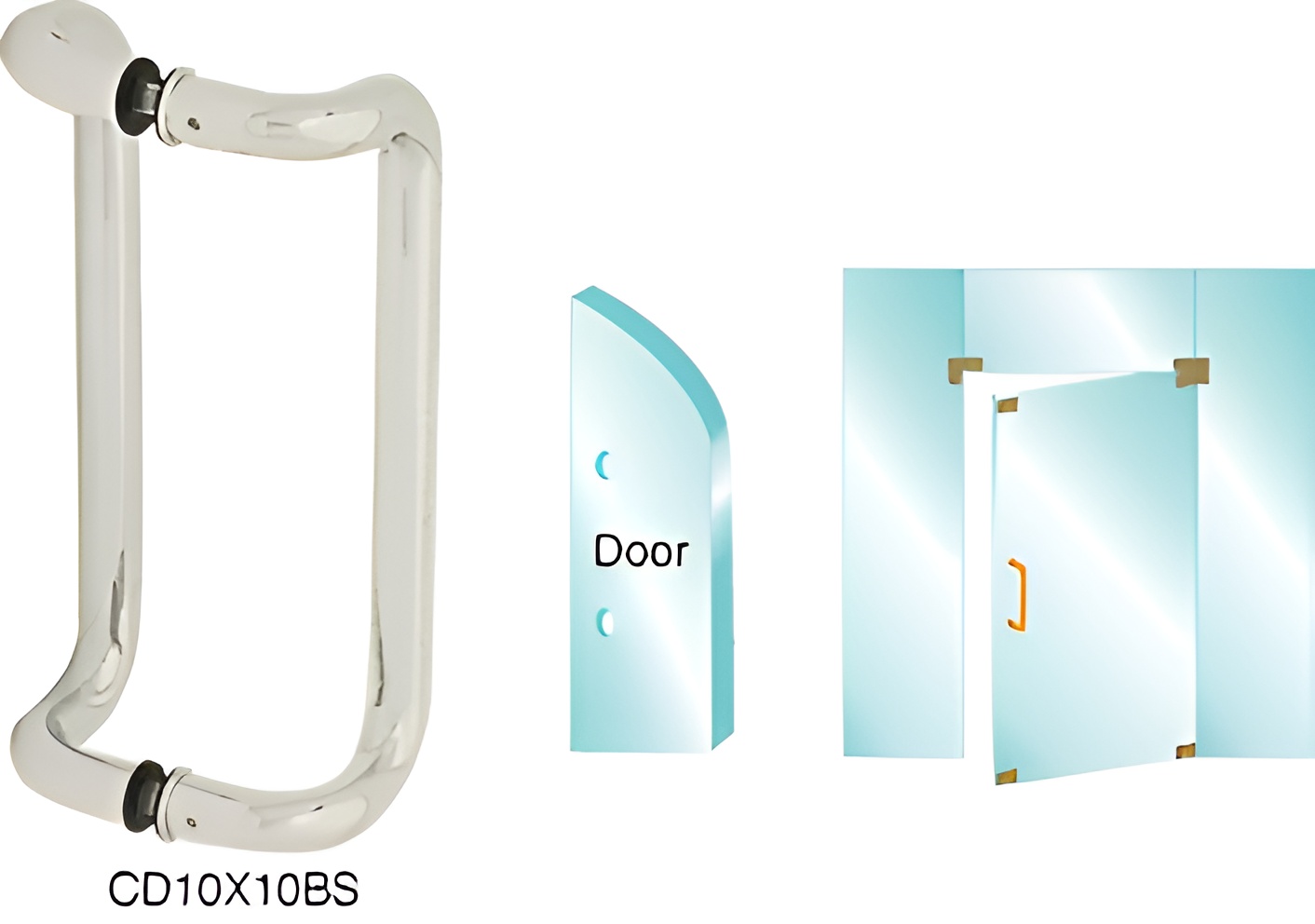

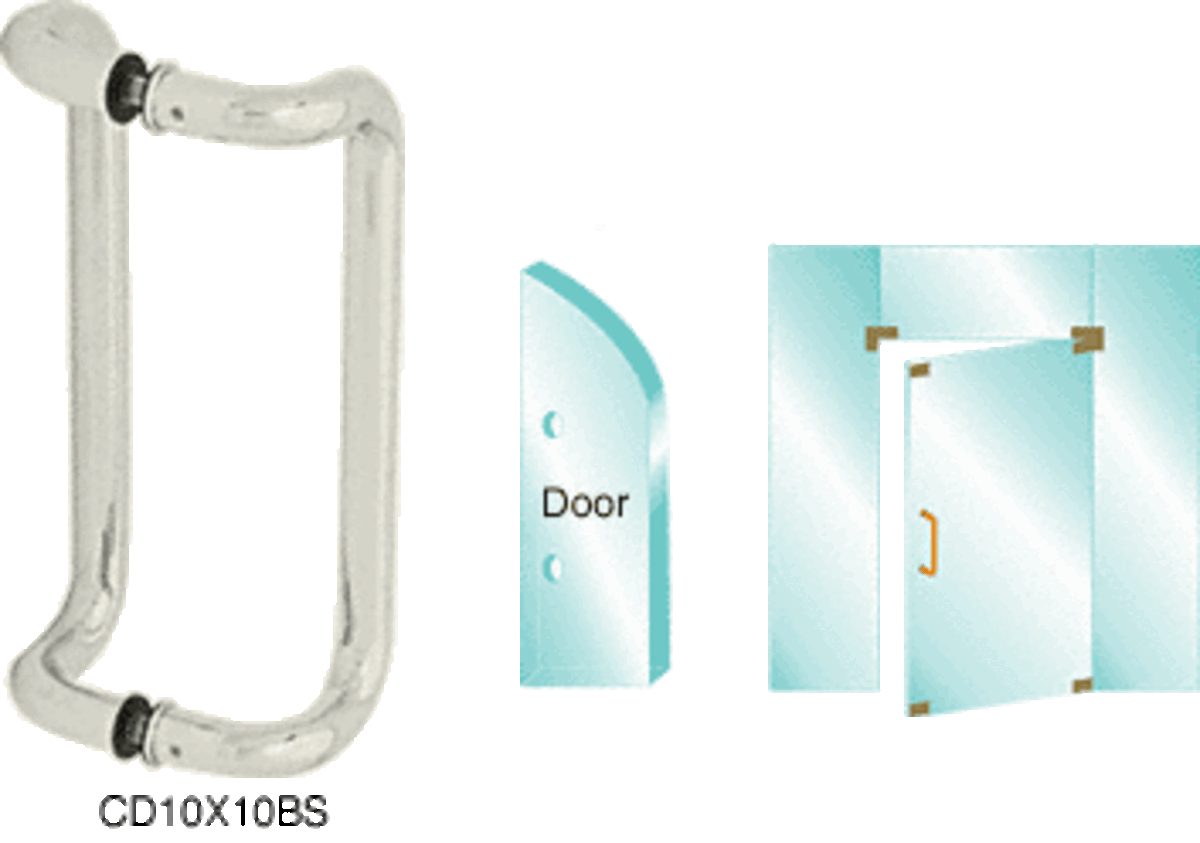

C.R. Laurence CD10X10BS Brushed Stainless 10" Glass Mounted Offset Pull Handle offers a sleek and modern solution for enhancing both functionality and aesthetics in glass installations. Designed for use with monolithic tempered glass ranging from 3/8" to 3/4" (10 to 19 mm) in thickness, this pull handle is an ideal addition to any architectural project. Crafted from durable brushed stainless steel, the handle features a 1" (25 mm) diameter tubing, ensuring longevity and resistance to wear. The offset design with a center-to-center measurement of 3" (76 mm) provides a comfortable grip, while the back-to-back mounting style allows for seamless integration into double-door systems. Installation is straightforward with the included through-bolts, matching finish metal washers, and rubber gaskets, ensuring a secure fit. The CD10X10BS is available in multiple architectural finishes, allowing for customization to suit your design preferences. With a washer diameter of 1-1/4" (32 mm) and requiring two 5/8" (16 mm) diameter holes for glass fabrication, this pull handle is as practical as it is stylish. Enhance your glass doors with the C.R. Laurence CD10X10BS, a perfect blend of quality and contemporary design.
Brushed Stainless 10" Glass Mounted Offset Pull Handle
Most shipping weights are approximate and have not been verified. If the exact weight is needed in order to determine shipping costs, and shipping costs are required in order for you to complete your order, please request this prior to submitting your order by contacting CRL Customer Service. Product images shown are of the actual product or a close representation. Colors can vary depending on your computer's video card and on how your monitor's color is adjusted.
Compliance and Restrictions: Warning Reproductive Harm - www.p65warnings.ca.gov
Diameter: 1 in. (25 mm)
Finish/ Color:: Brushed Stainless Steel
Glazing Thickness: 3/8 in. To 3/4 in. (10 mm To 19 mm)
Material: Stainless Steel
Mounting Center To Center: 10 in. (254 mm)
Mounting Hole Diameter: 5/8 in. (16 mm)
Mounting Type: Back-to-Back
Shipping Limitations: None
Style Washer Diameter: 1-1/4 in. (32 mm)
Style Washers: Yes
