CRL CD10X28DU Dark Bronze 10"x28" Back-to-Back Offset Push-Pull Handle SetC.R. Laurence CD10X28DU Dark Bronze 10" x 28" Back-to-Back Offset Combination Push and Pull Handle Set is designed to enhance both functionality and aesthetics in any glass installation. This robust handle set accommodates 3/8" to 3/4" (10 to 19 mm) glass, making it a versatile choice for various applications. Crafted from high-quality 1" (25.4 mm) diameter stainless steel or brass tubing, the set ensures durability and a sleek appearance. Available in multiple architectural finishes, including a stunning dark bronze anodized option, this handle set is perfect for modern or traditional spaces alike. To accommodate different mounting configurations, this set features several center-to-center options: 10" (254 mm), 12" (305 mm), 28" (711 mm), and 33" (838 mm) to suit your specific needs. The offset design provides a comfortable grip while maintaining a stylish profile. Included with the handle set are all necessary components for installation, including through-bolts for glass mounting and matching finish metal washers with rubber gaskets. This handle set not only adds a sophisticated touch to your glass installations but also ensures long-lasting performance, making it an ideal choice for building professionals and discerning homeowners.

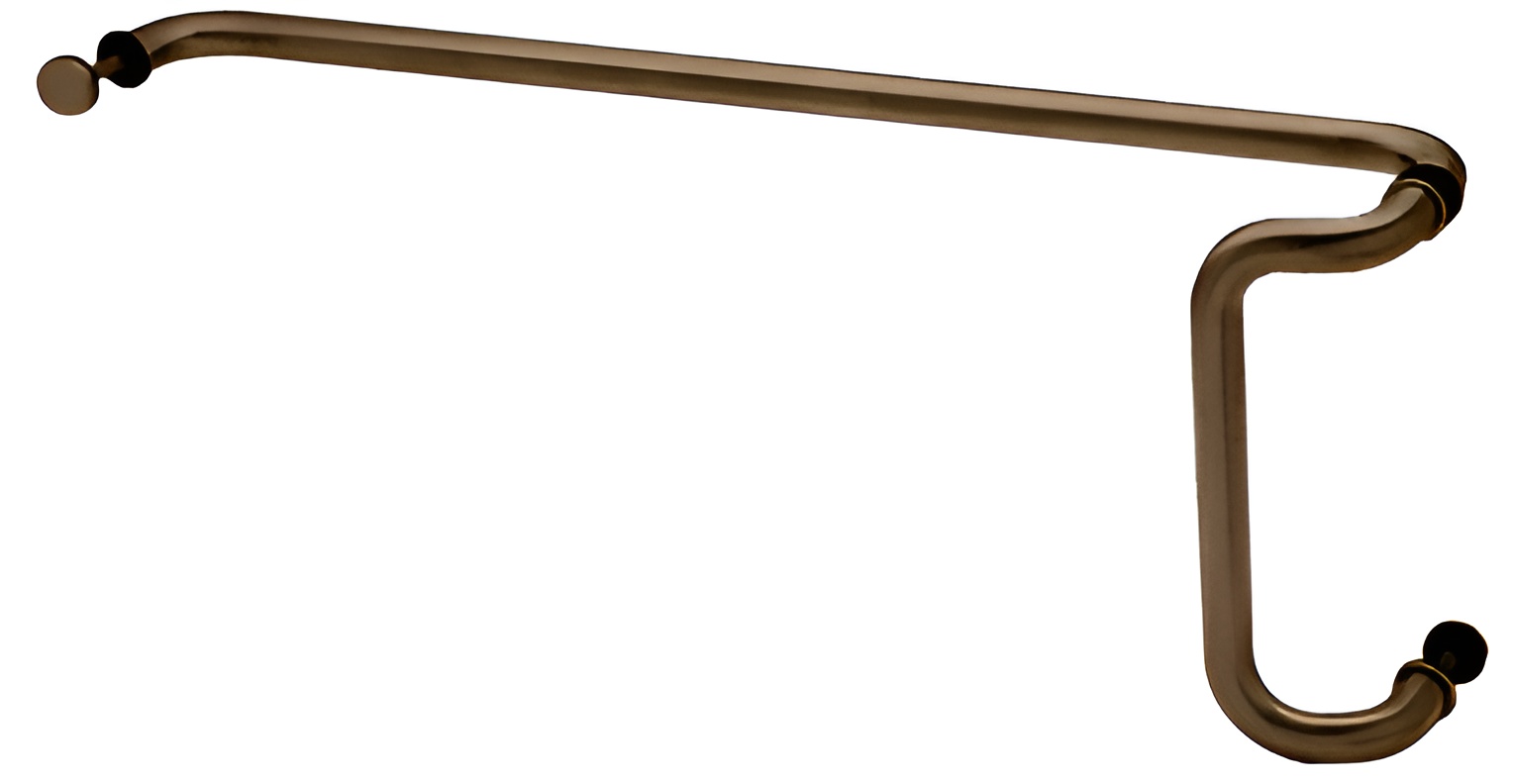

Dark Bronze 10" x 28" Back-to-Back Offset Combination Push and Pull Handle Set
- For Use with 3/8" to 3/4" (10 to 19 mm) Glass
- 1" (25.4 mm) Diameter Stainless Steel or Brass Tubing
- Many Beautiful Architectural Finishes
- Use Monolithic Tempered Glass
This
CRL Glass Mounted Straight Push/Pull Handle Combination is available in two different sizes and many attractive architectural finishes.
SPECIFICATIONS:
For Use With: 3/8" to 3/4" (10 to 19 mm) Glass
Construction: 1" (25 mm) Diameter
Stainless Steel or Brass Tubing
Glass Fabrication Required:
Three 5/8" (16 mm) Diameter Holes,
10" (254 mm) Center-to-Center
12" (305 mm) Center-to-Center
28" (711 mm) Center-to-Center
33" (838 mm) Center-to-Center
Offset: 3" (76 mm) Center-to-Center
Optional 1-1/4" (32 mm) Diameter
Available on Special Order
INCLUDES:
2 Each: Through-Bolts for Glass Mounting
4 Each: 1-1/4" (32 mm) Diameter Matching Finish Metal Washers and Rubber Gaskets
Most shipping weights are approximate and have not been verified. If the exact weight is needed in order to determine shipping costs, and shipping costs are required in order for you to complete your order, please request this prior to submitting your order by contacting CRL Customer Service. Product images shown are of the actual product or a close representation. Colors can vary depending on your computer's video card and on how your monitor's color is adjusted.
Attributes
Compliance and Restrictions: Warning Reproductive Harm - www.p65warnings.ca.gov
Diameter: 1 in. (25 mm)
Finish/ Color:: Black Bronze Anodized
Glazing Thickness: 3/8 in. To 3/4 in. (10 mm To 19 mm)
Mounting Hole Diameter: 5/8 in. (16 mm)
Mounting Type: Back-to-Back
Pull Mounting Center To Center: 10 in. (254 mm)
Push Mounting Center To Center: 28 in. (711 mm)
Shipping Limitations: None
Style Washer Diameter: 1-1/4 in. (32 mm)
Style Washers: Yes
