CRL CD10X28PS Polished Stainless 10"x28" Back-to-Back Offset Push-Pull Handle SetC.R. Laurence CD10X28PS Polished Stainless 10" x 28" Back-to-Back Offset Combination Push and Pull Handle Set is the perfect solution for enhancing both functionality and aesthetic appeal in your glass installations. Designed for use with 3/8" to 3/4" (10 to 19 mm) glass, this handle set features robust 1" (25.4 mm) diameter stainless steel or brass tubing, ensuring durability and a sophisticated look. Available in various architectural finishes, the CD10X28PS provides versatility that complements any design scheme. The set includes essential mounting components, such as through-bolts for glass mounting and matching finish metal washers and rubber gaskets, promoting a seamless installation experience. Glass fabrication is straightforward, requiring three 5/8" (16 mm) diameter holes, with several center-to-center options including 10" (254 mm), 12" (305 mm), 28" (711 mm), and 33" (838 mm). The offset center-to-center distance of 3" (76 mm) accommodates various architectural needs. While stainless steel is resistant to corrosion, periodic maintenance is recommended to preserve its pristine finish. Elevate your space with the C.R. Laurence CD10X28PS handle set, designed to provide a lasting impression on every entryway.

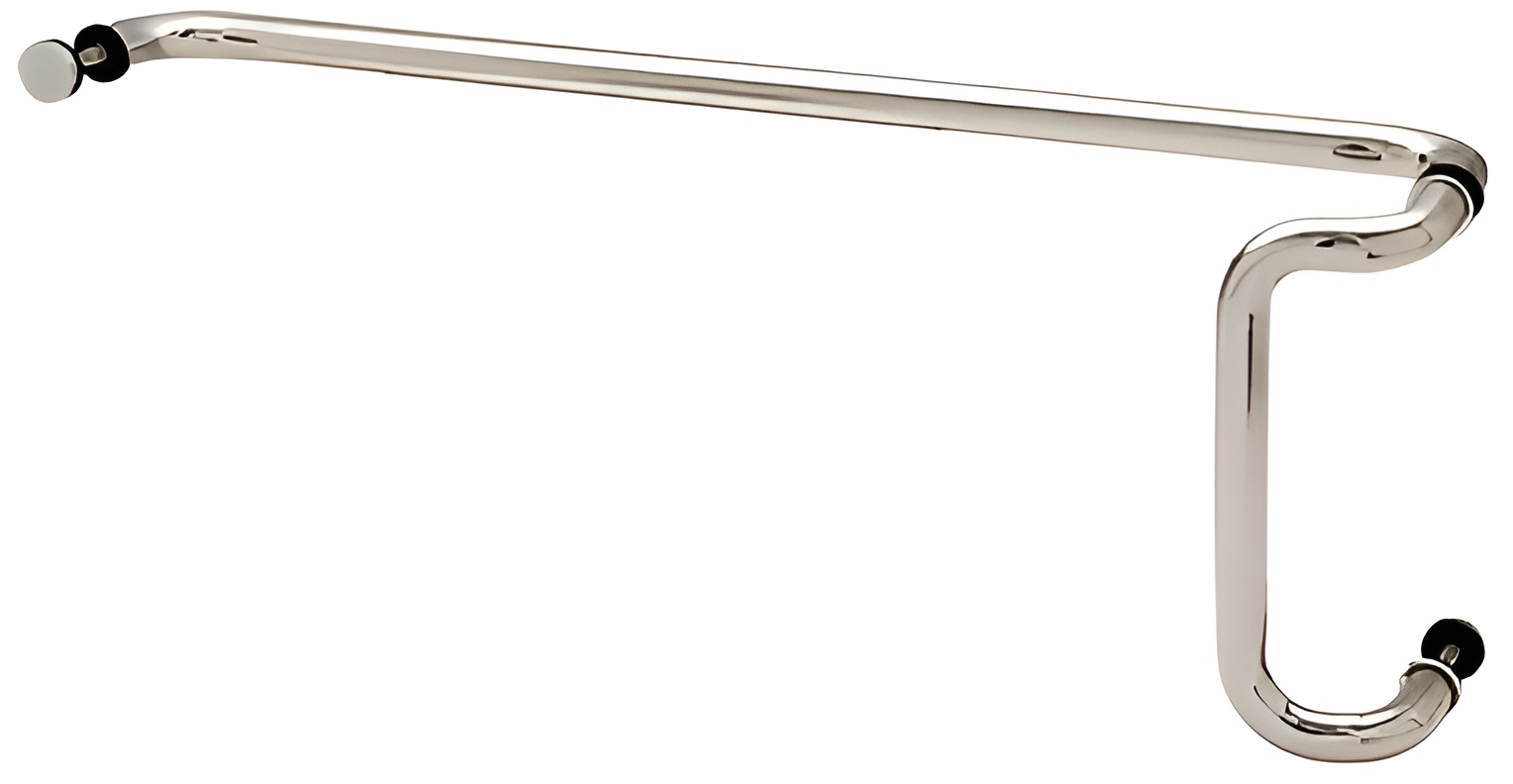

Polished Stainless 10" x 28" Back-to-Back Offset Combination Push and Pull Handle Set
- For Use with 3/8" to 3/4" (10 to 19 mm) Glass
- 1" (25.4 mm) Diameter Stainless Steel or Brass Tubing
- Many Beautiful Architectural Finishes
- Use Monolithic Tempered Glass
This
CRL Glass Mounted Straight Push/Pull Handle Combination is available in two different sizes and many attractive architectural finishes.
SPECIFICATIONS:
For Use With: 3/8" to 3/4" (10 to 19 mm) Glass
Construction: 1" (25 mm) Diameter
Stainless Steel or Brass Tubing
Glass Fabrication Required:
Three 5/8" (16 mm) Diameter Holes,
10" (254 mm) Center-to-Center
12" (305 mm) Center-to-Center
28" (711 mm) Center-to-Center
33" (838 mm) Center-to-Center
Offset: 3" (76 mm) Center-to-Center
Optional 1-1/4" (32 mm) Diameter
Available on Special Order
INCLUDES:
2 Each: Through-Bolts for Glass Mounting
4 Each: 1-1/4" (32 mm) Diameter Matching Finish Metal Washers and Rubber Gaskets
Most shipping weights are approximate and have not been verified. If the exact weight is needed in order to determine shipping costs, and shipping costs are required in order for you to complete your order, please request this prior to submitting your order by contacting CRL Customer Service. Product images shown are of the actual product or a close representation. Colors can vary depending on your computer's video card and on how your monitor's color is adjusted.
Stainless Steel Advisory:
Although Stainless Steel is resistant to corrosion, it is not rust or stain proof. CRL recommends periodic maintenance to help maintain its factory finish. For more information, view the Stainless Steel Disclaimer found in the Technical References section below.
Attributes
Compliance and Restrictions: Warning Reproductive Harm - www.p65warnings.ca.gov
Diameter: 1 in. (25 mm)
Finish/ Color:: Polished Stainless Steel
Glazing Thickness: 3/8 in. To 3/4 in. (10 mm To 19 mm)
Mounting Hole Diameter: 5/8 in. (16 mm)
Mounting Type: Back-to-Back
Pull Mounting Center To Center: 10 in. (254 mm)
Push Mounting Center To Center: 28 in. (711 mm)
Shipping Limitations: None
Style Washer Diameter: 1-1/4 in. (32 mm)
Style Washers: Yes
