CRL CD10X28SA Satin Anodized 10"x28" Back-to-Back Offset Push-Pull Handle SetC.R. Laurence CD10X28SA Satin Anodized 10" x 28" Back-to-Back Offset Combination Push and Pull Handle Set offers a perfect blend of style and functionality for glass doors. Designed for use with 3/8" to 3/4" (10 to 19 mm) monolithic tempered glass, this handle set is crafted from durable 1" (25.4 mm) diameter stainless steel or brass tubing, ensuring both strength and longevity. The offset design features mounting options including 10" (254 mm), 12" (305 mm), 28" (711 mm), and 33" (838 mm) center-to-center configurations, tailored to meet various installation needs. The set comes complete with through-bolts for glass mounting, as well as matching finish metal washers and rubber gaskets, providing a comprehensive solution for your door hardware. Available in numerous beautiful architectural finishes, the satin anodized option enhances any interior or exterior setting, ensuring your space not only functions well but also looks sophisticated. The installation requires three 5/8" (16 mm) diameter holes, ensuring precise fitment and secure mounting. Elevate the aesthetic and usability of glass entrances with the C.R. Laurence CD10X28SA handle set, perfect for both professionals and discerning homeowners seeking quality and elegance in their hardware solutions.

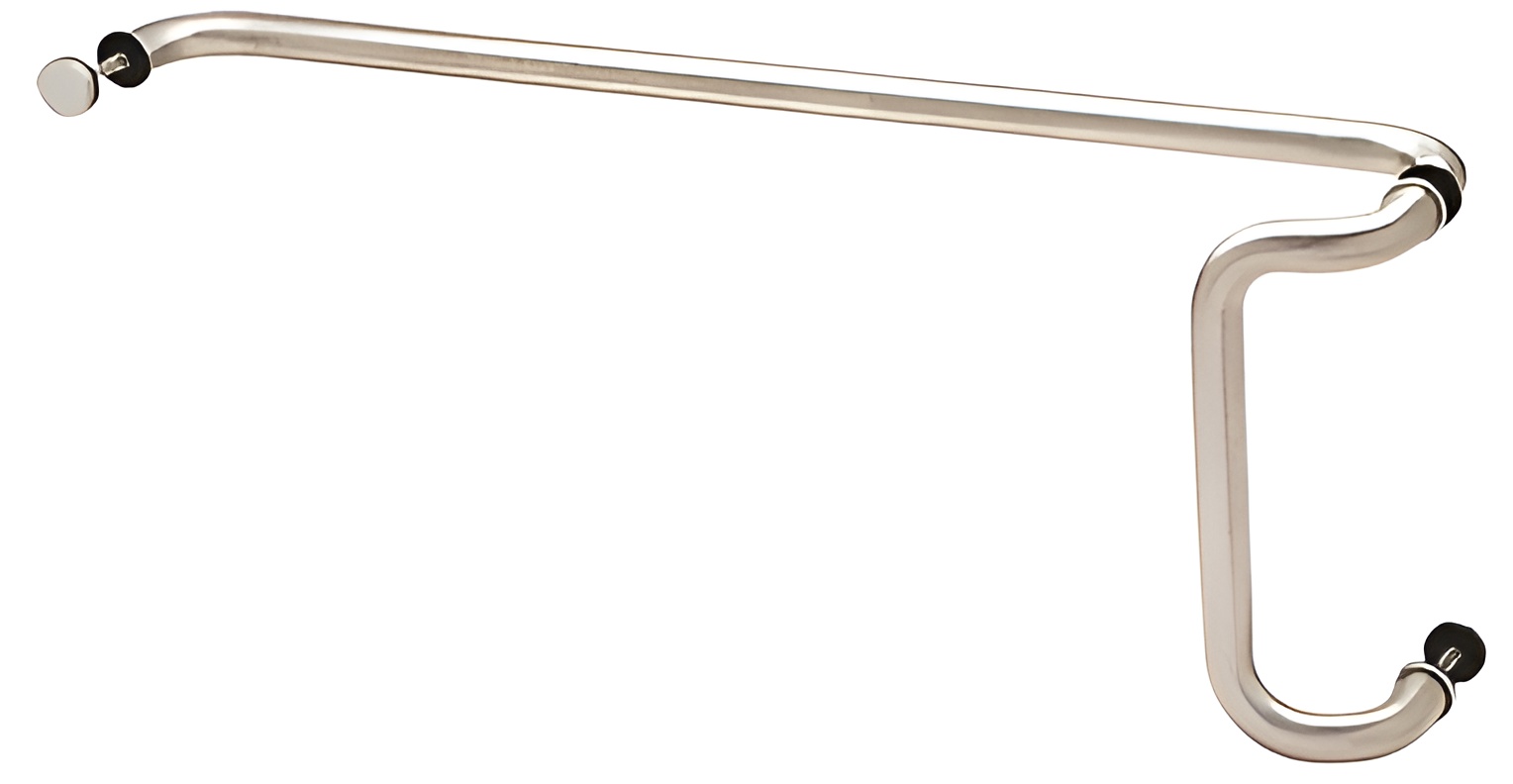

Satin Anodized 10" x 28" Back-to-Back Offset Combination Push and Pull Handle Set
- For Use with 3/8" to 3/4" (10 to 19 mm) Glass
- 1" (25.4 mm) Diameter Stainless Steel or Brass Tubing
- Many Beautiful Architectural Finishes
- Use Monolithic Tempered Glass
This
CRL Glass Mounted Straight Push/Pull Handle Combination is available in two different sizes and many attractive architectural finishes.
SPECIFICATIONS:
For Use With: 3/8" to 3/4" (10 to 19 mm) Glass
Construction: 1" (25 mm) Diameter
Stainless Steel or Brass Tubing
Glass Fabrication Required:
Three 5/8" (16 mm) Diameter Holes,
10" (254 mm) Center-to-Center
12" (305 mm) Center-to-Center
28" (711 mm) Center-to-Center
33" (838 mm) Center-to-Center
Offset: 3" (76 mm) Center-to-Center
Optional 1-1/4" (32 mm) Diameter
Available on Special Order
INCLUDES:
2 Each: Through-Bolts for Glass Mounting
4 Each: 1-1/4" (32 mm) Diameter Matching Finish Metal Washers and Rubber Gaskets
Most shipping weights are approximate and have not been verified. If the exact weight is needed in order to determine shipping costs, and shipping costs are required in order for you to complete your order, please request this prior to submitting your order by contacting CRL Customer Service. Product images shown are of the actual product or a close representation. Colors can vary depending on your computer's video card and on how your monitor's color is adjusted.
Attributes
Compliance and Restrictions: Warning Reproductive Harm - www.p65warnings.ca.gov
Diameter: 1 in. (25 mm)
Finish/ Color:: Satin Anodized
Glazing Thickness: 3/8 in. To 3/4 in. (10 mm To 19 mm)
Mounting Hole Diameter: 5/8 in. (16 mm)
Mounting Type: Back-to-Back
Pull Mounting Center To Center: 10 in. (254 mm)
Push Mounting Center To Center: 28 in. (711 mm)
Shipping Limitations: None
Style Washer Diameter: 1-1/4 in. (32 mm)
Style Washers: Yes
Resources
