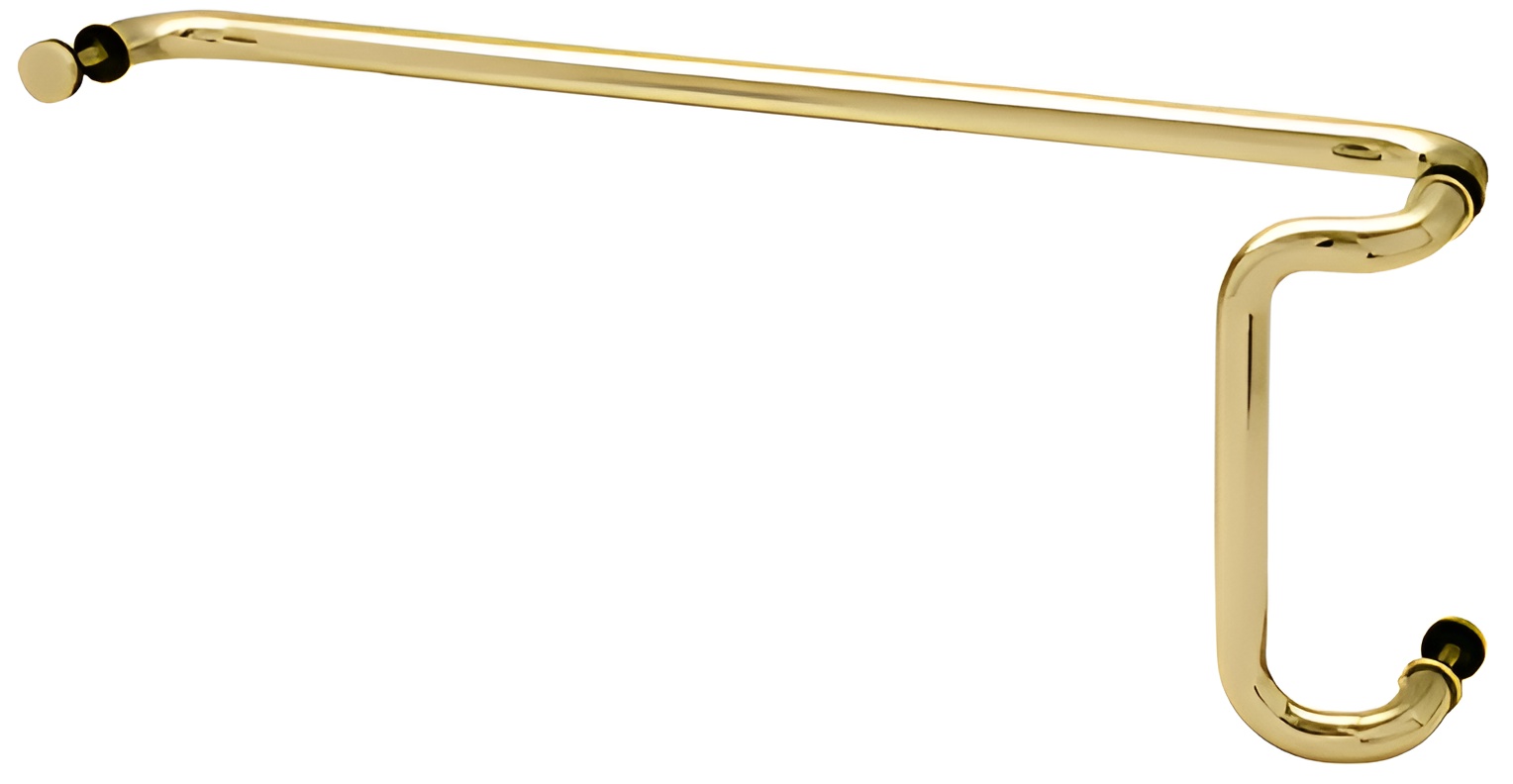

CRL CD10X33BR Brass 10"x33" Back-to-Back Offset Push-Pull Handle SetC.R. Laurence CD10X33BR Brass 10" x 33" Back-to-Back Offset Combination Push and Pull Handle Set is designed to enhance the functionality and aesthetic of glass doors. Crafted for use with monolithic tempered glass ranging from 3/8" to 3/4" (10 to 19 mm) thick, this handle set combines durability with elegance. Constructed from 1" (25.4 mm) diameter stainless steel or brass tubing, the CD10X33BR is available in an array of beautiful architectural finishes that allow it to seamlessly integrate into various design schemes. The back-to-back mounting provides a sleek, modern look while ensuring a secure grip for push and pull operations. Installation is straightforward, requiring three 5/8" (16 mm) diameter holes at specified center-to-center dimensions of 10", 12", 28", and 33". Each set includes through-bolts for glass mounting, along with matching finish metal washers and rubber gaskets for added support and stability. It's important to note that while brass finishes offer a classic appearance, they can be prone to oxidation, resulting in a tarnished look over time. For those seeking a robust yet stylish solution for glass door hardware, the C.R. Laurence CD10X33BR is an exceptional choice that delivers on both form and function.
Brass 10" x 33" Back-to-Back Offset Combination Push and Pull Handle Set
- For Use with 3/8" to 3/4" (10 to 19 mm) Glass
- 1" (25.4 mm) Diameter Stainless Steel or Brass Tubing
- Many Beautiful Architectural Finishes
- Use Monolithic Tempered Glass
This
CRL Glass Mounted Straight Push/Pull Handle Combination is available in two different sizes and many attractive architectural finishes.
SPECIFICATIONS:
For Use With: 3/8" to 3/4" (10 to 19 mm) Glass
Construction: 1" (25 mm) Diameter
Stainless Steel or Brass Tubing
Glass Fabrication Required:
Three 5/8" (16 mm) Diameter Holes,
10" (254 mm) Center-to-Center
12" (305 mm) Center-to-Center
28" (711 mm) Center-to-Center
33" (838 mm) Center-to-Center
Offset: 3" (76 mm) Center-to-Center
Optional 1-1/4" (32 mm) Diameter
Available on Special Order
INCLUDES:
2 Each: Through-Bolts for Glass Mounting
4 Each: 1-1/4" (32 mm) Diameter Matching Finish Metal Washers and Rubber Gaskets
Most shipping weights are approximate and have not been verified. If the exact weight is needed in order to determine shipping costs, and shipping costs are required in order for you to complete your order, please request this prior to submitting your order by contacting CRL Customer Service. Product images shown are of the actual product or a close representation. Colors can vary depending on your computer's video card and on how your monitor's color is adjusted.
Brass Finish Advisory:
Although durable, brass is prone to oxidation. It can give brass and brass finishes a tarnished look, regardless of how the hardware is initially packaged or stored. For more information, view the Brass Finish Disclaimer found in the Technical References section below.
Attributes
Compliance and Restrictions: Warning Reproductive Harm - www.p65warnings.ca.gov
Diameter: 1 in. (25 mm)
Finish/ Color:: Polished Brass
Glazing Thickness: 3/8 in. To 3/4 in. (10 mm To 19 mm)
Mounting Hole Diameter: 5/8 in. (16 mm)
Mounting Type: Back-to-Back
Pull Mounting Center To Center: 10 in. (254 mm)
Push Mounting Center To Center: 33 in. (838 mm)
Shipping Limitations: None
Style Washer Diameter: 1-1/4 in. (32 mm)
Style Washers: Yes
