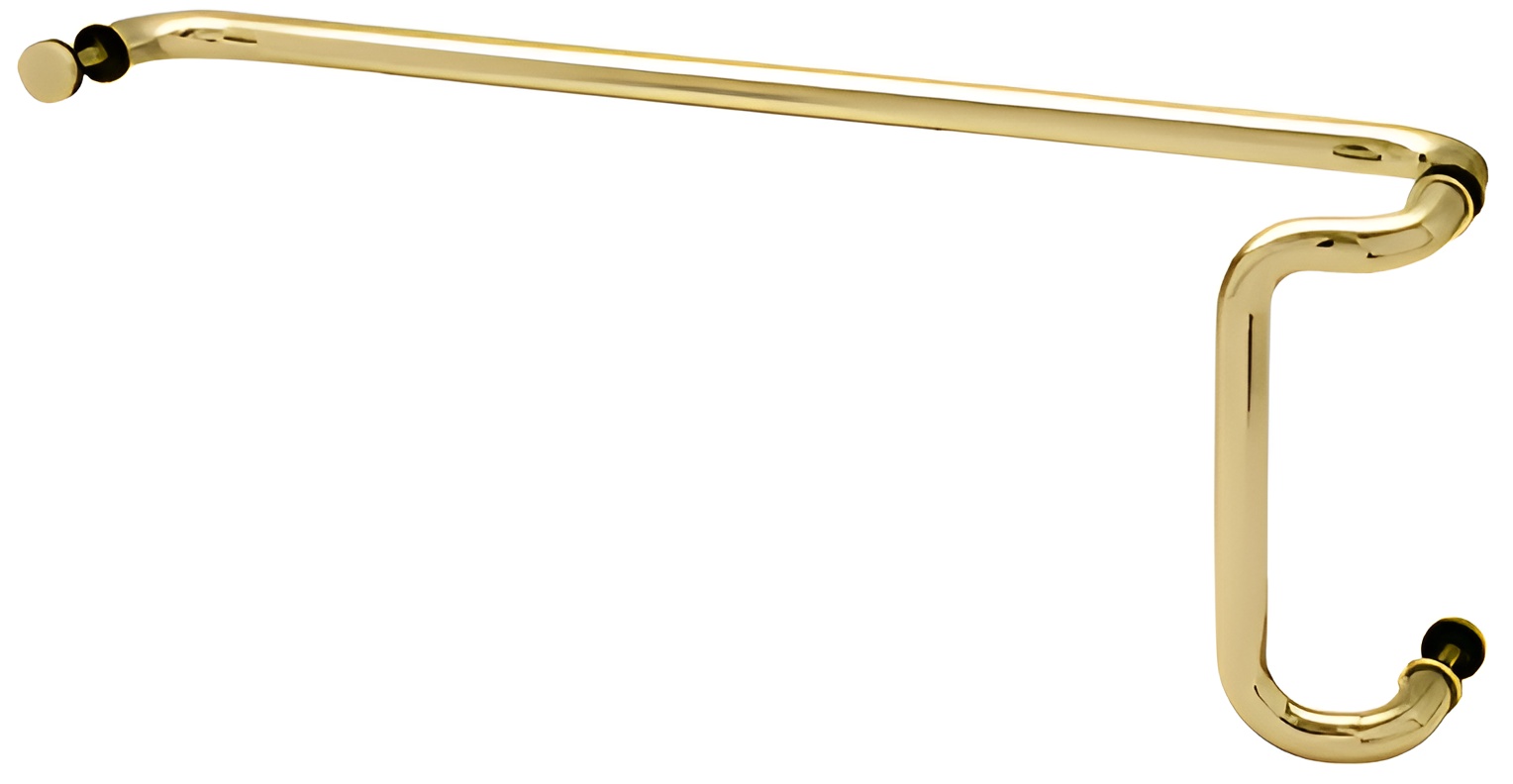

CRL CD12X28BR Brass 12"x28" Back-to-Back Offset Push Pull Handle SetC.R. Laurence CD12X28BR Brass 12" x 28" Back-to-Back Offset Combination Push and Pull Handle Set offers a seamless blend of style and functionality for glass doors. Designed for use with 3/8" to 3/4" (10 to 19 mm) monolithic tempered glass, this handle set features durable 1" (25.4 mm) diameter tubing available in either stainless steel or brass, ensuring both strength and aesthetic appeal. Available in a variety of beautiful architectural finishes, the CD12X28BR is perfect for enhancing the visual impact of any space, from commercial entrances to upscale residential environments. The offset design, with a center-to-center pull mounting of 12" (305 mm) and push mounting of 28" (711 mm), facilitates easy access while adding a touch of elegance. Installation requires the fabrication of three 5/8" (16 mm) diameter holes spaced appropriately, making it suitable for professional-grade applications. This set includes all necessary components, such as through-bolts for glass mounting, matching finish metal washers, and rubber gaskets for a complete installation. While polished brass provides a classic look, users should be aware of its tendency to oxidize, which can result in a tarnished appearance over time. Elevate your architectural designs with the C.R. Laurence CD12X28BR, where quality meets sophistication.
Brass 12" x 28" Back-to-Back Offset Combination Push and Pull Handle Set
- For Use with 3/8" to 3/4" (10 to 19 mm) Glass
- 1" (25.4 mm) Diameter Stainless Steel or Brass Tubing
- Many Beautiful Architectural Finishes
- Use Monolithic Tempered Glass
This
CRL Glass Mounted Straight Push/Pull Handle Combination is available in two different sizes and many attractive architectural finishes.
SPECIFICATIONS:
For Use With: 3/8" to 3/4" (10 to 19 mm) Glass
Construction: 1" (25 mm) Diameter
Stainless Steel or Brass Tubing
Glass Fabrication Required:
Three 5/8" (16 mm) Diameter Holes,
10" (254 mm) Center-to-Center
12" (305 mm) Center-to-Center
28" (711 mm) Center-to-Center
33" (838 mm) Center-to-Center
Offset: 3" (76 mm) Center-to-Center
Optional 1-1/4" (32 mm) Diameter
Available on Special Order
INCLUDES:
2 Each: Through-Bolts for Glass Mounting
4 Each: 1-1/4" (32 mm) Diameter Matching Finish Metal Washers and Rubber Gaskets
Most shipping weights are approximate and have not been verified. If the exact weight is needed in order to determine shipping costs, and shipping costs are required in order for you to complete your order, please request this prior to submitting your order by contacting CRL Customer Service. Product images shown are of the actual product or a close representation. Colors can vary depending on your computer's video card and on how your monitor's color is adjusted.
Brass Finish Advisory:
Although durable, brass is prone to oxidation. It can give brass and brass finishes a tarnished look, regardless of how the hardware is initially packaged or stored. For more information, view the Brass Finish Disclaimer found in the Technical References section below.
Attributes
Compliance and Restrictions: Warning Reproductive Harm - www.p65warnings.ca.gov
Diameter: 1 in. (25 mm)
Finish/ Color:: Polished Brass
Glazing Thickness: 3/8 in. To 3/4 in. (10 mm To 19 mm)
Mounting Type: Back-to-Back
Pull Mounting Center To Center: 12 in. (305 mm)
Push Mounting Center To Center: 28 in. (711 mm)
Shipping Limitations: None
Resources
