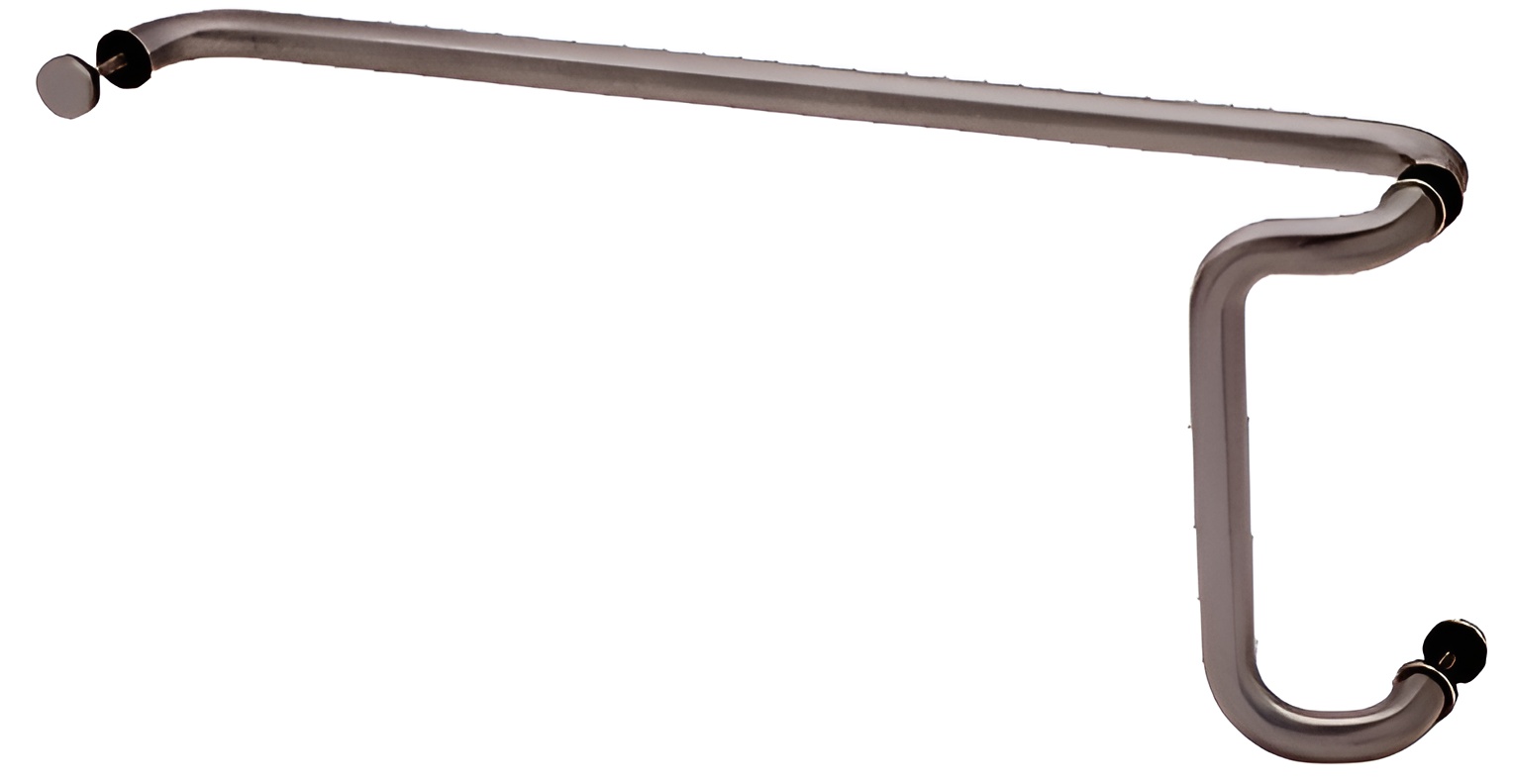

CRL CD12X28DU Dark Bronze 12"x28" Back-to-Back Offset Push-Pull Handle SetC.R. Laurence CD12X28DU Dark Bronze 12" x 28" Back-to-Back Offset Combination Push and Pull Handle Set combines functionality with aesthetic appeal, making it an ideal choice for modern glass installations. Designed specifically for use with 3/8" to 3/4" (10 to 19 mm) monolithic tempered glass, this handle set features 1" (25 mm) diameter tubing available in durable stainless steel or brass. The kit includes everything needed for a secure installation, including through-bolts for glass mounting and matching finish metal washers with rubber gaskets to ensure a snug fit. The offset design offers flexibility with various center-to-center mounting options: 10", 12", 28", and 33", allowing you to customize the placement to fit your specific project needs. Available in a range of attractive architectural finishes, including the sophisticated dark bronze, this handle set not only enhances the functionality of entrances but also elevates their visual impact. With its robust construction and elegant design, the C.R. Laurence CD12X28DU is perfect for both commercial and residential applications, ensuring a stylish entryway that complements contemporary architecture.
Dark Bronze 12" x 28" Back-to-Back Offset Combination Push and Pull Handle Set
- For Use with 3/8" to 3/4" (10 to 19 mm) Glass
- 1" (25.4 mm) Diameter Stainless Steel or Brass Tubing
- Many Beautiful Architectural Finishes
- Use Monolithic Tempered Glass
This
CRL Glass Mounted Straight Push/Pull Handle Combination is available in two different sizes and many attractive architectural finishes.
SPECIFICATIONS:
For Use With: 3/8" to 3/4" (10 to 19 mm) Glass
Construction: 1" (25 mm) Diameter
Stainless Steel or Brass Tubing
Glass Fabrication Required:
Three 5/8" (16 mm) Diameter Holes,
10" (254 mm) Center-to-Center
12" (305 mm) Center-to-Center
28" (711 mm) Center-to-Center
33" (838 mm) Center-to-Center
Offset: 3" (76 mm) Center-to-Center
Optional 1-1/4" (32 mm) Diameter
Available on Special Order
INCLUDES:
2 Each: Through-Bolts for Glass Mounting
4 Each: 1-1/4" (32 mm) Diameter Matching Finish Metal Washers and Rubber Gaskets
Most shipping weights are approximate and have not been verified. If the exact weight is needed in order to determine shipping costs, and shipping costs are required in order for you to complete your order, please request this prior to submitting your order by contacting CRL Customer Service. Product images shown are of the actual product or a close representation. Colors can vary depending on your computer's video card and on how your monitor's color is adjusted.
Attributes
Compliance and Restrictions: Warning Reproductive Harm - www.p65warnings.ca.gov
Diameter: 1 in. (25 mm)
Finish/ Color:: Dark Bronze
Glazing Thickness: 3/8 in. To 3/4 in. (10 mm To 19 mm)
Mounting Type: Back-to-Back
Pull Mounting Center To Center: 12 in. (305 mm)
Push Mounting Center To Center: 28 in. (711 mm)
Shipping Limitations: None
