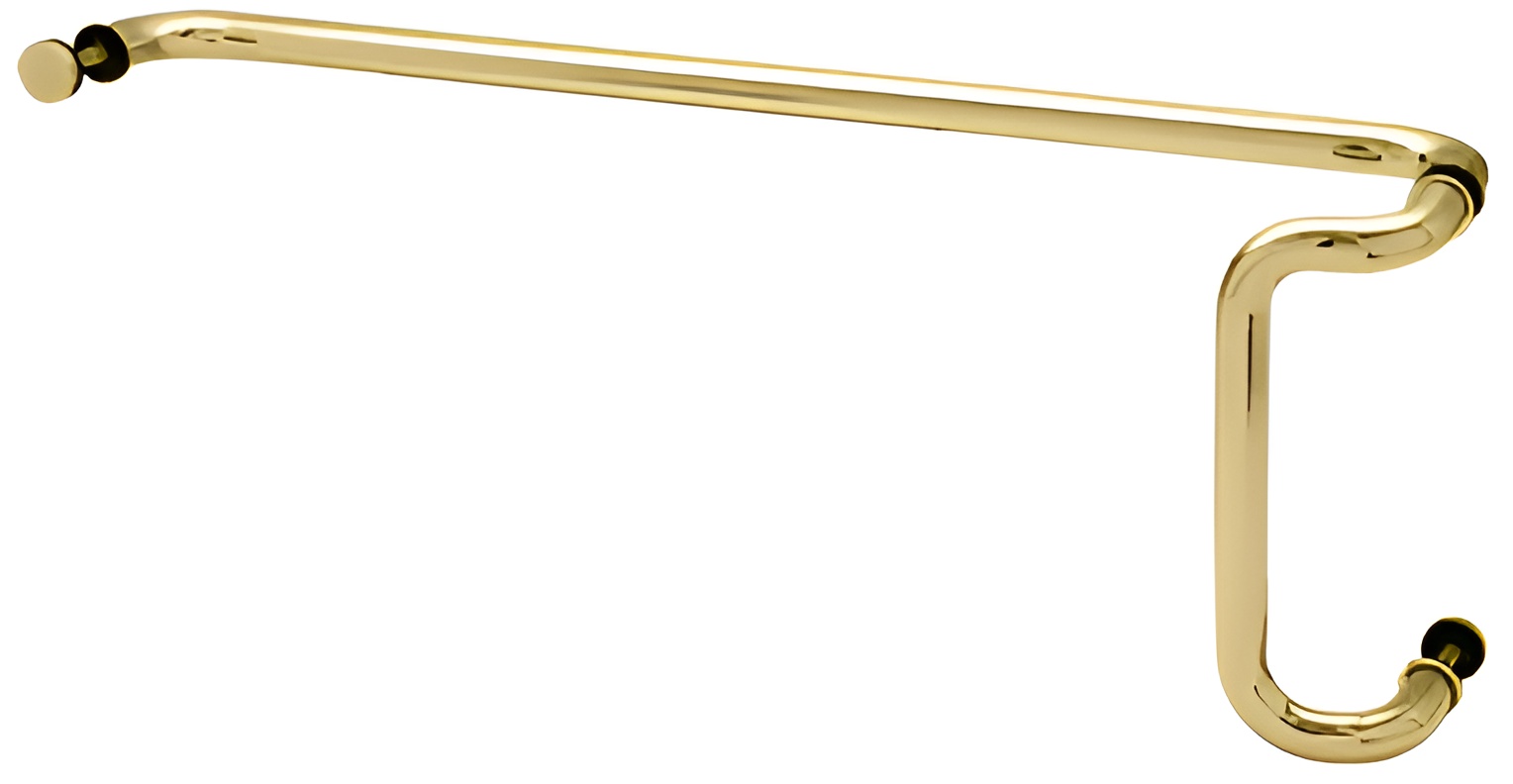

CRL CD12X33BR Brass 12"x33" Back-to-Back Offset Push/Pull Handle SetC.R. Laurence CD12X33BR Brass 12" x 33" Back-to-Back Offset Combination Push and Pull Handle Set offers both functionality and elegance, making it an excellent choice for glass installations. Designed for use with 3/8" to 3/4" (10 to 19 mm) glass, this handle set features robust 1" (25.4 mm) diameter stainless steel or brass tubing, ensuring durability and a sleek aesthetic. Available in several beautiful architectural finishes, the CD12X33BR allows for customization to suit your design needs. The handle set includes essential hardware such as through-bolts for secure glass mounting, along with matching finish metal washers and rubber gaskets for a polished look. Glass fabrication is required with specific measurements, including three 5/8" (16 mm) diameter holes, and multiple center-to-center options ranging from 10" (254 mm) to 33" (838 mm). The offset design ensures optimal accessibility, making it suitable for various commercial and residential applications. While the brass finish is visually striking, it is important to note that it may tarnish over time due to oxidation. For a sophisticated touch to your glass doors and partitions, the C.R. Laurence CD12X33BR is a superior choice that combines style with practicality.
Brass 12" x 33" Back-to-Back Offset Combination Push and Pull Handle Set
- For Use with 3/8" to 3/4" (10 to 19 mm) Glass
- 1" (25.4 mm) Diameter Stainless Steel or Brass Tubing
- Several Beautiful Architectural Finishes
This
CRL Glass Mounted Straight Push/Pull Handle Combination is available in two different sizes and many attractive architectural finishes.
SPECIFICATIONS:
For Use With: 3/8" to 3/4" (10 to 19 mm) Glass
Construction: 1" (25 mm) Diameter
Stainless Steel or Brass Tubing
Glass Fabrication Required:
Three 5/8" (16 mm) Diameter Holes,
10" (254 mm) Center-to-Center
12" (305 mm) Center-to-Center
28" (711 mm) Center-to-Center
33" (838 mm) Center-to-Center
Offset: 3" (76 mm) Center-to-Center
Optional 1-1/4" (32 mm) Diameter
Available on Special Order
INCLUDES:
2 Each: Through-Bolts for Glass Mounting
4 Each: 1-1/4" (32 mm) Diameter Matching Finish Metal Washers and Rubber Gaskets
Most shipping weights are approximate and have not been verified. If the exact weight is needed in order to determine shipping costs, and shipping costs are required in order for you to complete your order, please request this prior to submitting your order by contacting CRL Customer Service. Product images shown are of the actual product or a close representation. Colors can vary depending on your computer's video card and on how your monitor's color is adjusted.
Brass Finish Advisory:
Although durable, brass is prone to oxidation. It can give brass and brass finishes a tarnished look, regardless of how the hardware is initially packaged or stored. For more information, view the Brass Finish Disclaimer found in the Technical References section below.
Attributes
Compliance and Restrictions: Warning Reproductive Harm - www.p65warnings.ca.gov
Diameter: 1 in. (25 mm)
Finish/ Color:: Polished Brass
Glazing Thickness: 3/8 in. To 3/4 in. (10 mm To 19 mm)
Mounting Type: Back-to-Back
Pull Mounting Center To Center: 12 in. (305 mm)
Push Mounting Center To Center: 33 in. (838 mm)
Shipping Limitations: None
