CRL CD12X33DU Dark Bronze 12"x33" Back-to-Back Offset Push Pull Handle SetC.R. Laurence CD12X33DU Dark Bronze 12" x 33" Back-to-Back Offset Combination Push and Pull Handle Set offers a seamless blend of functionality and style for glass installations. Designed for use with 3/8" to 3/4" (10 to 19 mm) thick glass, this handle set features a robust 1" (25 mm) diameter tubing made from high-quality stainless steel or brass, ensuring durability and a polished appearance. Available in a stunning dark bronze finish, the CD12X33DU handle set enhances a variety of architectural aesthetics, making it a versatile choice for both residential and commercial applications. The back-to-back mounting provides an attractive and secure solution, while the offset design allows for easy operation from either side of a door or partition. Installation requires precise glass fabrication, including three 5/8" (16 mm) diameter holes, with center-to-center options of 10", 12", 28", and 33". Each set includes through-bolts for glass mounting and matching finish metal washers with rubber gaskets for a clean, professional look. Elevate your glass entrance or interior system with the C.R. Laurence CD12X33DU handle set, where style meets practicality in every detail.

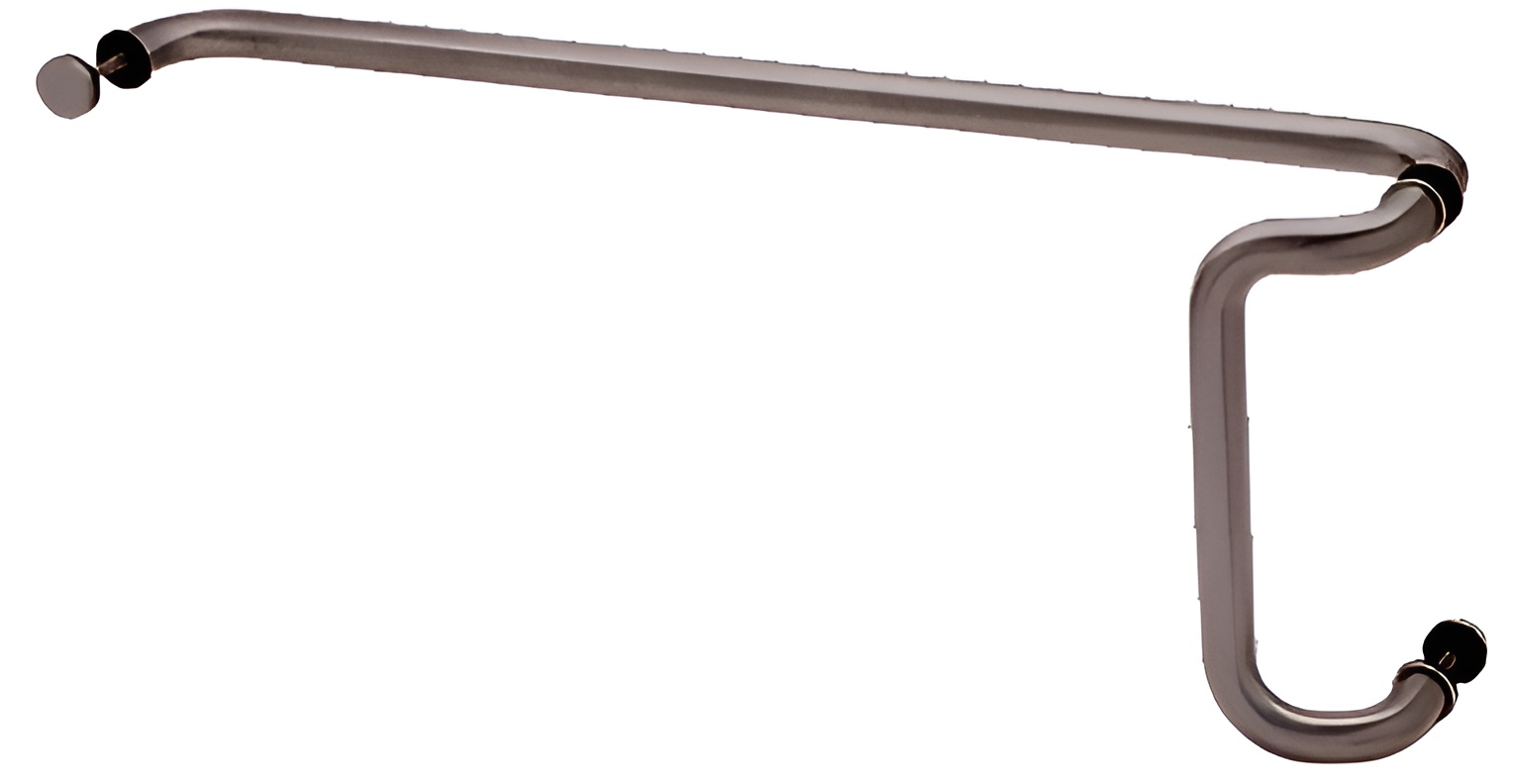

Dark Bronze 12" x 33" Back-to-Back Offset Combination Push and Pull Handle Set
- For Use with 3/8" to 3/4" (10 to 19 mm) Glass
- 1" (25.4 mm) Diameter Stainless Steel or Brass Tubing
- Several Beautiful Architectural Finishes
This
CRL Glass Mounted Straight Push/Pull Handle Combination is available in two different sizes and many attractive architectural finishes.
SPECIFICATIONS:
For Use With: 3/8" to 3/4" (10 to 19 mm) Glass
Construction: 1" (25 mm) Diameter
Stainless Steel or Brass Tubing
Glass Fabrication Required:
Three 5/8" (16 mm) Diameter Holes,
10" (254 mm) Center-to-Center
12" (305 mm) Center-to-Center
28" (711 mm) Center-to-Center
33" (838 mm) Center-to-Center
Offset: 3" (76 mm) Center-to-Center
Optional 1-1/4" (32 mm) Diameter
Available on Special Order
INCLUDES:
2 Each: Through-Bolts for Glass Mounting
4 Each: 1-1/4" (32 mm) Diameter Matching Finish Metal Washers and Rubber Gaskets
Most shipping weights are approximate and have not been verified. If the exact weight is needed in order to determine shipping costs, and shipping costs are required in order for you to complete your order, please request this prior to submitting your order by contacting CRL Customer Service. Product images shown are of the actual product or a close representation. Colors can vary depending on your computer's video card and on how your monitor's color is adjusted.
Attributes
Compliance and Restrictions: Warning Reproductive Harm - www.p65warnings.ca.gov
Diameter: 1 in. (25 mm)
Finish/ Color:: Dark Bronze
Glazing Thickness: 3/8 in. To 3/4 in. (10 mm To 19 mm)
Mounting Type: Back-to-Back
Pull Mounting Center To Center: 12 in. (305 mm)
Push Mounting Center To Center: 33 in. (838 mm)
Shipping Limitations: None
