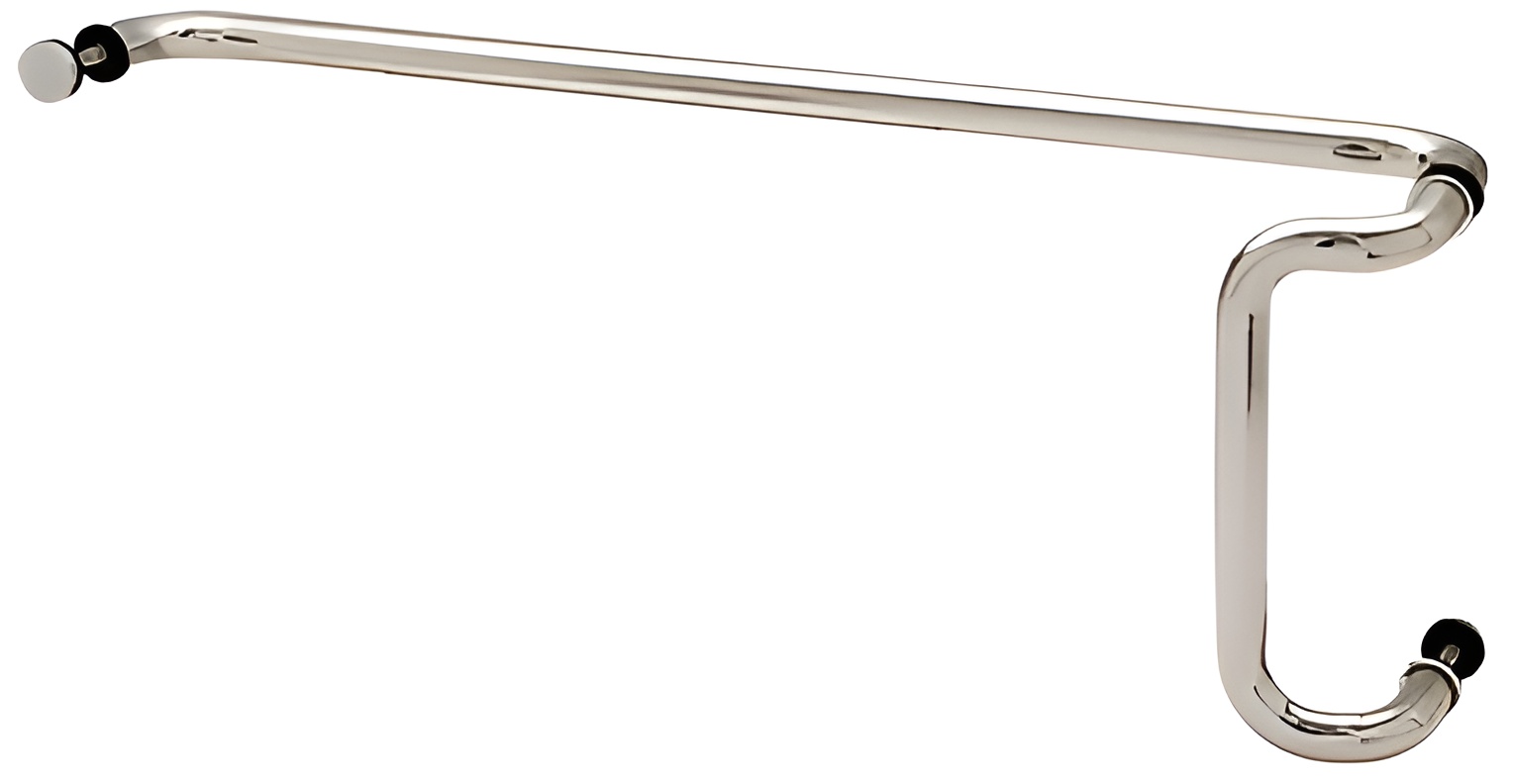

CRL CD12X33PS Polished Stainless 12"x33" Back-to-Back Offset Push-Pull Handle SetC.R. Laurence CD12X33PS Polished Stainless 12" x 33" Back-to-Back Offset Combination Push and Pull Handle Set is the perfect addition to enhance both functionality and style in your architectural projects. Designed for use with glass thicknesses of 3/8" to 3/4" (10 to 19 mm), this versatile handle set features robust 1" (25.4 mm) diameter tubing available in polished stainless steel or brass. The thoughtfully crafted offset design includes a 3" (76 mm) center-to-center spacing, providing a comfortable grip while ensuring durability. With several attractive architectural finishes, you can seamlessly integrate this handle set into a variety of design aesthetics. Glass fabrication requirements include three 5/8" (16 mm) diameter holes, with mounting options available for 10", 12", 28", and 33" (254, 305, 711, and 838 mm) center-to-center configurations. The package includes through-bolts for secure glass mounting, along with matching finish metal washers and rubber gaskets for a complete installation solution. While stainless steel offers excellent corrosion resistance, periodic maintenance is recommended to maintain its factory finish. Elevate your interior spaces with the C.R. Laurence CD12X33PS handle set, where quality meets elegance.
Polished Stainless 12" x 33" Back-to-Back Offset Combination Push and Pull Handle Set
- For Use with 3/8" to 3/4" (10 to 19 mm) Glass
- 1" (25.4 mm) Diameter Stainless Steel or Brass Tubing
- Several Beautiful Architectural Finishes
This
CRL Glass Mounted Straight Push/Pull Handle Combination is available in two different sizes and many attractive architectural finishes.
SPECIFICATIONS:
For Use With: 3/8" to 3/4" (10 to 19 mm) Glass
Construction: 1" (25 mm) Diameter
Stainless Steel or Brass Tubing
Glass Fabrication Required:
Three 5/8" (16 mm) Diameter Holes,
10" (254 mm) Center-to-Center
12" (305 mm) Center-to-Center
28" (711 mm) Center-to-Center
33" (838 mm) Center-to-Center
Offset: 3" (76 mm) Center-to-Center
Optional 1-1/4" (32 mm) Diameter
Available on Special Order
INCLUDES:
2 Each: Through-Bolts for Glass Mounting
4 Each: 1-1/4" (32 mm) Diameter Matching Finish Metal Washers and Rubber Gaskets
Most shipping weights are approximate and have not been verified. If the exact weight is needed in order to determine shipping costs, and shipping costs are required in order for you to complete your order, please request this prior to submitting your order by contacting CRL Customer Service. Product images shown are of the actual product or a close representation. Colors can vary depending on your computer's video card and on how your monitor's color is adjusted.
Stainless Steel Advisory:
Although Stainless Steel is resistant to corrosion, it is not rust or stain proof. CRL recommends periodic maintenance to help maintain its factory finish. For more information, view the Stainless Steel Disclaimer found in the Technical References section below.
Attributes
Compliance and Restrictions: Warning Reproductive Harm - www.p65warnings.ca.gov
Diameter: 1 in. (25 mm)
Finish/ Color:: Polished Stainless Steel
Glazing Thickness: 3/8 in. To 3/4 in. (10 mm To 19 mm)
Mounting Type: Back-to-Back
Pull Mounting Center To Center: 12 in. (305 mm)
Push Mounting Center To Center: 33 in. (838 mm)
Shipping Limitations: None
