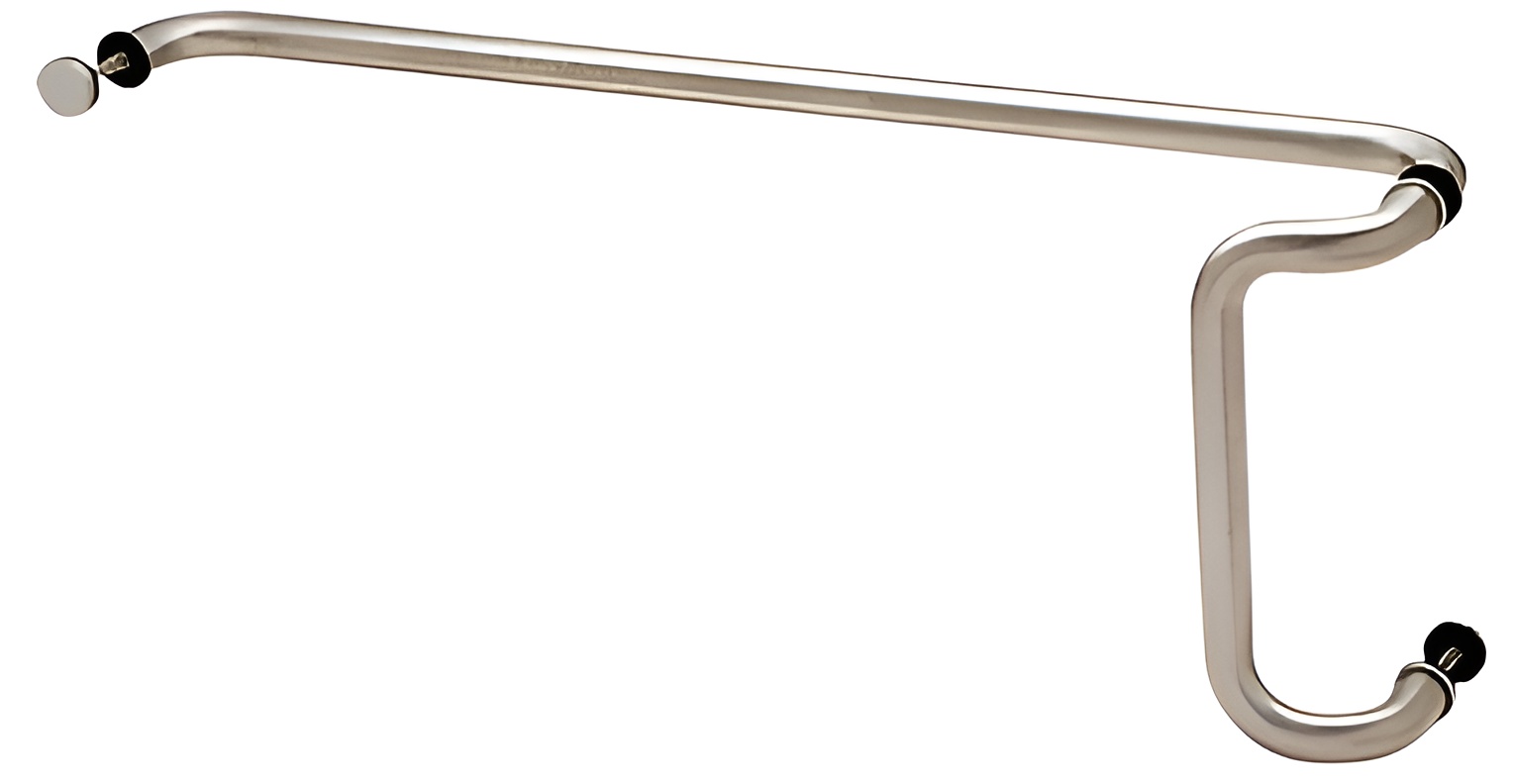

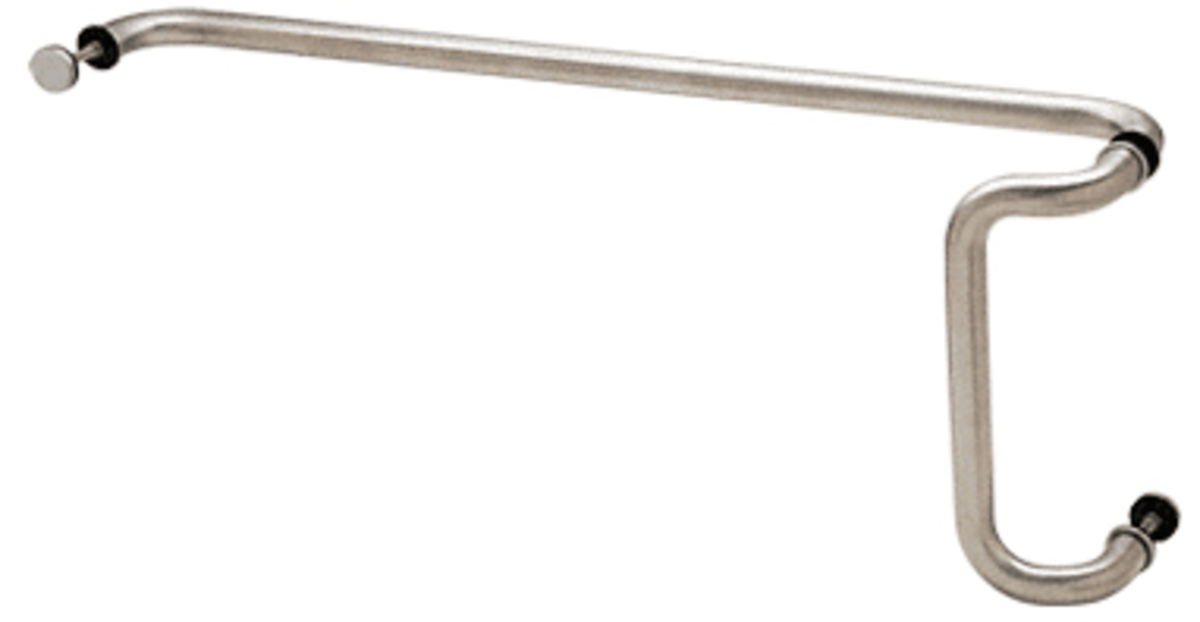

CRL CD12X33SA Satin Anodized 12"x33" Back-to-Back Offset Push-Pull Handle SetC.R. Laurence CD12X33SA Satin Anodized 12" x 33" Back-to-Back Offset Combination Push and Pull Handle Set is designed to elevate both function and aesthetics in your glass installations. Crafted for use with 3/8" to 3/4" (10 to 19 mm) glass, this robust handle set features a 1" (25.4 mm) diameter tubing made from high-quality stainless steel or brass, ensuring durability and a sleek appearance. Available in several stunning architectural finishes, the CD12X33SA offers versatility for various design preferences. The set requires glass fabrication with three 5/8" (16 mm) diameter holes, providing options for 10", 12", 28", and 33" center-to-center measurements. The offset design, featuring a 3" (76 mm) center-to-center distance, allows for easy and comfortable access, making it a perfect choice for both commercial and residential spaces. Included with the handle set are through-bolts for glass mounting, along with matching finish metal washers and rubber gaskets to ensure a seamless installation. With the C.R. Laurence CD12X33SA, you can achieve a sophisticated look while enjoying the reliability that comes from a leading manufacturer in architectural hardware.
Satin Anodized 12" x 33" Back-to-Back Offset Combination Push and Pull Handle Set
- For Use with 3/8" to 3/4" (10 to 19 mm) Glass
- 1" (25.4 mm) Diameter Stainless Steel or Brass Tubing
- Several Beautiful Architectural Finishes
This
CRL Glass Mounted Straight Push/Pull Handle Combination is available in two different sizes and many attractive architectural finishes.
SPECIFICATIONS:
For Use With: 3/8" to 3/4" (10 to 19 mm) Glass
Construction: 1" (25 mm) Diameter
Stainless Steel or Brass Tubing
Glass Fabrication Required:
Three 5/8" (16 mm) Diameter Holes,
10" (254 mm) Center-to-Center
12" (305 mm) Center-to-Center
28" (711 mm) Center-to-Center
33" (838 mm) Center-to-Center
Offset: 3" (76 mm) Center-to-Center
Optional 1-1/4" (32 mm) Diameter
Available on Special Order
INCLUDES:
2 Each: Through-Bolts for Glass Mounting
4 Each: 1-1/4" (32 mm) Diameter Matching Finish Metal Washers and Rubber Gaskets
Most shipping weights are approximate and have not been verified. If the exact weight is needed in order to determine shipping costs, and shipping costs are required in order for you to complete your order, please request this prior to submitting your order by contacting CRL Customer Service. Product images shown are of the actual product or a close representation. Colors can vary depending on your computer's video card and on how your monitor's color is adjusted.
Attributes
Compliance and Restrictions: Warning Reproductive Harm - www.p65warnings.ca.gov
Diameter: 1 in. (25 mm)
Finish/ Color:: Satin Anodized
Glazing Thickness: 3/8 in. To 3/4 in. (10 mm To 19 mm)
Mounting Type: Back-to-Back
Pull Mounting Center To Center: 12 in. (305 mm)
Push Mounting Center To Center: 33 in. (838 mm)
Shipping Limitations: None
