CRL CK387272BA Brite Anodized 72" CK Series Sliding Shower Door Kit for 3/8" GlassC.R. Laurence CK387272BA Brite Anodized 72" x 72" Cottage CK Series Sliding Shower Door Kit with Clear Jambs for 3/8" Glass offers a sophisticated solution for modern bathroom designs. This unique sliding door kit is engineered for use with 3/8" (10 mm) thick monolithic tempered glass, allowing for a sleek, all-glass appearance enhanced by clear polycarbonate side jambs. The kit features bolt-through top hangers that facilitate immediate fabrication and installation, eliminating the wait for adhesives to cure. Available in a stylish Brite Anodized finish and several other options, it complements various décor styles. The complete assembly includes a header, top hangers, clear polycarbonate side jambs, bottom sill, back-to-back knob, and a 24" (610 mm) towel bar, along with nylon rollers and a bottom guide for seamless operation. For optimal performance, the design incorporates overhead rollers, ensuring that the bottom sill remains uncluttered and easy to clean. The maximum opening height and width of 72" (1829 mm) and 72" respectively, make this kit versatile for various enclosure types, including niche and bathtub settings. Custom units are available to meet specific project requirements, making this an ideal choice for both building professionals and discerning homeowners.
Brite Anodized 72" x 72" Cottage CK Series Sliding Shower Door Kit With Clear Jambs for 3/8" Glass
- Designed for Use with 3/8" (10 mm) Thick Glass
- Use Monolithic Tempered Glass
- Bolt-Through Top Hangers Allow Immediate Fabrication and Installation
- Brite Anodized, Brite Gold Anodized, Brushed Nickel, and Oil Rubbed Bronze in Up to Six Stock Sizes
- Custom Units Also Available
CRL Cottage CK Series Sliders are unique in that they utilize clear polycarbonate side jambs instead of traditional metal side jambs, thus providing more of the popular 'all-glass' look. Bolt-Through Top Hangers allow immediate fabrication and installation, with no waiting for messy adhesive to dry. Cottage Series Kits come in Brite Anodized, Brite Gold Anodized, Brushed Nickel, and Oil Rubbed Bronze finishes, with other finishes available on special order.

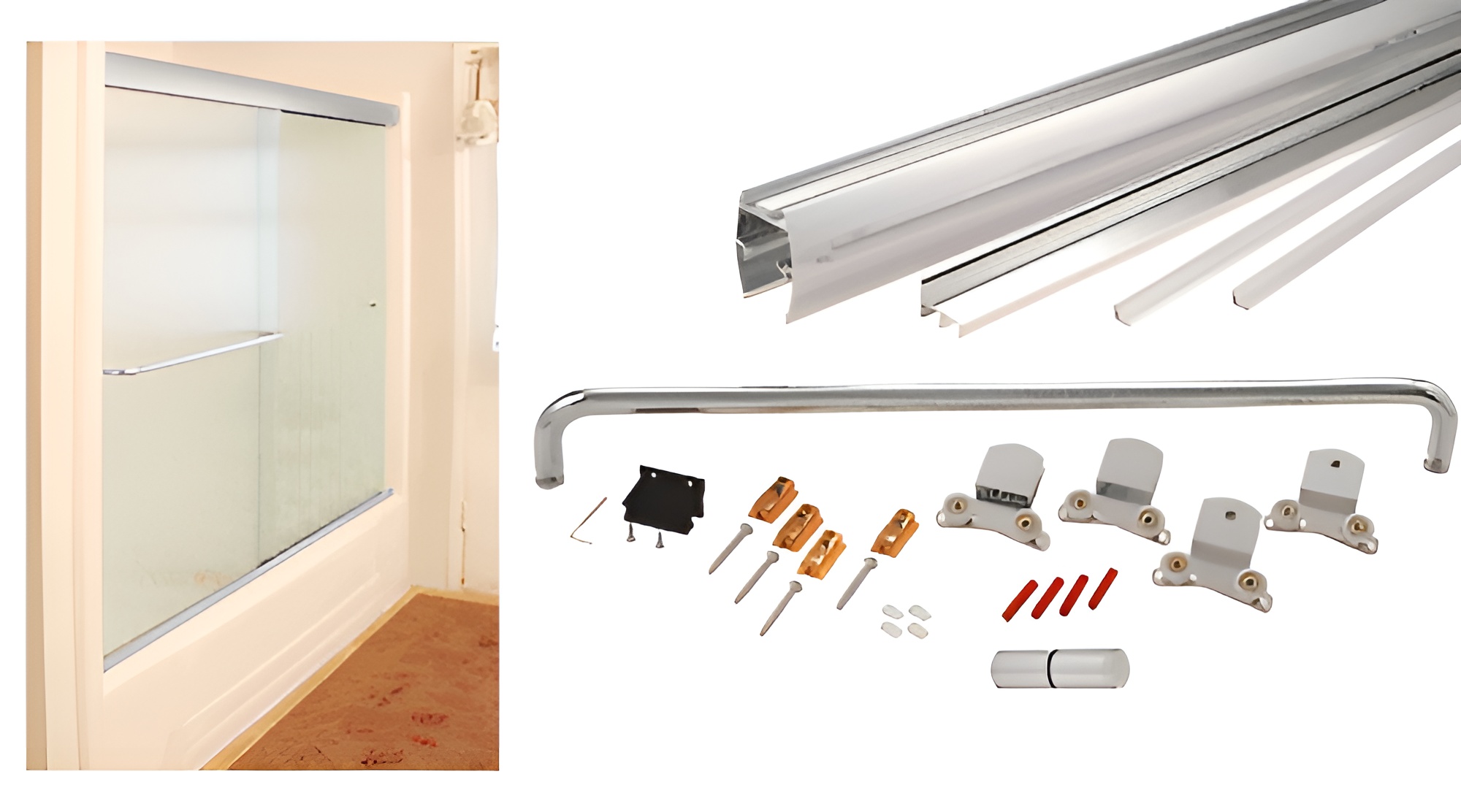

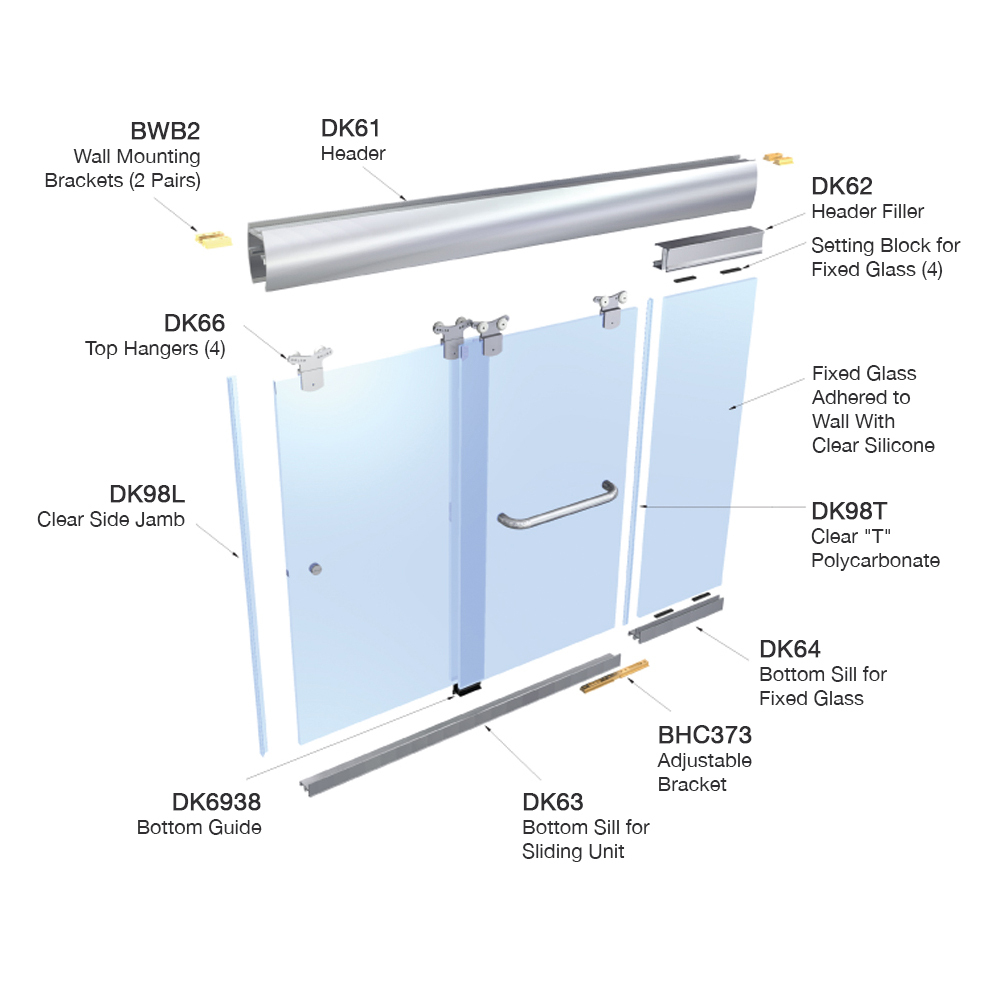

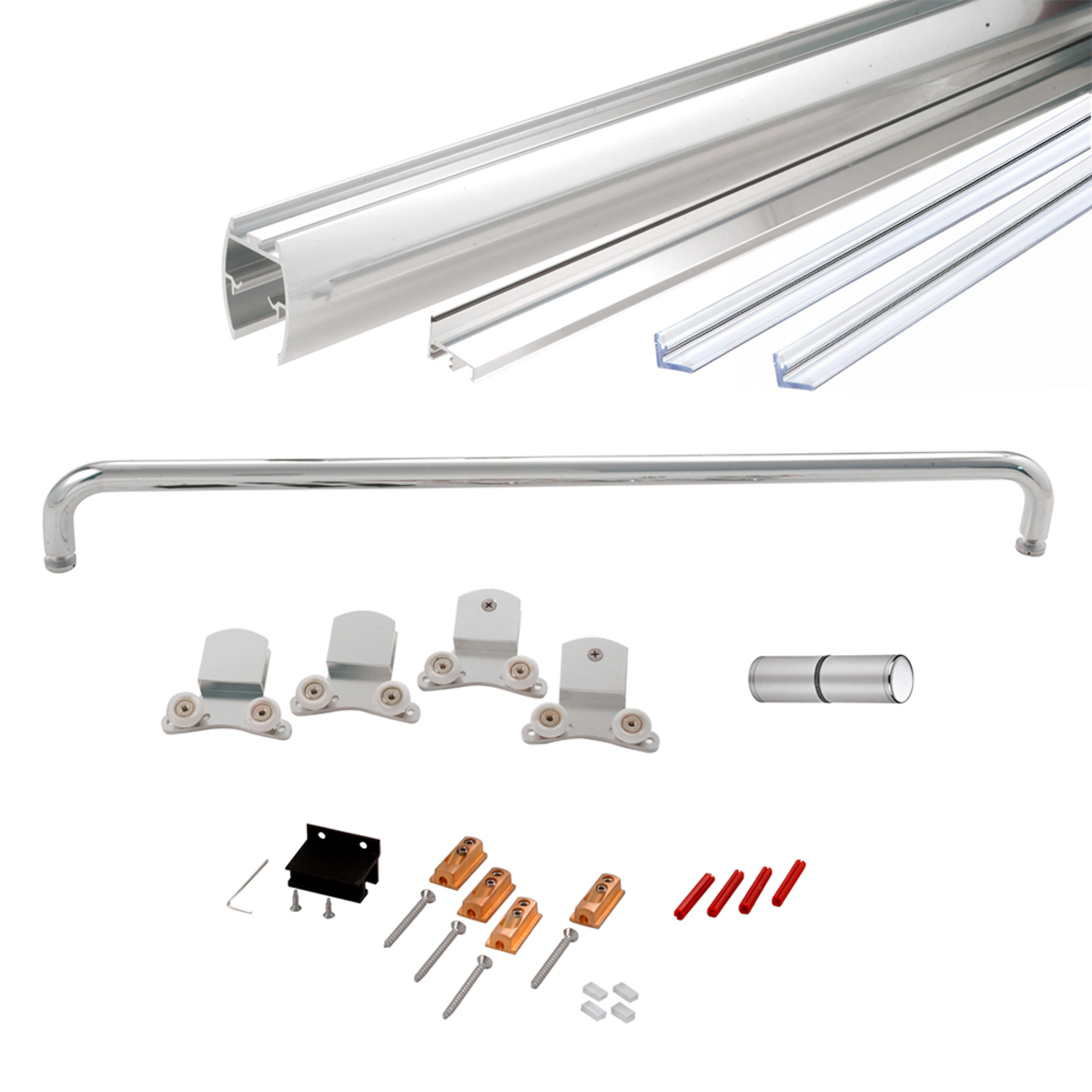

The top hung stock units include: Header, Top Hangers for 3/8" (10 mm) glass, Clear Polycarbonate Side Jambs, Bottom Sill, Back-to-Back Knob, 24" (610 mm) Towel Bar, Nylon Rollers, and Bottom Guide. Tempered glass and silicone sealant are supplied by the installer to complete the installation. Since all rollers are overhead, the Bottom Sill and Clear Side Jambs are uncluttered, making cleaning easy. Available in up to six stock sizes. Extrusions, Bottom Guides, Hardware Packages, and other accessories may be ordered separately as well.
SPECIFICATIONS:
Materials: Extrusions (Aluminum); Side Jambs (Polycarbonate); Towel Bar (Brass Tubing); Knob (Solid Brass)
For Glass Thickness: 3/8" (10 mm) (Glass Not Included in Kit)
Glass Fabrication: Towel Bar – Two 1/2" (12 mm) Diameter Holes, 24" (610 mm) Center-to-Center; Knob – One 1/2" (12 mm) Diameter Hole; Top Hangers – Four 1/2" (12 mm) Diameter Holes (Two Per Glass Panel)
Most shipping weights are approximate and have not been verified. If the exact weight is needed in order to determine shipping costs, and shipping costs are required in order for you to complete your order, please request this prior to submitting your order by contacting CRL Customer Service. Product images shown are of the actual product or a close representation. Colors can vary depending on your computer's video card and on how your monitor's color is adjusted.
Attributes
Ship via: No UPS - Common Carrier Only
Compliance and Restrictions: Warning Reproductive Harm - www.p65warnings.ca.gov
Design Style: Beveled
Enclosure Type: Niche, Bathtub
Finish/ Color:: Brite Anodized
Glazing Thickness: 3/8 in. (10 mm)
Material: Aluminum
Maximum Door Width: 36 in. (914 mm)
Maximum Opening Height: 72 in. (1829 mm)
Maximum Opening Width: 72
Opening Style: Slide
Roller Location: Top
Series: Cottage CK
Shipping Limitations: UPS Oversize Rate
