CRL CM10X10PS Polished Stainless 10" Back-to-Back Glass Pull HandleC.R. Laurence CM10X10PS Polished Stainless 10" Back-to-Back Glass Mounted Standard Pull Handle combines elegance with functionality, making it a perfect choice for modern glass applications. Designed for use with 3/8" to 3/4" (10 to 19 mm) monolithic tempered glass, this pull handle features a robust 1" (25 mm) diameter stainless steel construction, ensuring durability and longevity. Available in five architectural finishes, the CM10X10PS allows for seamless integration into various design aesthetics. The handle projects 3" (76 mm) from the glass face, providing a comfortable grip while enhancing accessibility. Installation is straightforward, as the product comes complete with matching finish metal washers and through-bolts for secure mounting. To install, simply create two 5/8" (16 mm) diameter holes in the glass. For added versatility, this pull handle is stocked in multiple sizes, catering to different project requirements. It's important to note that while stainless steel is resistant to corrosion, periodic maintenance is recommended to preserve its factory finish. Elevate your architectural design with the C.R. Laurence CM10X10PS, where refined style meets practical performance.

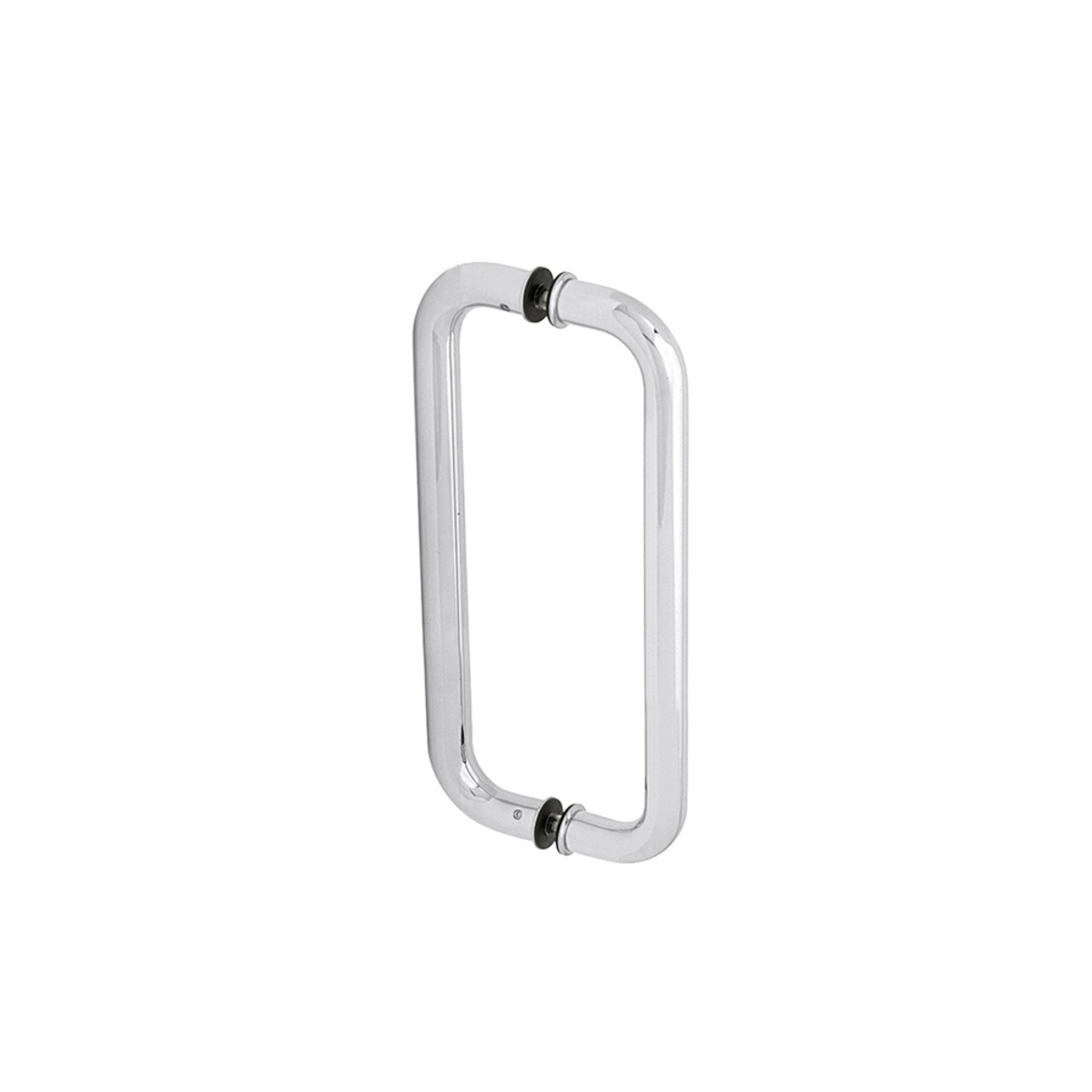

Polished Stainless 10" Back-to-Back Glass Mounted Standard Pull Handle
- Stocked in Up to Five Architectural Finishes
- For Use with 3/8" to 3/4" (10 to 19 mm) Glass
- Complete with Matching Finish Metal Washers and Through-Bolts for Mounting
- Use Monolithic Tempered Glass
This
CRL Glass Mounted Standard Pull Handle is available in three sizes and in many different architectural finishes.
SPECIFICATIONS:
For Use With: 3/8" to 3/4" (10 to 19 mm) Glass
Construction:
1" (25 mm) Diameter Stainless Steel or Brass
Tubing. *1-1/4" (32 mm) Diameter Stainless
Steel (Cat. No. CD24X24BS125 Model only).
Projection: 3" (76 mm) from Face of Glass to Outside of Handle
Glass Fabrication Required:
Two 5/8" (16 mm) Diameter Holes

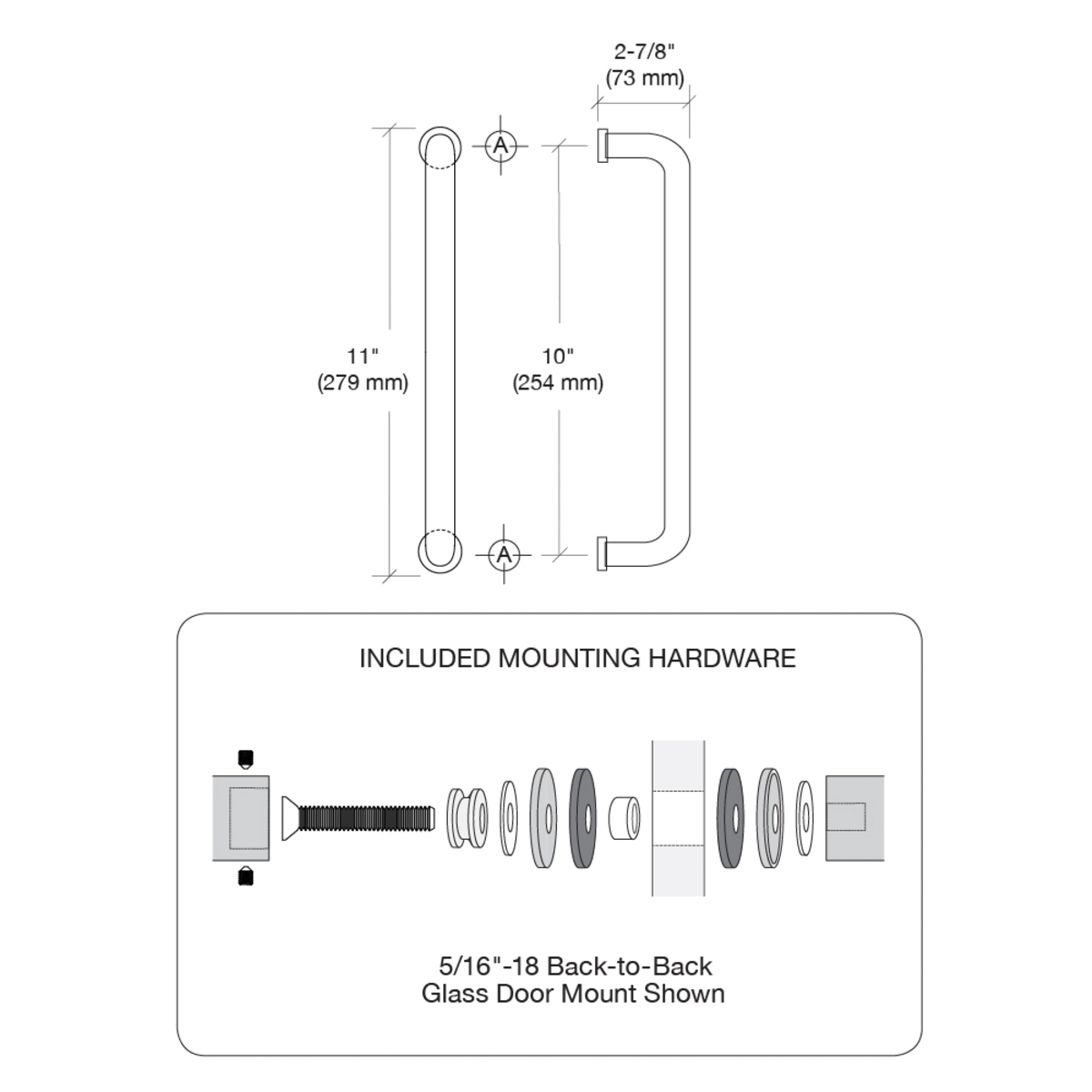

INCLUDES:
2 Each: Through-Bolts for Glass Mounting
4 Each: 1-1/4" (32 mm) Diameter Matching Finish Metal Washers and Rubber Gaskets
Most shipping weights are approximate and have not been verified. If the exact weight is needed in order to determine shipping costs, and shipping costs are required in order for you to complete your order, please request this prior to submitting your order by contacting CRL Customer Service. Product images shown are of the actual product or a close representation. Colors can vary depending on your computer's video card and on how your monitor's color is adjusted.
Stainless Steel Advisory:
Although Stainless Steel is resistant to corrosion, it is not rust or stain proof. CRL recommends periodic maintenance to help maintain its factory finish. For more information, view the Stainless Steel Disclaimer found in the Technical References section below.
Attributes
Compliance and Restrictions: Warning Reproductive Harm - www.p65warnings.ca.gov
Diameter: 1 in. (25 mm)
Finish/ Color:: Polished Stainless Steel
Glazing Thickness: 3/8 in. To 3/4 in. (10 mm To 19 mm)
Material: Stainless Steel
Mounting Center To Center: 10 in. (254 mm)
Mounting Hole Diameter: 5/8 in. (16 mm)
Mounting Type: Back-to-Back
Shipping Limitations: None
Style Washer Diameter: 1-1/4 in. (32 mm)
Style Washers: Yes
