CRL CM12X28BR Brass 12"x28" Back-to-Back Push/Pull Handle SetC.R. Laurence CM12X28BR Brass 12" x 28" Back-to-Back Straight Combination Push and Pull Handle Set is designed for versatility and elegance in glass applications. Ideal for use with 3/8" to 3/4" (10 to 19 mm) monolithic tempered glass, this handle set is constructed from durable 1" (25.4 mm) diameter stainless steel or brass tubing, ensuring both strength and longevity. Available in five stunning architectural finishes, the CM12X28BR allows for seamless integration into various design aesthetics, enhancing the visual appeal of any space. The combination set features two mounting options: a 12" (305 mm) center-to-center pull and a 28" (711 mm) center-to-center push, making it suitable for a wide range of applications. Installation is straightforward, requiring three 5/8" (16 mm) diameter holes for mounting. Each set includes through-bolts for secure glass mounting, along with matching finish metal washers and rubber gaskets to ensure a polished look. While the brass finish offers a classic touch, it is important to note that brass is prone to oxidation, which can impact its appearance over time. For professionals seeking a reliable and stylish solution for glass doors or partitions, the C.R. Laurence CM12X28BR is an exceptional choice.

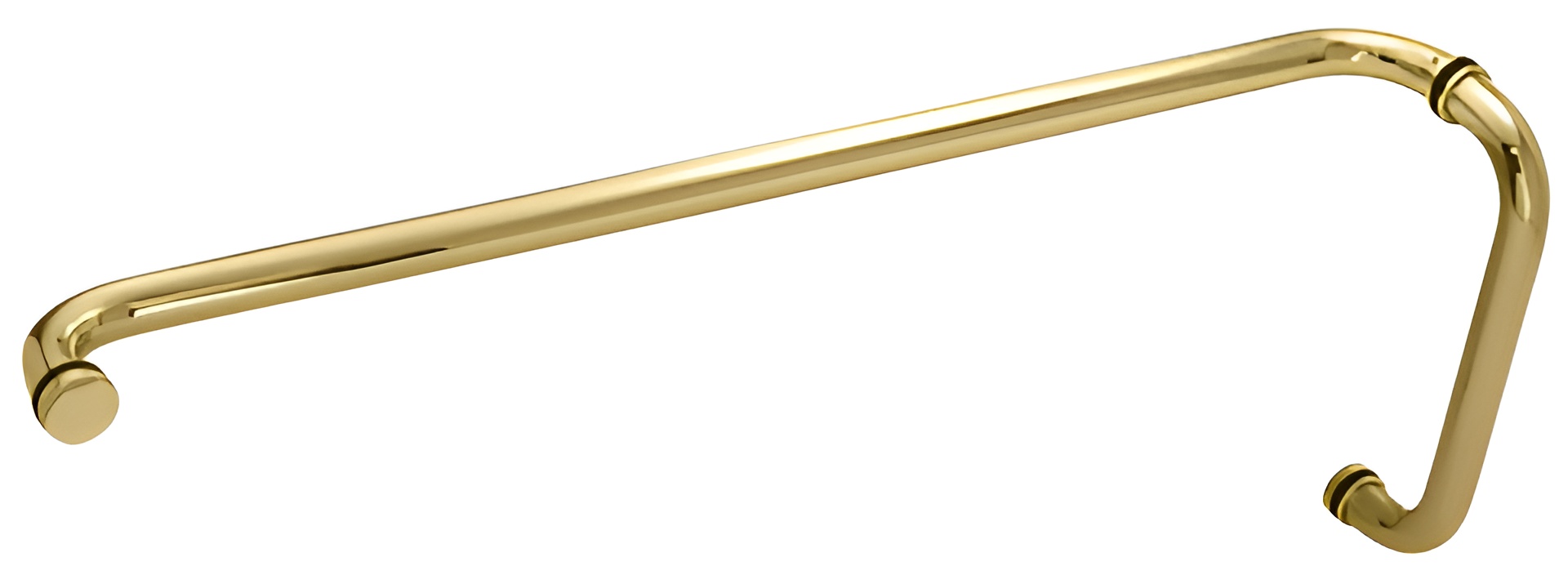

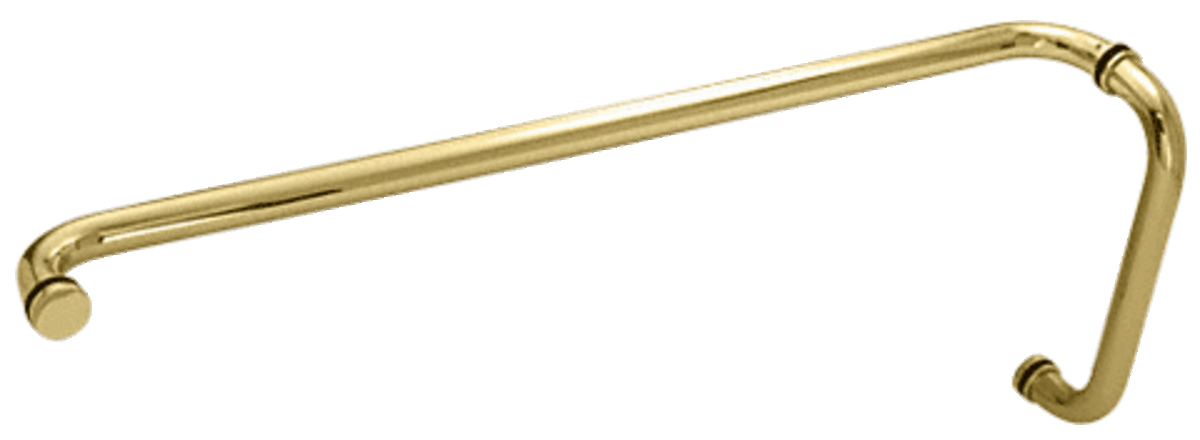

Brass 12" x 28" Back-to-Back Straight Combination Push and Pull Handle Set
- For Use with 3/8" to 3/4" (10 to 19 mm) Glass
- 1" (25.4 mm) Diameter Stainless Steel or Brass Tubing
- Five Beautiful Architectural Finishes
- Use Monolithic Tempered Glass
This
CRL Glass Mounted Straight Push/Pull Handle Combination is available in two different sizes and many attractive architectural finishes.
SPECIFICATIONS:
For Use With: 3/8" to 3/4" (10 to 19 mm) Glass
Construction: 1" (25 mm) Diameter Stainless Steel or Brass Tubing
Glass Fabrication Required:
Three 5/8" (16 mm) Diameter Holes,
10" (254 mm) Center-to-Center
12" (305 mm) Center-to-Center
28" (711 mm) Center-to-Center
33" (838 mm) Center-to-Center
Offset: 3" (76 mm) Center-to-Center
Optional: 1-1/4" (32 mm) Diameter Available on Special Order
INCLUDES:
2 Each: Through-Bolts for Glass Mounting
4 Each: 1-1/4" (32 mm) Diameter Matching Finish Metal Washers and Rubber Gaskets
Most shipping weights are approximate and have not been verified. If the exact weight is needed in order to determine shipping costs, and shipping costs are required in order for you to complete your order, please request this prior to submitting your order by contacting CRL Customer Service. Product images shown are of the actual product or a close representation. Colors can vary depending on your computer's video card and on how your monitor's color is adjusted.
Brass Finish Advisory:
Although durable, brass is prone to oxidation. It can give brass and brass finishes a tarnished look, regardless of how the hardware is initially packaged or stored. For more information, view the Brass Finish Disclaimer found in the Technical References section below.
Attributes
Compliance and Restrictions: Warning Reproductive Harm - www.p65warnings.ca.gov
Diameter: 1 in. (25 mm)
Finish/ Color:: Polished Brass
Glazing Thickness: 3/8 in. To 3/4 in. (10 mm To 19 mm)
Mounting Hole Diameter: 5/8 in. (16 mm)
Mounting Type: Back-to-Back
Pull Mounting Center To Center: 12 in. (305 mm)
Push Mounting Center To Center: 28 in. (711 mm)
Shipping Limitations: None
Style Washer Diameter: 1-1/4 in. (32 mm)
Style Washers: Yes
