CRL CM12X28BS Brushed Stainless 12"x28" Back-to-Back Push/Pull Handle SetC.R. Laurence CM12X28BS Brushed Stainless 12" x 28" Back-to-Back Straight Combination Push and Pull Handle Set offers a perfect blend of style and functionality for modern glass installations. Designed for use with 3/8" to 3/4" (10 to 19 mm) monolithic tempered glass, this handle set is constructed from robust 1" (25.4 mm) diameter stainless steel or brass tubing, ensuring durability and longevity. Available in five elegant architectural finishes, the CM12X28BS enhances the aesthetic of any entryway or interior space. The precise glass fabrication requires three 5/8" (16 mm) diameter holes, with mounting options at various center-to-center distances: 10", 12", 28", and 33". With a convenient offset of 3" (76 mm) center-to-center, it caters to diverse design needs. Included with the handle set are through-bolts for glass mounting, along with matching finish metal washers and rubber gaskets, which facilitate a clean and professional installation. While stainless steel is inherently resistant to corrosion, regular maintenance is recommended to preserve its factory finish. Elevate your architectural projects with the C.R. Laurence CM12X28BS, a reliable choice for building professionals and discerning homeowners alike.

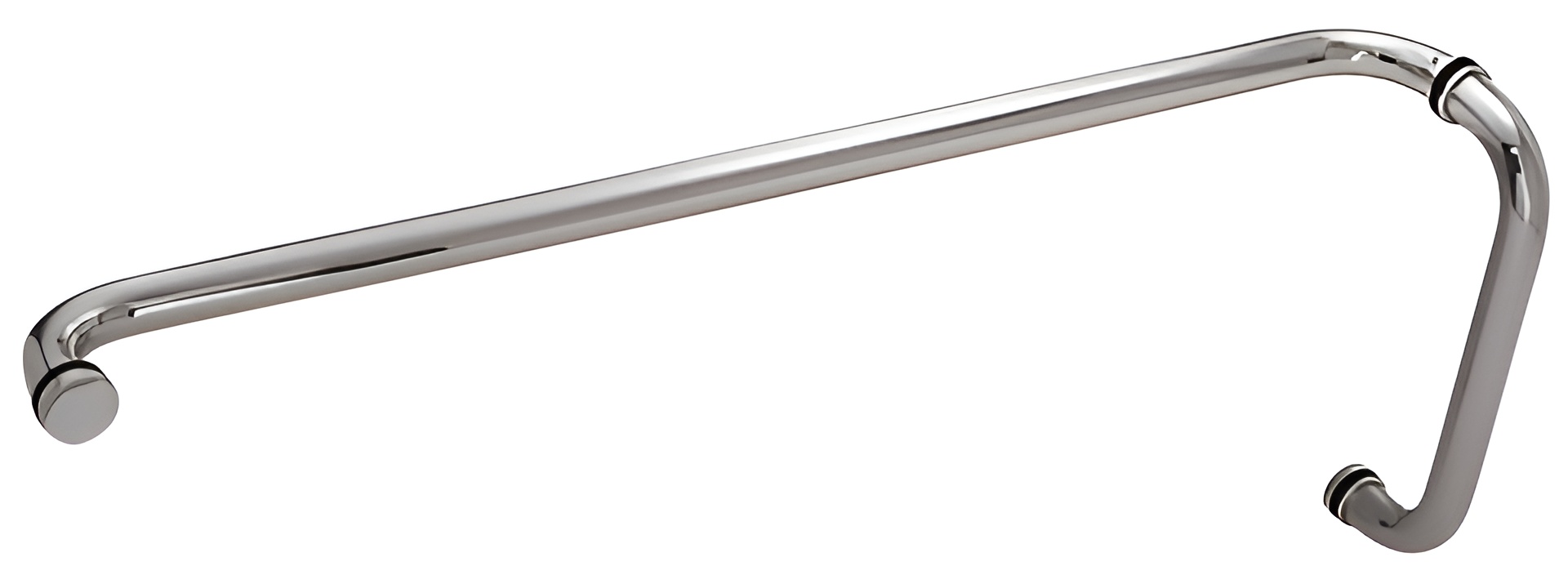

Brushed Stainless 12" x 28" Back-to-Back Straight Combination Push and Pull Handle Set
- For Use with 3/8" to 3/4" (10 to 19 mm) Glass
- 1" (25.4 mm) Diameter Stainless Steel or Brass Tubing
- Five Beautiful Architectural Finishes
- Use Monolithic Tempered Glass
This
CRL Glass Mounted Straight Push/Pull Handle Combination is available in two different sizes and many attractive architectural finishes.
SPECIFICATIONS:
For Use With: 3/8" to 3/4" (10 to 19 mm) Glass
Construction: 1" (25 mm) Diameter Stainless Steel or Brass Tubing
Glass Fabrication Required:
Three 5/8" (16 mm) Diameter Holes,
10" (254 mm) Center-to-Center
12" (305 mm) Center-to-Center
28" (711 mm) Center-to-Center
33" (838 mm) Center-to-Center
Offset: 3" (76 mm) Center-to-Center
Optional: 1-1/4" (32 mm) Diameter Available on Special Order
INCLUDES:
2 Each: Through-Bolts for Glass Mounting
4 Each: 1-1/4" (32 mm) Diameter Matching Finish Metal Washers and Rubber Gaskets
Most shipping weights are approximate and have not been verified. If the exact weight is needed in order to determine shipping costs, and shipping costs are required in order for you to complete your order, please request this prior to submitting your order by contacting CRL Customer Service. Product images shown are of the actual product or a close representation. Colors can vary depending on your computer's video card and on how your monitor's color is adjusted.
Stainless Steel Advisory:
Although Stainless Steel is resistant to corrosion, it is not rust or stain proof. CRL recommends periodic maintenance to help maintain its factory finish. For more information, view the Stainless Steel Disclaimer found in the Technical References section below.
Attributes
Compliance and Restrictions: Warning Reproductive Harm - www.p65warnings.ca.gov
Diameter: 1 in. (25 mm)
Finish/ Color:: Brushed Stainless Steel
Glazing Thickness: 3/8 in. To 3/4 in. (10 mm To 19 mm)
Mounting Hole Diameter: 5/8 in. (16 mm)
Mounting Type: Back-to-Back
Pull Mounting Center To Center: 12 in. (305 mm)
Push Mounting Center To Center: 28 in. (711 mm)
Shipping Limitations: None
Style Washer Diameter: 1-1/4 in. (32 mm)
Style Washers: Yes
