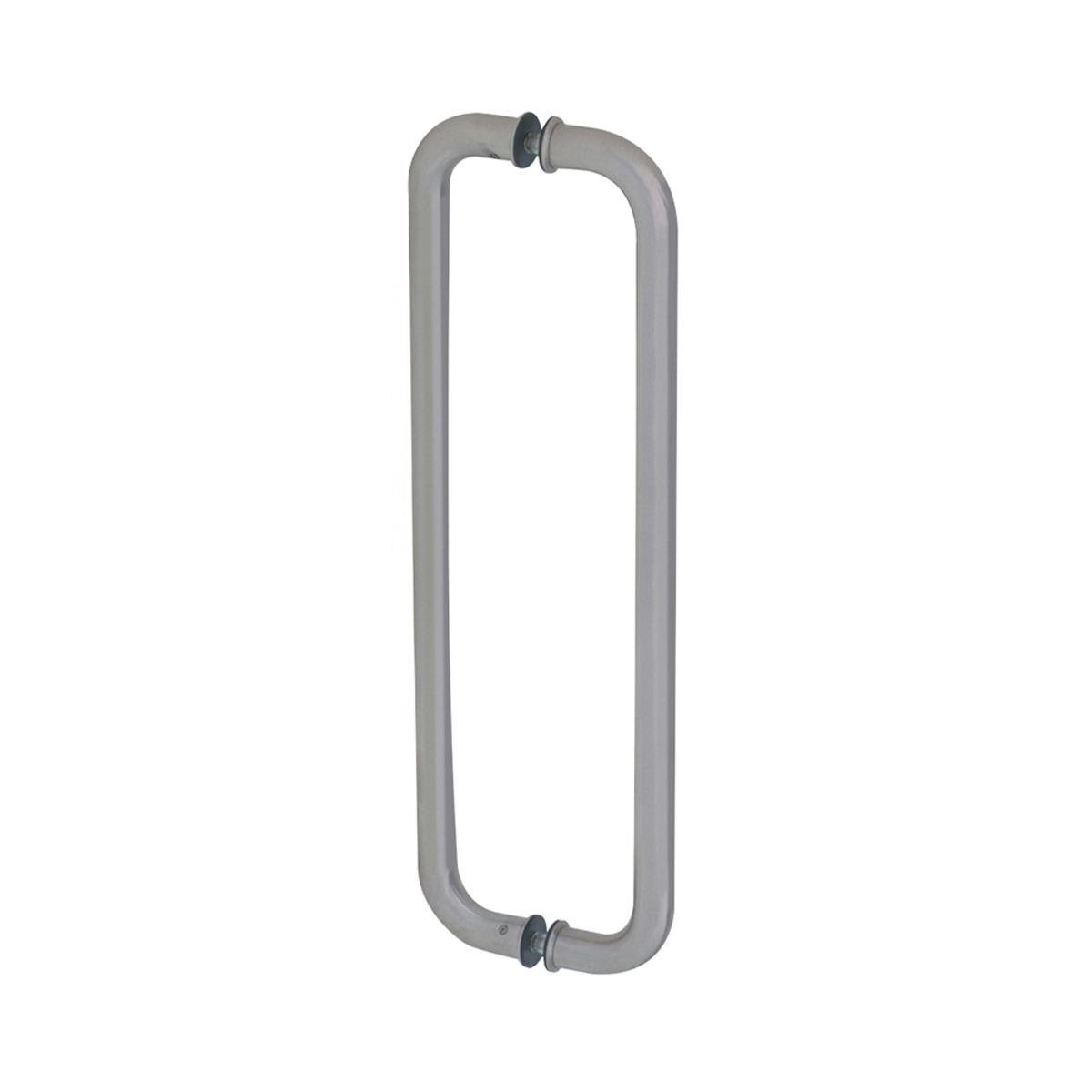

CRL CM18X18BS Brushed Stainless 18" Back-to-Back Glass Pull HandleC.R. Laurence CM18X18BS Brushed Stainless 18" Glass Mounted Back-to-Back Standard Pull Handle offers a sleek, modern solution for glass doors, enhancing both functionality and style. Crafted from high-quality brushed stainless steel, this pull handle is designed to fit seamlessly with 3/8" to 3/4" (10 mm to 19 mm) monolithic tempered glass, ensuring compatibility with a variety of installations. This model features a substantial 1" (25 mm) diameter tubing, providing a sturdy grip while maintaining a sophisticated aesthetic. The handle projects 3" (76 mm) from the face of the glass, offering ample space for easy access. Installation is straightforward, thanks to the inclusion of matching finish metal washers, rubber gaskets, and two through-bolts for secure mounting. Available in multiple architectural finishes, the CM18X18BS can be tailored to suit your design preferences. The mounting holes require a simple 5/8" (16 mm) diameter drill, making it an efficient choice for any professional or DIY project. Keep in mind that while stainless steel is resistant to corrosion, regular maintenance is recommended to retain its factory finish. Elevate your space with this stylish and durable pull handle, ideal for any contemporary setting.

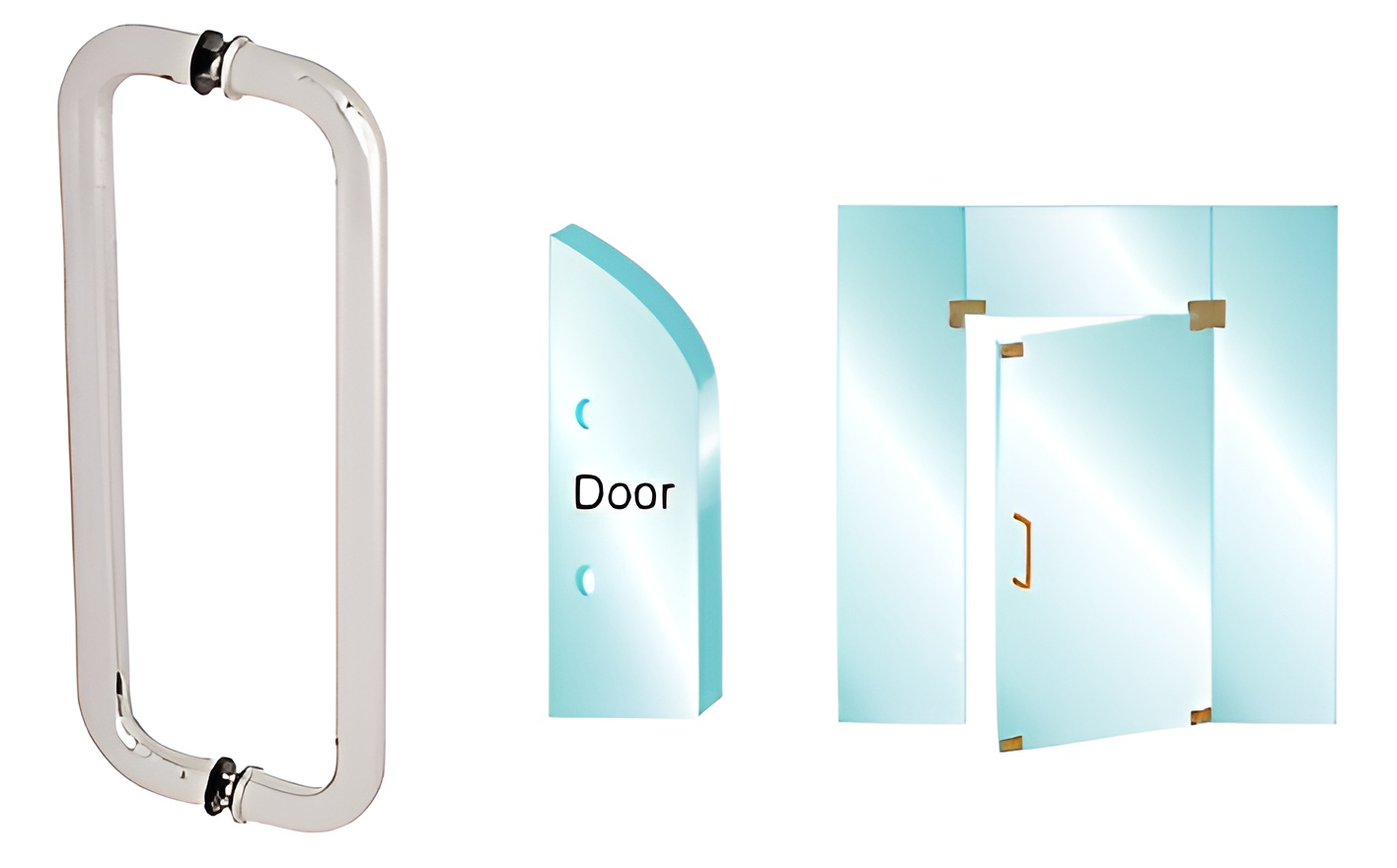

Brushed Stainless 18" Glass Mounted Back-to-Back Standard Pull Handle
- Stocked in Up to Five Architectural Finishes
- For Use with 3/8" to 3/4" (10 to 19 mm) Glass
- Complete with Matching Finish Metal Washers and Through-Bolts for Mounting
- Use Monolithic Tempered Glass
This
CRL Glass Mounted Standard Pull Handle is available in three sizes and in many different architectural finishes.

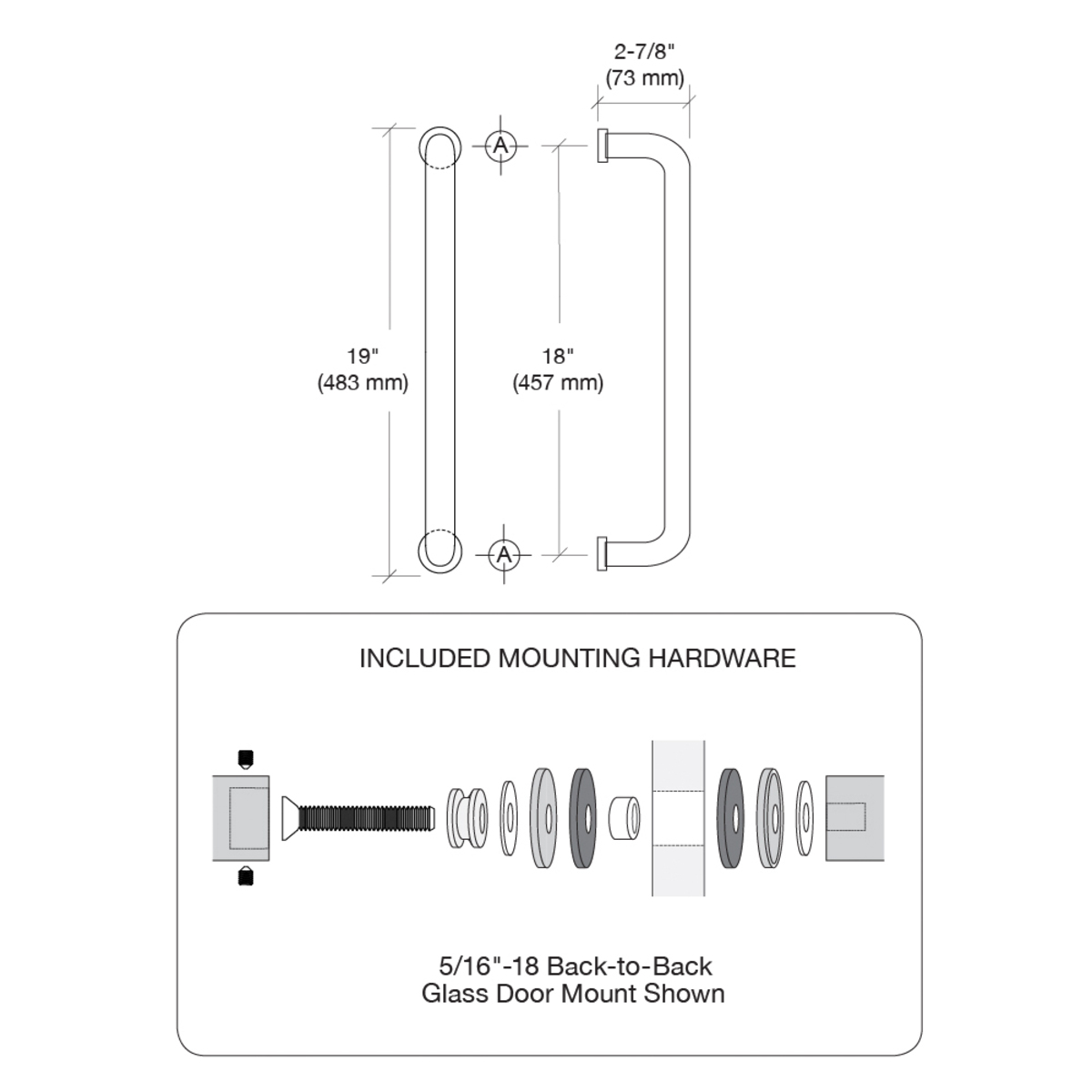

SPECIFICATIONS:
For Use With: 3/8" to 3/4" (10 to 19 mm) Glass
Construction:
1" (25 mm) Diameter Stainless Steel or Brass
Tubing. *1-1/4" (32 mm) Diameter Stainless
Steel (Cat. No. CD24X24BS125 Model only).
Projection: 3" (76 mm) from Face of Glass to Outside of Handle
Glass Fabrication Required:
Two 5/8" (16 mm) Diameter Holes
INCLUDES:
2 Each: Through-Bolts for Glass Mounting
4 Each: 1-1/4" (32 mm) Diameter Matching Finish Metal Washers and Rubber Gaskets
Most shipping weights are approximate and have not been verified. If the exact weight is needed in order to determine shipping costs, and shipping costs are required in order for you to complete your order, please request this prior to submitting your order by contacting CRL Customer Service. Product images shown are of the actual product or a close representation. Colors can vary depending on your computer's video card and on how your monitor's color is adjusted.
Stainless Steel Advisory:
Although Stainless Steel is resistant to corrosion, it is not rust or stain proof. CRL recommends periodic maintenance to help maintain its factory finish. For more information, view the Stainless Steel Disclaimer found in the Technical References section below.
Attributes
Compliance and Restrictions: Warning Reproductive Harm - www.p65warnings.ca.gov
Diameter: 1 in. (25 mm)
Finish/ Color:: Brushed Stainless Steel
Glazing Thickness: 3/8 in. To 3/4 in. (10 mm To 19 mm)
Material: Stainless Steel
Mounting Center To Center: 18 in. (457 mm)
Mounting Hole Diameter: 5/8 in. (16 mm)
Mounting Type: Back-to-Back
Shipping Limitations: None
Style Washer Diameter: 1-1/4 in. (32 mm)
Style Washers: Yes
