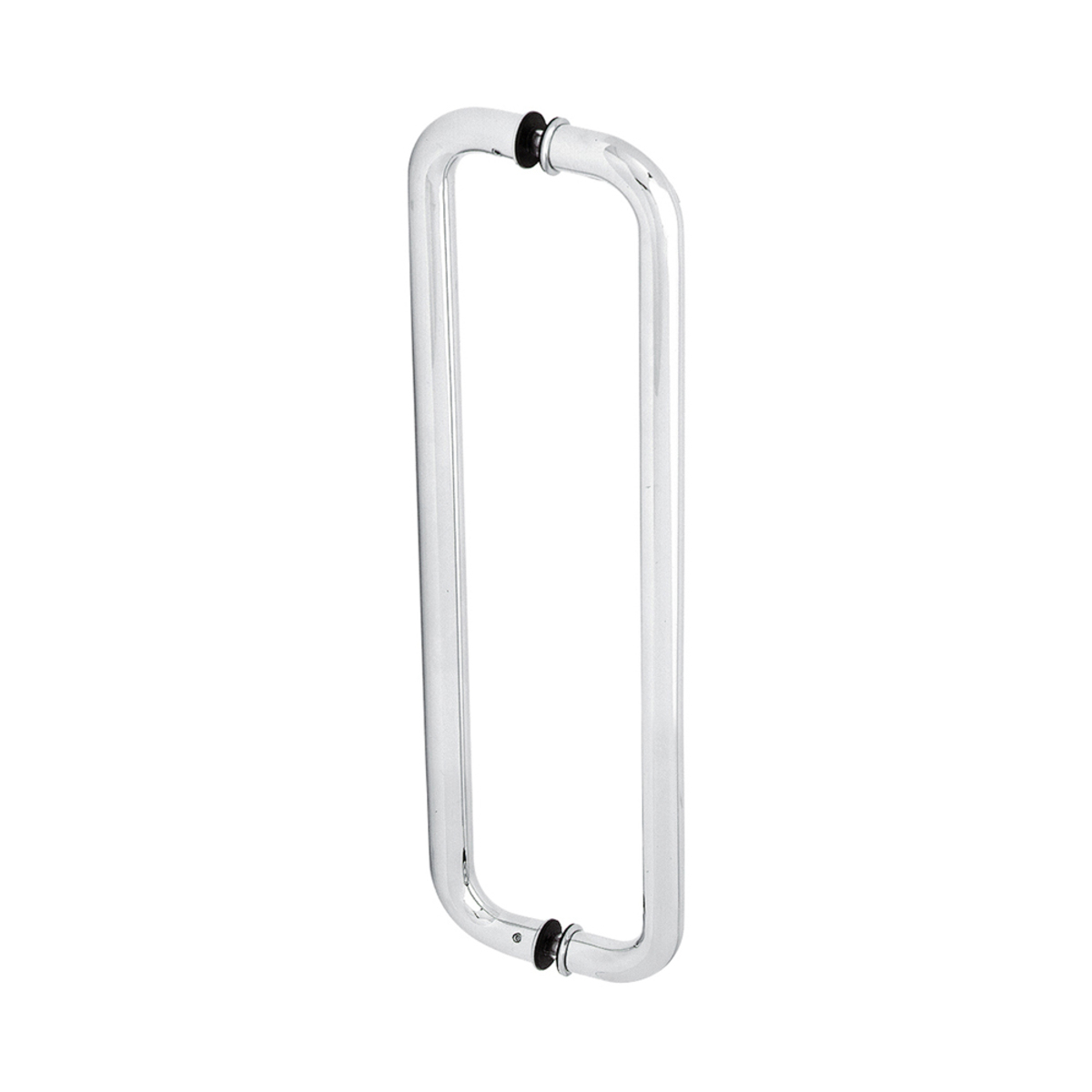

CRL CM18X18PS Polished Stainless 18" Back-to-Back Glass Pull HandleC.R. Laurence CM18X18PS Polished Stainless 18" Glass Mounted Back-to-Back Standard Pull Handle offers a sleek and modern design, perfect for enhancing the aesthetics of any glass installation. Designed for use with 3/8" to 3/4" (10 to 19 mm) thick monolithic tempered glass, this pull handle ensures both durability and functionality. Constructed from high-quality polished stainless steel, the handle features a 1" (25 mm) diameter tubing that provides a robust grip. With a projection of 3" (76 mm) from the glass, it allows for comfortable use while maintaining a streamlined look. The handle is stocked in up to five architectural finishes, offering versatility to match any design scheme. Installation is made simple with the inclusion of matching finish metal washers and through-bolts for secure mounting. Each handle requires two 5/8" (16 mm) diameter holes in the glass for proper installation. The center-to-center mounting distance of 18" (457 mm) makes it ideal for a variety of applications. For maintenance, periodic care is recommended to preserve the handle's factory finish, ensuring long-lasting beauty and performance. Elevate your glass doors or partitions with the C.R. Laurence pull handle, where style meets strength.
Polished Stainless 18" Glass Mounted Back-to-Back Standard Pull Handle
- Stocked in Up to Five Architectural Finishes
- For Use with 3/8" to 3/4" (10 to 19 mm) Glass
- Complete with Matching Finish Metal Washers and Through-Bolts for Mounting
- Use Monolithic Tempered Glass
This
CRL Glass Mounted Standard Pull Handle is available in three sizes and in many different architectural finishes.
SPECIFICATIONS:
For Use With: 3/8" to 3/4" (10 to 19 mm) Glass
Construction:
1" (25 mm) Diameter Stainless Steel or Brass
Tubing. *1-1/4" (32 mm) Diameter Stainless
Steel (Cat. No. CD24X24BS125 Model only).
Projection: 3" (76 mm) from Face of Glass to Outside of Handle

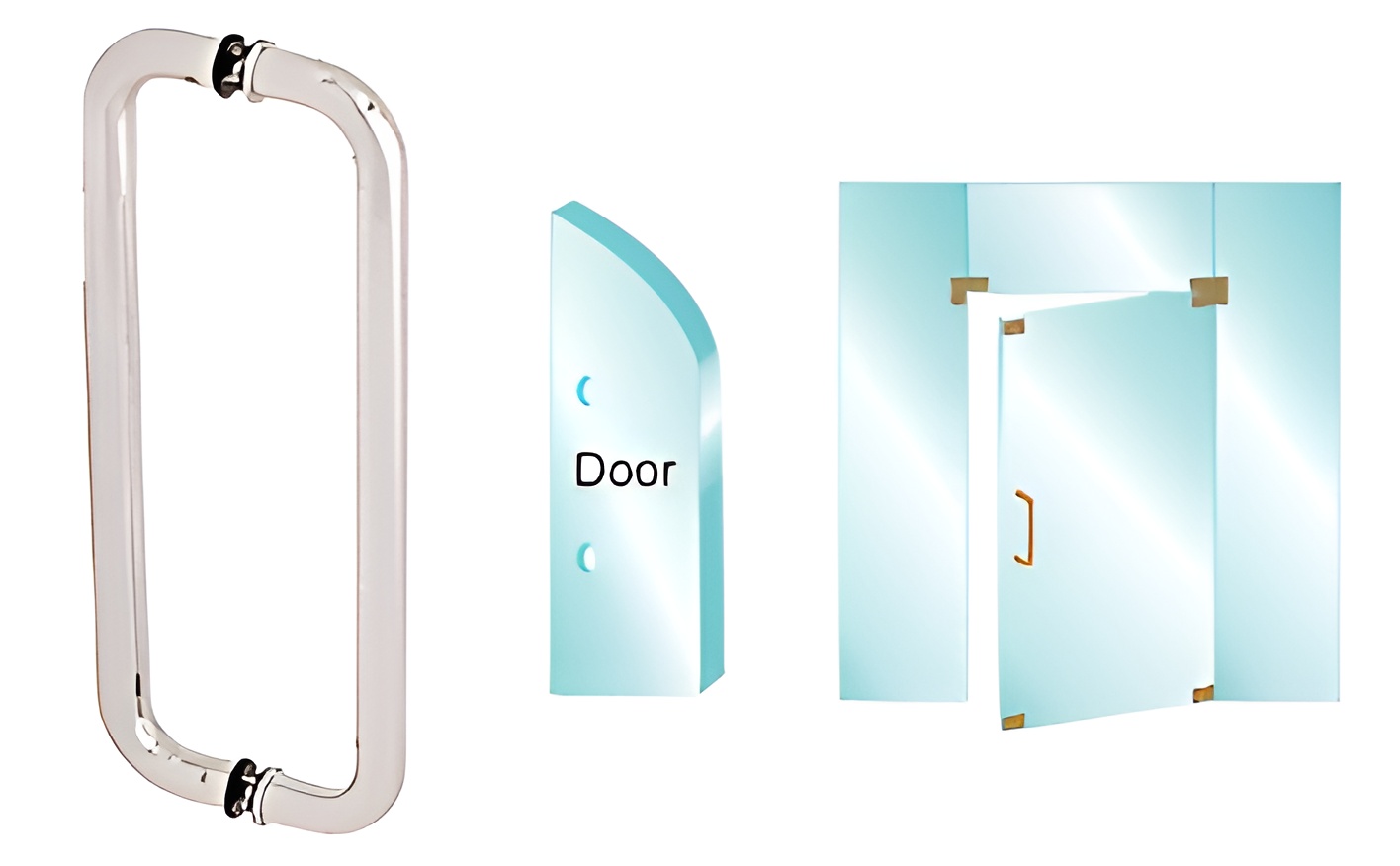

Glass Fabrication Required:
Two 5/8" (16 mm) Diameter Holes
INCLUDES:
2 Each: Through-Bolts for Glass Mounting
4 Each: 1-1/4" (32 mm) Diameter Matching Finish Metal Washers and Rubber Gaskets
Most shipping weights are approximate and have not been verified. If the exact weight is needed in order to determine shipping costs, and shipping costs are required in order for you to complete your order, please request this prior to submitting your order by contacting CRL Customer Service. Product images shown are of the actual product or a close representation. Colors can vary depending on your computer's video card and on how your monitor's color is adjusted.
Stainless Steel Advisory:
Although Stainless Steel is resistant to corrosion, it is not rust or stain proof. CRL recommends periodic maintenance to help maintain its factory finish. For more information, view the Stainless Steel Disclaimer found in the Technical References section below.
Attributes
Compliance and Restrictions: Warning Reproductive Harm - www.p65warnings.ca.gov
Diameter: 1 in. (25 mm)
Finish/ Color:: Polished Stainless Steel
Glazing Thickness: 3/8 in. To 3/4 in. (10 mm To 19 mm)
Material: Stainless Steel
Mounting Center To Center: 18 in. (457 mm)
Mounting Hole Diameter: 5/8 in. (16 mm)
Mounting Type: Back-to-Back
Shipping Limitations: None
Style Washer Diameter: 1-1/4 in. (32 mm)
Style Washers: Yes
