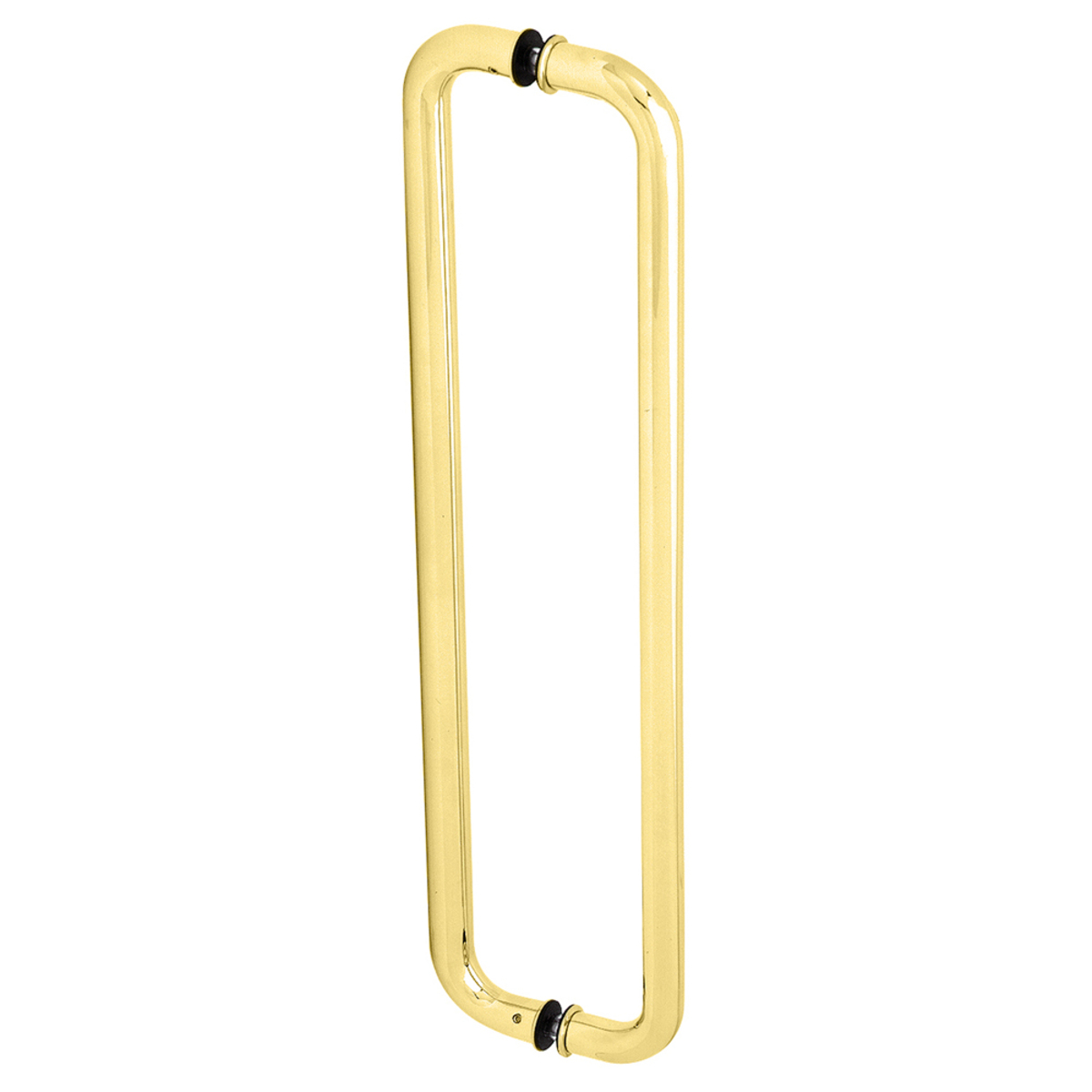

CRL CM24X24BR Brass 24" Back-to-Back Glass Pull HandleC.R. Laurence CM24X24BR Brass 24" Glass Mounted Back-to-Back Standard Pull Handle offers an elegant solution for enhancing glass doors and entrance systems. Designed for use with monolithic tempered glass ranging from 3/8" to 3/4" (10 to 19 mm) thick, this sturdy pull handle is constructed from high-quality brass with a 1" (25 mm) diameter tubing, ensuring both durability and aesthetic appeal. Available in multiple architectural finishes, including polished brass, the CM24X24BR integrates seamlessly into various design schemes. The handle features a 3" (76 mm) center-to-center offset, providing a comfortable grip while maintaining a sleek profile. Installation is straightforward, as it comes complete with matching finish metal washers and through-bolts for secure mounting. To achieve optimal results, the glass fabrication requires two 5/8" (16 mm) diameter holes. The pull handle not only enhances the functionality of your glass doors but also adds a touch of sophistication to any environment. Please note that while brass is a durable material, it may be prone to oxidation over time, which can affect its appearance. For those looking to elevate their architectural projects, the C.R. Laurence CM24X24BR is an ideal choice that combines style and strength.
Brass 24" Glass Mounted Back-to-Back Standard Pull Handle
- Stocked in Up to Five Architectural Finishes
- For Use with 3/8" to 3/4" (10 to 19 mm) Glass
- Complete with Matching Finish Metal Washers and Through-Bolts for Mounting
- Use Monolithic Tempered Glass
This
CRL Glass Mounted Standard Pull Handle is available in three sizes and in many different architectural finishes.
SPECIFICATIONS:
For Use With: 3/8" to 3/4" (10 to 19 mm) Glass
Construction:
1" (25 mm) Diameter Stainless Steel or Brass
Tubing. *1-1/4" (32 mm) Diameter Stainless
Steel (Cat. No. CD24X24BS125 Model only).

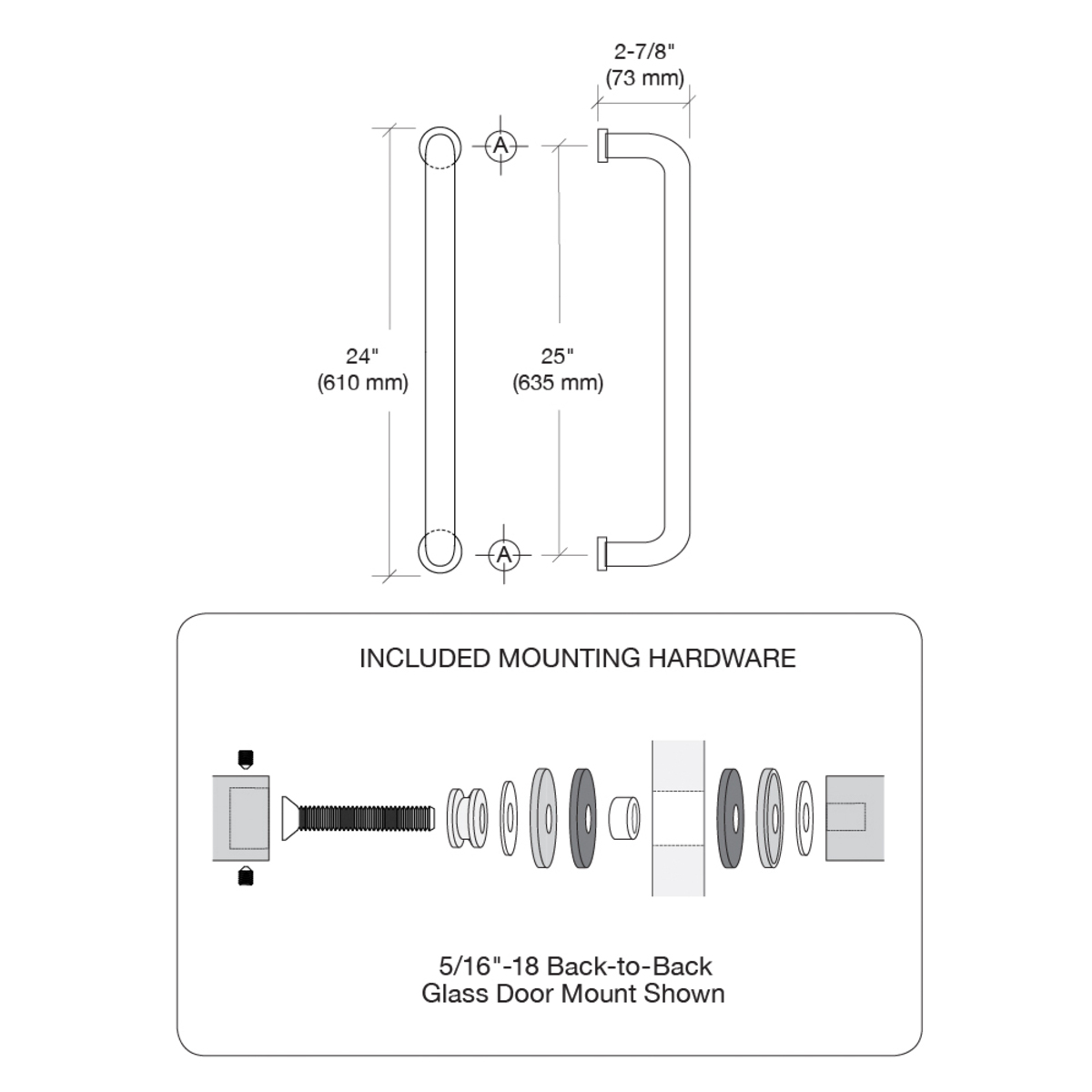

Offset: 3" (76 mm) Center-to-Center

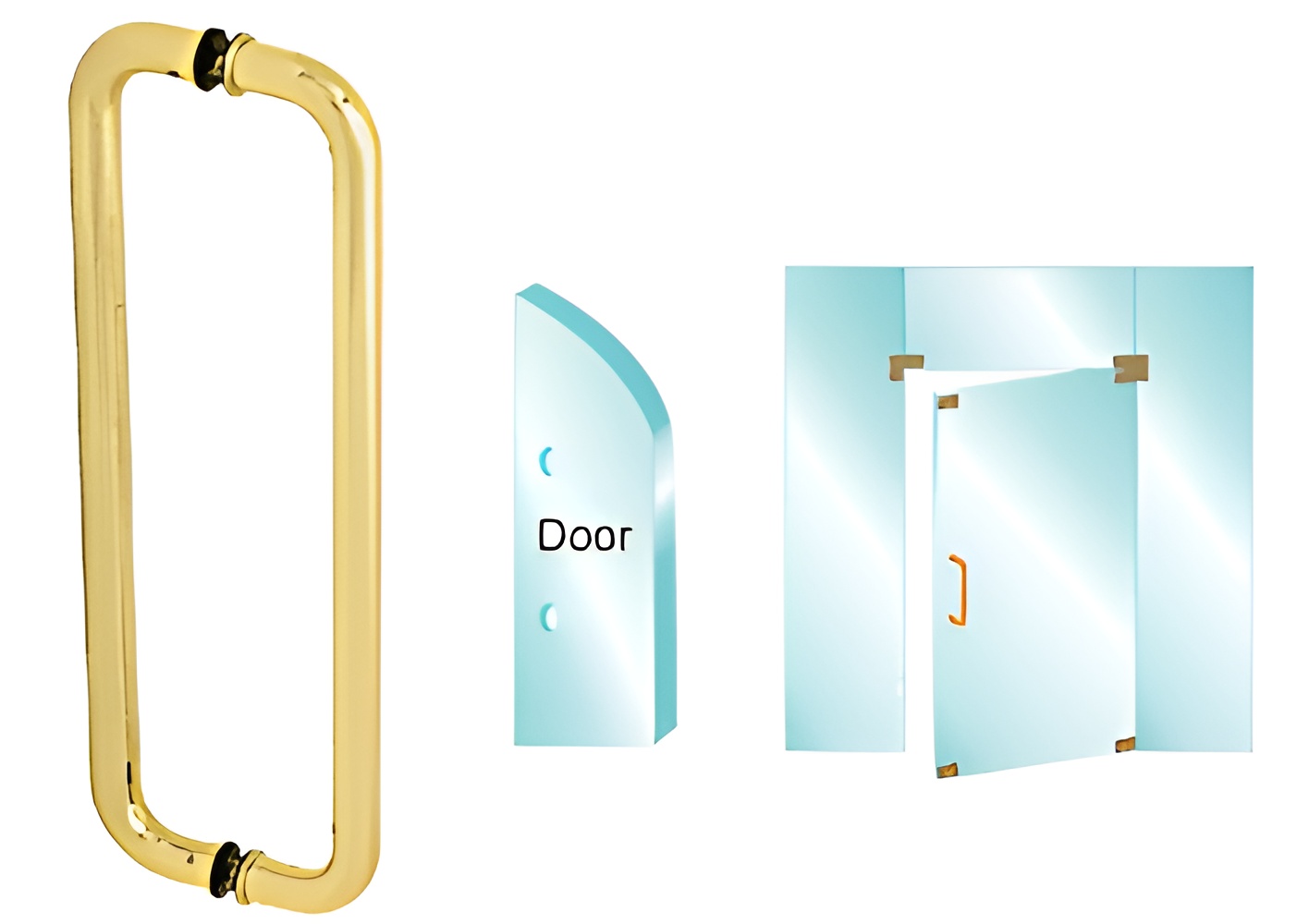

Glass Fabrication Required:
Two 5/8" (16 mm) Diameter Holes
INCLUDES:
2 Each: Through-Bolts for Glass Mounting
4 Each: 1-1/4" (32 mm) Diameter Matching Finish Metal Washers and Rubber Gaskets
Most shipping weights are approximate and have not been verified. If the exact weight is needed in order to determine shipping costs, and shipping costs are required in order for you to complete your order, please request this prior to submitting your order by contacting CRL Customer Service. Product images shown are of the actual product or a close representation. Colors can vary depending on your computer's video card and on how your monitor's color is adjusted.
Brass Finish Advisory:
Although durable, brass is prone to oxidation. It can give brass and brass finishes a tarnished look, regardless of how the hardware is initially packaged or stored. For more information, view the Brass Finish Disclaimer found in the Technical References section below.
Attributes
Compliance and Restrictions: Warning Reproductive Harm - www.p65warnings.ca.gov
Diameter: 1 in. (25.4 mm)
Finish/ Color:: Polished Brass
Glazing Thickness: 3/8 in. To 3/4 in. (10 mm To 19 mm)
Mounting Center To Center: 24 in. (610 mm)
Mounting Hole Diameter: 5/8 in. (16 mm)
Mounting Type: Back-to-Back
Shipping Limitations: None
Style Washer Diameter: 1-1/4 in. (32 mm)
Style Washers: Yes
Resources
