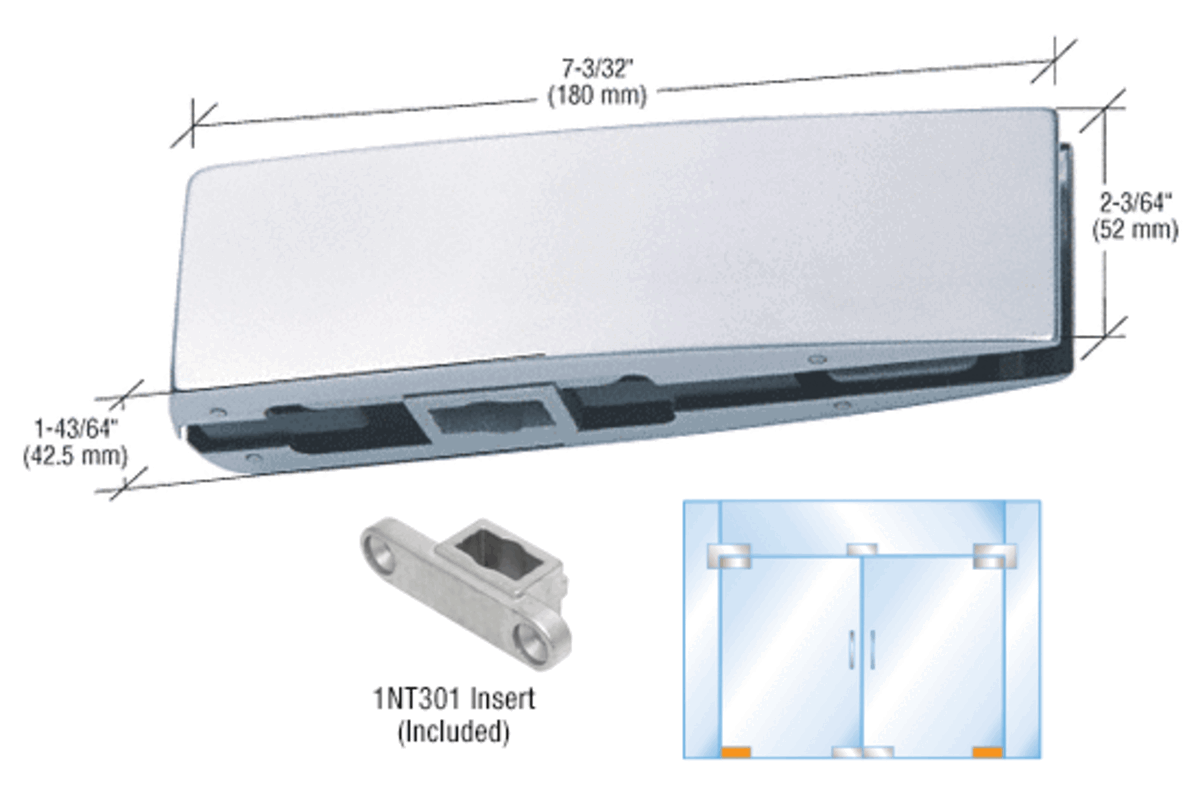

CRL CPF10CBS Brushed Stainless Curved Bottom Door Patch with 1NT301 Insert

Your Price: $66.73

Retail Price:$79.88

Your Savings:$13.15(16%)

The CRL CPF10CBS Curved Bottom Door Patch offers durable brushed stainless steel construction, compatible with 3/8" or 1/2" tempered glass.

Part Number : CRL_CPF10CBS

Availability: 8 In Stock

Quantity

Description

CRL CPF10CBS Brushed Stainless Curved Bottom Door Patch with 1NT301 Insert

C.R. Laurence CPF10CBS Brushed Stainless Curved Bottom Door Patch with 1NT301 Insert is an exemplary choice for those seeking a reliable and stylish solution for door hardware. Designed for use with 3/8" or 1/2" (10 or 12 mm) monolithic tempered glass, this patch fitting offers versatility and ease of installation. It includes the 1NT301 insert, compatible with tapered style spindle floor closers or free-swing pivots, ensuring smooth operation. The CPF10CBS features a pivot setback of 2-11/16" (68 mm), which is crucial for proper alignment and function. It supports doors with a maximum height of 102" (2.59 m), weight of 194 lbs. (88 kg), and width of 42" (1.09 m). For doors exceeding these dimensions, full door rails should be employed. Installation is straightforward, thanks to the included template and instructions. Notably, it requires a 3/4" (19 mm) diameter hole and corner notch for glass fabrication. However, it's important to note that these fittings are not suitable for laminated glass. Crafted in brushed stainless steel, this product combines durability with an elegant finish. Regular maintenance is recommended to preserve its factory appearance. Elevate your architectural design with the reliable performance of the C.R. Laurence CPF10CBS.

Brushed Stainless Curved Bottom Door Patch with 1NT301 Insert

2-11/16" (68 mm) Pivot Setback
For 3/8" or 1/2" (10 or 12 mm) Glass
Use Monolithic Tempered Glass

The CRL Curved Bottom Door Patch Fitting includes the Catalog Number 1NT301 Insert for use with tapered style spindle Floor Closers or Free-Swing Pivots. Gaskets are supplied that allow this Patch Fitting to be used with either 3/8" or 1/2" (10 or 12 mm) Glass.

The following guidelines are to be used when making a door using this hardware:
Maximum Height: 102" (2.59 m)
Maximum Weight: 194 lbs. (88 kg)
Maximum Width: 42" (1.09 m)

If the door exceeds any of these limitations, full door rails should be used.

GLASS FABRICATION REQUIRED:
One 3/4" (19 mm) Diameter
Hole and Corner Notch

COMES WITH:
Template and Instructions

IMPORTANT NOTE: Bottom Pivots or Floor Closer must be set to 2-11/16" (68 mm) setback to work with this patch fitting.

Product Warning:

These fittings are not for use with Laminated Glass.

Most shipping weights are approximate and have not been verified. If the exact weight is needed in order to determine shipping costs, and shipping costs are required in order for you to complete your order, please request this prior to submitting your order by contacting CRL Customer Service. Product images shown are of the actual product or a close representation. Colors can vary depending on your computer's video card and on how your monitor's color is adjusted.

Stainless Steel Advisory:

Although Stainless Steel is resistant to corrosion, it is not rust or stain proof. CRL recommends periodic maintenance to help maintain its factory finish. For more information, view the Stainless Steel Disclaimer found in the Technical References section below.

Attributes

Compliance and Restrictions: Warning Reproductive Harm - www.p65warnings.ca.gov

Finish/ Color:: Brushed Stainless Steel

Glazing Thickness: 3/8 in., 1/2 in. (10 mm, 12 mm)

Insert Type: 1NT301

Pivot Setback: 2-11/16

Series: Curved

Shipping Limitations: None

Type: Bottom

With Insert: Yes
