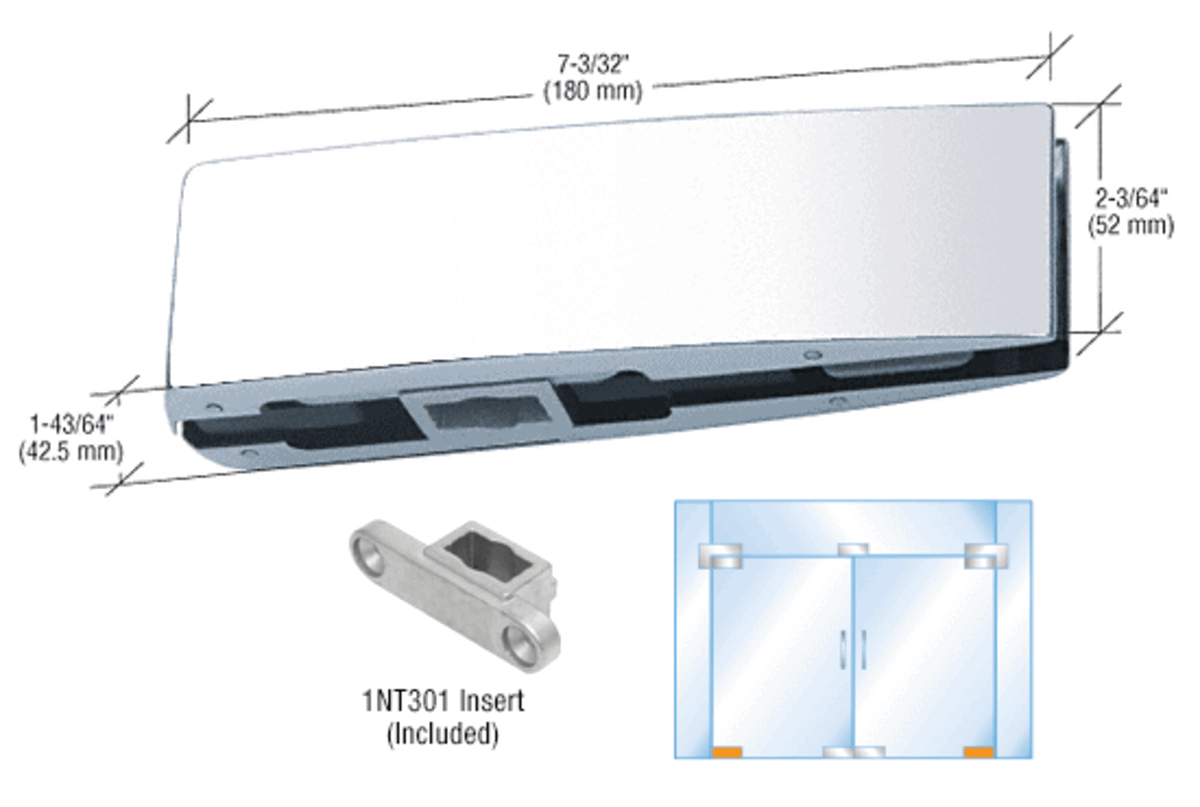

CRL CPF10CPS Polished Stainless Curved Bottom Door Patch with 1NT301 Insert

Your Price: $105.07

Retail Price:$125.78

Your Savings:$20.71(16%)

The CRL CPF10CPS Curved Bottom Door Patch offers polished stainless steel durability for 3/8" or 1/2" tempered glass applications.

Part Number : CRL_CPF10CPS

Availability: 1 In Stock

Quantity

Description

CRL CPF10CPS Polished Stainless Curved Bottom Door Patch with 1NT301 Insert

C.R. Laurence CPF10CPS Polished Stainless Curved Bottom Door Patch with 1NT301 Insert is designed for high-performance door applications, combining elegance with functionality. This patch fitting accommodates either 3/8" or 1/2" (10 or 12 mm) monolithic tempered glass, offering versatility for various projects. With a pivot setback of 2-11/16" (68 mm), it seamlessly integrates with tapered style spindle floor closers or free-swing pivots. Engineered for maximum efficiency, this fitting supports door heights of up to 102" (2.59 m), weights up to 194 lbs. (88 kg), and widths up to 42" (1.09 m). For larger doors, the use of full door rails is recommended to ensure structural integrity. Glass fabrication requires a 3/4" (19 mm) diameter hole and corner notch, and comprehensive installation instructions and templates are provided to simplify the setup process. Constructed from polished stainless steel, the CPF10CPS not only enhances aesthetic appeal but also offers corrosion resistance, though periodic maintenance is advised to maintain its finish. Please note that this fitting is not compatible with laminated glass. Elevate your architectural projects with the reliability and sophistication of C.R. Laurence’s curated solutions.

Polished Stainless Curved Bottom Door Patch with 1NT301 Insert

2-11/16" (68 mm) Pivot Setback
For 3/8" or 1/2" (10 or 12 mm) Glass
Use Monolithic Tempered Glass

The CRL Curved Bottom Door Patch Fitting includes the Catalog Number 1NT301 Insert for use with tapered style spindle Floor Closers or Free-Swing Pivots. Gaskets are supplied that allow this Patch Fitting to be used with either 3/8" or 1/2" (10 or 12 mm) Glass.

The following guidelines are to be used when making a door using this hardware:

Maximum Height: 102" (2.59 m)
Maximum Weight: 194 lbs. (88kg)
Maximum Width: 42" (1.09 m)

If the door exceeds any of these limitations, full door rails should be used.

GLASS FABRICATION REQUIRED:
One 3/4" (19 mm) Diameter
Hole and Corner Notch

COMES WITH:
Template and Instructions

IMPORTANT NOTE: Bottom Pivots or Floor Closer must be set to 2-11/16" (68 mm) setback to work with this patch fitting.

Product Warning:

These fittings are not for use with Laminated Glass.

Most shipping weights are approximate and have not been verified. If the exact weight is needed in order to determine shipping costs, and shipping costs are required in order for you to complete your order, please request this prior to submitting your order by contacting CRL Customer Service. Product images shown are of the actual product or a close representation. Colors can vary depending on your computer's video card and on how your monitor's color is adjusted.

Stainless Steel Advisory:

Although Stainless Steel is resistant to corrosion, it is not rust or stain proof. CRL recommends periodic maintenance to help maintain its factory finish. For more information, view the Stainless Steel Disclaimer found in the Technical References section below.

Attributes

Compliance and Restrictions: Warning Reproductive Harm - www.p65warnings.ca.gov

Finish/ Color:: Polished Stainless Steel

Glazing Thickness: 3/8 in., 1/2 in. (10 mm, 12 mm)

Insert Type: 1NT301

Pivot Setback: 2-11/16

Series: Curved

Shipping Limitations: None

Type: Bottom

With Insert: Yes
